1 6
SKU: TAV-NET-1M

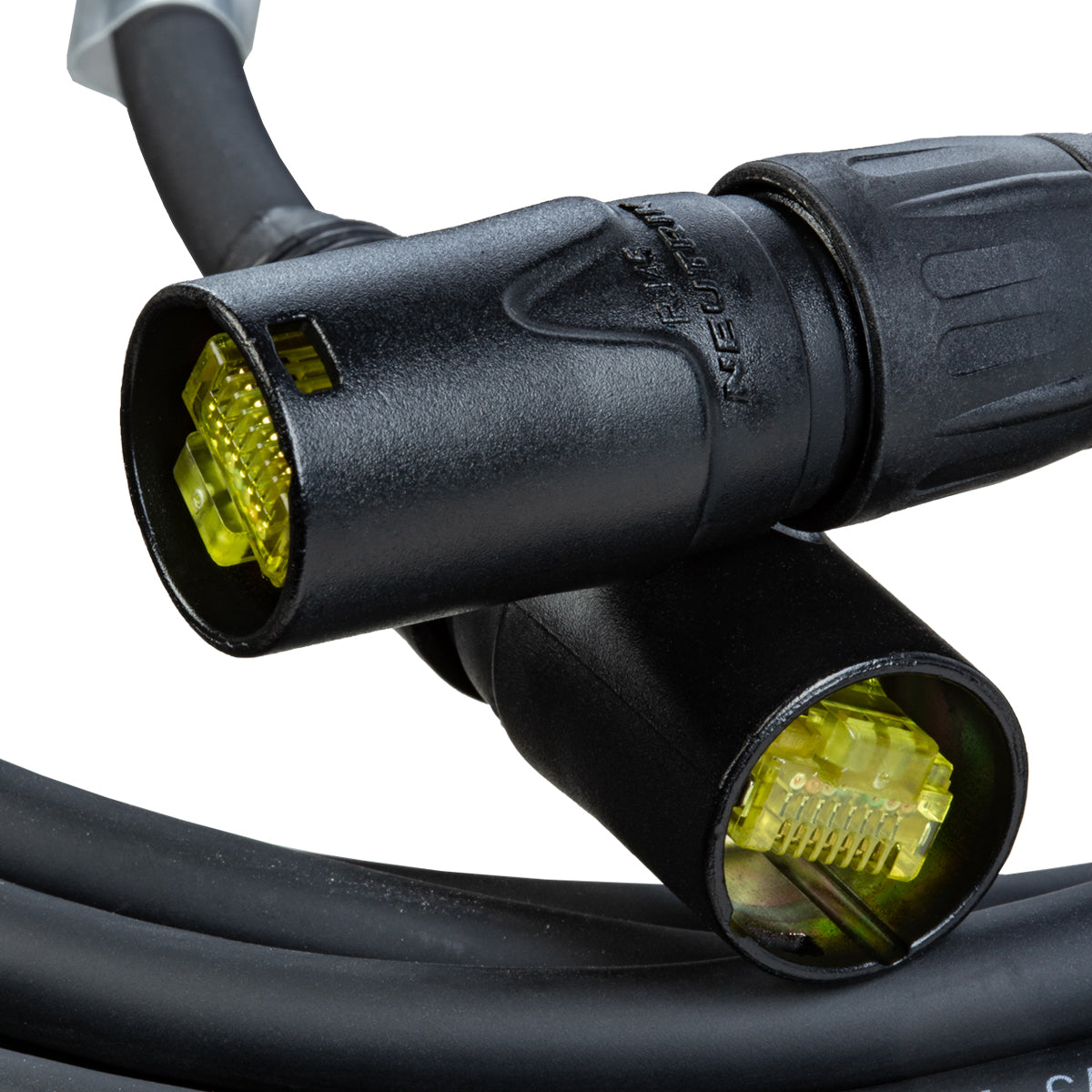

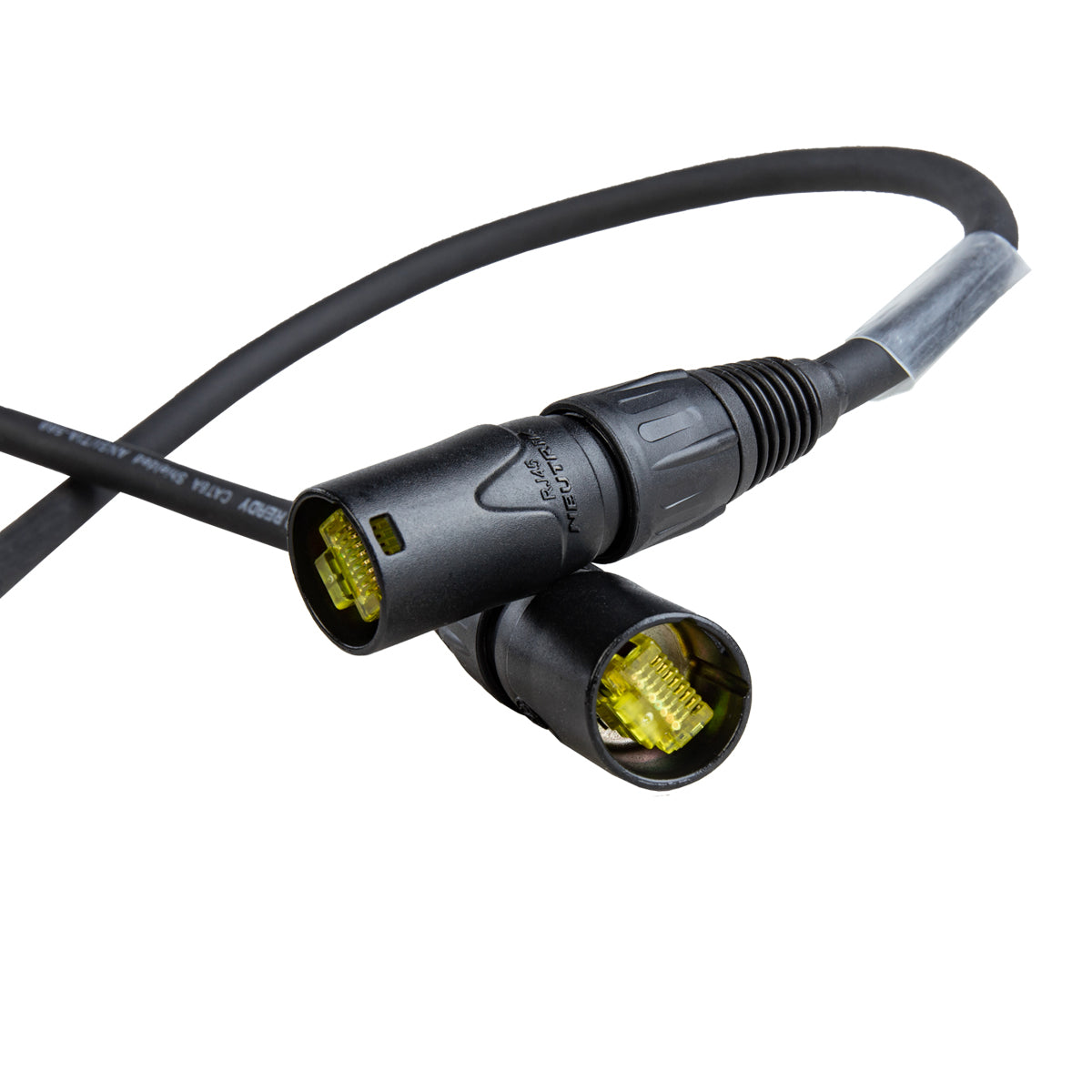

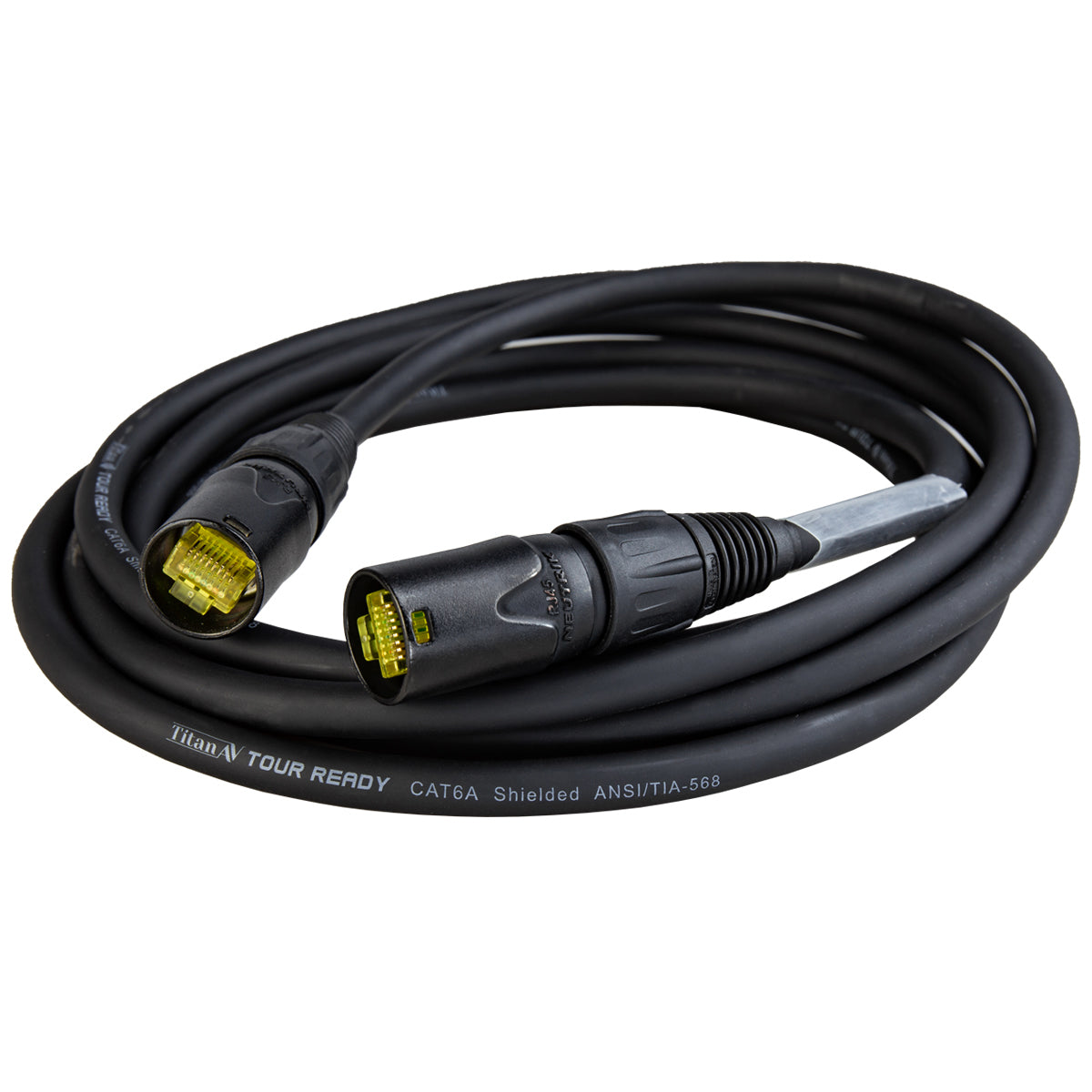

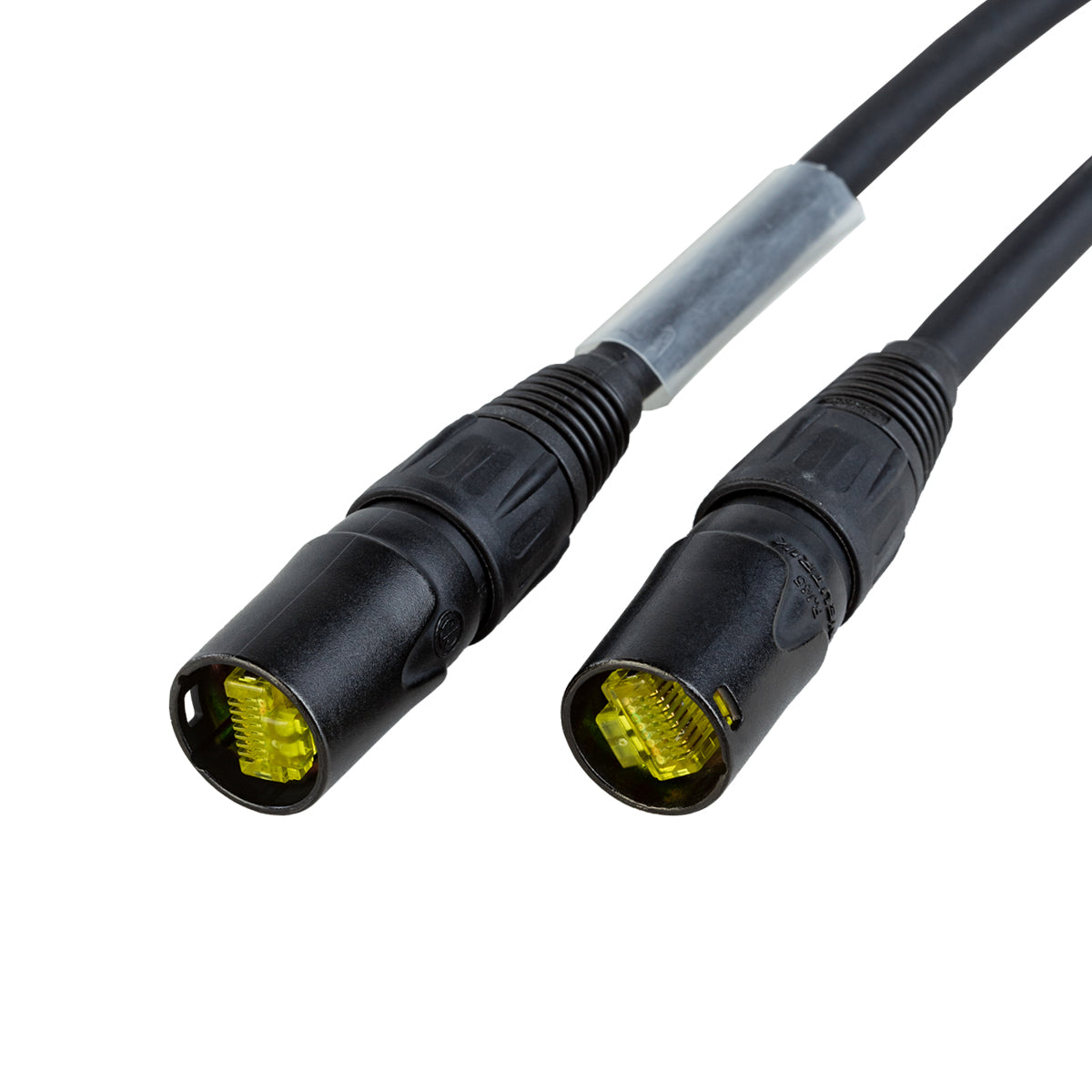

etherCON Cable, Cat6a (1m)

Shielded Cat6a etherCON cable for locked-in network signal on stage

$93.00
✓ Genuine Neutrik EtherCON Locking Connectors
✓ Cat6a Shielded, 10Gbps with 500MHz Bandwidth
✓ Foil + 80% Braided Dual-layer Shielding
✓ 23AWG Solid Copper, 90W PoE++ Rated
✓ Fluke Certified Performance
✓ 5-Year Warranty
Pay your way with Visa, Mastercard, AMEX, PayPal, Zip & Afterpay.

Parcel Post Delivery: $25.95

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Oversized Freight:

Please contact sales@titanav.co for a custom quote.

Note: See T&C's for further information.

Description

Built for live events, touring rigs, and permanent AV installs, this Cat6a etherCON cable delivers locked-in network performance where a standard RJ45 just isn’t enough. Genuine Neutrik connectors keep the link secure under cable tension, while shielded Cat6a construction supports 10Gbps speeds.

Unlike a generic patch cable, this is built for environments where dropouts cost you the show. Foil and braid shielding handles the interference from dimmers, LED rigs, and stage power. The locking etherCON shell stays put when crew traffic and gaffer tape would yank a standard RJ45 free, and the connector still mates with any standard RJ45 port across the venue.

Every cable is in-house Fluke tested for signal integrity before it ships, so the cable you patch in is the cable you can trust. Designed in Brisbane, built for Dante, Art-Net, sACN, and the rest of the network you’re running on show day.



Specifications
  • Selected Length: 1m
  • Lengths Available: 1m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 40m, 50m, 75m
  • Connector: Neutrik etherCON, gold-plated contacts, zinc alloy housing, locking
  • Cable Category: Cat6a (shielded)
  • Conductor: Solid copper, 23AWG
  • Bandwidth: 500MHz
  • Max Data Rate: 10Gbps
  • PoE Rating: 90W (IEEE 802.3bt PoE++)

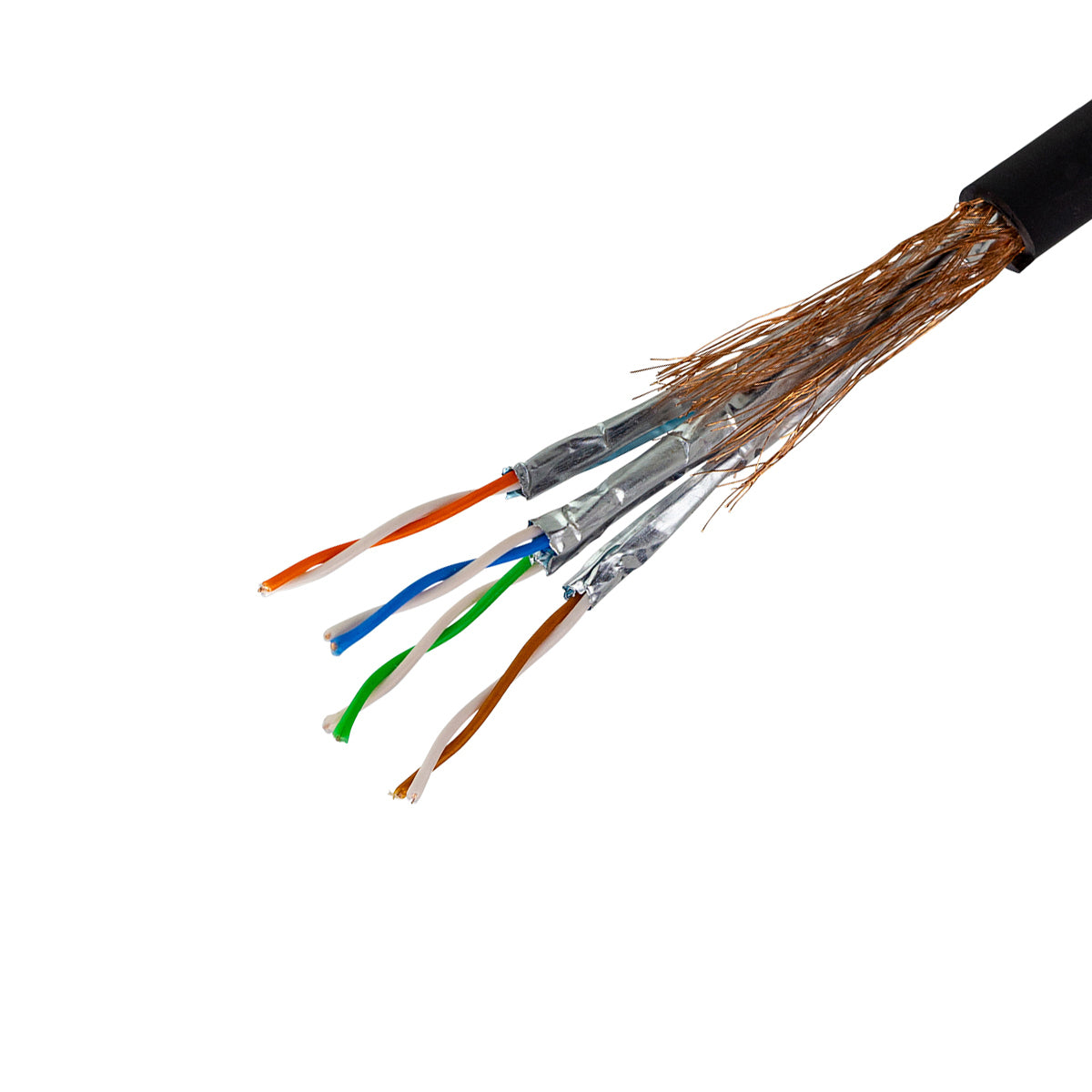

  • Shielding: Foil + braided copper, 80% coverage (S/FTP)
  • Twist Pitch: 70 twists per metre
  • Jacket: Flexible PVC
  • Diameter: 7.8mm
  • Temperature Range: -20°C to +70°C
  • Outdoor Rated: No
  • Factory Tested: Yes (in-house Fluke certified)
  • Compliance: RoHS
  • Colour: Black


This cable is terminated for Ethercon connectors only. Using other connector types will void the warranty and may cause damage.

Delivery & Pick-up Options

We offer Brisbane pickup from our Northgate warehouse, or delivery Australia-wide with clear, upfront pricing for most orders.

BRISBANE PICKUP

Free pickup is available from our Brisbane warehouse.
Orders are usually ready within 1 business day.

PARCEL DELIVERY — $15.95

For small, lightweight items within standard parcel limits (each item under 22kg and 1.8m).
Tracking details are sent once your order is dispatched.

BULK DELIVERY — $129

For large or heavy items that can’t be sent as a standard parcel.
Requires a forklift or suitable unloading equipment at delivery.

BULK DELIVER + TAILGATE — $199

For large or heavy items when unloading equipment isn’t available.
The truck uses a built-in lift to safely unload your order.

Upfront Delivery Pricing

Upfront delivery pricing applies to around 97% of orders. In rare cases where delivery access, size, or location results in higher carrier costs, we’ll always contact you before dispatch. No additional charges are applied without your approval.

For full delivery details, FAQs, and terms, see our Shipping & Delivery page.

Why Choose Titan AV etherCON Cable

This isn’t a patch cable for occasional use. It’s built for the demands of live production, touring installs, and network-critical AV where a dropped link means a dropped show.

  • Genuine Neutrik etherCON connectors, locking metal shell rated to 1,000+ insertion cycles
  • In-house Fluke tested, signal integrity and data transfer verified before it leaves the warehouse
  • Cat6a shielded performance, foil and braid shielding for RF-heavy stage environments
  • 5-year warranty, if it fails, we replace it

Reviews

FAQs

What’s the difference between an etherCON cable and a standard ethernet cable?

The cable carries data the same way. The difference is the connector. Standard ethernet uses a plastic RJ45 with no lock and a build rated for 25 to 100 insertion cycles. etherCON uses a Neutrik metal shell with a locking tab and a 1,000+ cycle rating, designed for the rough handling of touring, live events, and patch-heavy install work.

Can I plug an etherCON to RJ45 connection straight into a switch?

Yes. The etherCON connector accepts the standard RJ45 plug shape, so the etherCON to RJ45 link mates directly with any switch, router, audio interface, lighting console, or media server with a standard RJ45 port. No adapter needed.

What’s the difference between Cat6 and Cat6a etherCON cables?

Cat6a supports higher bandwidth (500MHz vs 250MHz) and longer 10Gbps runs than Cat6. For high-channel-count Dante or AES50 networks, AV-over-IP, and permanent installs that need future-proofing, Cat6a gives you the headroom. This cable is Cat6a.

Is this a shielded etherCON cable?

Yes. It is a shielded Cat6a cable with foil plus 80% braided copper shielding (S/FTP construction). The dual-layer shield handles interference from lighting dimmers, LED rigs, and power cabling, which is what wrecks unshielded ethernet on a live stage.

What length of EtherCON Cable should I choose?

Use 1m to 3m for rack and patch connections, 5m to 10m for stage runs and desk-to-switch links, 15m to 20m for standard venue installs, and 30m to 75m for long runs to FOH or distributed AV networks. 75m is the maximum recommended single-run length for Cat6a at 10Gbps.

What's the warranty on this cable?

This cable is covered by a 5-Year manufacturers’ warranty.
