SKU: NC-VERT-2RUT

19" 2RU Vertical Wall Mount Server Cabinet

$163.00
$408.00 Save 60% ($245.00)
Pre-order now!
Some components are on backorder. Estimated dispatch: TBD .
Pay your way with Visa, Mastercard, AMEX, PayPal, Zip & Afterpay.

Parcel Post Delivery: $25.95

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Oversized Freight:

Please contact sales@titanav.co for a custom quote.

Note: See T&C's for further information.

Description

PLEASE NOTE:
THIS CABINET IS PICKUP ONLY FROM OUR NORTHGATE, BRISBANE WAREHOUSE.

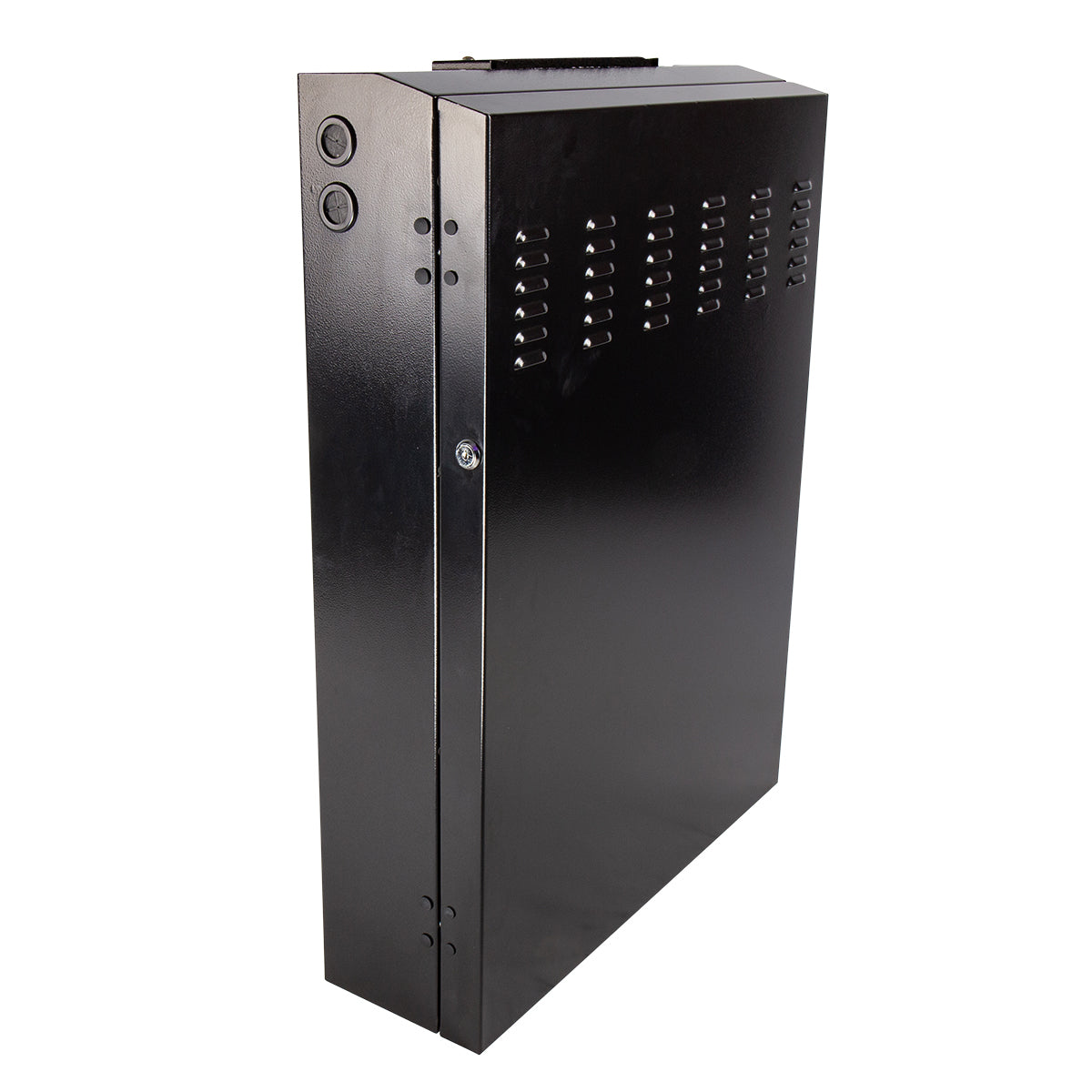

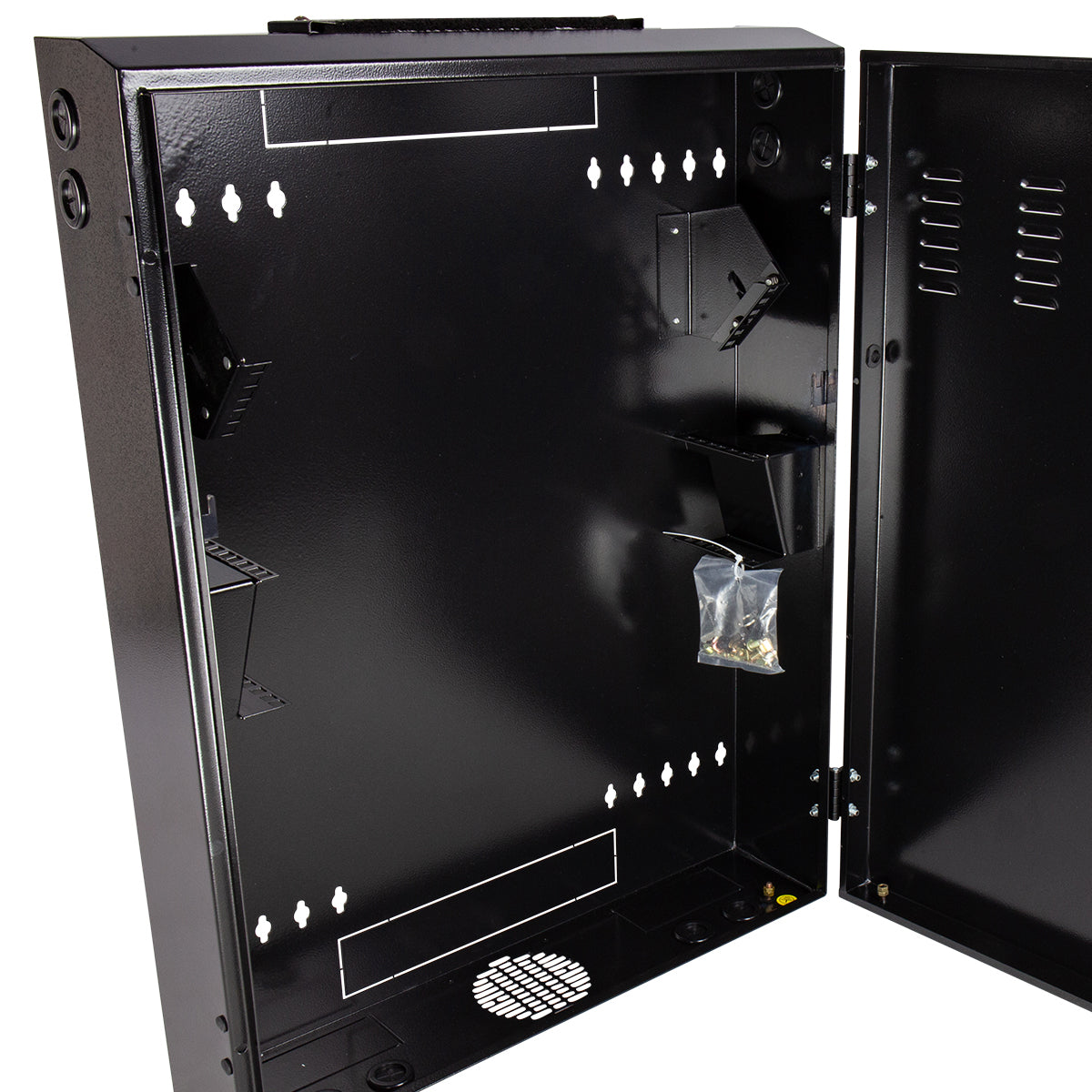

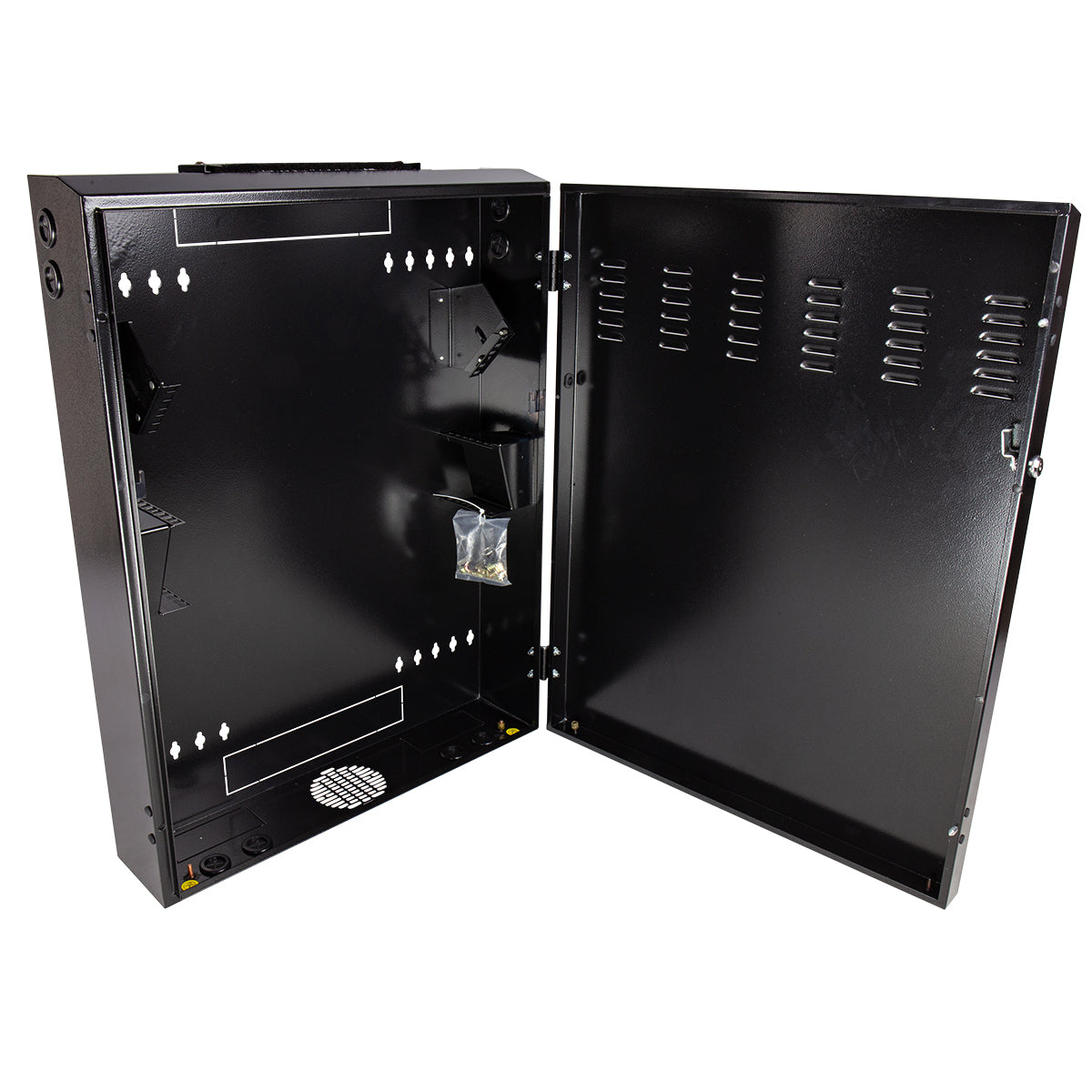

Titan AV’s Vertical Wall Mount Cabinet is a true space saver. Perfect for small network equipment and limited space networking environments, this low-profile cabinet allows for equipment to be mounted vertically anywhere from comms rooms to retail stores, classrooms, and offices. The cabinet sits 180mm from the wall when mounted and will house 19” networking equipment with a depth up to 420mm, in addition to the 2RU rack space in the primary mounting area, there is also an adjustable 2RU mounting bracket at the top of the cabinet for patch panels.

Titan AV Rack Cabinets are supplied and delivered completely 100% assembled, all you need to do is take it out of the box and start installing your hardware it is as simple as that!

Titan AV Rack Cabinets are built around the universal 19” Rack-mount standards, perfect for use with our extensive range of 19" rack mount equipment and 19" rack mount equipment from other Vendors.

Features:

  • Warranty: 2 year
  • Supplied fully assembled

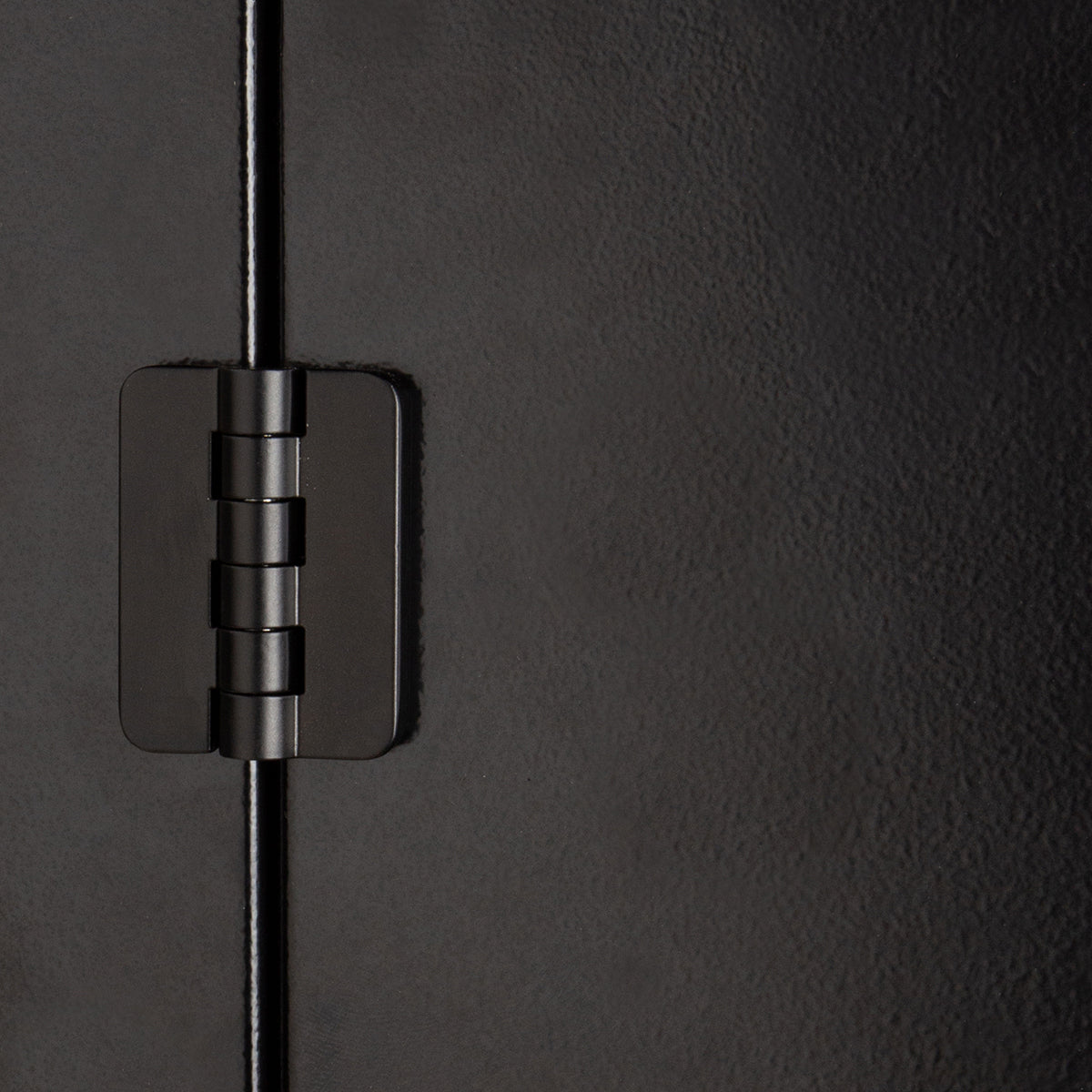

  • Reversible Hinged door

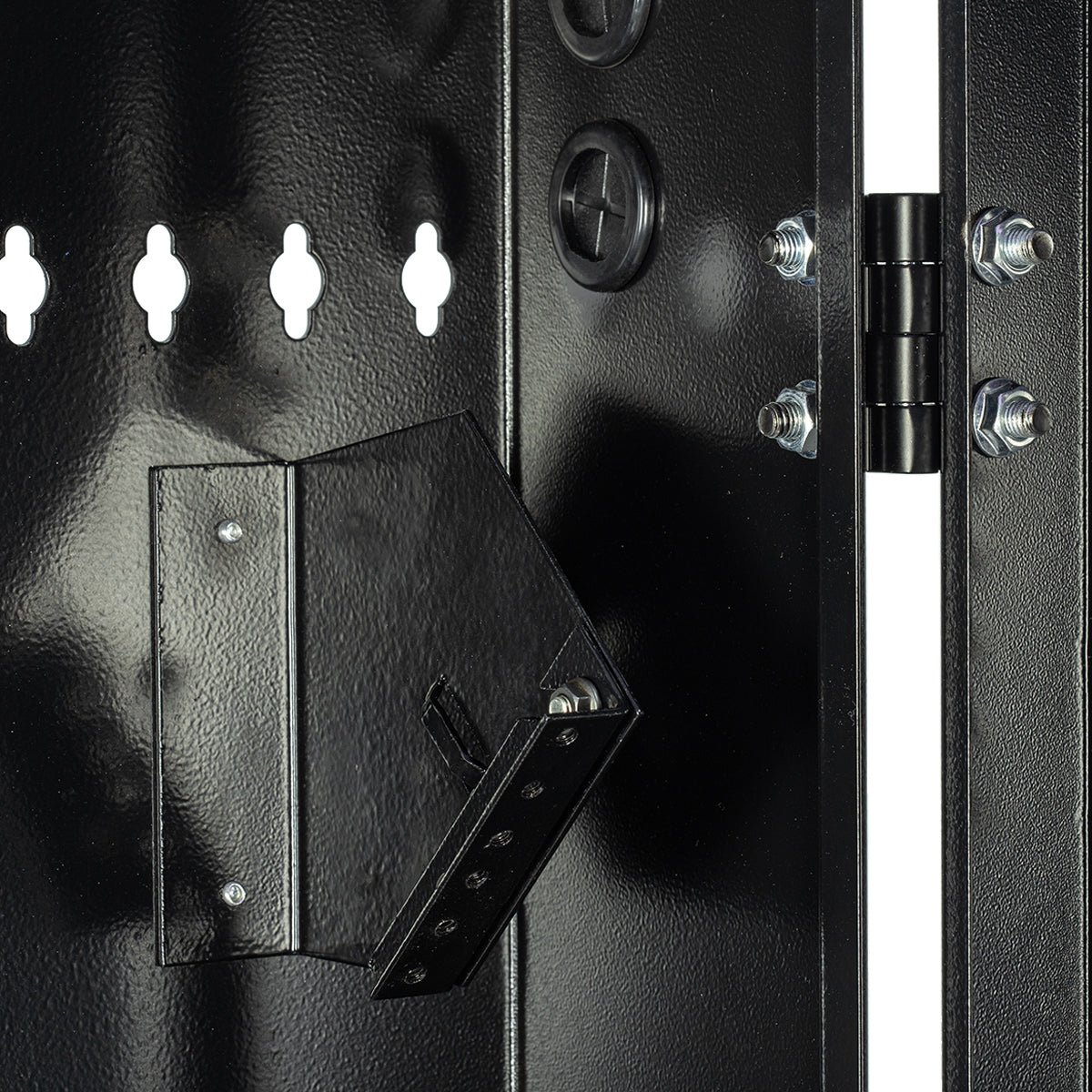

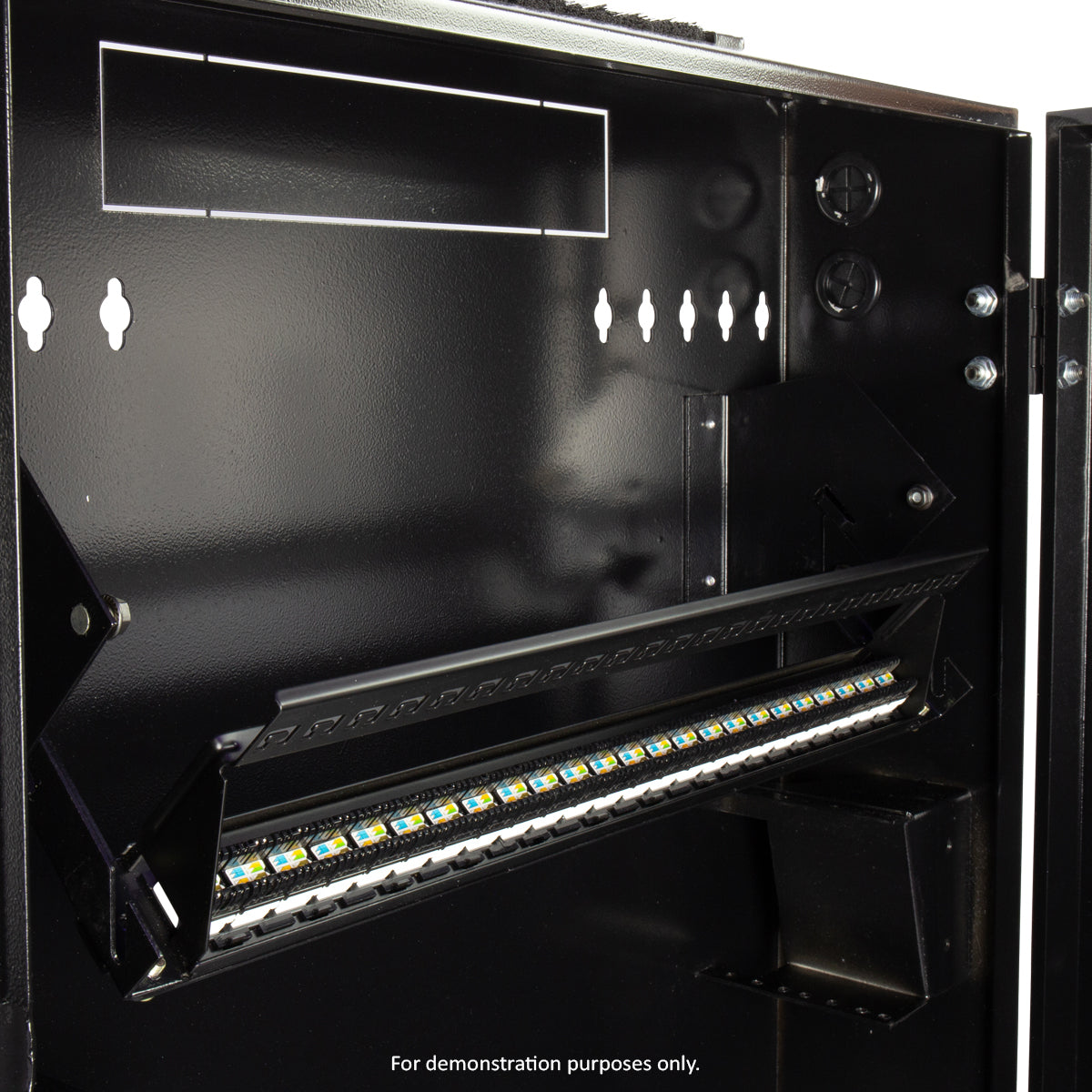

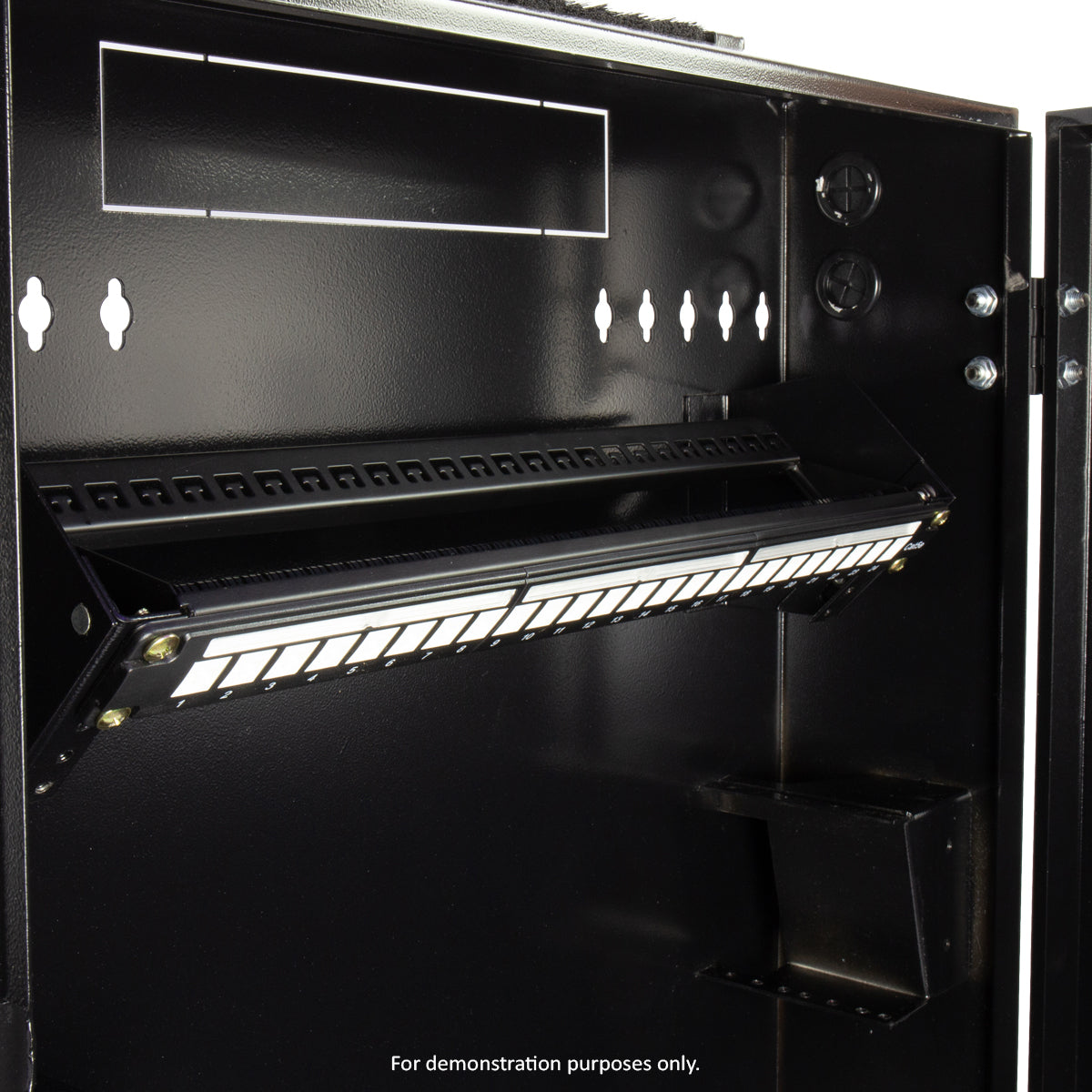

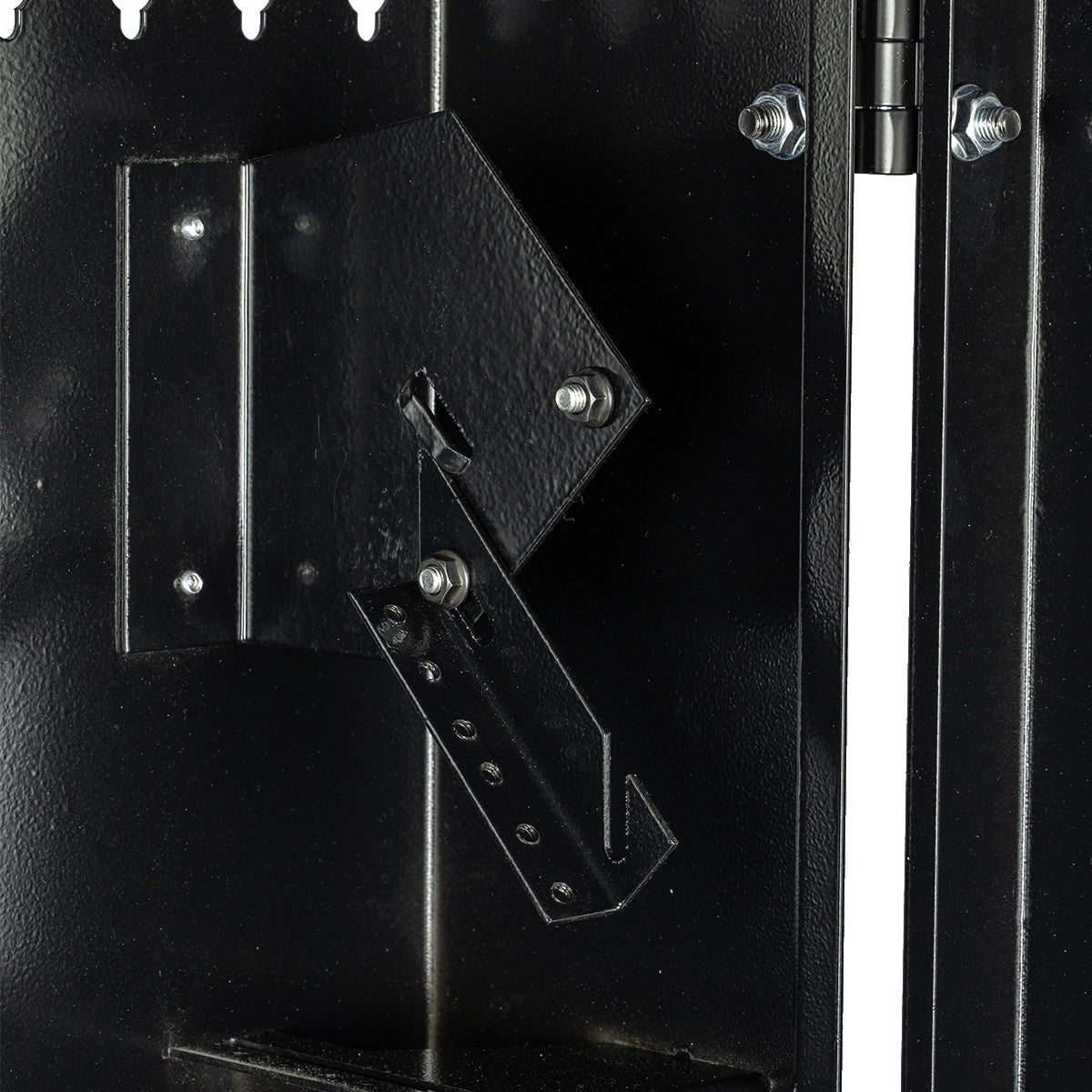

  • Flip down patch panel mount
  • Equipment mounts facing upwards in the cabinet
  • Constructed of cold-rolled steel

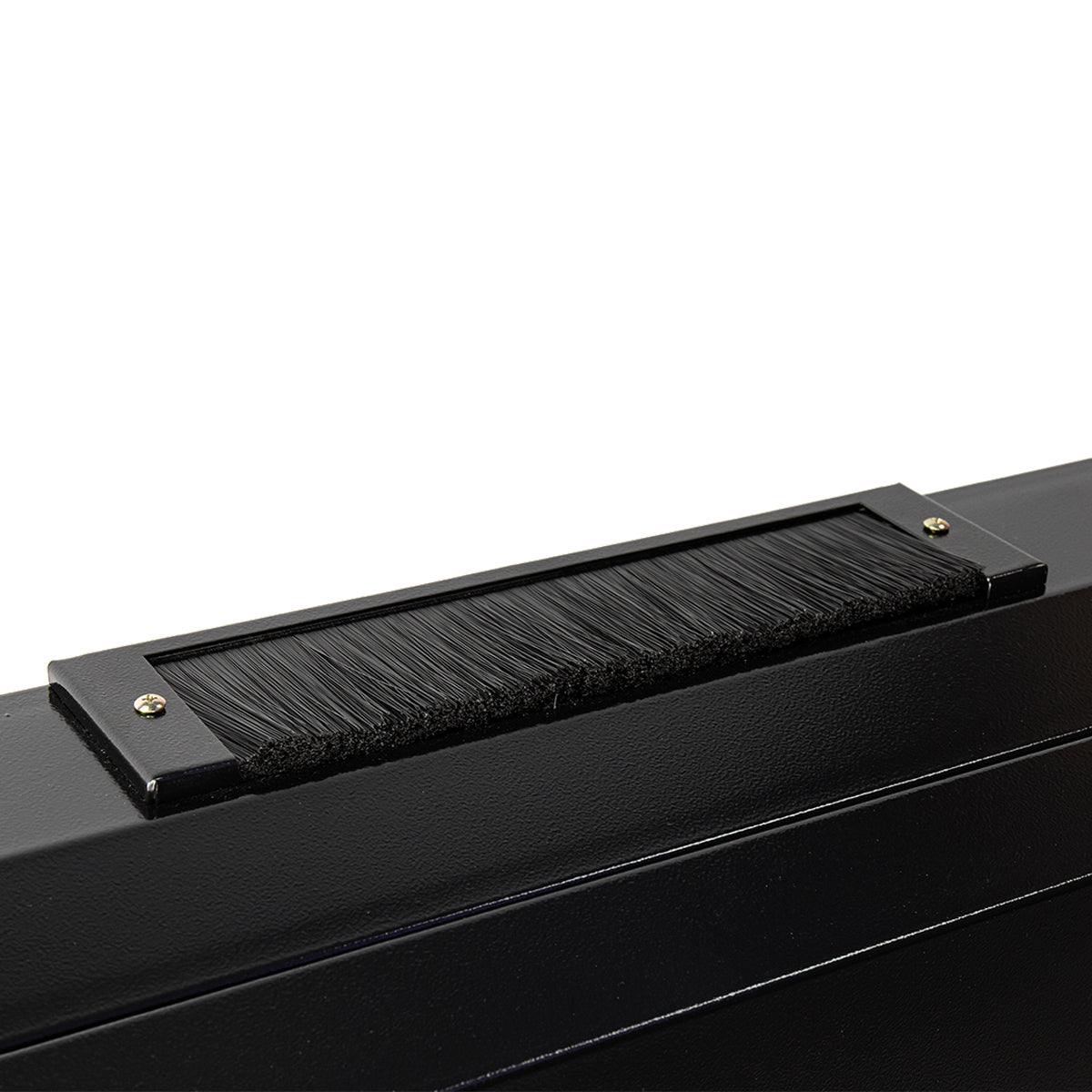

  • Cable entry glands at the top and bottom of the cabinet

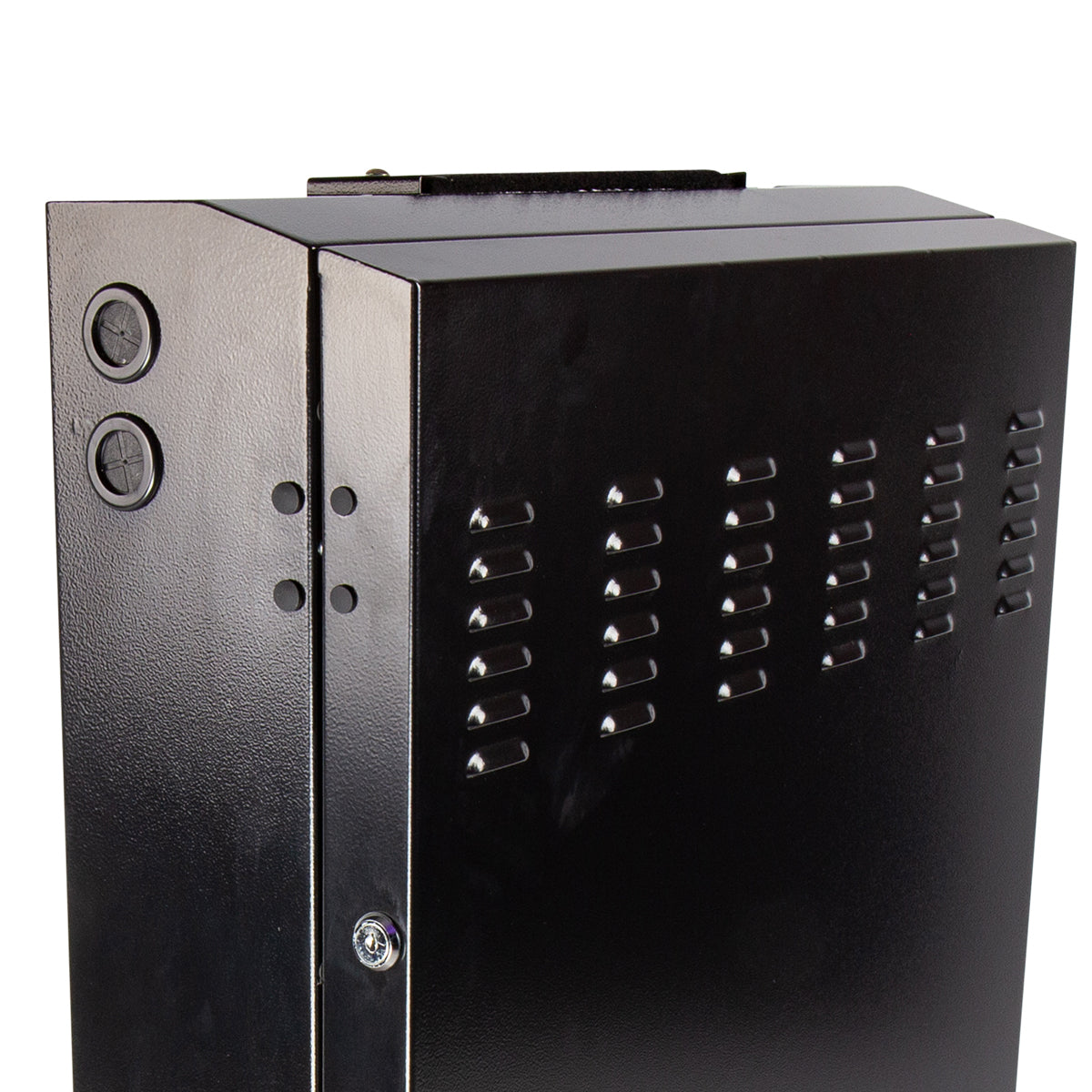

  • Vented front door
  • Cable glands with removable covers allow cable routing through top and bottom
  • Push-out rectangular glands at back top and bottom
  • One lock
  • Two keys supplied
  • Rack bolts and cage nuts supplied
  • Powder coated: Black

Specifications

  • Dimensions (External): 615mm x 185mm x 830mm (WxDxH)
  • Dimensions (Internal): (19")483mm x (2RU)88mm x 420mm (WxDxH)
  • Main rack depth: 420mm
  • Top rack depth: 80mm
  • Static load capacity 60kg
  • 1 x 120mm Fan cut out on the base (Fan NOT included)
  • Material: Steel
  • Weight: 17.1kg
  • 1 x 2RU Vertical Wall Mount Server Cabinet
