SKU: FXM-103-0.5

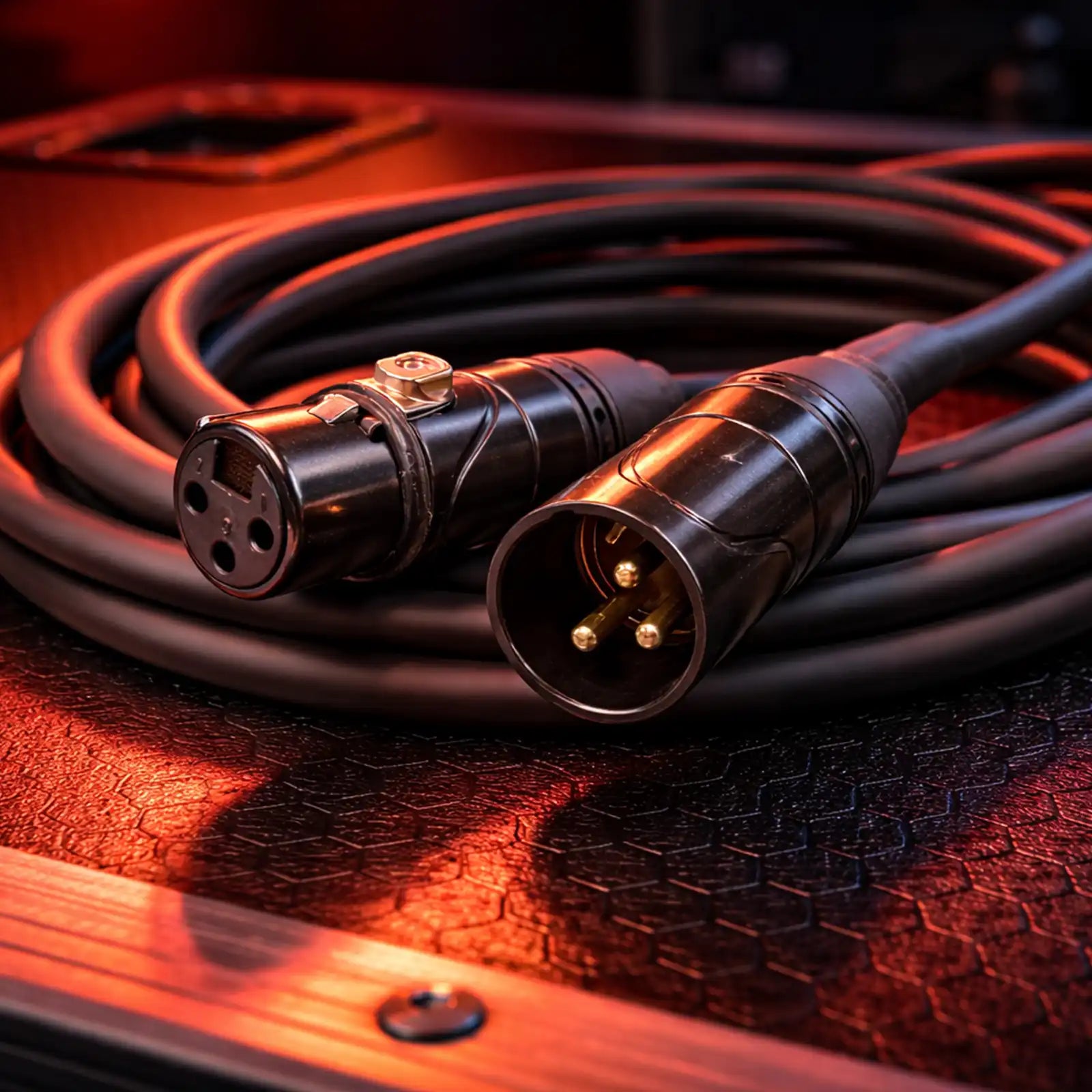

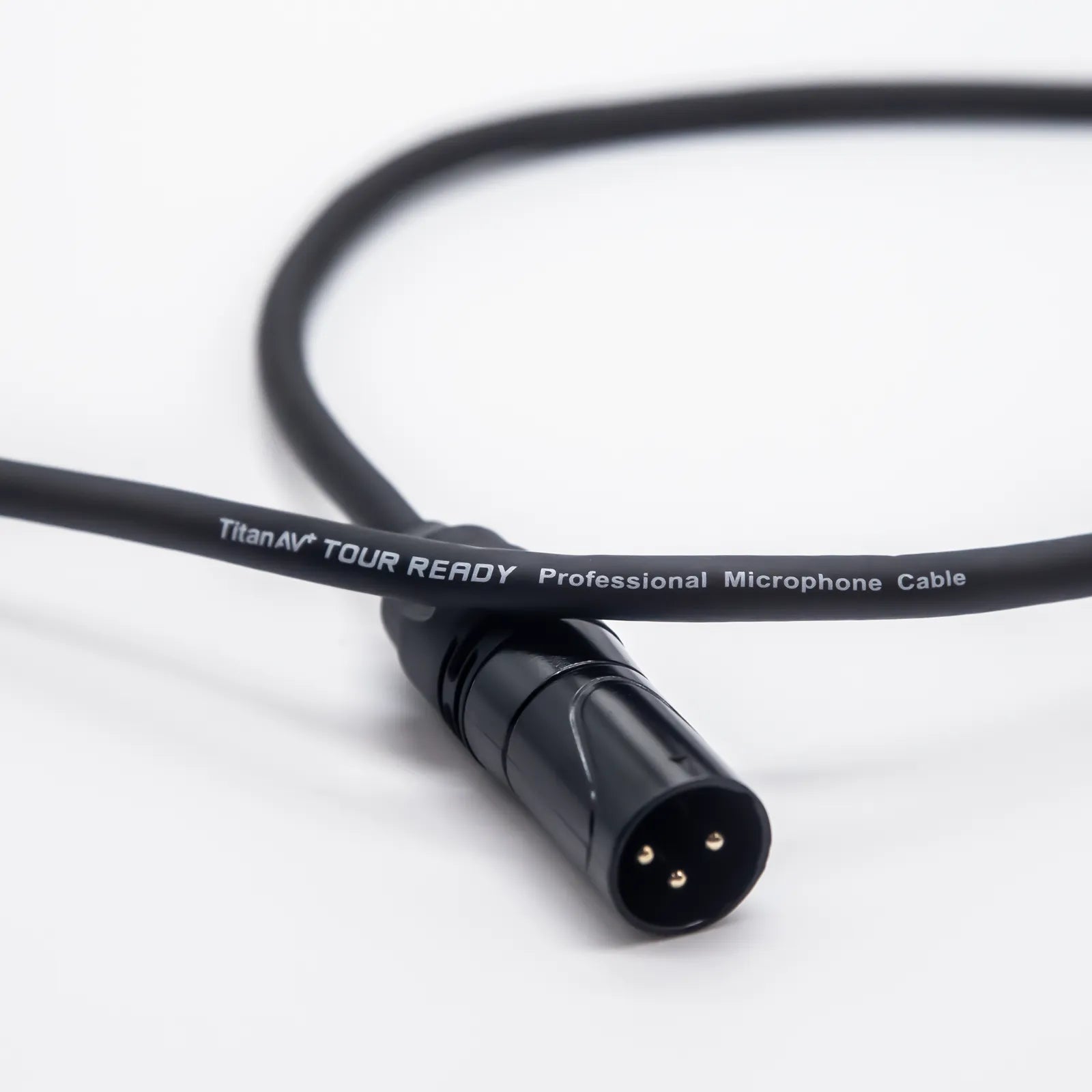

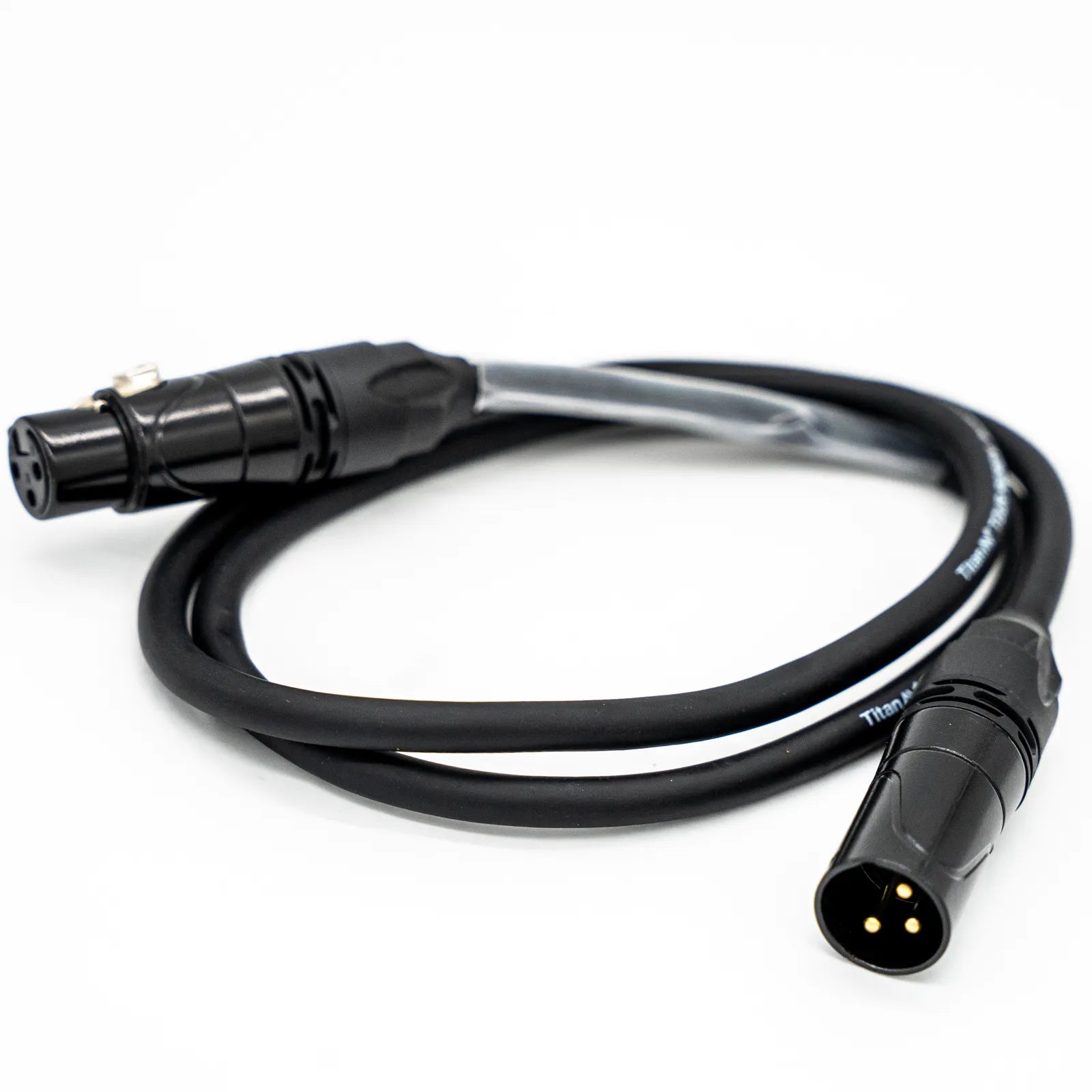

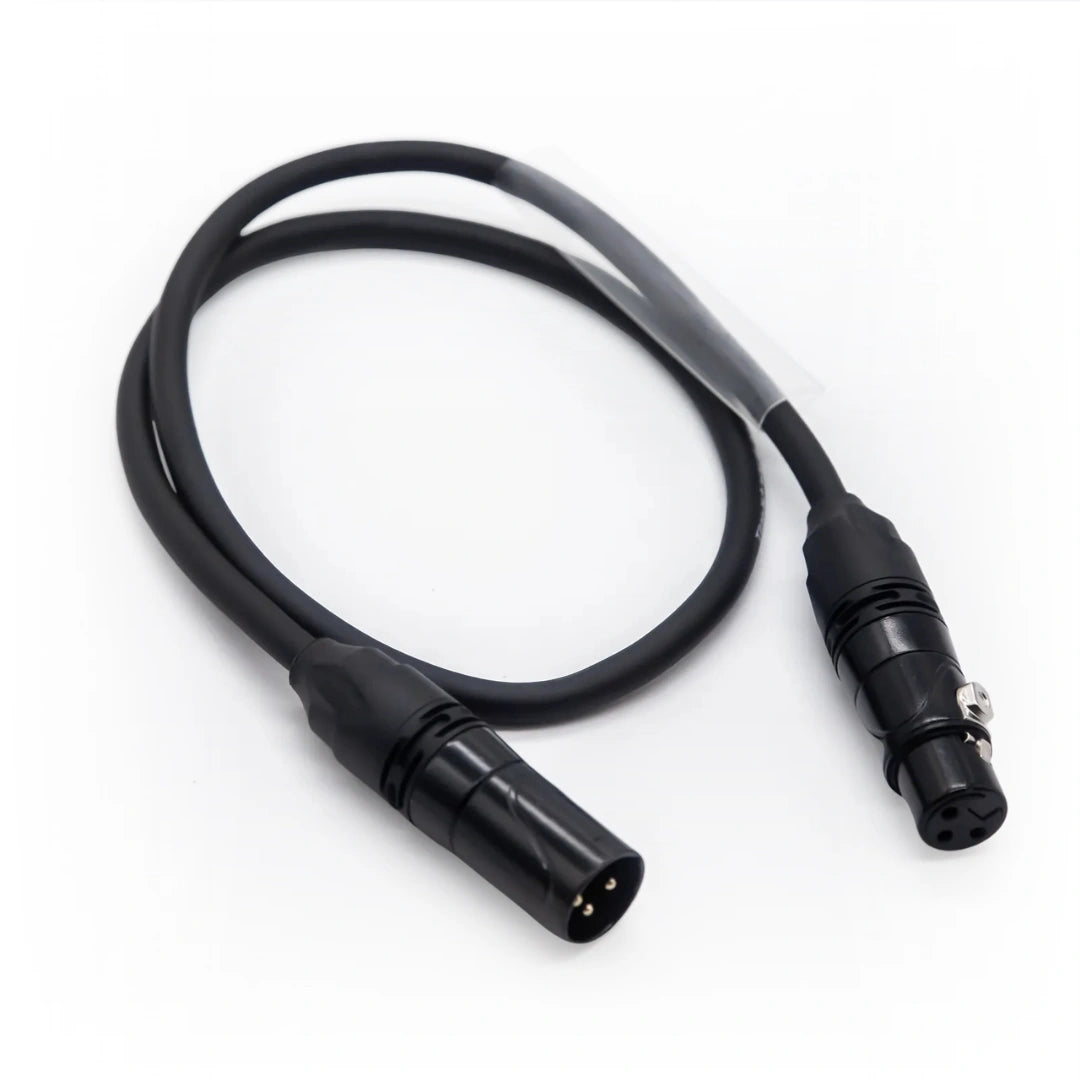

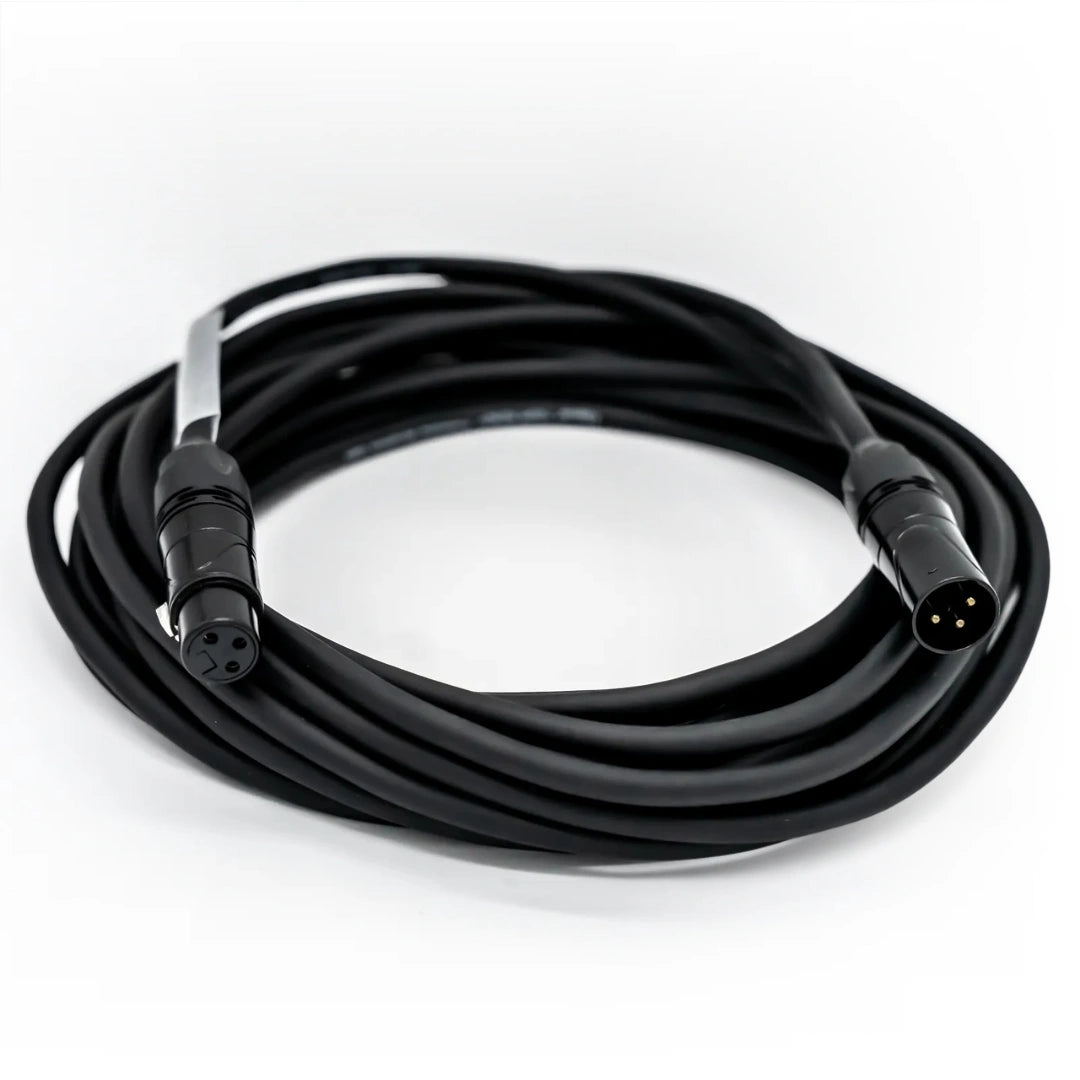

XLR Cable

Balanced XLR microphone cable for clean, interference-free audio

$18.00
✓ Balanced 3-pin XLR for Noise Rejection
✓ 22AWG Oxygen-Free Copper Conductor
✓ 95% Braided Copper Shield
✓ 24k gold-plated XLR connectors
✓ Clear Heat Shrink for Labelling
✓ 5-Year Warranty
Pay your way with Visa, Mastercard, AMEX, PayPal, Zip & Afterpay.

Parcel Post Delivery: $25.95

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Oversized Freight:

Please contact sales@titanav.co for a custom quote.

Note: See T&C's for further information.

Description

Built for AV techs, sound engineers, and touring crews who need clean audio from microphone to mixer, this balanced XLR to XLR microphone cable carries signal without picking up noise from the rig around it. Wired to the standard 3-pin XLR layout, it works straight out of the bag with mics, mixing consoles, DI boxes, and powered speakers.

Unlike DMX cable, which runs at 110Ω for digital lighting control, this XLR microphone cable is built to the 50 to 75Ω impedance audio gear actually expects. With 22AWG oxygen-free copper, a 95% braided shield, and 24k gold-plated XLR connectors, signal stays clean from short 1m XLR cable patches all the way through to long 20m FOH lines.

Choose the Right XLR Cable Length

Pick a length based on the distance between your mic, source, and mixer:

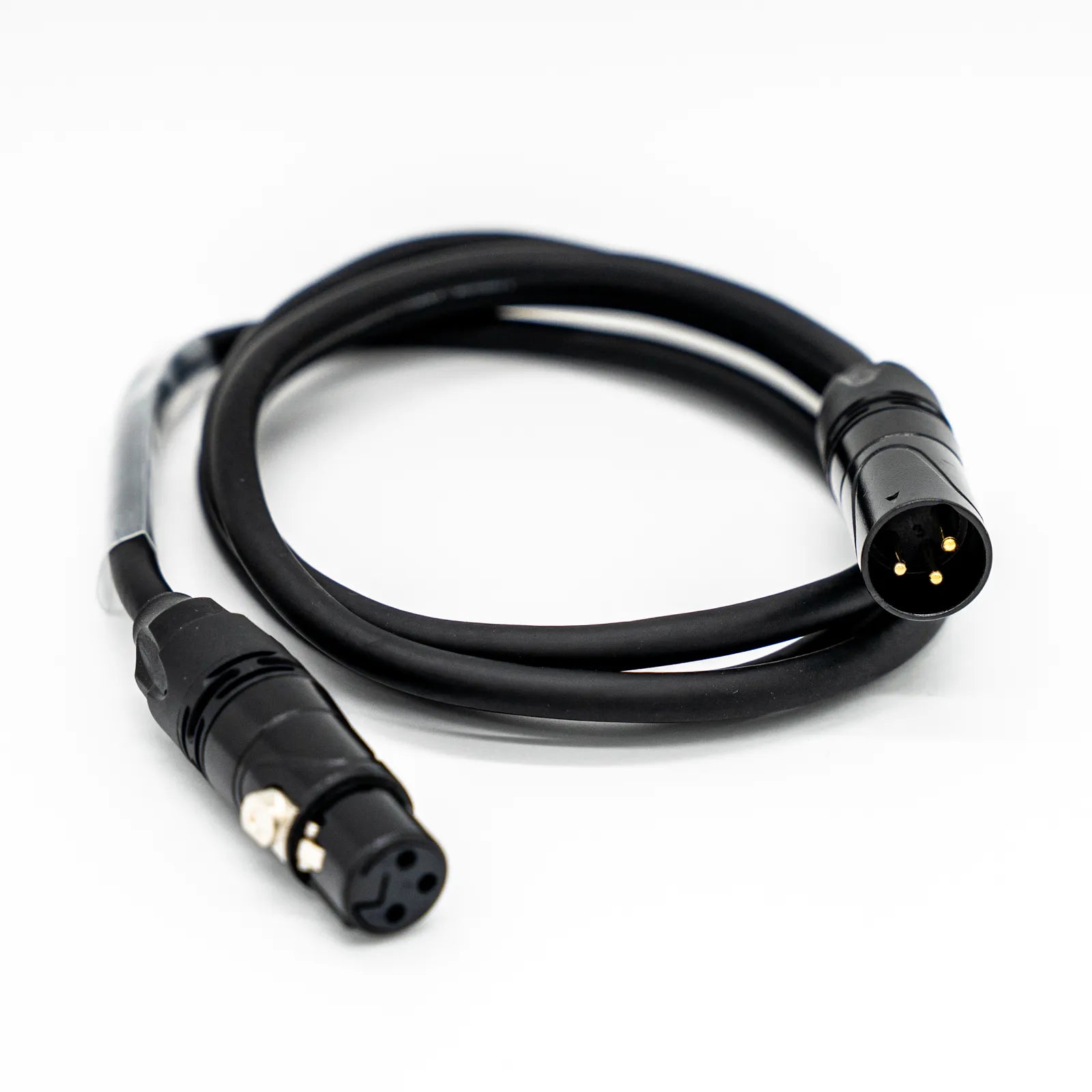

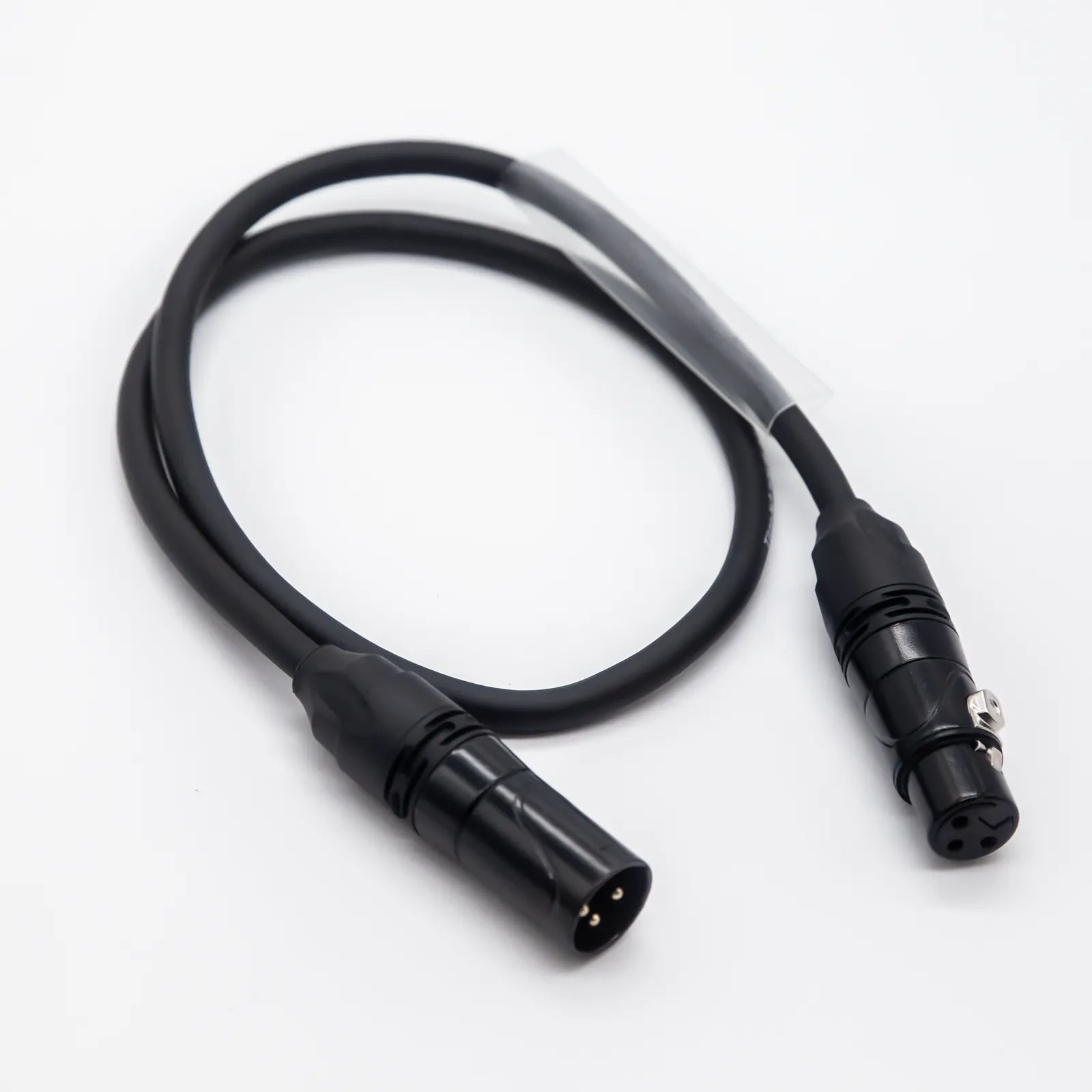

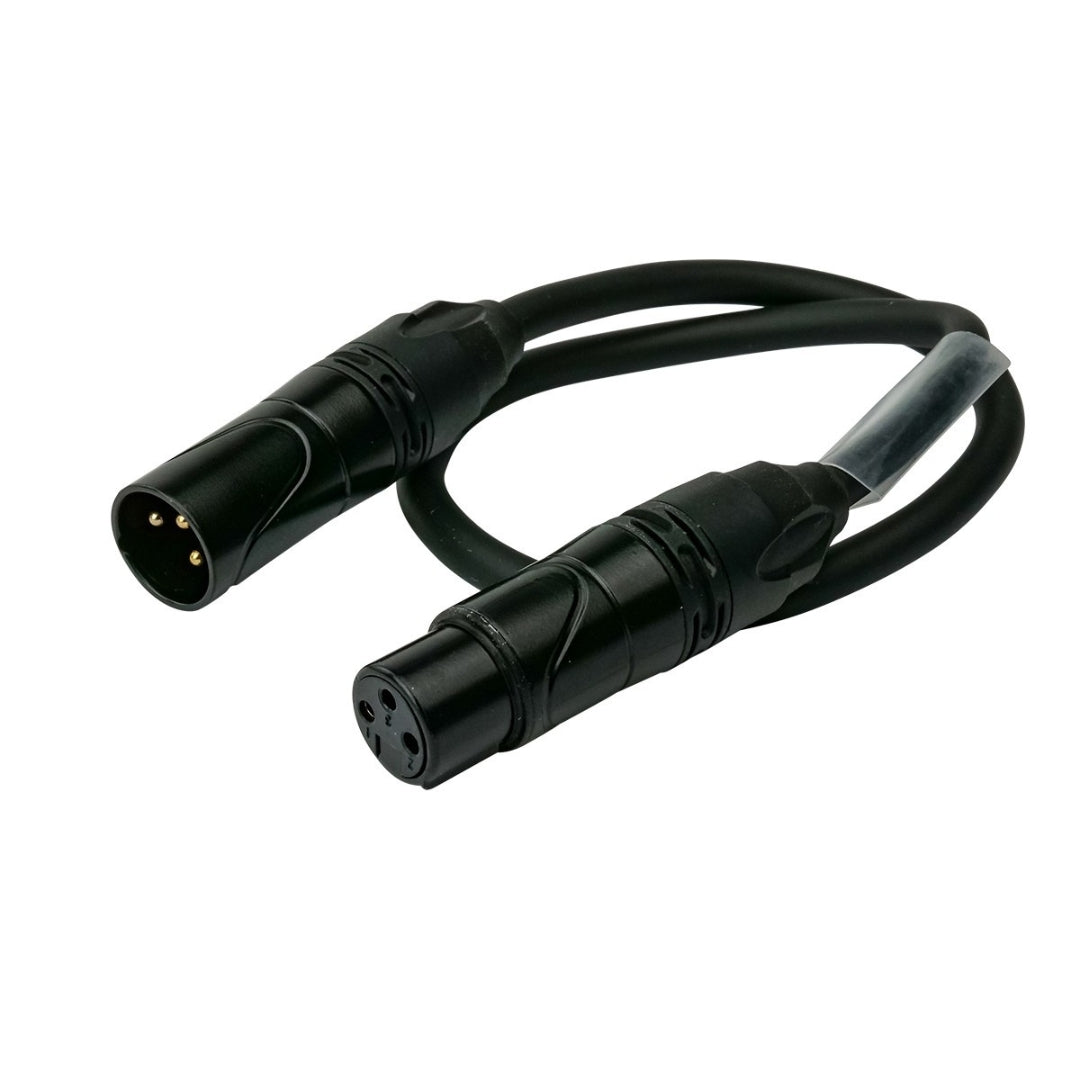

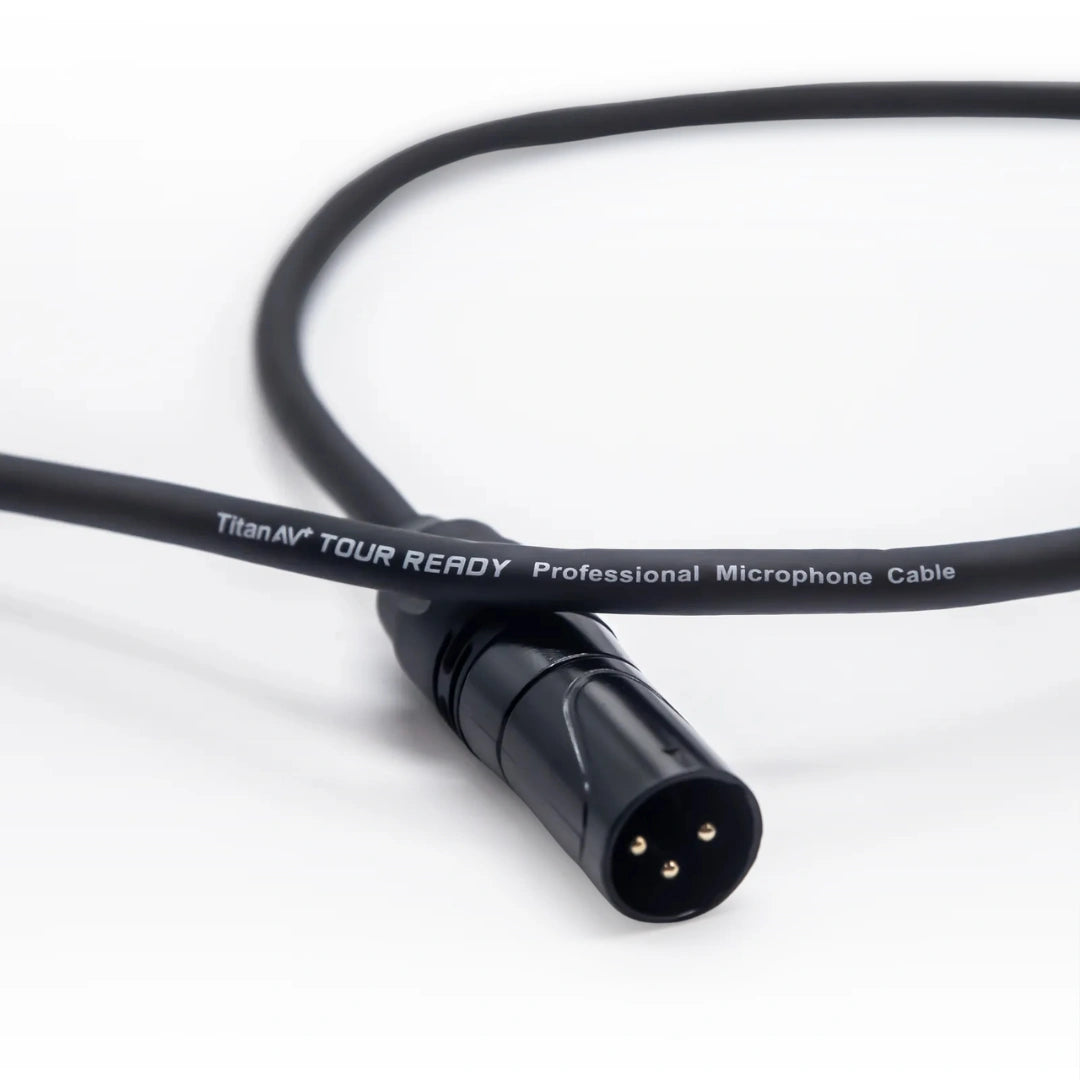

  • 0.5m–1.5m, rack patches, mic splits, and short desktop runs

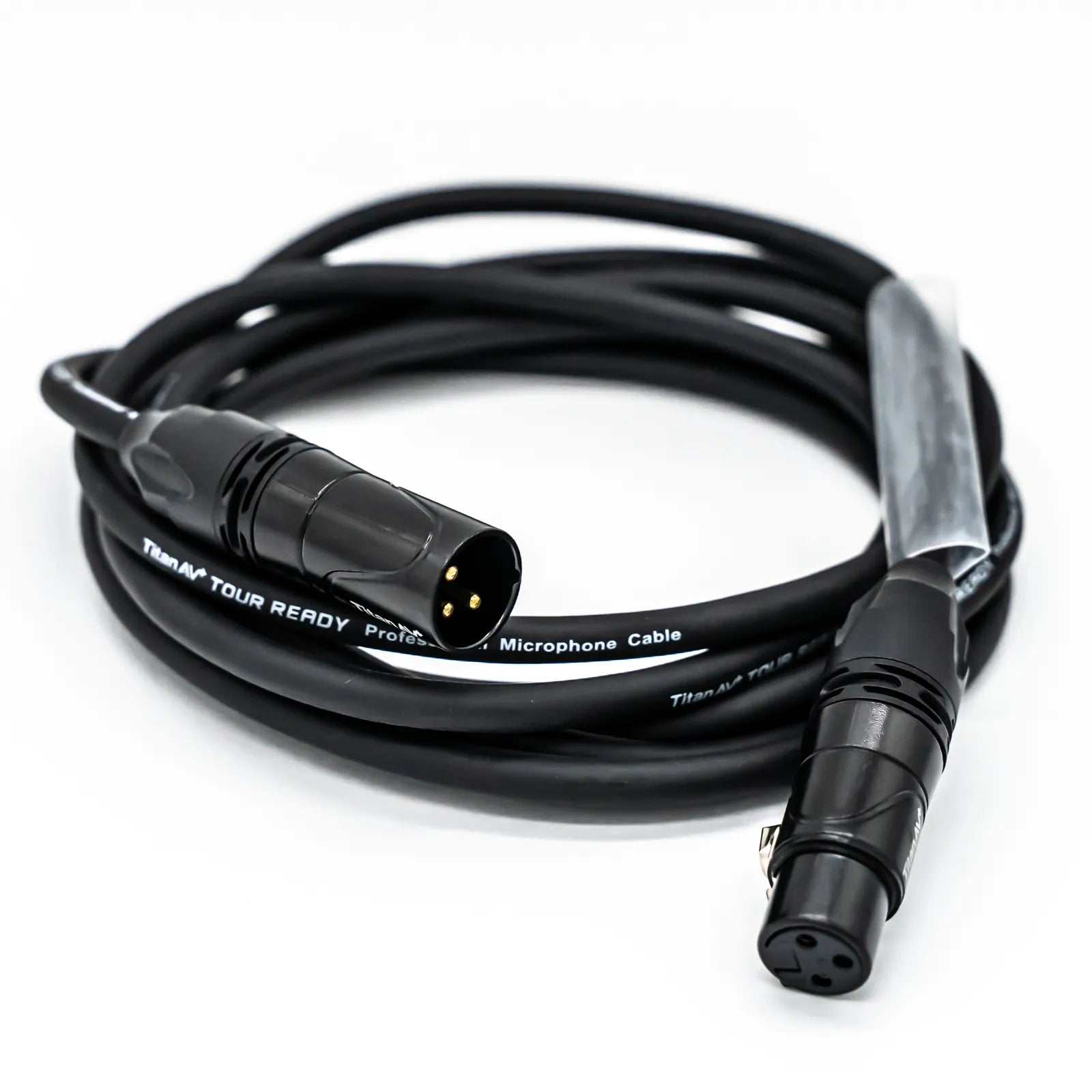

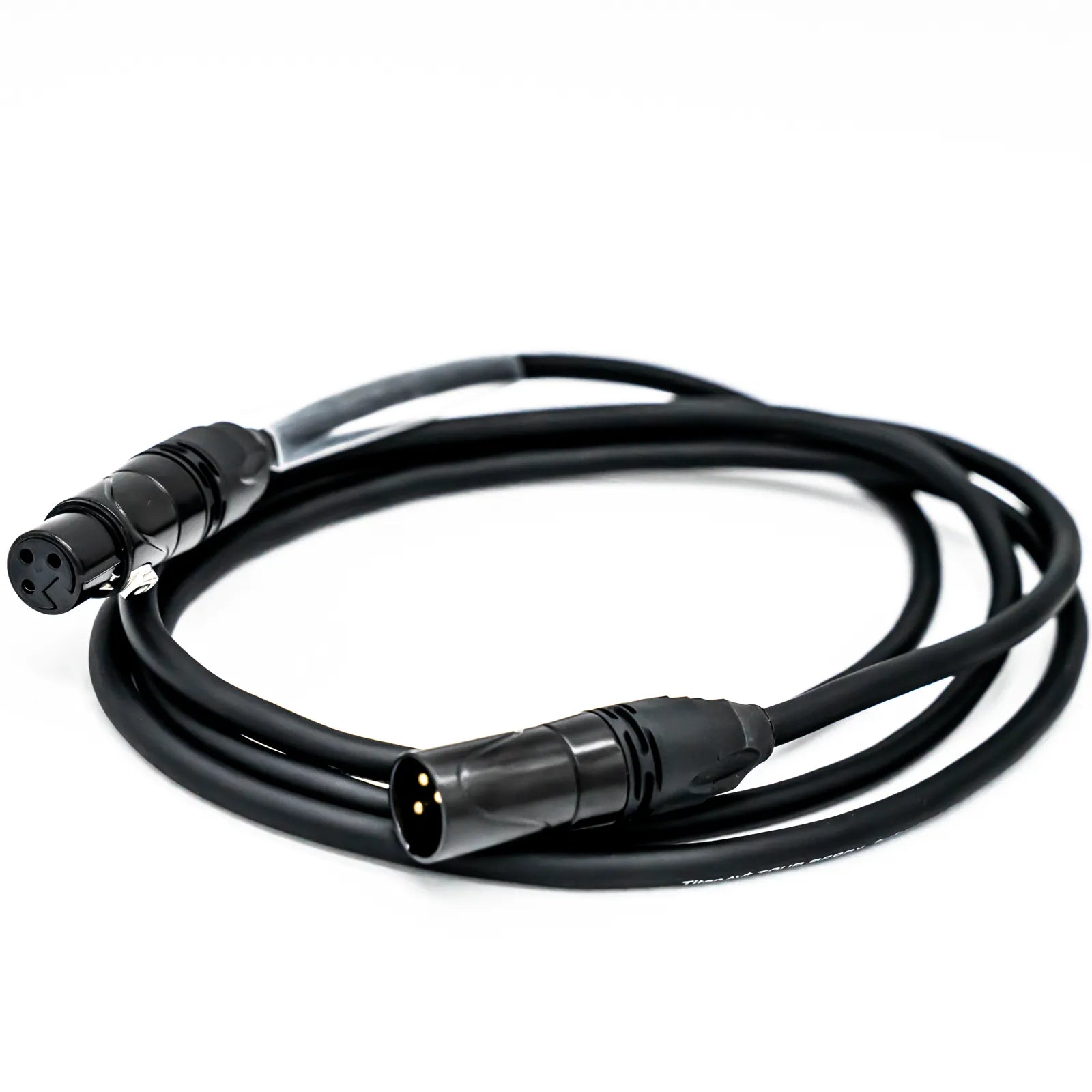

  • 2m–3m, monitor feeds, mic to stand, console to outboard

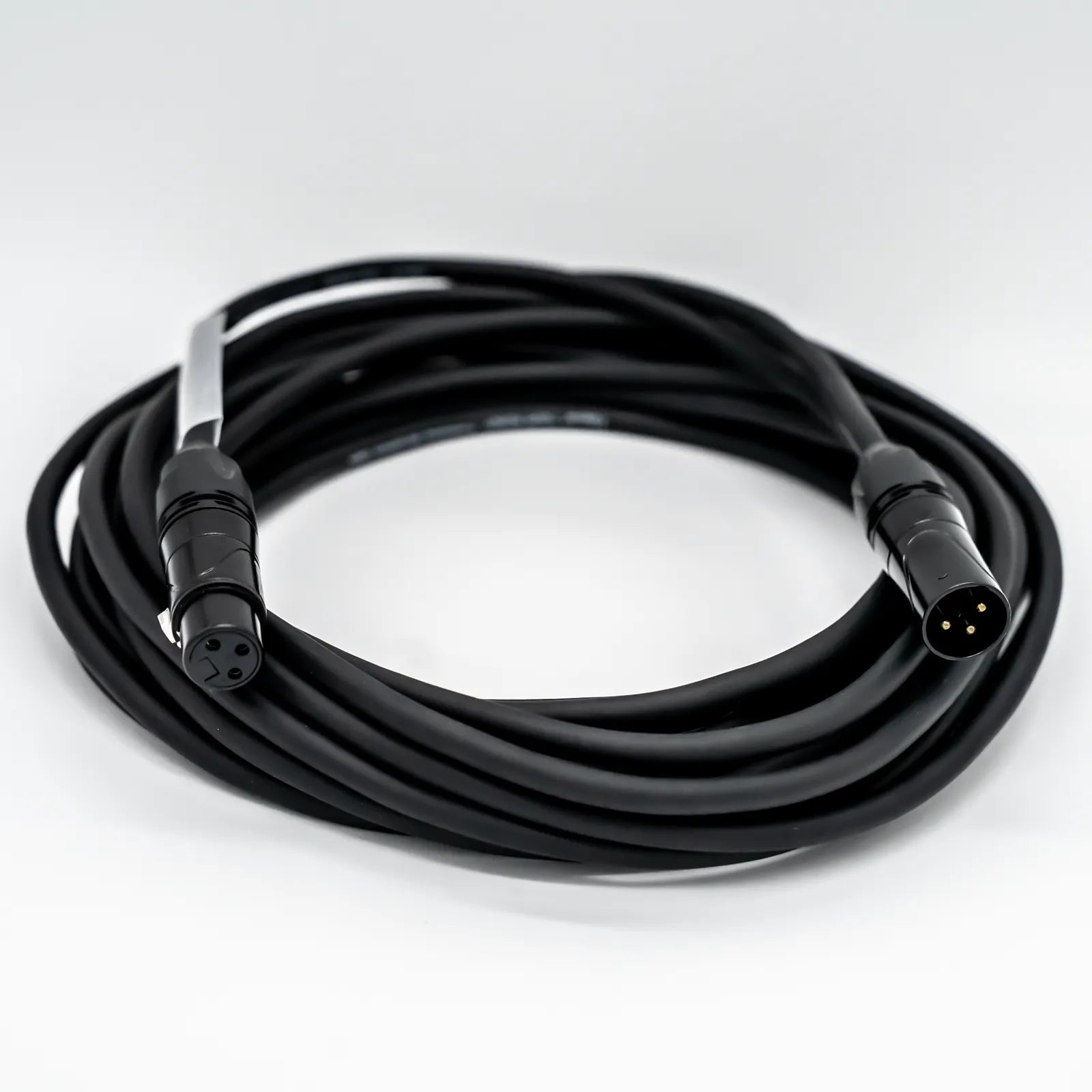

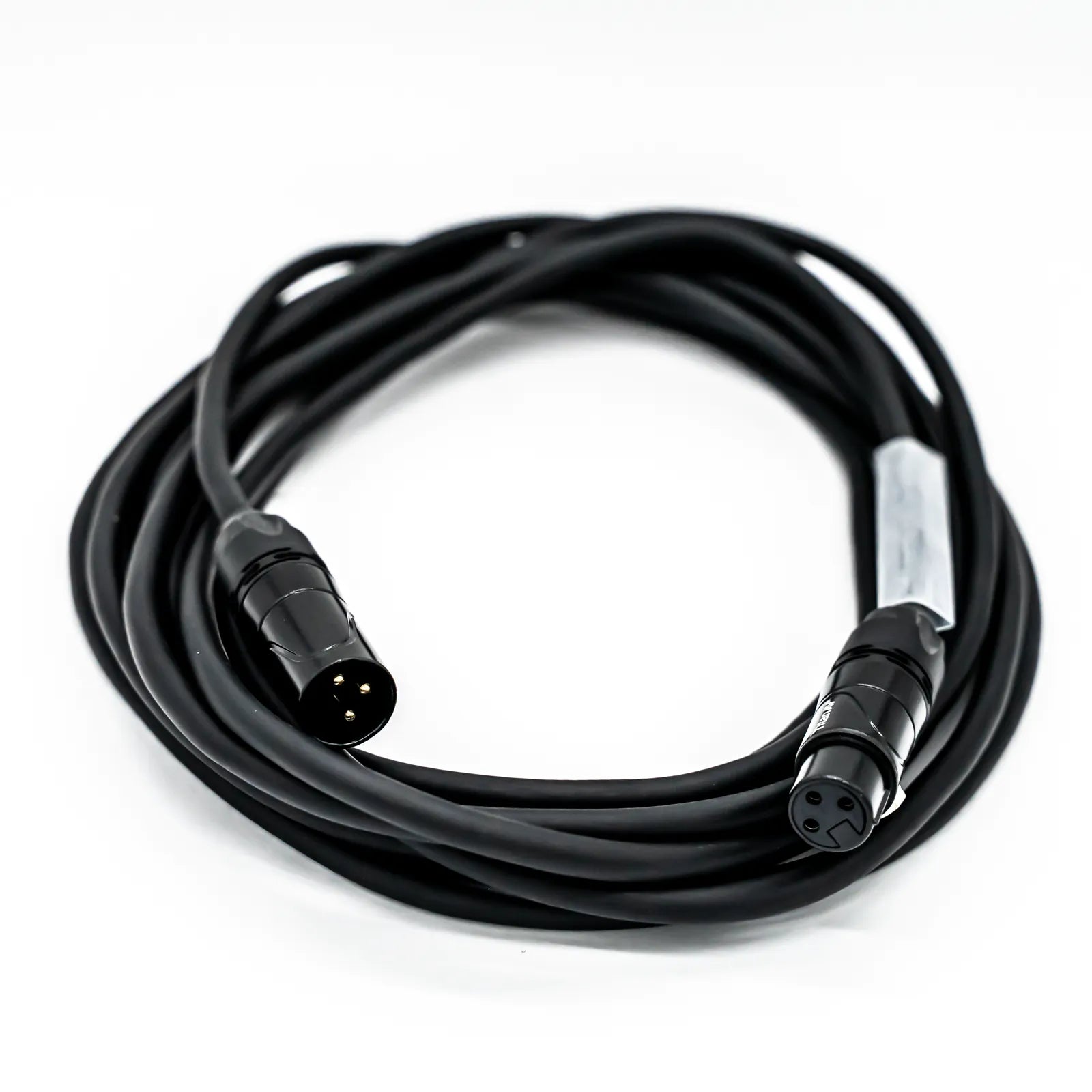

  • 6m–10m, standard stage runs, mic to FOH return, studio session lines

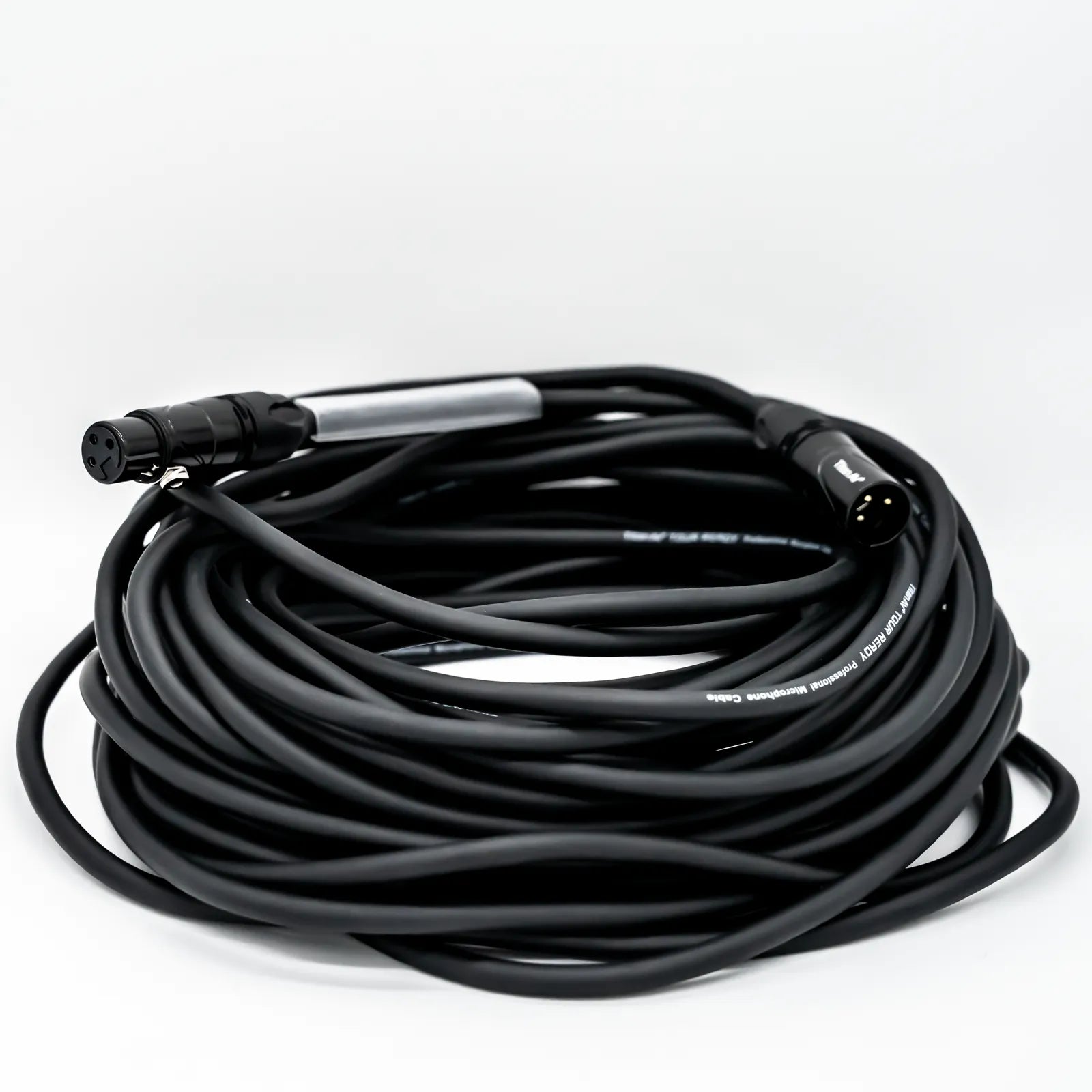

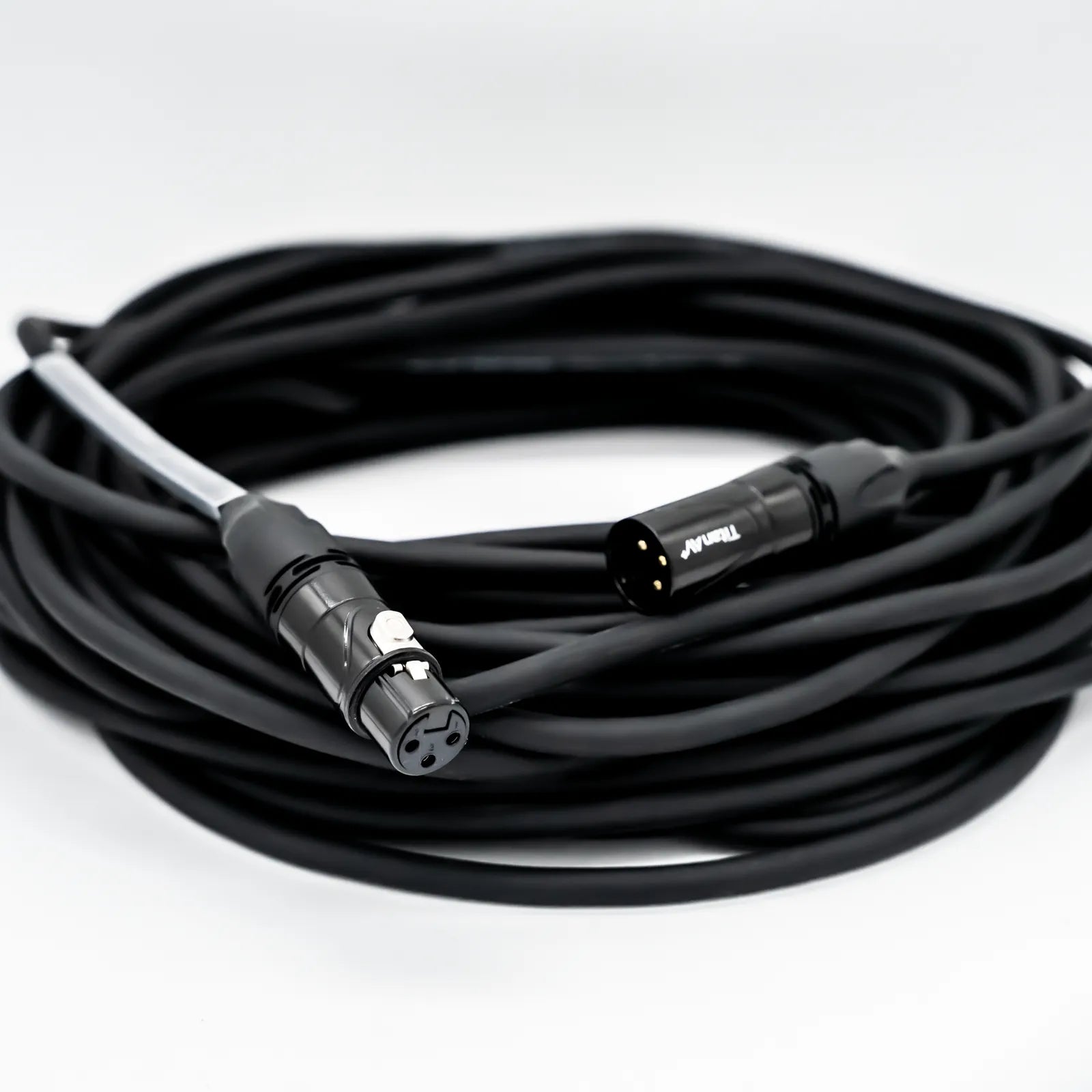

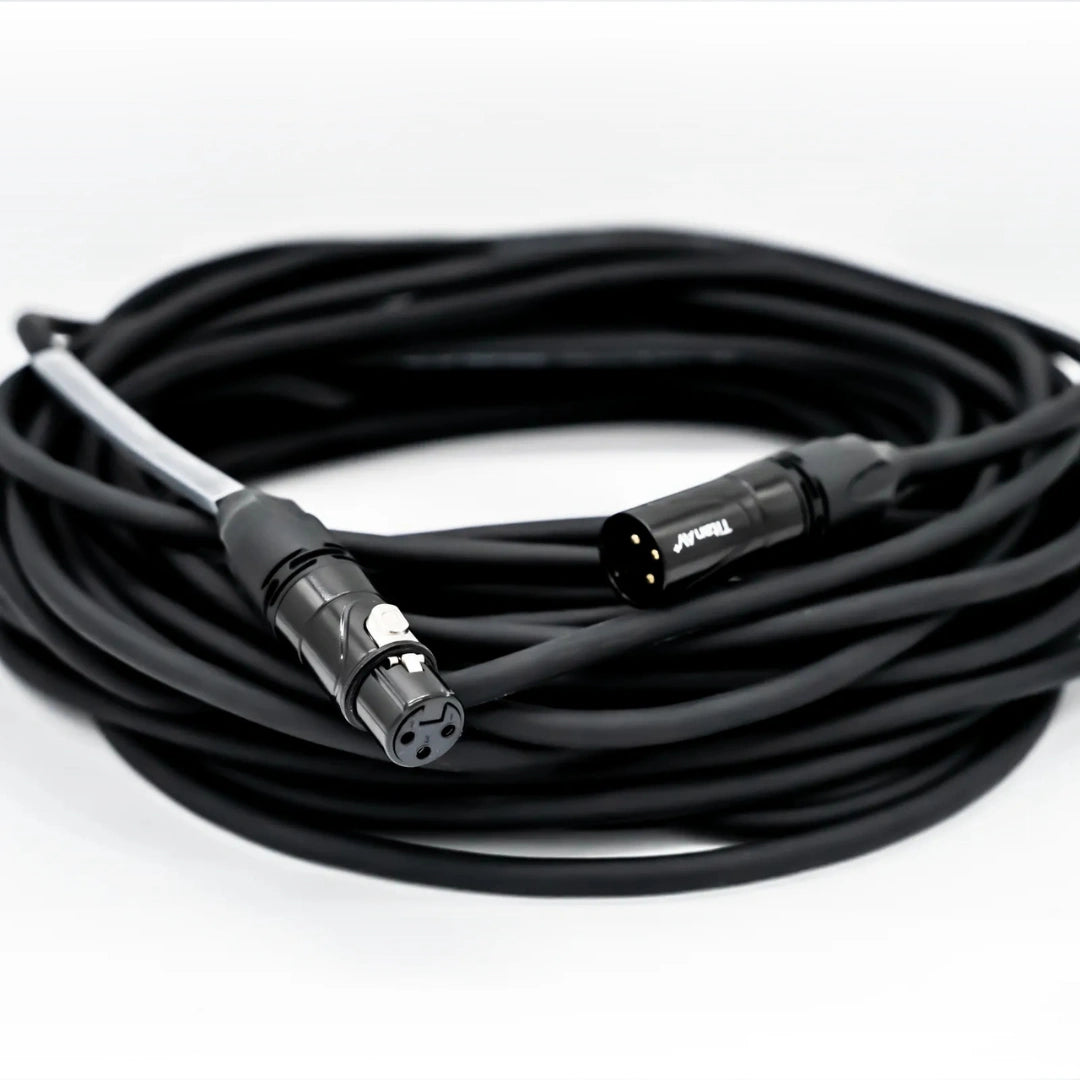

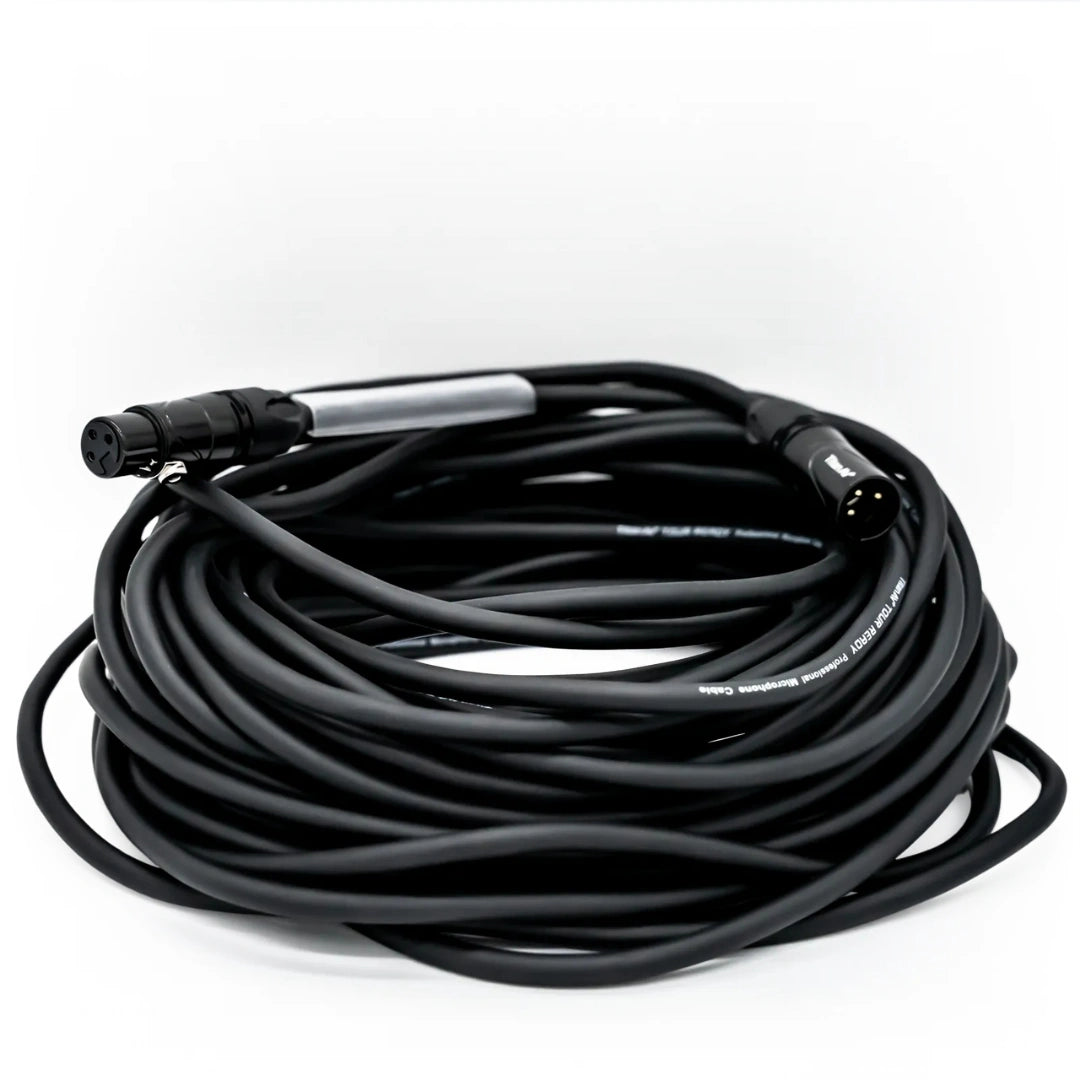

  • 15m–20m, long FOH throws, large-stage mic lines, install runs

Clear heat shrink at each end takes a marker pen, so every XLR lead stays sorted between gigs. Designed in Brisbane, built for the way live audio actually gets used.



Specifications
  • Selected Length: 0.5m
  • Lengths Available: 0.5m, 0.75m, 1m, 1.5m, 2m, 3m, 6m, 10m, 15m, 20m

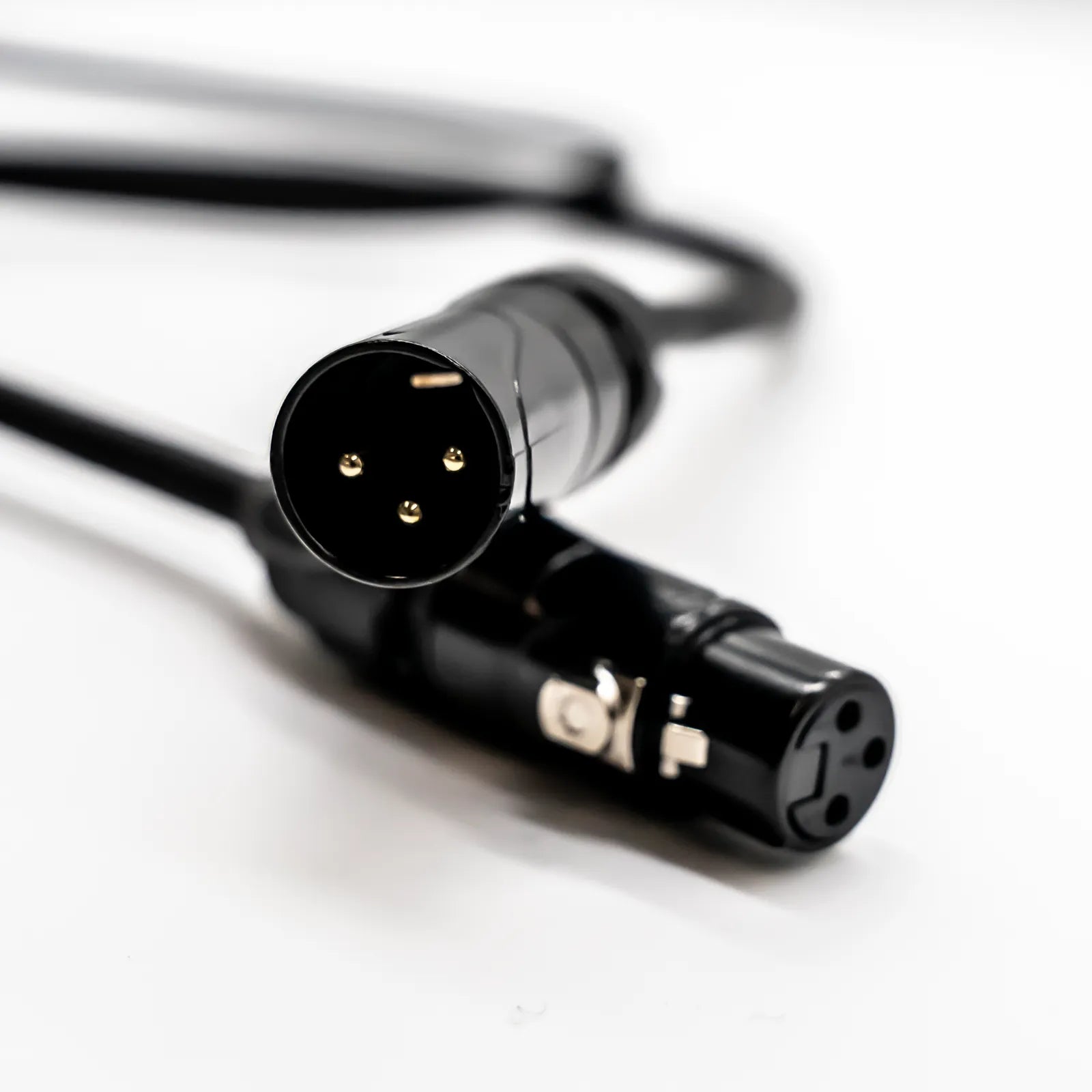

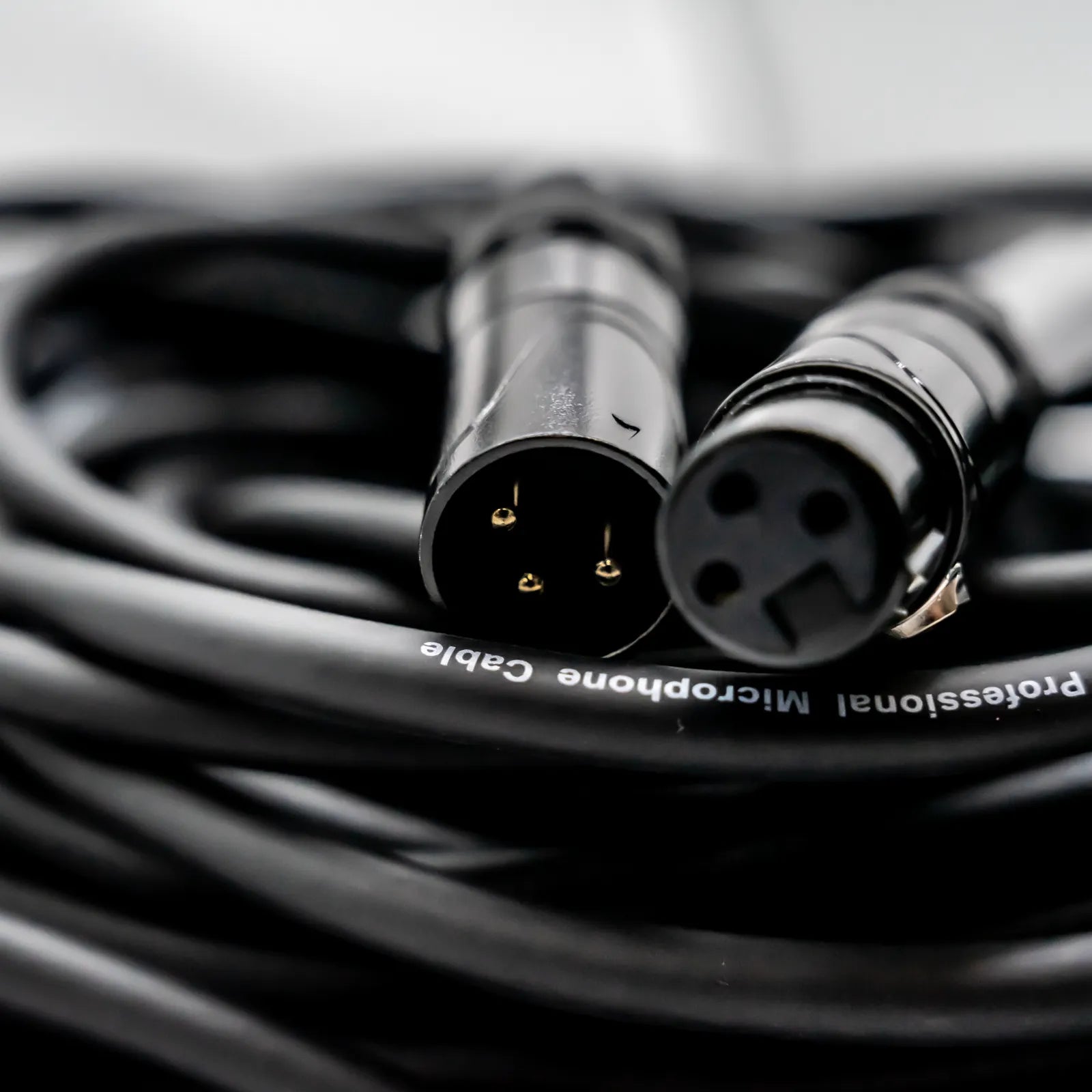

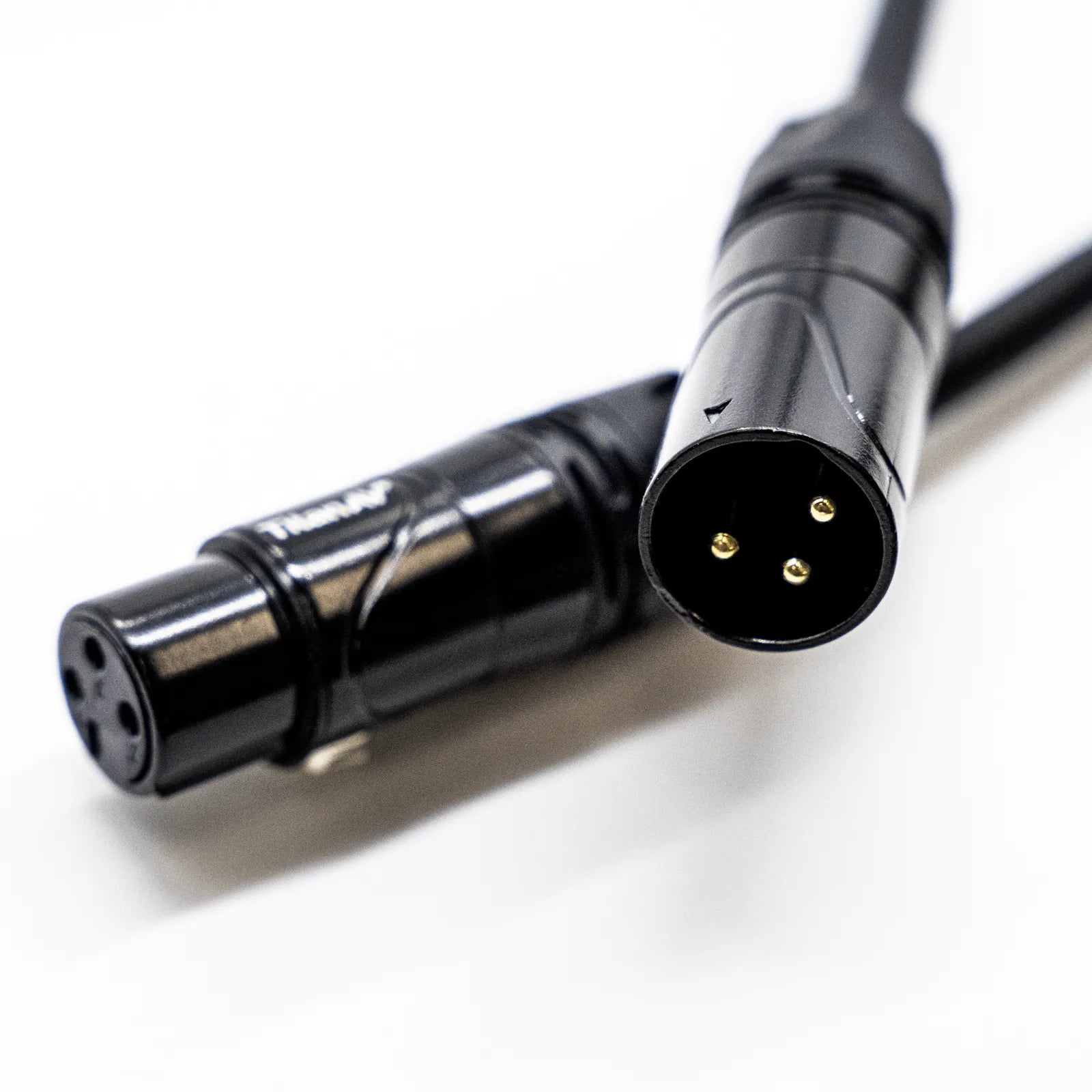

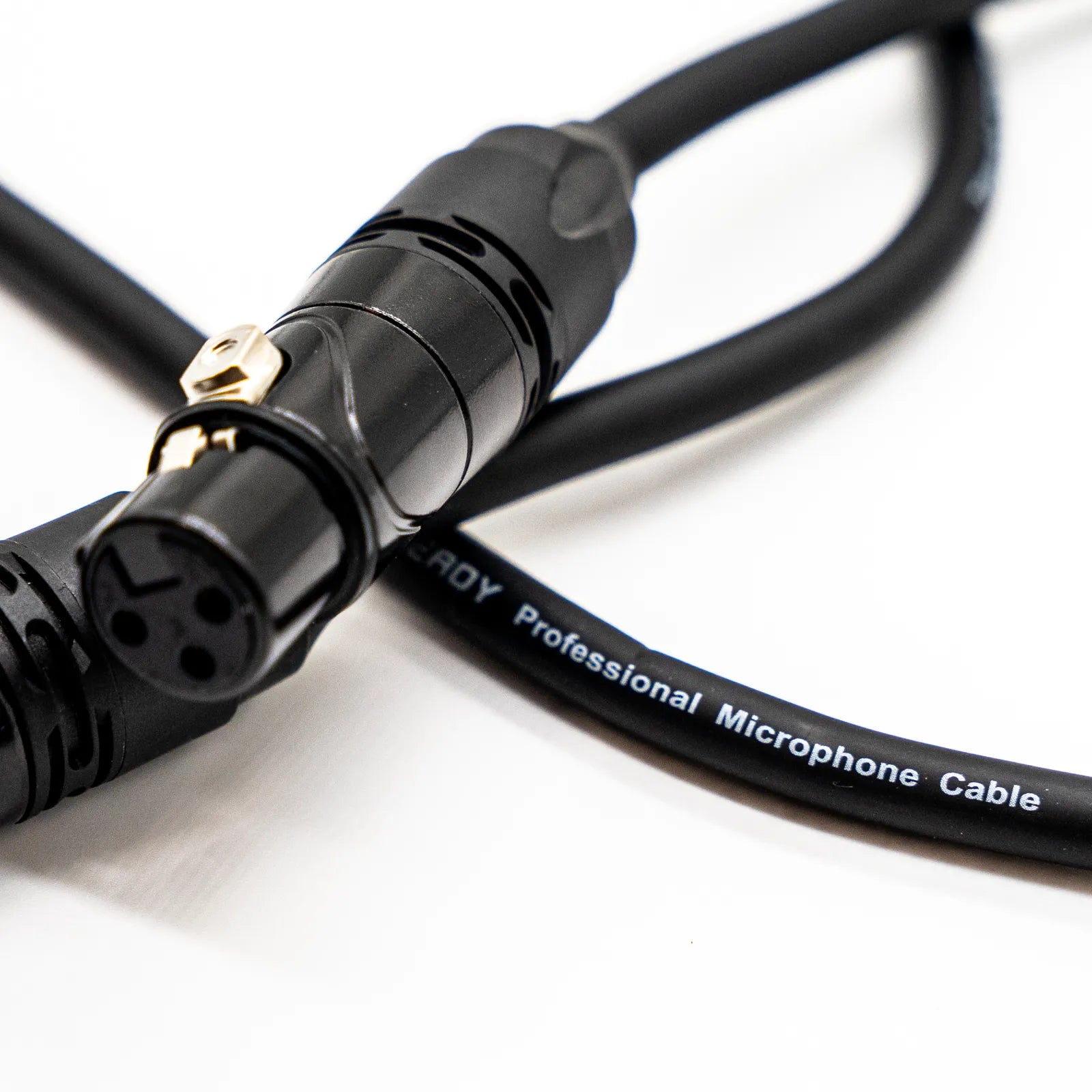

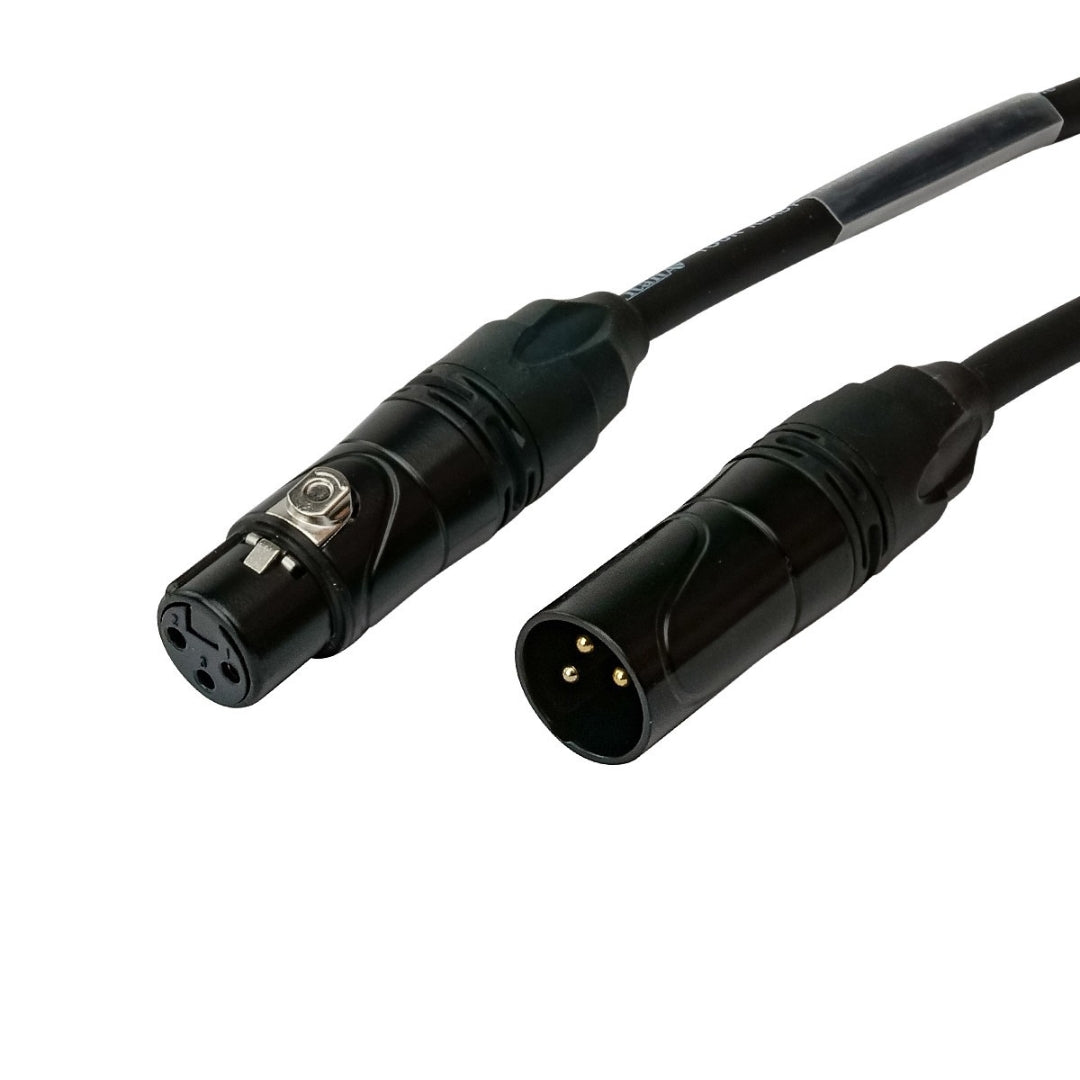

  • Connector: 3-pin XLR, male to female, 24k gold-plated pins, zinc alloy housing
  • Conductor: 22AWG oxygen-free copper, balanced twisted pair (50 × 0.08mm strand)
  • Characteristic Impedance: Audio spec, 50 to 75Ω
  • Signal Attenuation: <0.005 dB / 100m
  • Capacitance: 73 pF/m
  • Factory Tested: Yes
  • Shielding: 95% braided copper

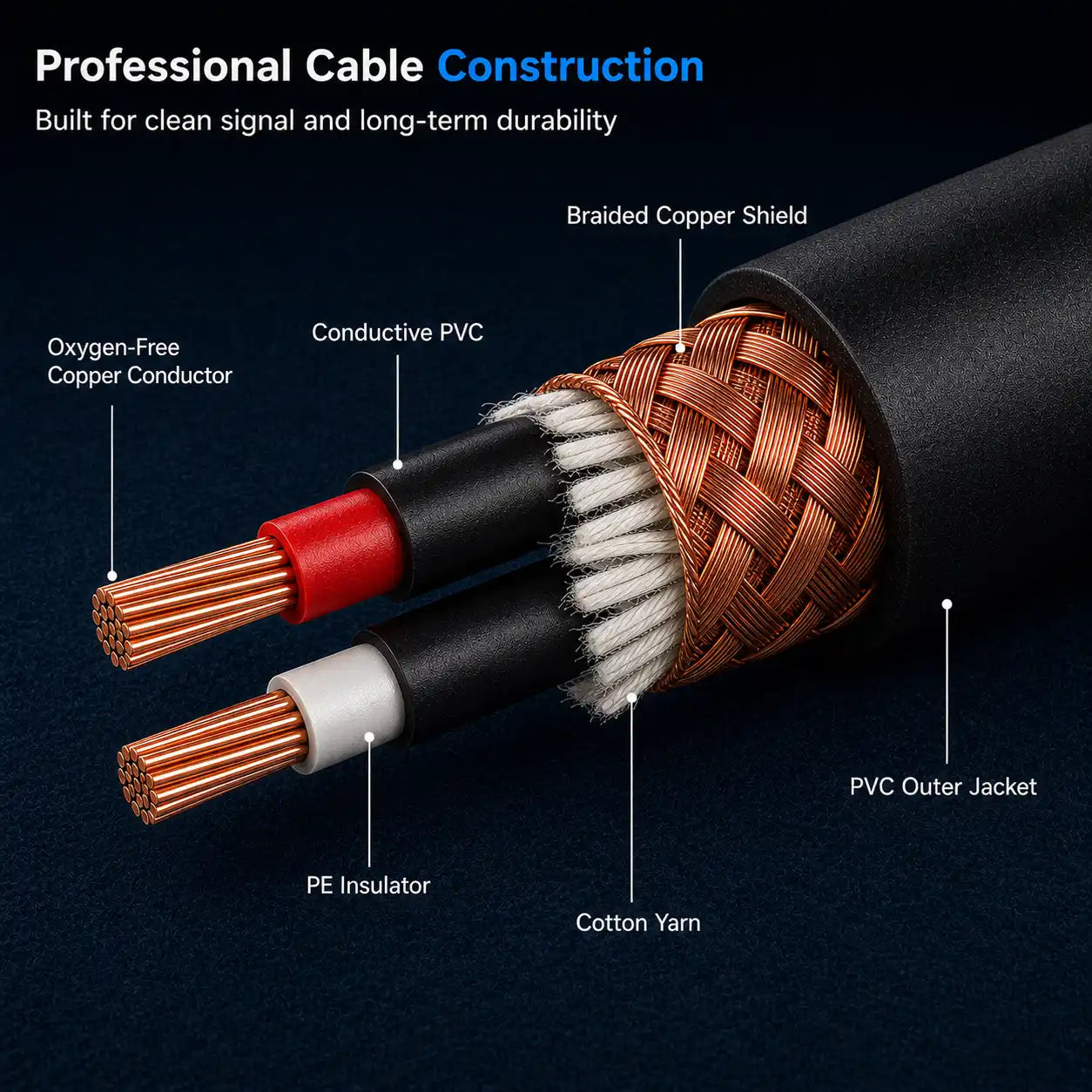

  • Insulation: PE plus conductive PVC (dual layer)
  • Jacket: Flexible PVC
  • Diameter: 7.0mm
  • Temperature Range: -20°C to +70°C
  • Compliance: RoHS
  • Colour: Black

Delivery & Pick-up Options

We offer Brisbane pickup from our Northgate warehouse, or delivery Australia-wide with clear, upfront pricing for most orders.

BRISBANE PICKUP

Free pickup is available from our Brisbane warehouse.
Orders are usually ready within 1 business day.

PARCEL DELIVERY — $15.95

For small, lightweight items within standard parcel limits (each item under 22kg and 1.8m).
Tracking details are sent once your order is dispatched.

BULK DELIVERY — $129

For large or heavy items that can’t be sent as a standard parcel.
Requires a forklift or suitable unloading equipment at delivery.

BULK DELIVER + TAILGATE — $199

For large or heavy items when unloading equipment isn’t available.
The truck uses a built-in lift to safely unload your order.

Upfront Delivery Pricing

Upfront delivery pricing applies to around 97% of orders. In rare cases where delivery access, size, or location results in higher carrier costs, we’ll always contact you before dispatch. No additional charges are applied without your approval.

For full delivery details, FAQs, and terms, see our Shipping & Delivery page.

XLR Build, Explained

These specs aren’t just technical details—they’re what keep your XLR cables delivering clean, reliable signal when it matters most.

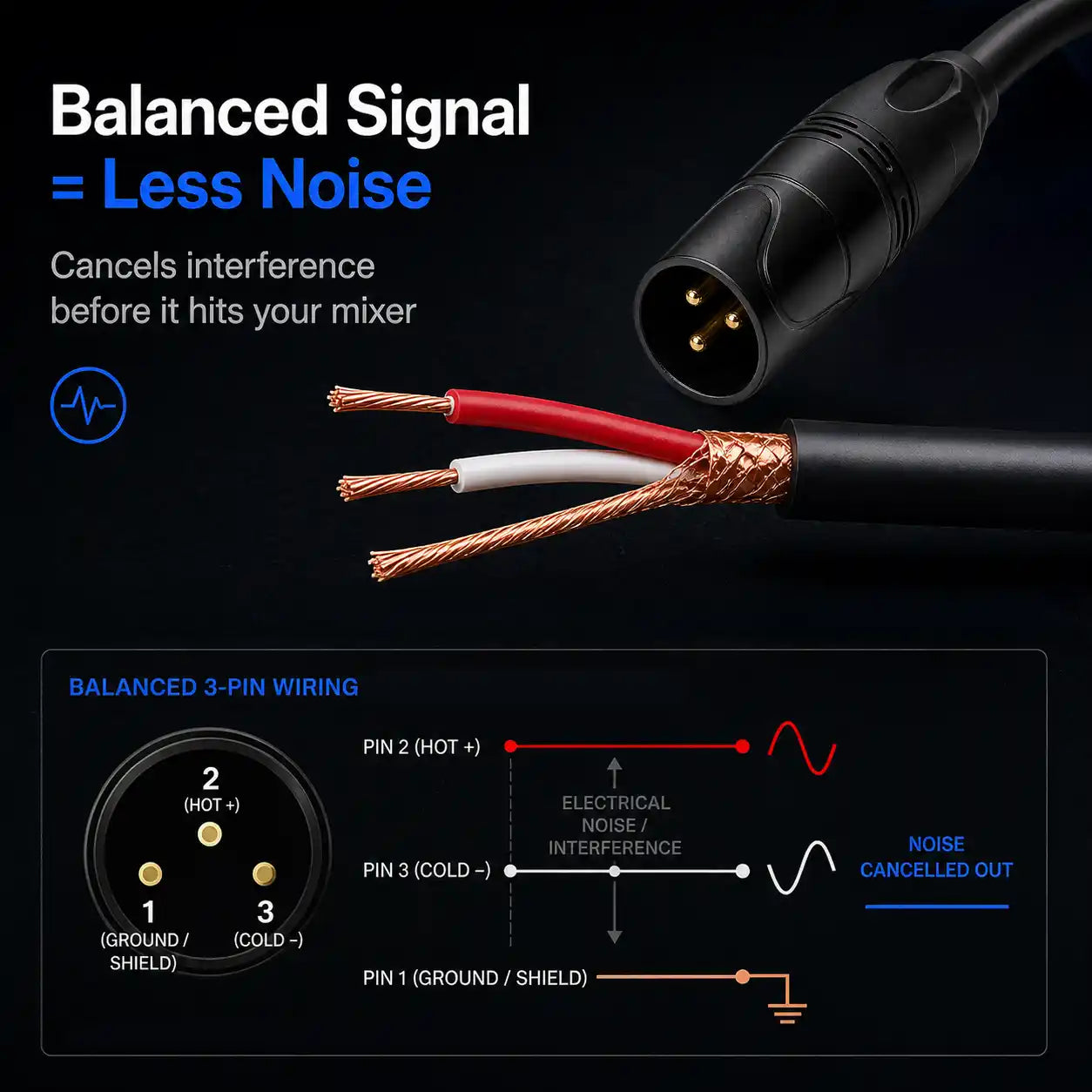

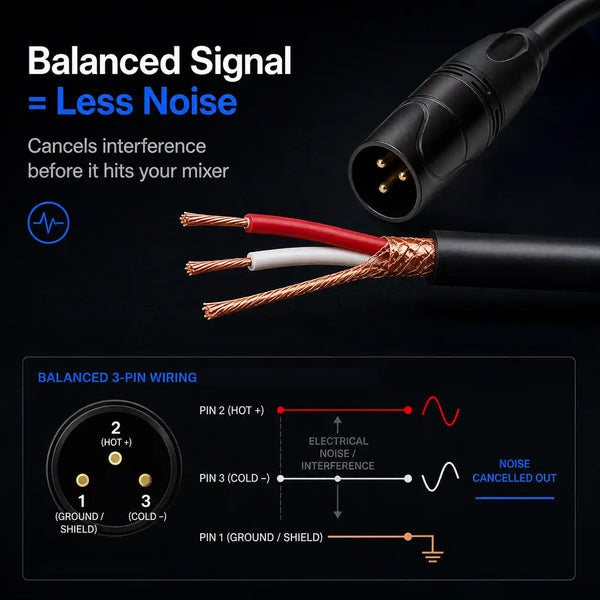

Balanced 3-Pin Wiring on Titan AV XLR Cable

Balanced 3-Pin Wiring

Hot, cold, and ground on three pins lets the input cancel any noise the cable picks up along the way, so the signal that lands at the mixer is the signal that left the mic.

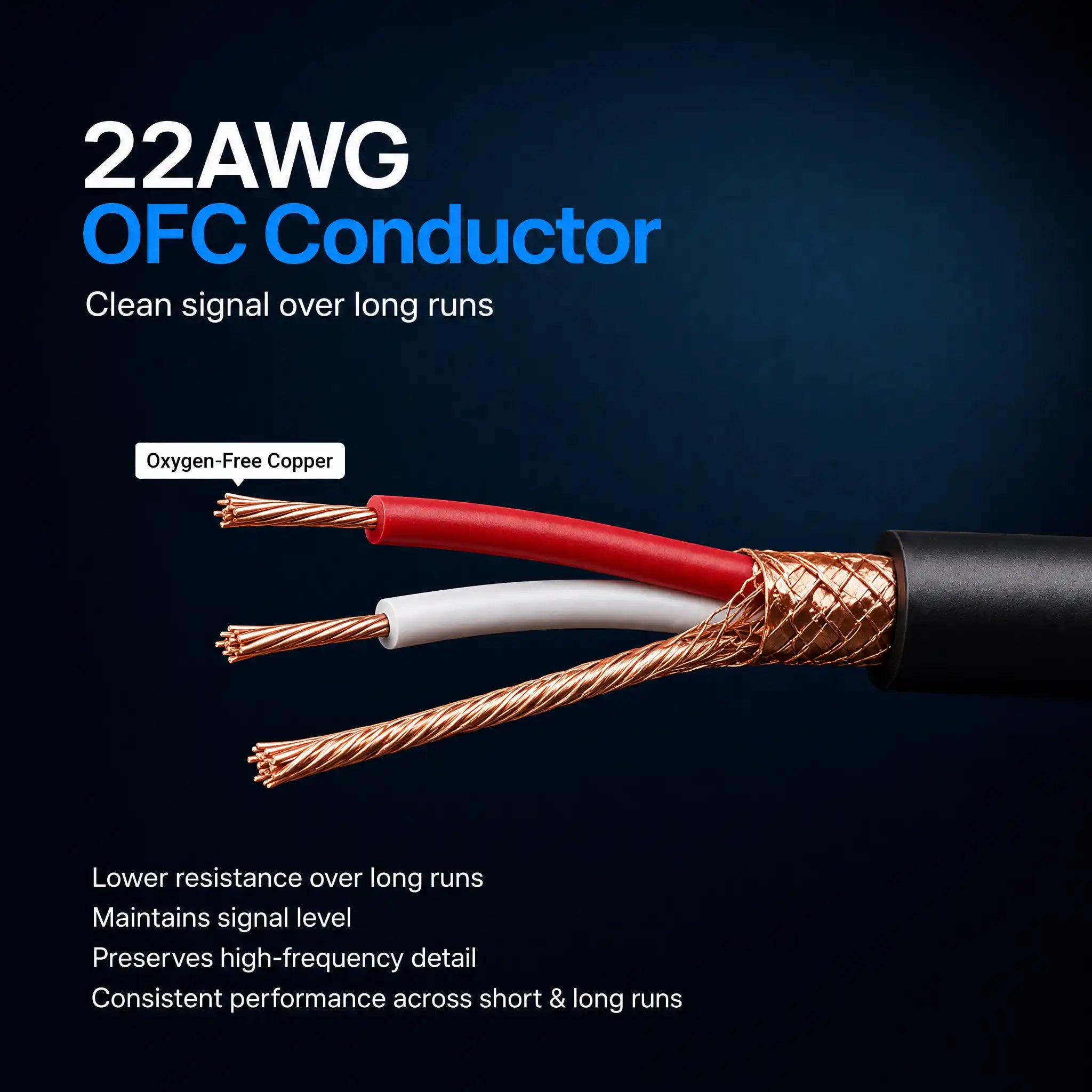

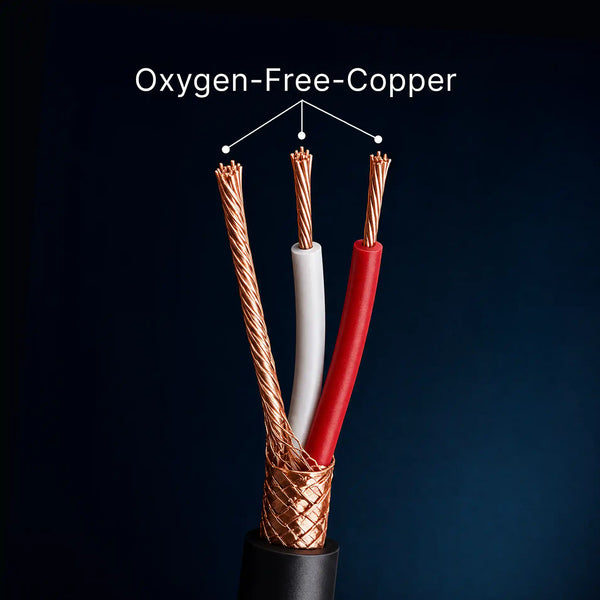

22AWG OFC Conductor

Oxygen-free copper drops series resistance over long runs, keeping level and high-frequency detail intact from short stage patches to 20m FOH lines.

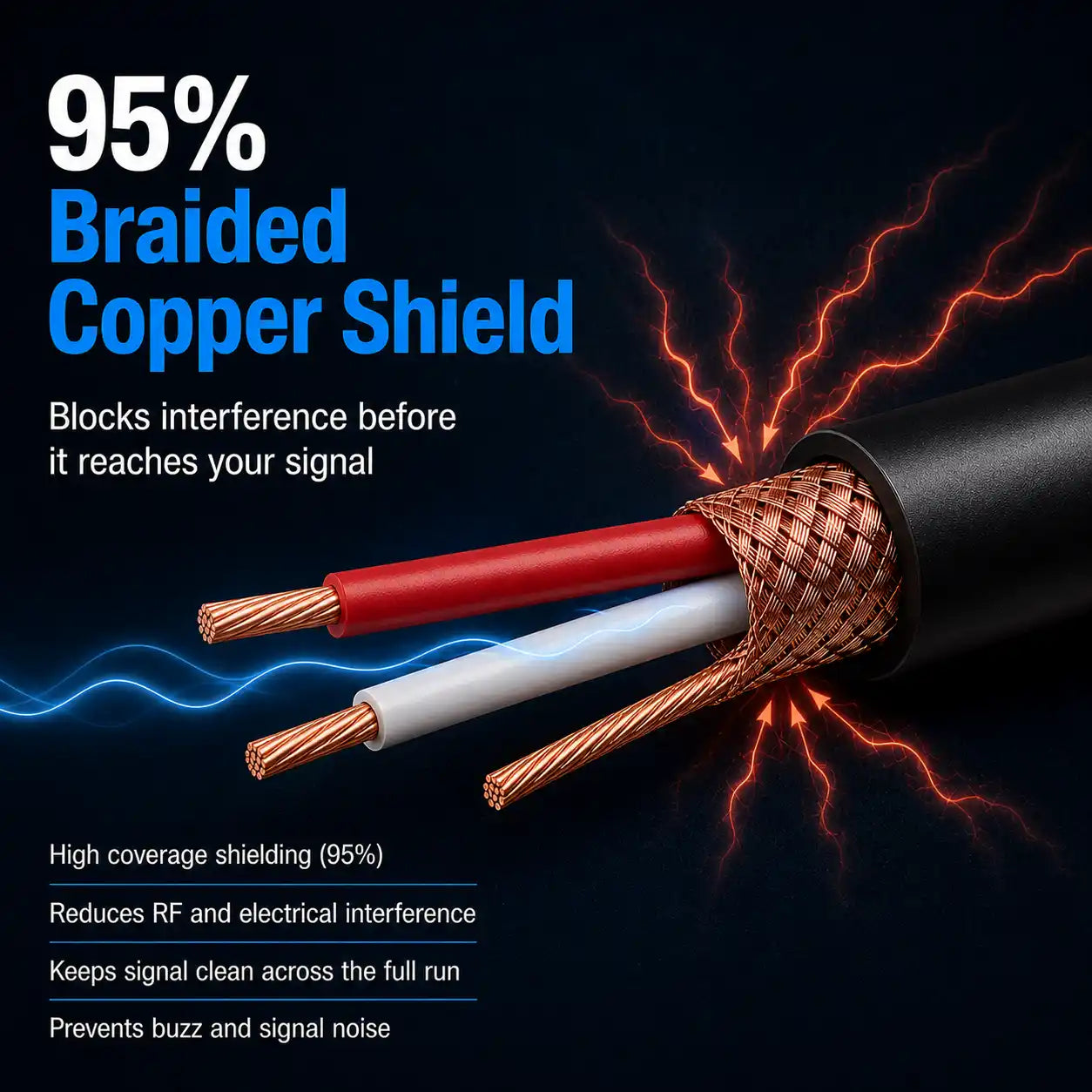

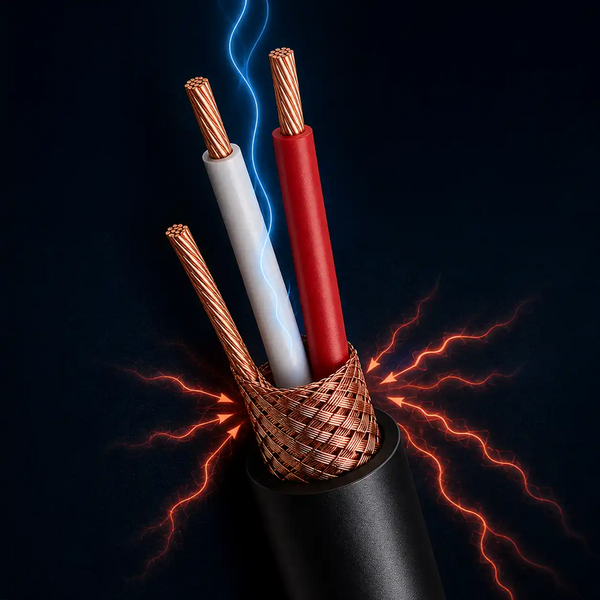

95% Braided Copper Shield

Heavy braided coverage blocks interference from lighting rigs, dimmers, and power, which is the difference between a clean vocal and a buzzing one.

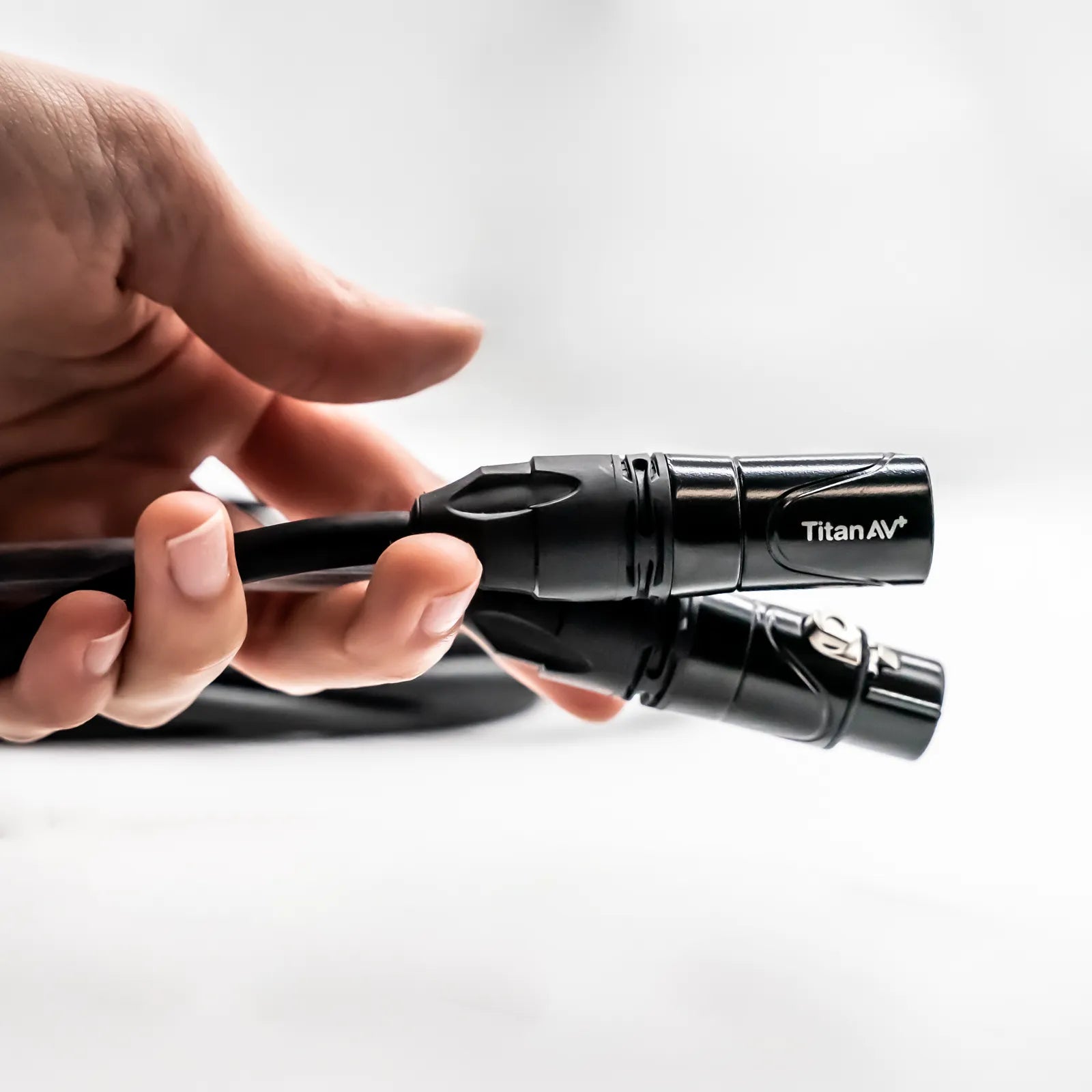

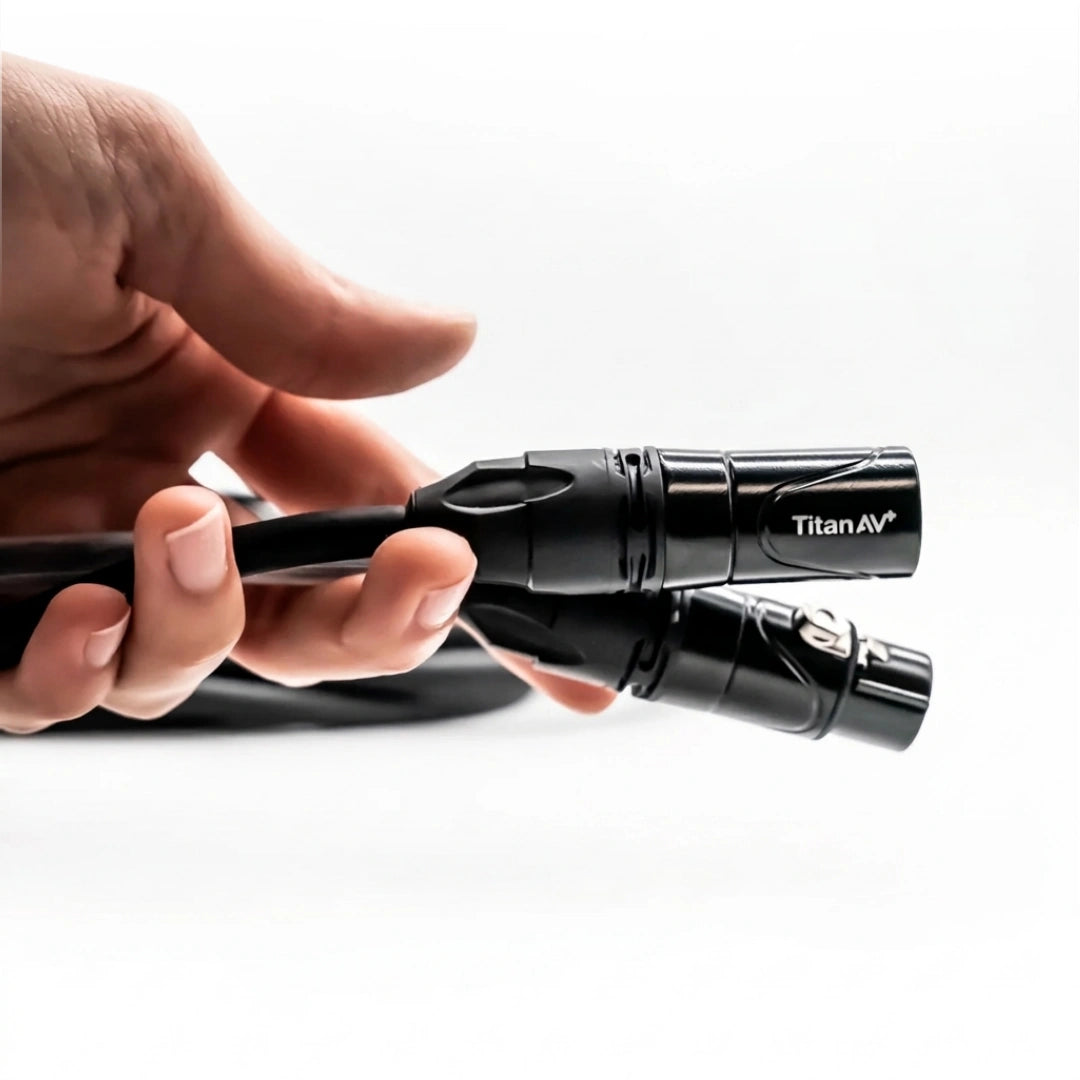

Gold-Plated Pins, Zinc Alloy Housing

24k Gold-Plated Pins, Zinc Alloy Housing

Gold-plated pins (rated to 5,000 cycles) keep contact stable through repeated patch and pack cycles. The zinc housing handles the wear of touring and load-in.

Flexible PVC Jacket, 7mm OD

Rated -20°C to +70°C, the jacket stays flexible in any environment, with a 7mm diameter that coils cleanly and resists abrasion.

Flexible PVC Jacket, 7mm OD

Why Choose Titan AV XLR Cable

Touring-grade audio cable. Designed in Brisbane, built for real conditions.

  • Balanced 3-pin construction, blocks RF & electrical noise across short & long runs
  • 24k gold-plated pins, stable contact across thousands of patch and pack cycles
  • 22AWG OFC conductor, low-loss signal across 20m runs and longer snake setups
  • 5-Year Titan AV warranty, if it fails, we replace it

Reviews

FAQs

Is this a balanced XLR cable?

Yes. This is a balanced 3-pin XLR cable, designed to reject noise and interference across the cable run. It's suited to professional audio use where signal integrity matters.

What's the difference between an XLR microphone cable and a DMX cable?

Both use a 3-pin XLR connector, which is why an XLR cord and a DMX cable get confused. Mic cable runs at audio impedance (around 50 to 75Ω) and is built for analogue audio. DMX cable is built to a 110Ω characteristic impedance for digital lighting control. Audio gear works fine on either, but lighting fixtures will flicker or drop bytes if you run DMX over mic cable, especially over longer runs.

Will this work with my microphone, mixer, and powered speakers?

Yes. The 3-pin XLR connector is the standard fitment used by virtually all dynamic and condenser microphones, mixing consoles, DI boxes, audio interfaces, and powered speakers. Plug it in and it works.

What length of XLR cord should I choose?

Use 0.5m to 1.5m for rack patches and mic splits, 2m to 3m for short stage runs and monitor feeds, 6m to 10m for standard stage and studio use, and 15m to 20m for long FOH lines, snake feeds, and install runs. Always allow a little extra for routing around stands and stage edges.

Is this XLR cable suitable for outdoor use?

The jacket is rated to -20°C and handles temporary outdoor use under cover. It is not IP-rated, so keep it out of direct rain and avoid permanent outdoor installation. For festival and outdoor work, keep cable runs and connections dry.

Do XLR connectors stay securely connected during a show?

Yes. The standard XLR latch clip locks the male connector into the female housing, so it won't pull out under cable tension. To unplug, press the release tab on the female connector body.

What's the warranty on this cable?

This cable is covered by a 5-Year manufacturers’ warranty.
