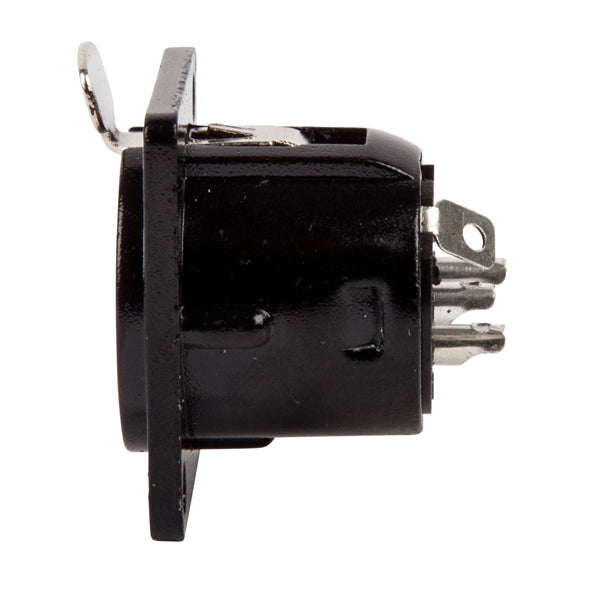

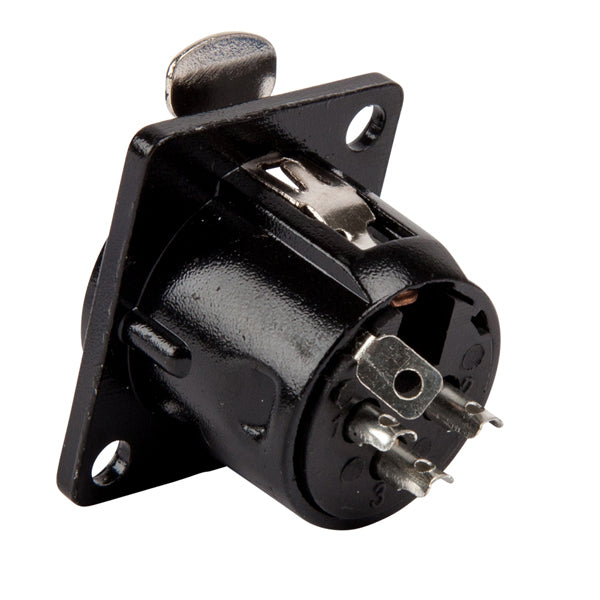

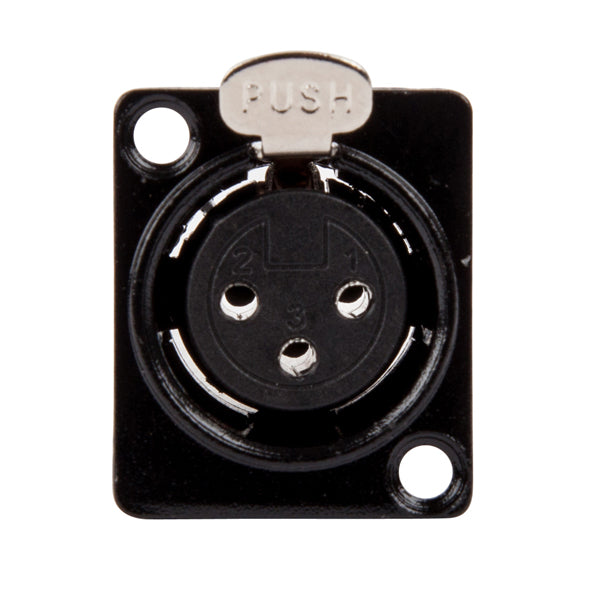

XLR Balanced Chassis Panel Mount Socket Female

This Titan AV XLR female panel mount connector offer's greater reliability, ease of assembly and improved contact integrity. This is a high quality 3 pin panel mount connector with a metal chassis. Perfect for use with low level voltage signal (mixers, active speakers, mic's, etc).

Titan AV Audio connectors and adapters are ergonomic, high quality, reliable and backed by a 5 year warranty.

• High quality connector
• Perfect for use with electrical instruments, microphones, patch panels, custom installations and mixers
• Metal chassis
• D-size flange
• Countersunk thru holes
• Warranty: 5-Year

• Dimensions: 32 x 27mm (H x W), 25mm (Depth) & 23mm (cut-out)
• Colour: Black
• Weight: 0.031kg
• M3 bolt & nut required for install (Not supplied)
• 1 x XLR female panel mount connector
