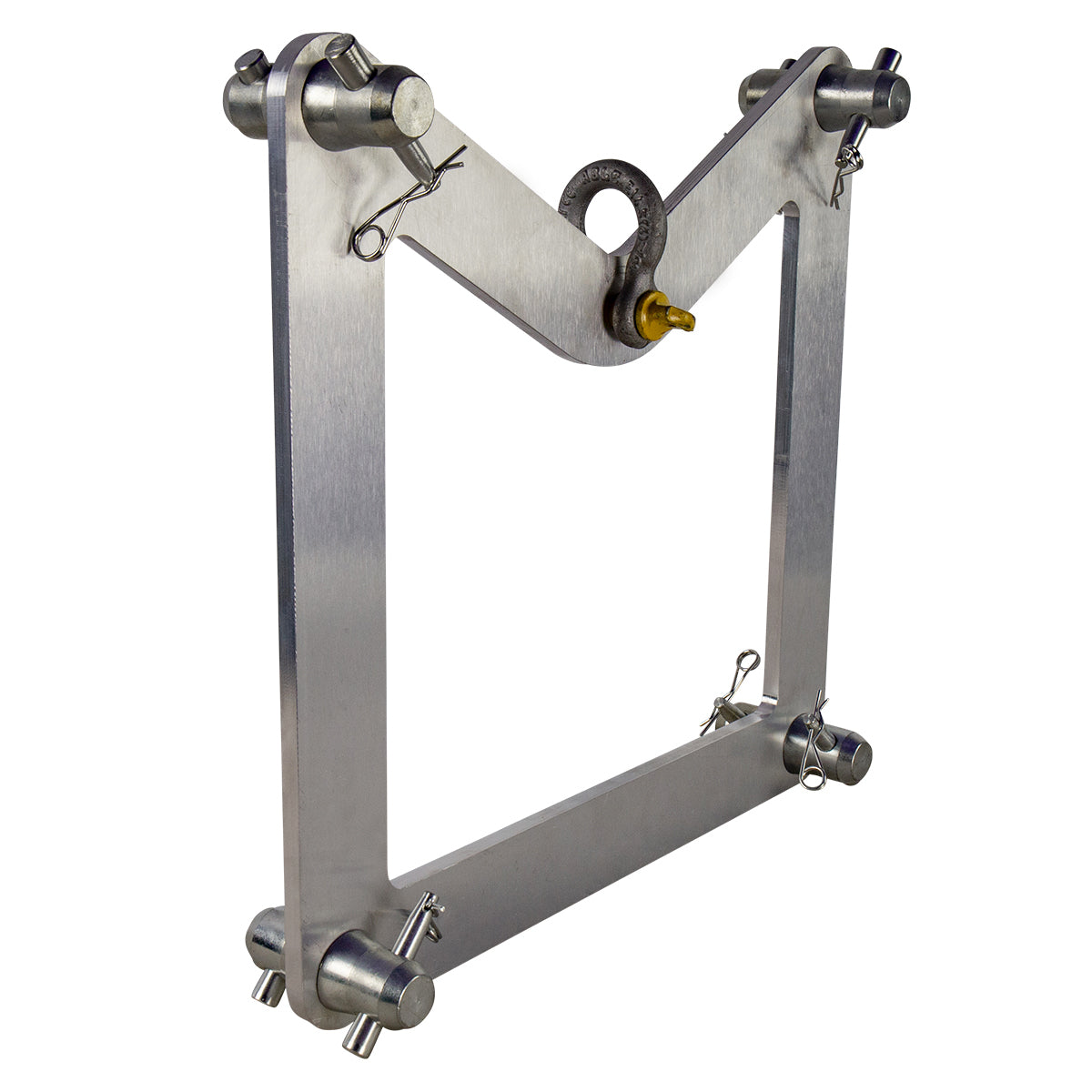

400 Inline Lifting Bracket - 1000Kg SWL

Titan AV 400 inline lifting bracket, also know as a truss end plate suspension bracket. Supplied with bow-shackle, Half spigots, pins and clips.

Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV inline lifting bracket comply with Australian engineering standards. Bow shackle conforms to Australia Standard AS2741, supplied with a working load limit, nominal size, quality grade, batch numbered and supplier identification.

*Please Note; Loaded rated to a SWL of 1000kg*

Features:

• 2-year manufacturer's warranty
• 1 x 400 truss inline lifting bracket
• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
• Australian Standard AS2741
• Will work with Titan AV 400 box truss
• Finish: Silver mill finish
• Very high quality build and design
• Max load rating 1000kg
• Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
• Event application: Stage production, Venues, Exhibitions, Clubs & Churches
• Dimensions: 400 x 400 x 100mm (DxHxW) (Including spigots)
• Material: 6082-T6 Aluminium plate, 10mm thick.
• Weight: 3.9 Kg
