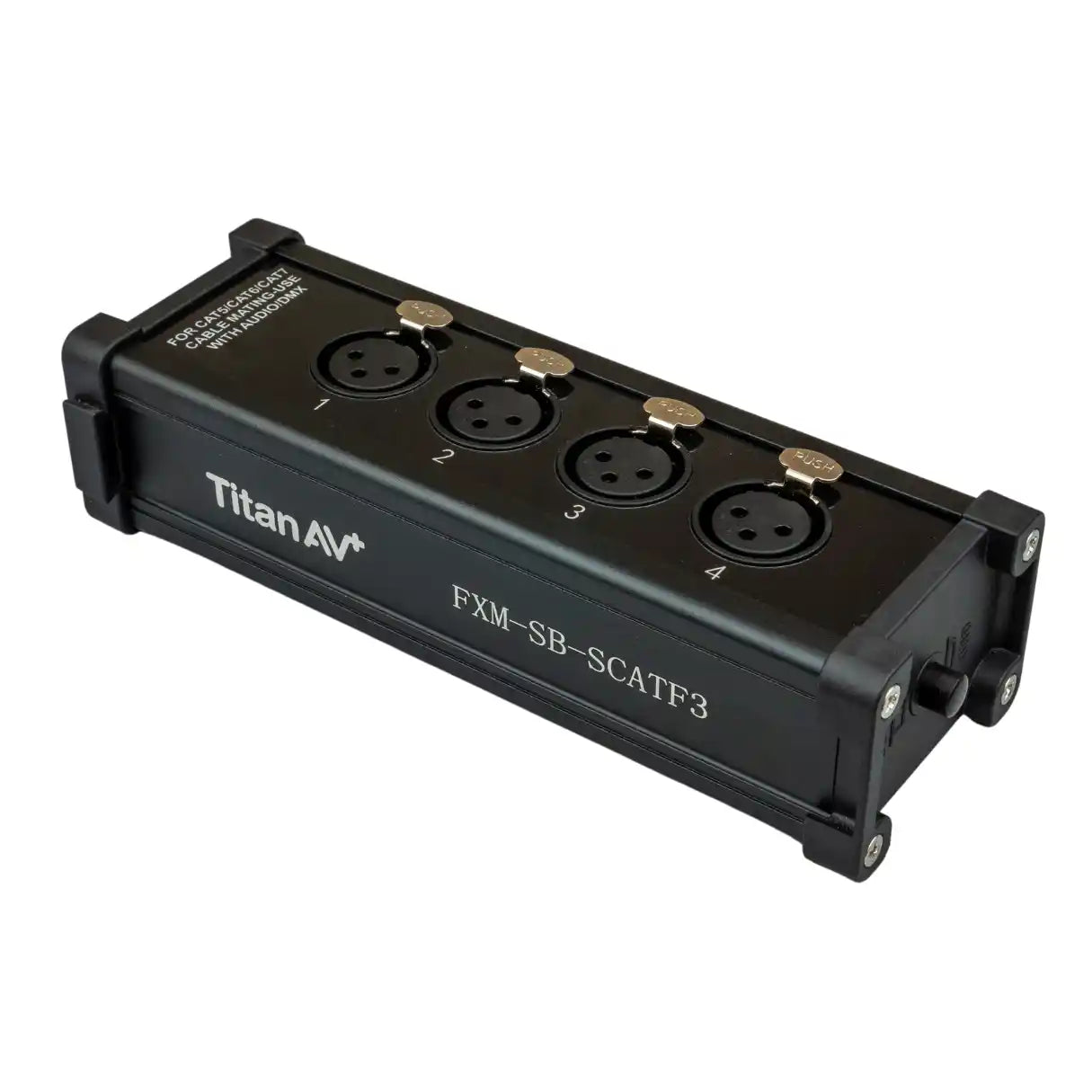

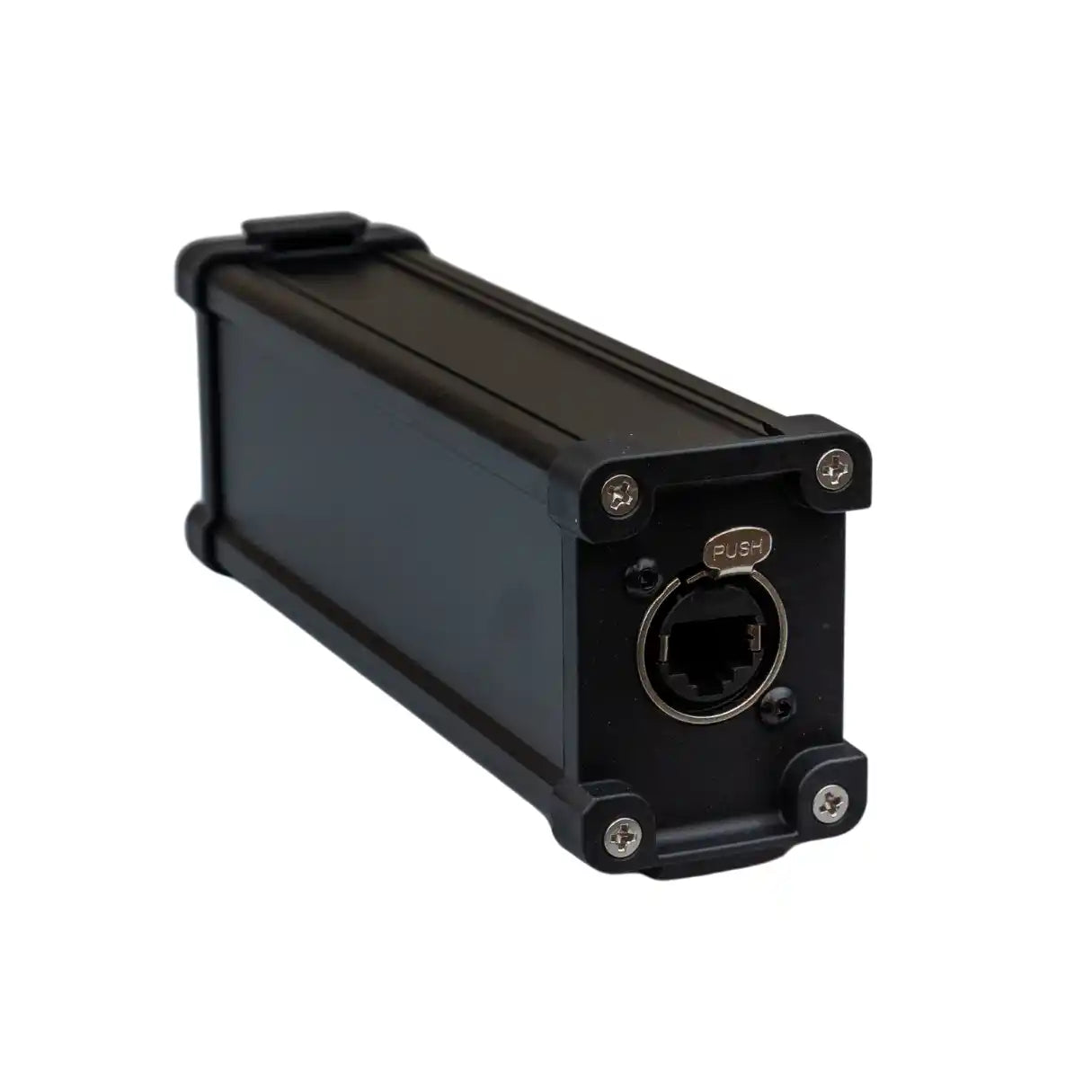

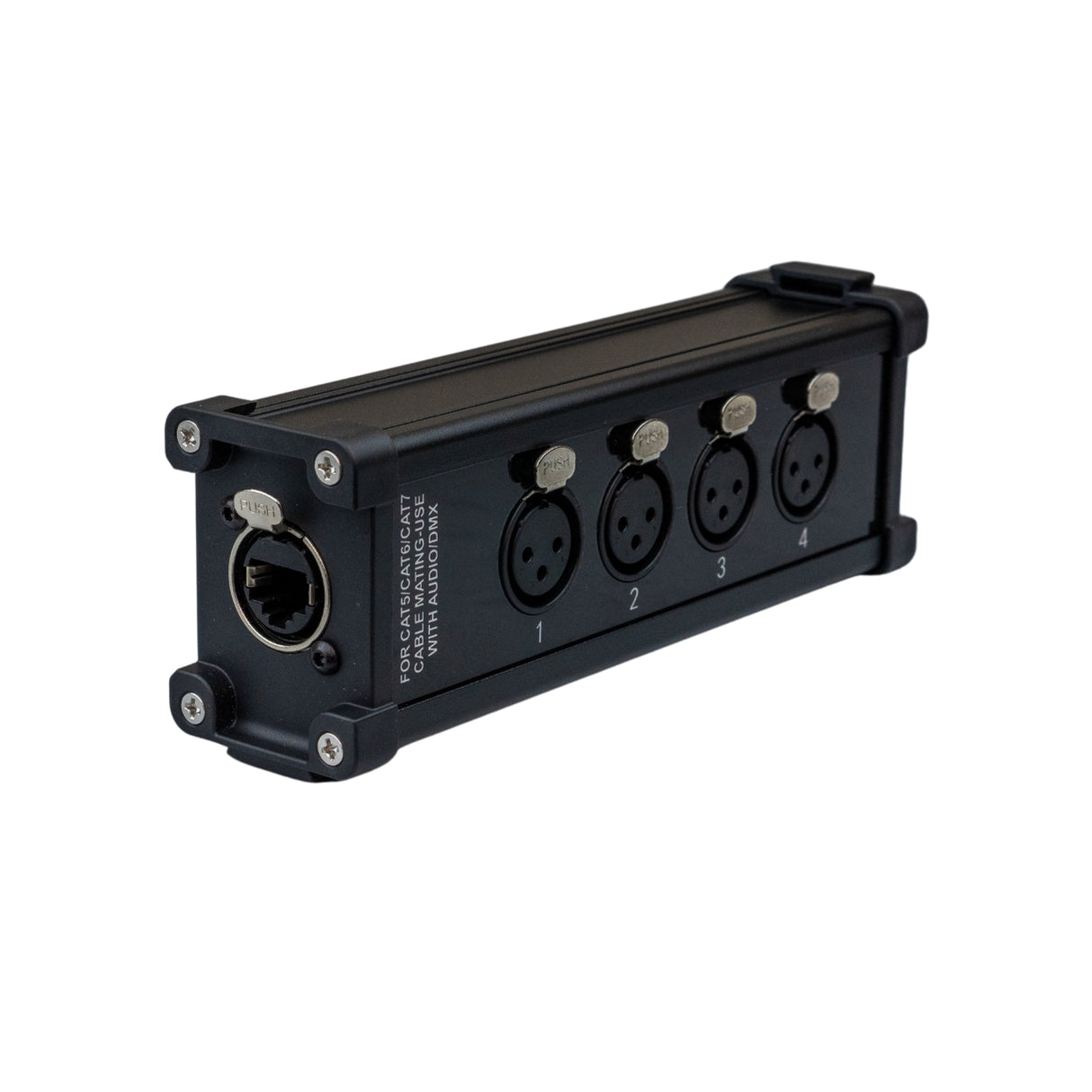

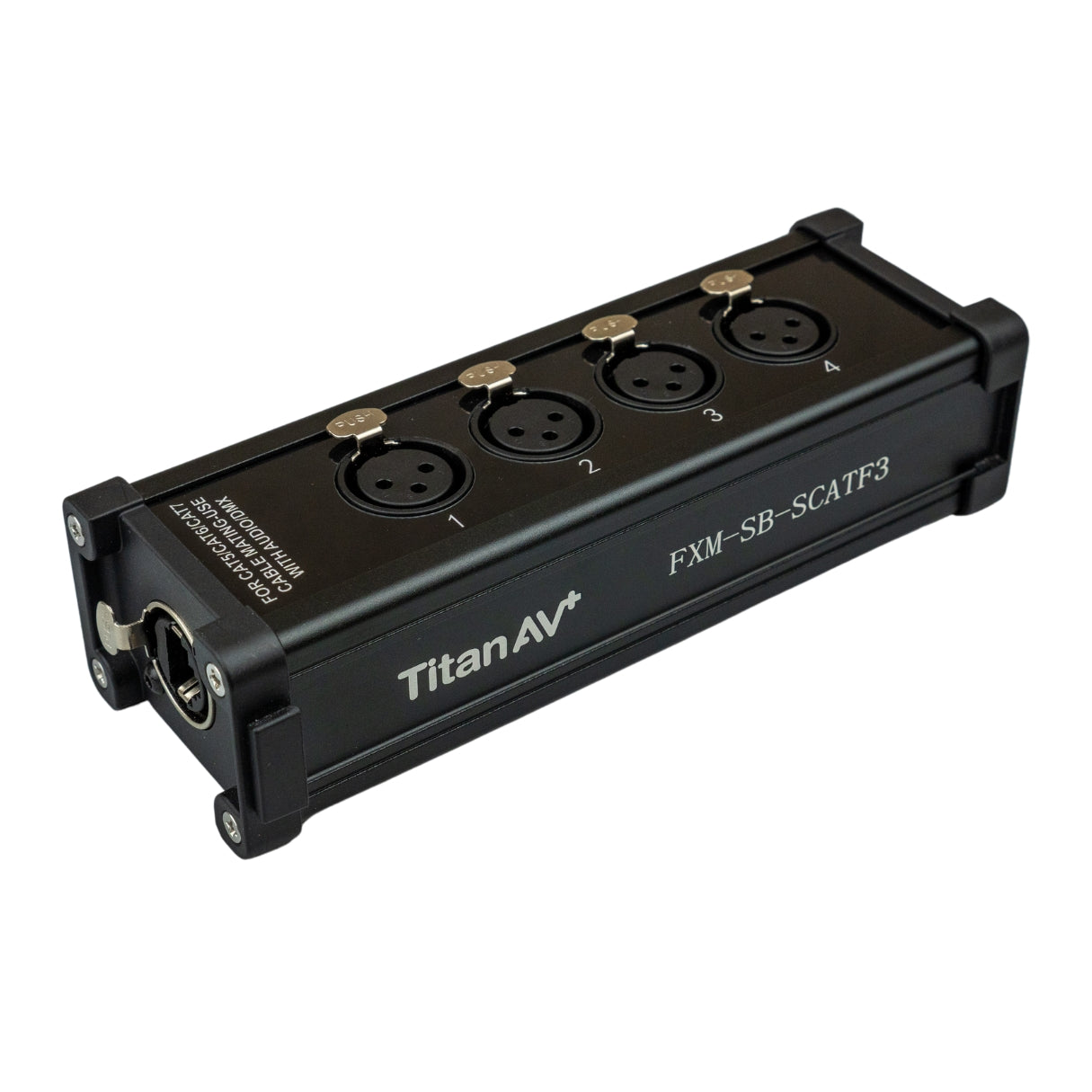

RJ45 EtherCON to Quad 3-Pin XLR-F SLIM Stage Box
Description
Description
Channel 1 is wired out of phase in the latest batch. This does not affect normal operation in most applications and the units remain fully usable.
- Four XLR analogue/digital signals down a single shielded CAT cable
- Transmits four channels of balanced analogue signal
- Transmits four channels of AES signal (eight audio channels)
- Transmits four channels of DMX signal
- EtherCON connection RJ45
- RJ45 jack CAT6 or CAT5e shielded cable
- High quality custom connectors
- Ground lift
- Gold plated connectors
- Perfect for use with balanced Audio, DMX & AES/EBU signals
- Phantom Power Compatible: No
- 100% Screening
- 5 year warranty
- Balanced analogue audio up to 50m
- AES/EBU/DMX signal up to 100m
- DMX matching impedance: 110 Ohm
- Dimensions: 162 x 57 x 40mm (WxDxH)
- Weight: 0.239kg
- Colour: Black
- 1 x RJ45 EtherCON to Quad 3-Pin XLR-F SLIM Stage Box
