Titan AV Lighting Top Mount Bracket - 290mm Truss
  • SKU: TR-BP30-MHM

Titan AV Lighting Top Mount Bracket - 290mm Truss

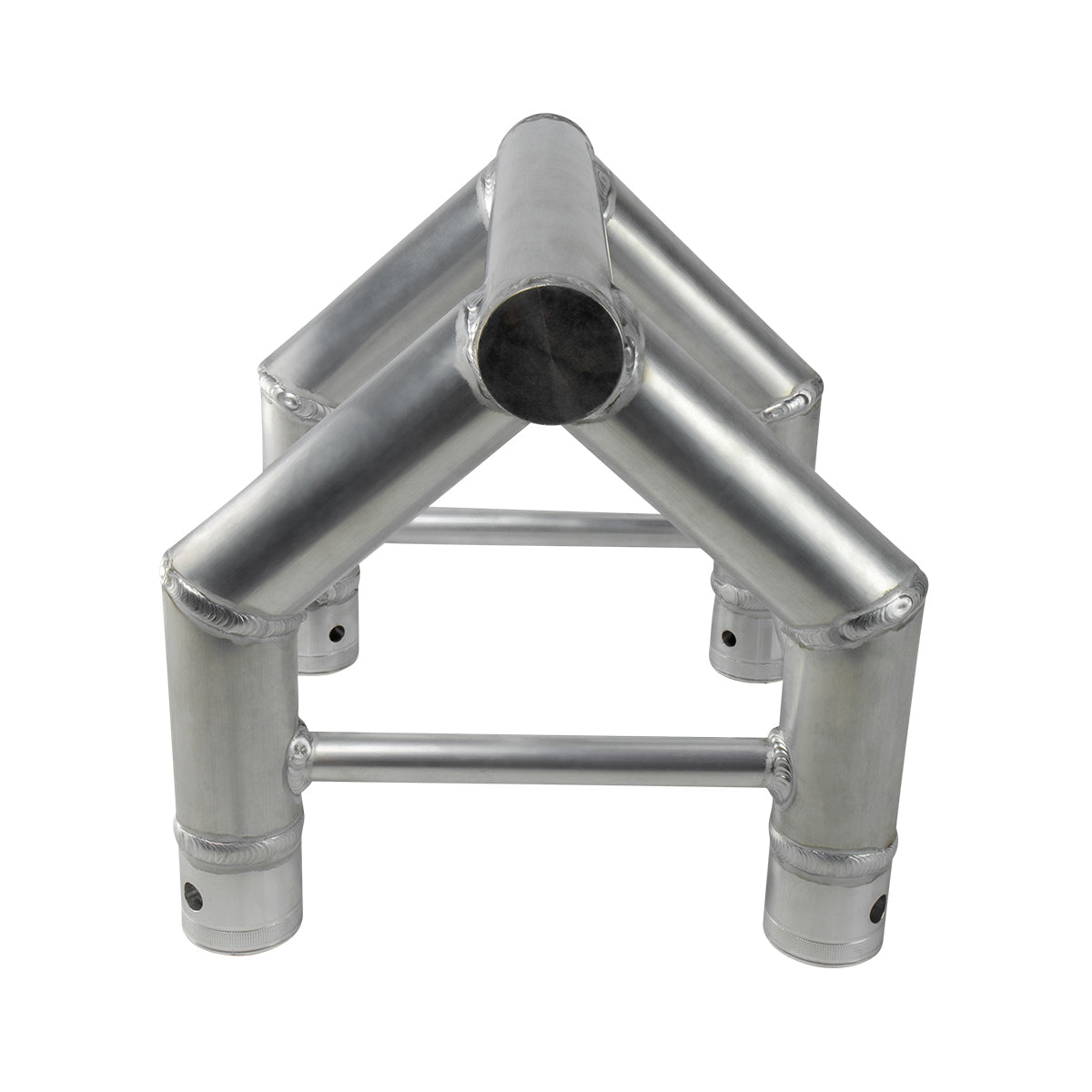

    Heavy duty top mount bracket for LED lighting and movers off upright truss lengths and truss structures.  Top Mount brackets allows lighting designers the freedom to mount LED or Automated fixtures, often called “movers” on up right truss length. Lighting top brackets can be found in Theatre, concert, performance arts, or tradeshows, arenas and stadiums.

    This top mount bracket is constructed from 6082-T6 aluminium with 50x2mm main tube and 20x2mm brace, supplied with two heavy duty wrap around clamps.


    • Warranty: 2 years
    • Rigging applications: Mounting LED lights
    • Event application: Stage production, Venues, Exhibitions, Clubs & Churches


    • Dimensions (L x W x H): 290 x 290 x 290mm
    • Weight: 2.8 kg
    • Max load: 40kg
    • Mounting tube: 50mm x 180mm (mounting length)
    • Material: 6082-T6 Aluminium main tube: 50x2mm, brace: 20x2mm
    • 1 x LED lighting Top mount bracket
