SKU: TR-SF-X4V-S30

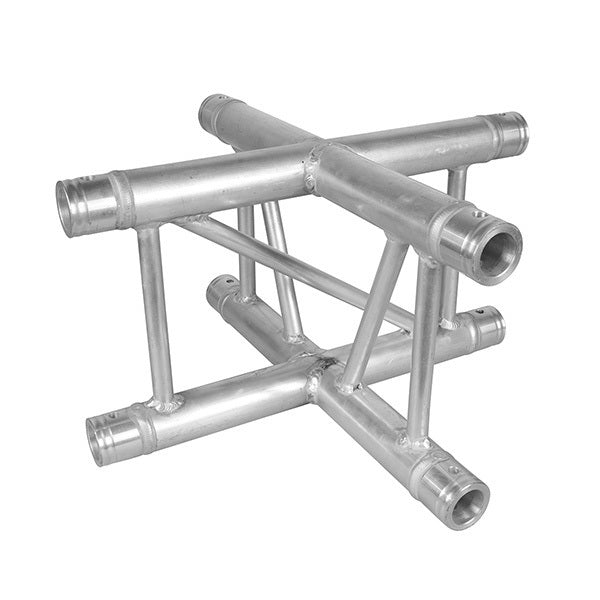

Titan AV Flat Truss X-Junction Lighting Truss 290mm

$321.00

Parcel Post Delivery: $25.95

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Oversized Freight:

Please contact sales@titanav.co for a custom quote.

Note: See T&C's for further information.

Description

This is one of the more popular trusses used in Australia, perfect for light to medium duty truss systems where general use and short lengths are needed. More common applications are DJ / band lighting, small to medium stage work, exhibitions and shop displays. This flat trussing is constructed from 6082-T6 aluminium 50 x 2mm main tube and 20 x 2mm braces. The truss comes fitted with conical couplers and supplied with 4 x spigot/eggs, 8 x pins and clips.

Features:

  • Warranty: 2 years
  • Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm
  • 4 way X-Junction truss
  • Set of spigots (conical couplers) and pins included in sale
  • Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions

Specs:

  • Material: 6082-T6 Aluminium
  • Main tube: 50mm (Wall thickness - 2mm)
  • Braces: 20mm (Wall thickness - 2mm)
  • Weight: 4.5kg
  • 1 x Flat Truss 4-way X-junction 290mm
