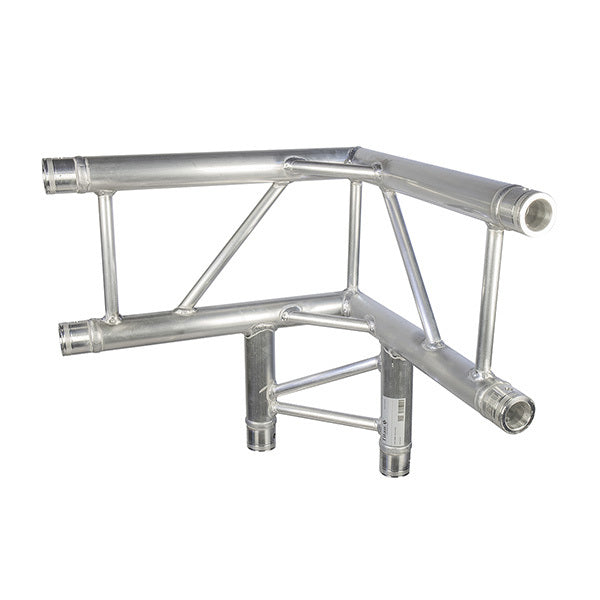

290 Flat Truss 3-Way Corner
  • SKU: TR-SF-L3V-S30

290 Flat Truss 3-Way Corner


    This is one of the more popular trusses used in Australia, perfect for light to medium duty truss systems where general use and short lengths are needed. More common applications are DJ / band lighting, small to medium stage work, exhibitions and shop displays. This flat trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 20x2mm braces. The truss comes fitted with conical couplers and supplied with 4 x spigot/eggs, 8 x pins and clips.


    • Warranty: 2 years
    • 3 way 90 degree corner truss
    • Set of spigots (conical couplers) and pins included in sale (6 x Spigots, 12 x Pins & 12 x Clips)
    • Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
    • Custom colours available (Powder coating), contact Titan AV team for a quote


    • Dimensions: 500 x 500 x 50mm (L x H x D)
    • Material: 6082-T6 Aluminium
    • Main tube: 50mm (Wall thickness - 2mm)
    • Braces: 20mm (Wall thickness - 2mm)
    • Weight: 4.6kg
    • 1 x Flat Truss 3 way 90 degree corner 290mm
