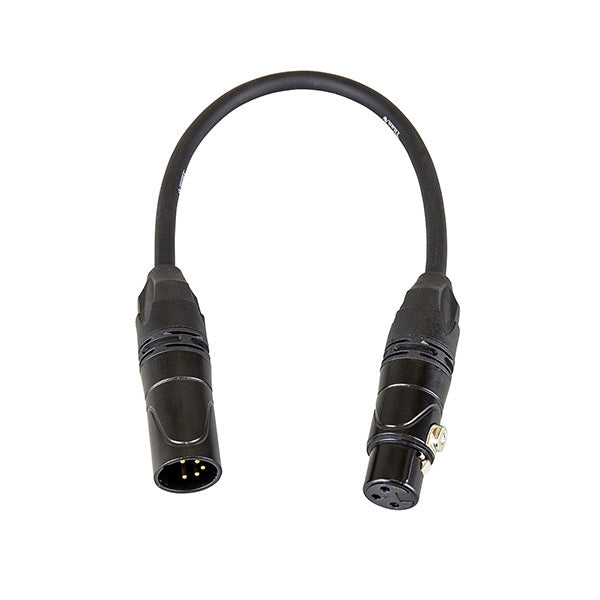

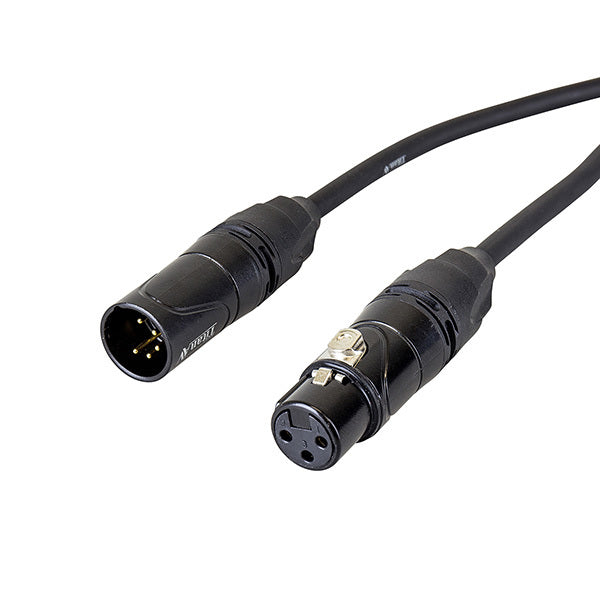

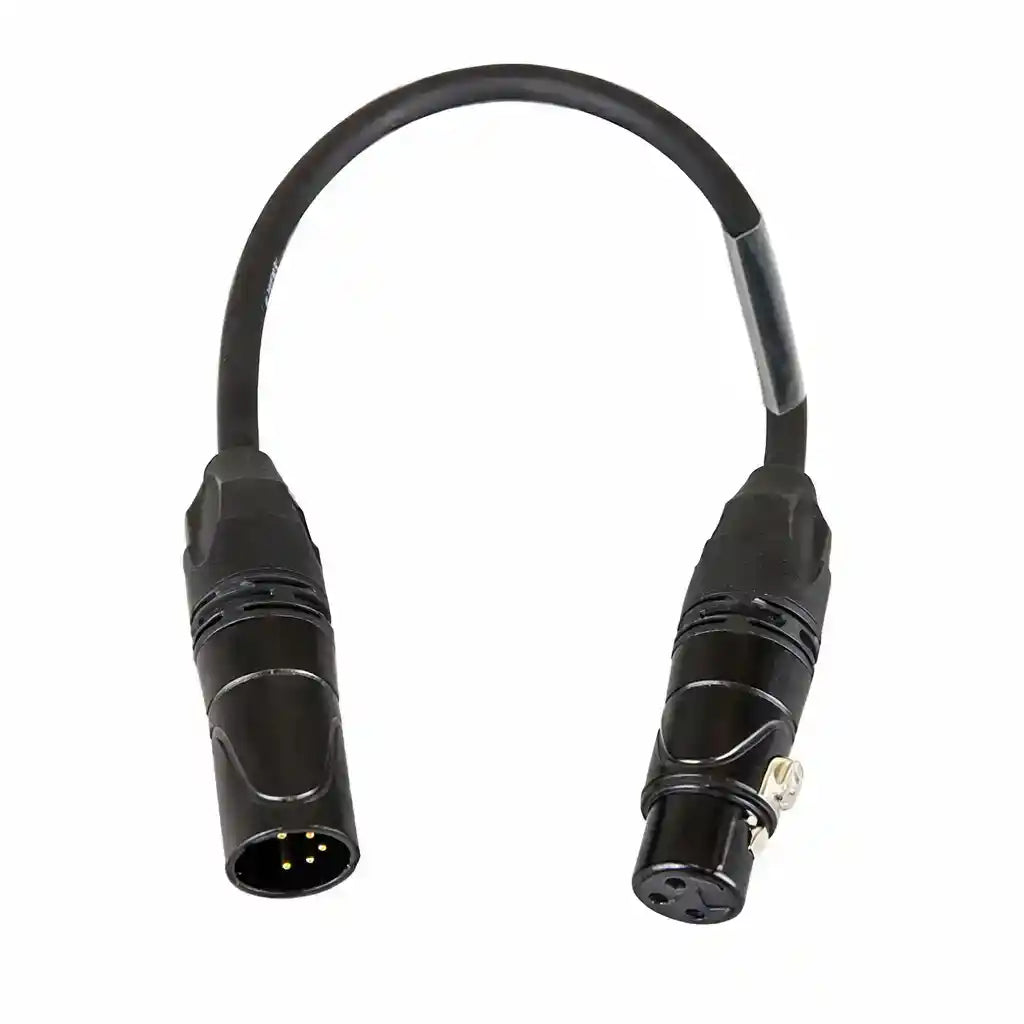

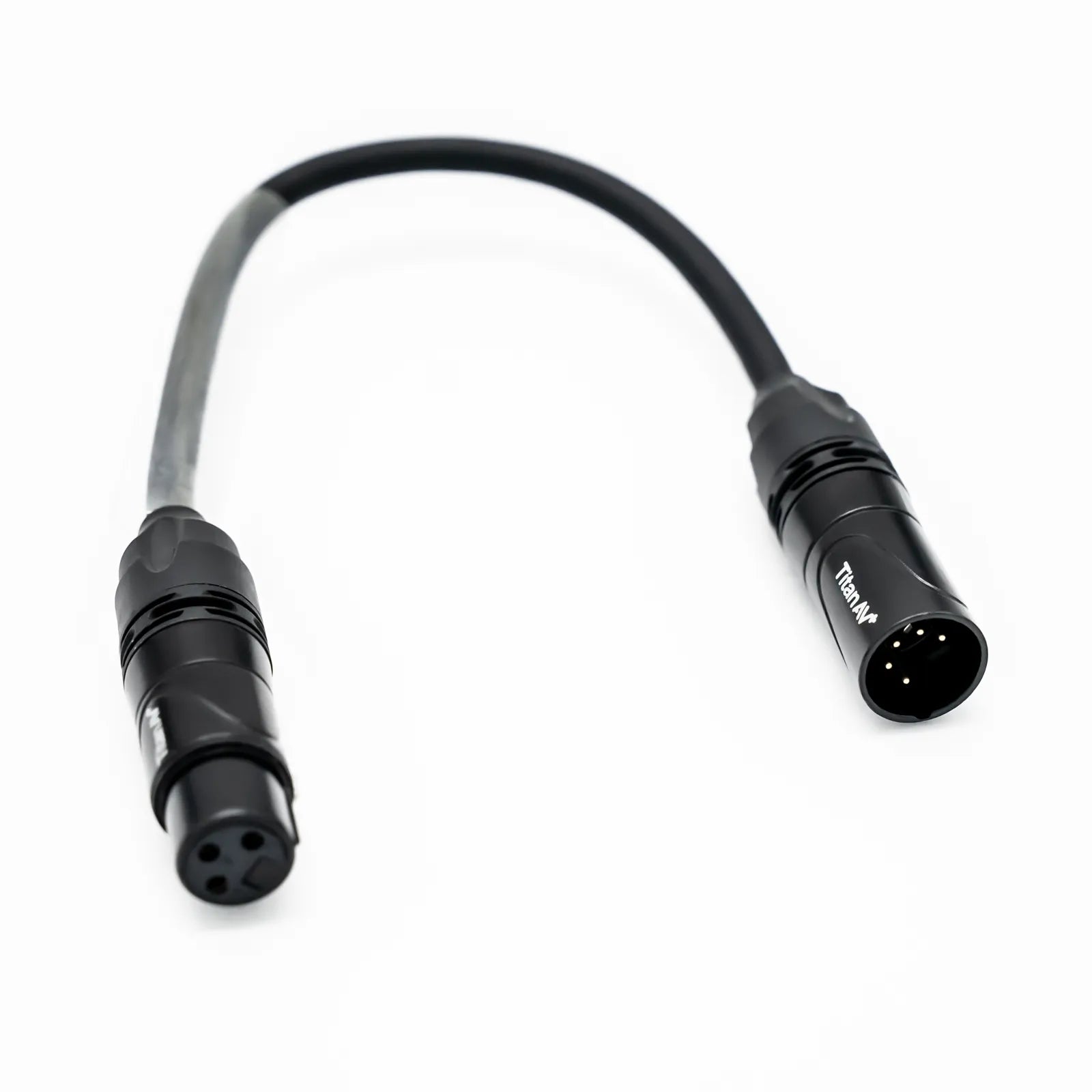

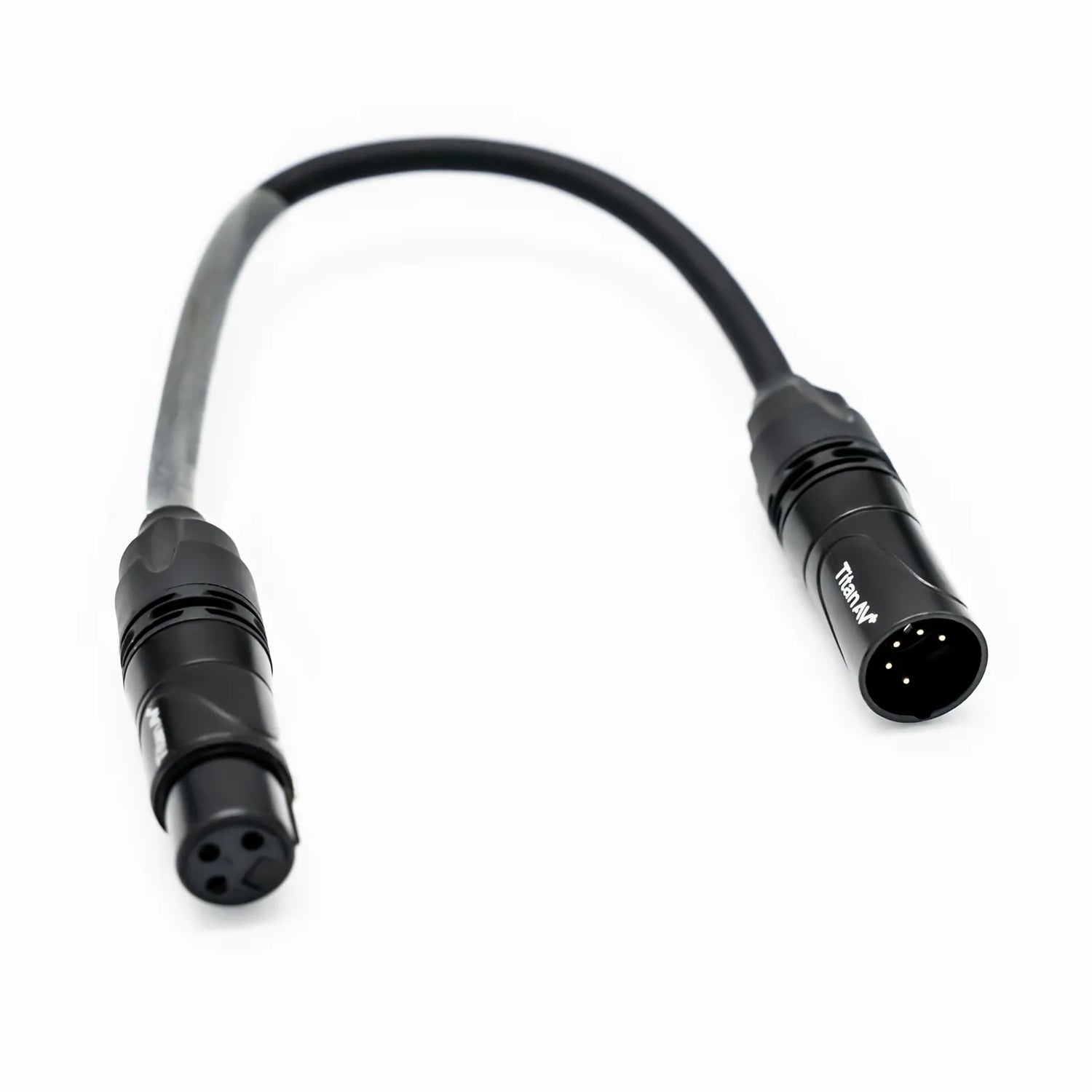

5 Pin Male to 3 Pin Female DMX Adapter

Convert 5-pin DMX outputs to 3-pin configurations with confidence.

The Titan AV 5 Pin Male to 3 Pin Female DMX Adapter is designed for seamless integration between 5-pin DMX controllers and 3-pin DMX lighting fixtures, fog machines, hazers and other DMX-ready equipment.

Built using premium TAV cable components, this adapter delivers reliable 110Ω DMX signal transmission, strong shielding against interference, and long-term durability for touring, events, installations and production environments.

Whether you're running stage lighting, AV production, or event setups, this adapter ensures stable data flow without compromise.

Key Features

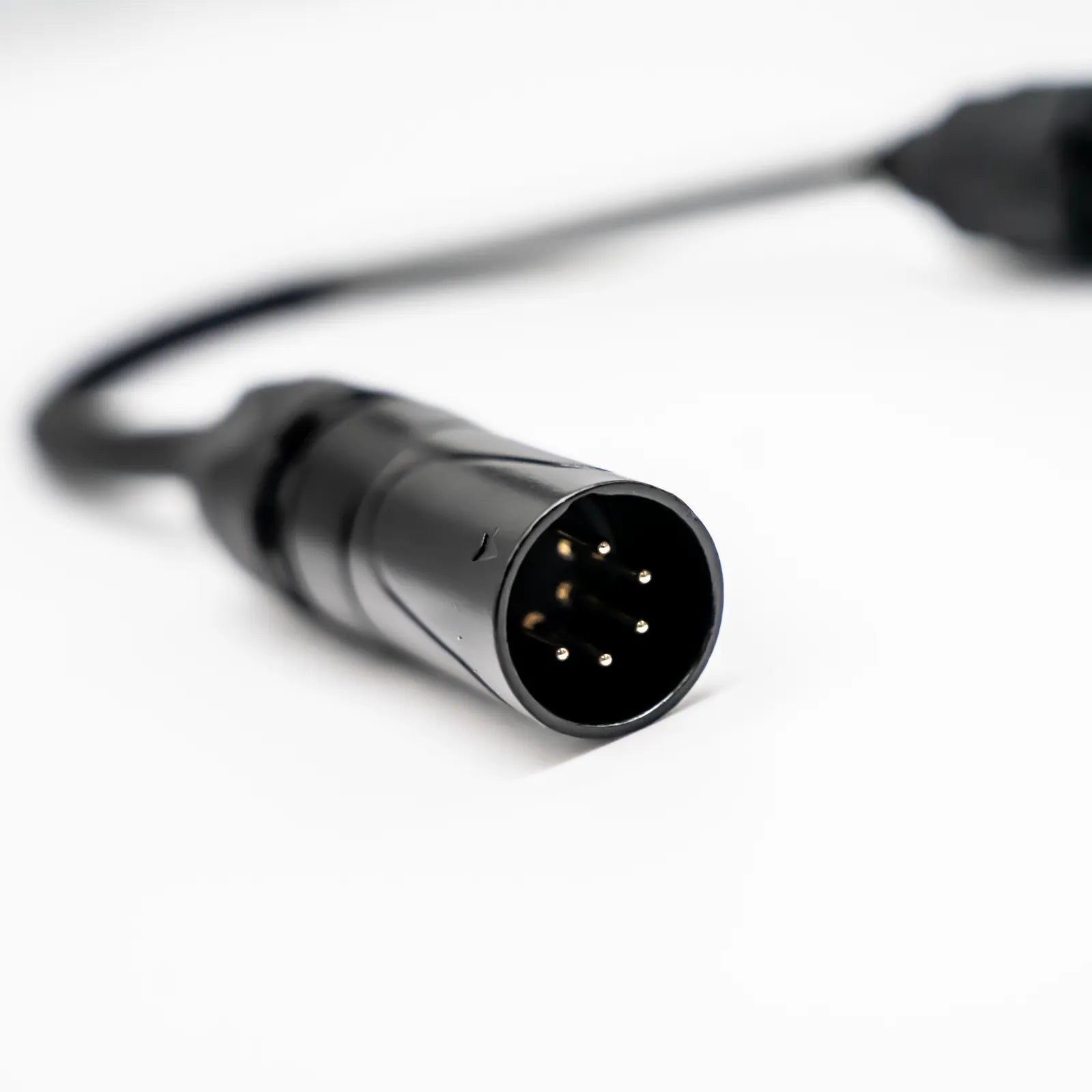

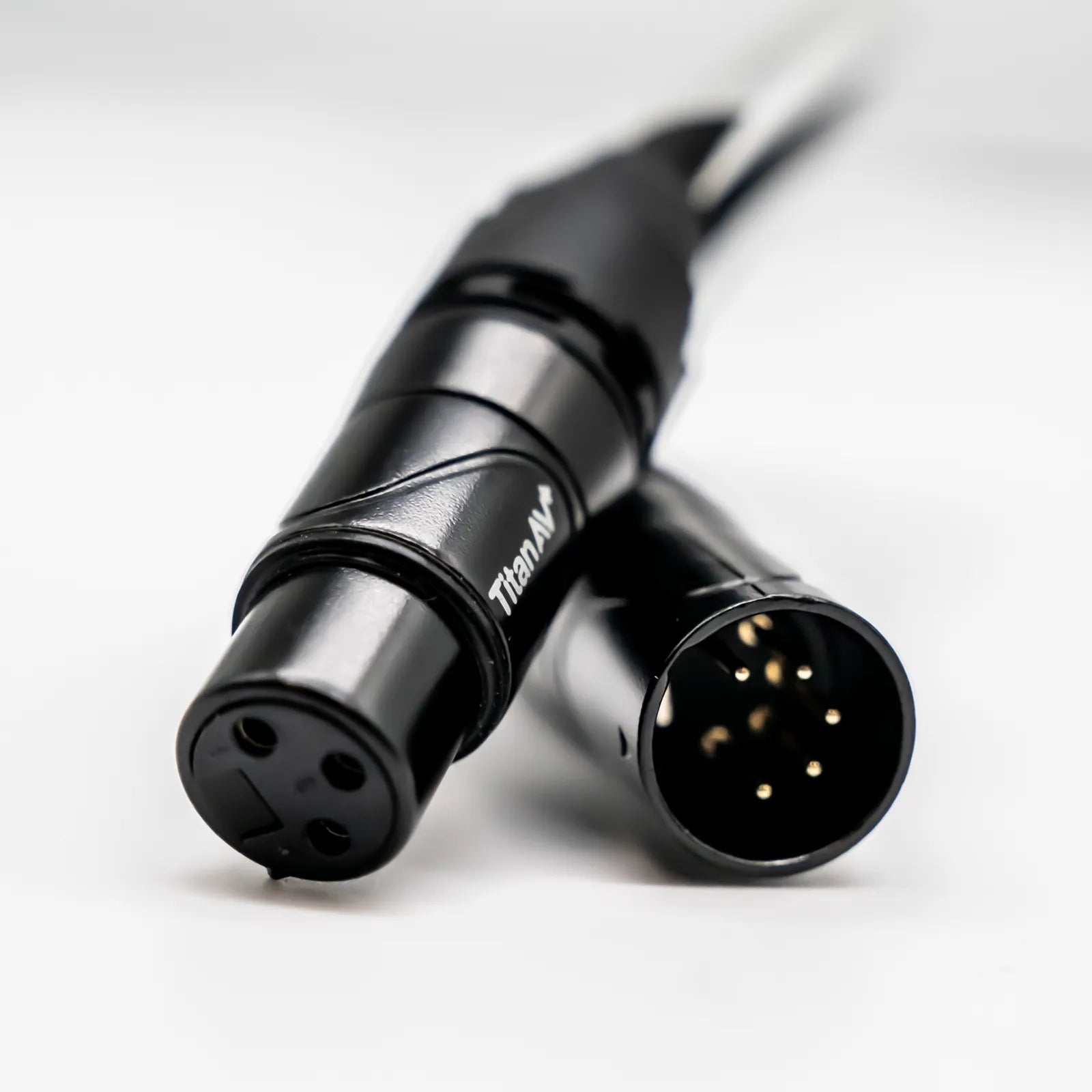

• Converts 5-Pin XLR Male to 3-Pin XLR Female
• 110Ω DMX Impedance (DMX512 standard)
• High-end custom XLR connectors
• Gold-plated contact points for superior conductivity
• Helical shielding resists electromagnetic interference
• Multi-banded oxygen-free copper conductors
• Clear heat shrink for easy labelling
• Flexible, abrasion-resistant matte black PVC jacket
• Built for lighting, controllers, fog machines & hazers
• 5-Year Warranty

🔌 Wiring Configuration

• 5-Pin XLR(Pin-1), 3-Pin XLR(Pin-1): Signal ground
• 5-Pin XLR(Pin-2), 3-Pin XLR(Pin-2): DMX Data –
• 5-Pin XLR(Pin-3), 3-Pin XLR(Pin-3): DMX Data +
• 5-Pin XLR(Pin-4), 3-Pin XLR(N/A): Auxiliary Data –
• 5-Pin XLR(Pin-5), 3-Pin XLR(N/A): Auxiliary Data +

Ideal for lighting technicians, event production crews and installers, this 5 Pin Male to 3 Pin Female DMX adapter ensures seamless 110Ω DMX signal conversion between 5-pin and 3-pin DMX systems.
