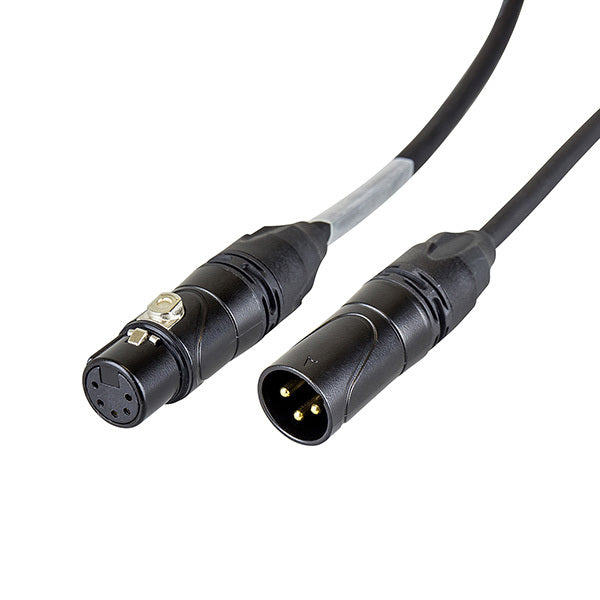

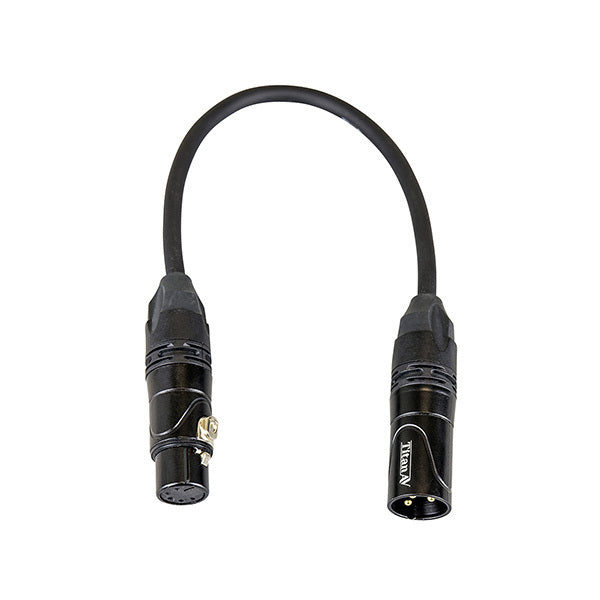

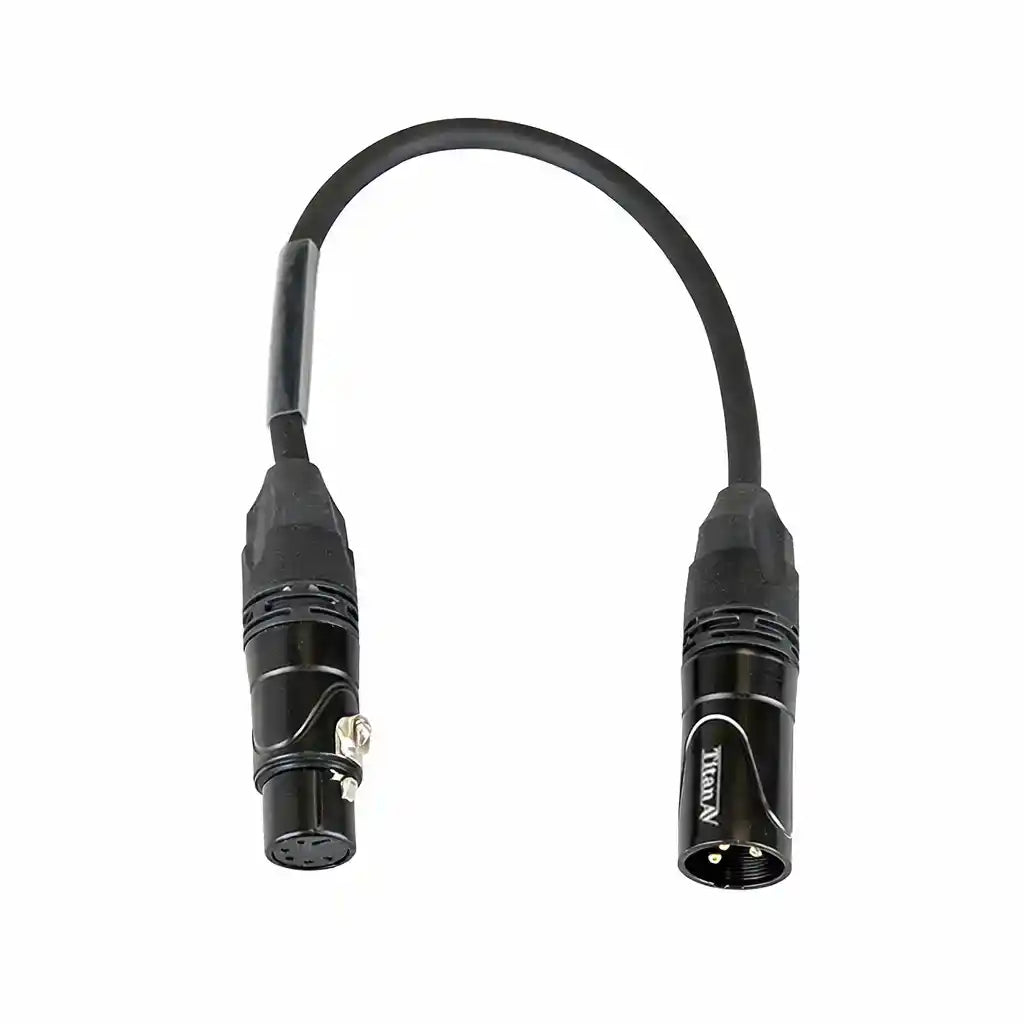

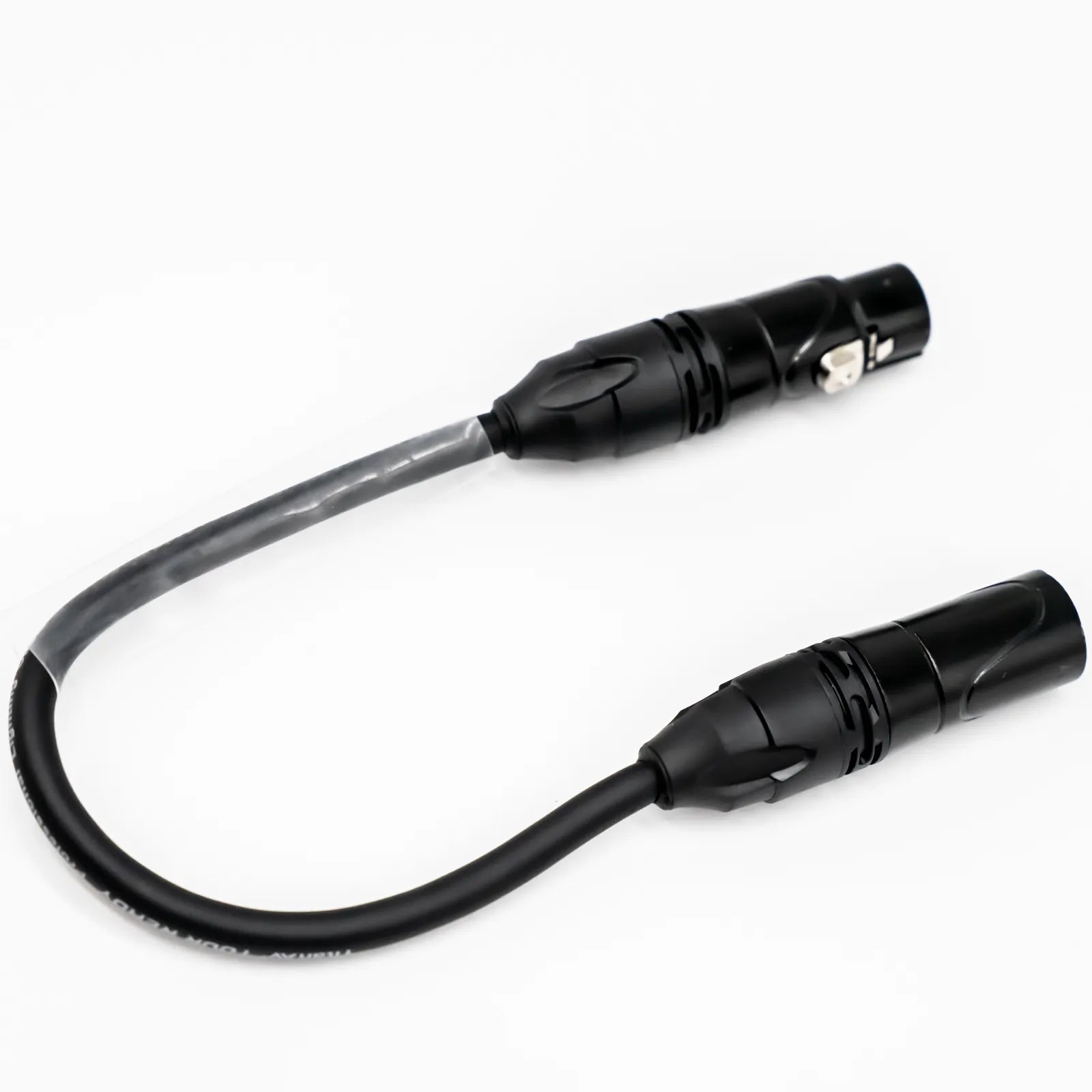

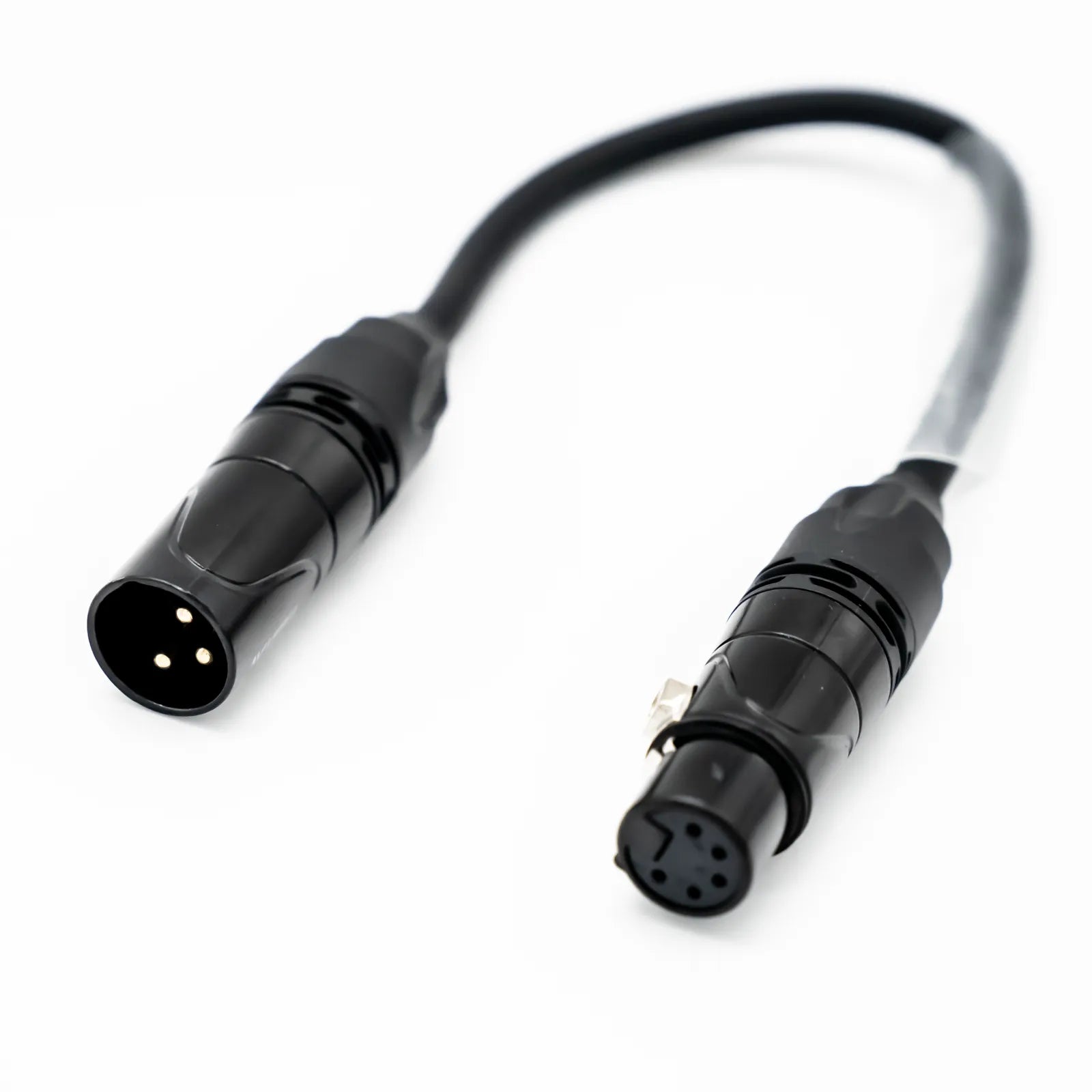

3 Pin Male to 5 Pin Female DMX Adapter

Need to connect a 3-pin DMX output to a 5-pin DMX lighting system? This Titan AV adapter makes it simple.

The Titan AV 3 Pin Male to 5 Pin Female DMX Adapter converts a 3-pin DMX device or cable into a 5-pin configuration for use with 5-pin DMX fixtures, controllers, fog machines and hazers. Built with 110Ω DMX-matched impedance, premium custom connectors, and high-shielded cable construction, it delivers reliable data flow in touring, events, installs and production environments.

With a tough matte black PVC jacket, gold-plated contact points, and clear heat shrink for labelling, it’s a professional-grade adapter you can trust on every gig.

Key Features

• Converts 3-Pin XLR Male to 5-Pin XLR Female
• 110Ω DMX Impedance (DMX512 standard)
• High-quality custom connectors and cable
• Gold-plated contacts for improved conductivity
• Helical shield + 100% screening to resist EMI interference
• Oxygen-free copper conductors for stable data transmission
• Clear heat shrink fitted for easy identification and labelling
• Flexible, abrasion-resistant matte black PVC jacket
• Ideal for DMX lighting, controllers, fog machines and hazers
• Backed by a 5 Year Warranty

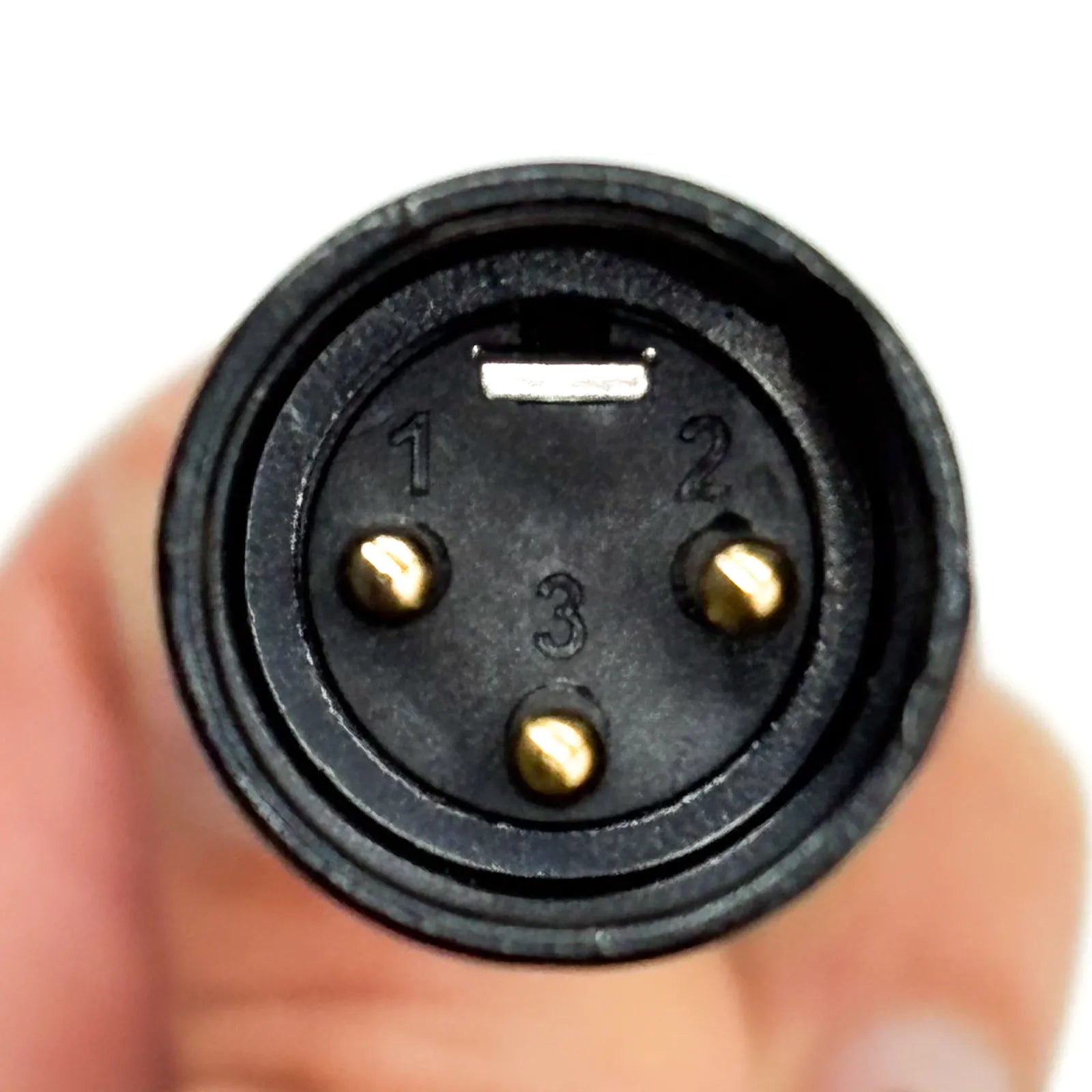

Wiring Configuration

• 5-Pin XLR(Pin-1), 3-Pin XLR(Pin-1): Signal ground
• 5-Pin XLR(Pin-2), 3-Pin XLR(Pin-2): DMX Data –
• 5-Pin XLR(Pin-3), 3-Pin XLR(Pin-3): DMX Data +
• 5-Pin XLR(Pin-4), 3-Pin XLR(N/A): Auxiliary Data –
• 5-Pin XLR(Pin-5), 3-Pin XLR(N/A): Auxiliary Data +

For dependable 3-pin to 5-pin DMX conversion in professional lighting and AV setups, trust Titan AV.
