  • SKU: TR-SQ30-90D

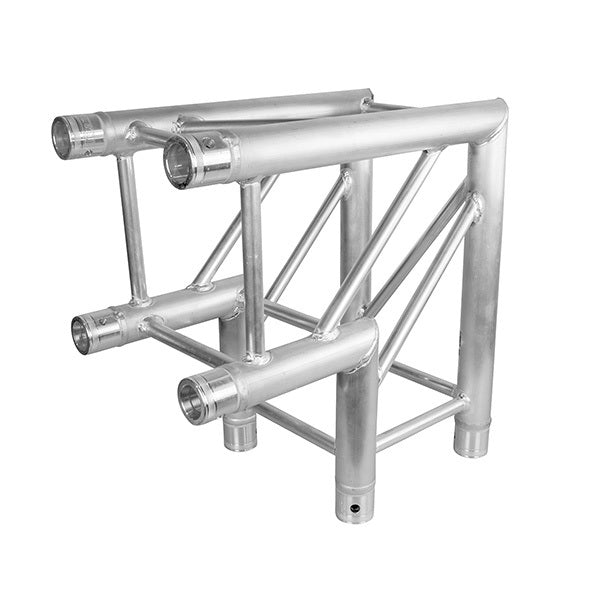

Titan AV 90 Deg Corner 290 Box Truss

$650.00
    DESCRIPTION

    The TR-SQ30 series truss is a 290 Box or square profile truss mainly used for small to medium size production applications. The TR-SQ30 truss is often referred to as a multipurpose truss because of its stronger and more versatile design making it suitable for installation, rental (Indoor and out) and exhibition markets. Thanks to the innovative conical coupling system the 290 Box truss is fast and easy to assemble. TR-SQ30 truss is available in multiple lengths, a range of corners, a range of mounting and adapter accessories and base plates. This style of 290mm trussing is also available in triangular and flat/ladder profiles.

    Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.

    Features:

    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Set of spigots (conical couplers) and pins included in sale (4 x Spigots, 8 x Pins & 8 x Clips)
    • Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
    • Event application: Stage production, Venues, Exhibitions, Clubs & Churches
    • Custom colours available (Powder coating), contact Titan AV team for a quote
    • Warranty: 2 years

    Specs:

    • Dimensions: 500 x 500 x 290mm (L x H x D)
    • Internal corner lengths: 210mm
    • Weight: 6.4 kg
    • Material: 6082-T6 Aluminium
    • Main tube: 50mm (Wall thickness - 2mm)
    • Braces: 20mm (Wall thickness - 2mm)
    • 1 x 90 Degree Corner Box 290 x 290mm Truss



    290mm Box Truss Load Table

    Span Uniformly Distributed Load (UDL) Deflection Centre Point Load (CPL) Deflection
    M KG/M MM KG MM
    3 320 10 1260 12
    4 285 24 1080 19
    5 290 50 960 29
    6 175 60 870 42
    7 110 69 780 57
    8 78 80 720 720
    9 55 90 600 89
    10 40 100 600 99
    11 30 109 500 109
    12 24 124 420 118
