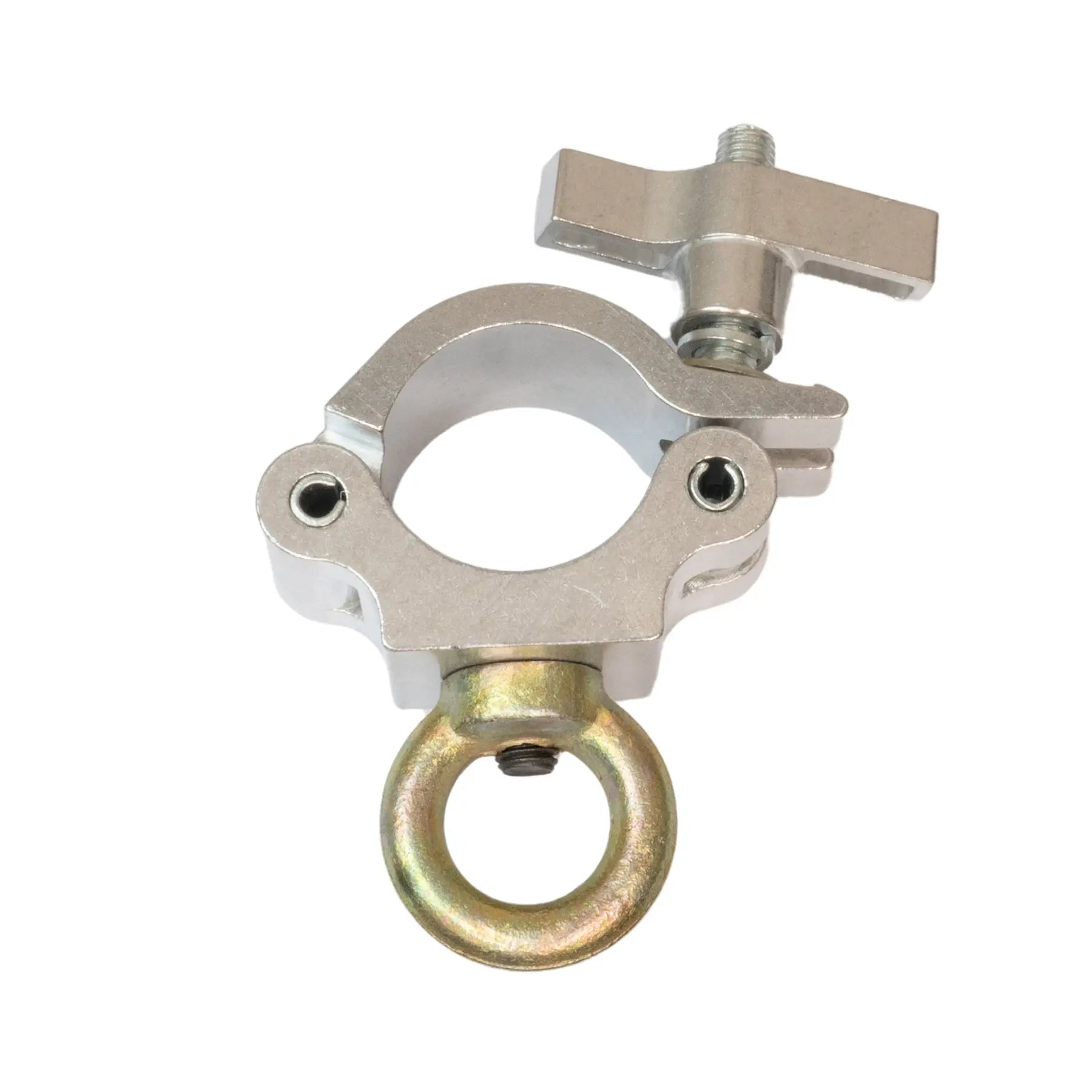

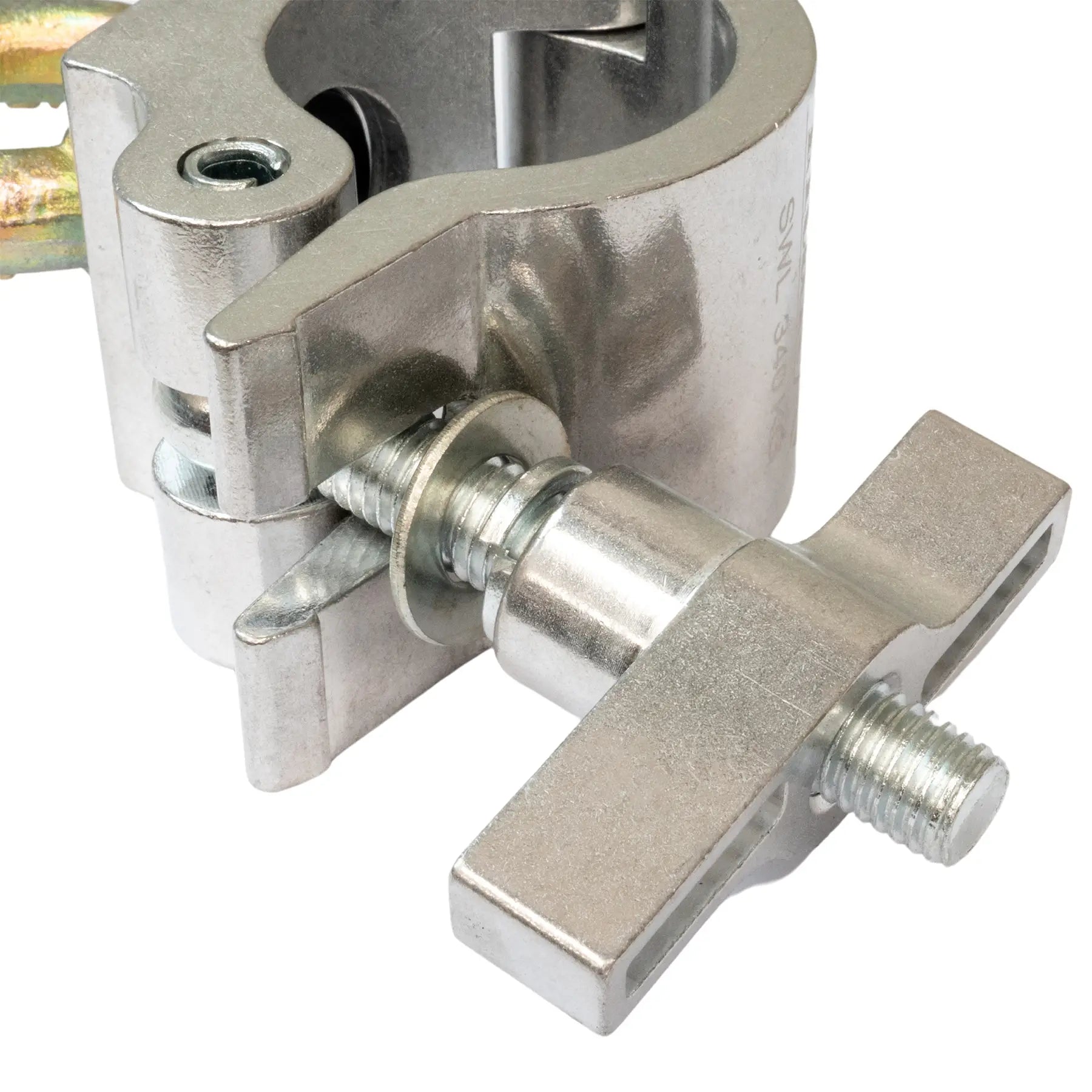

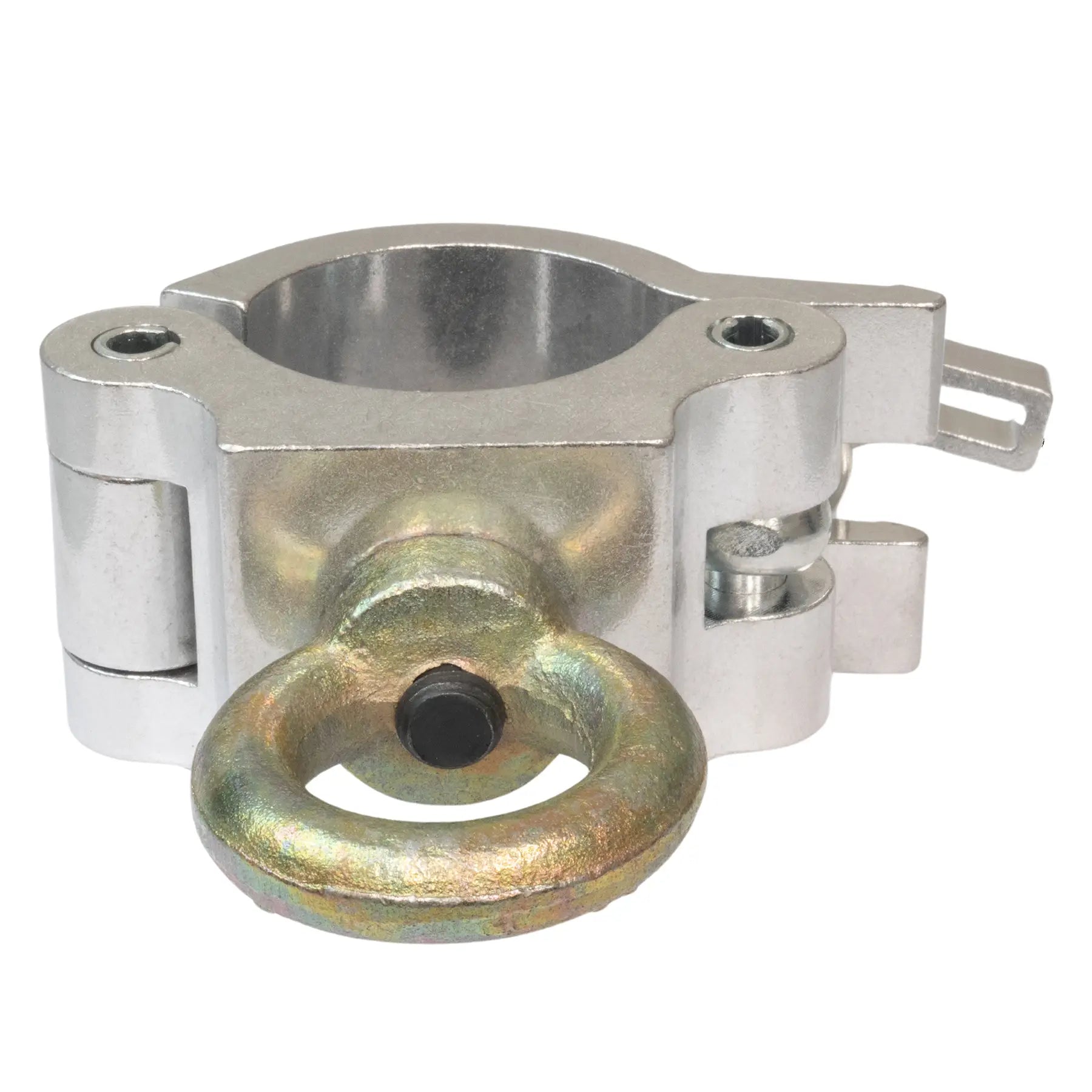

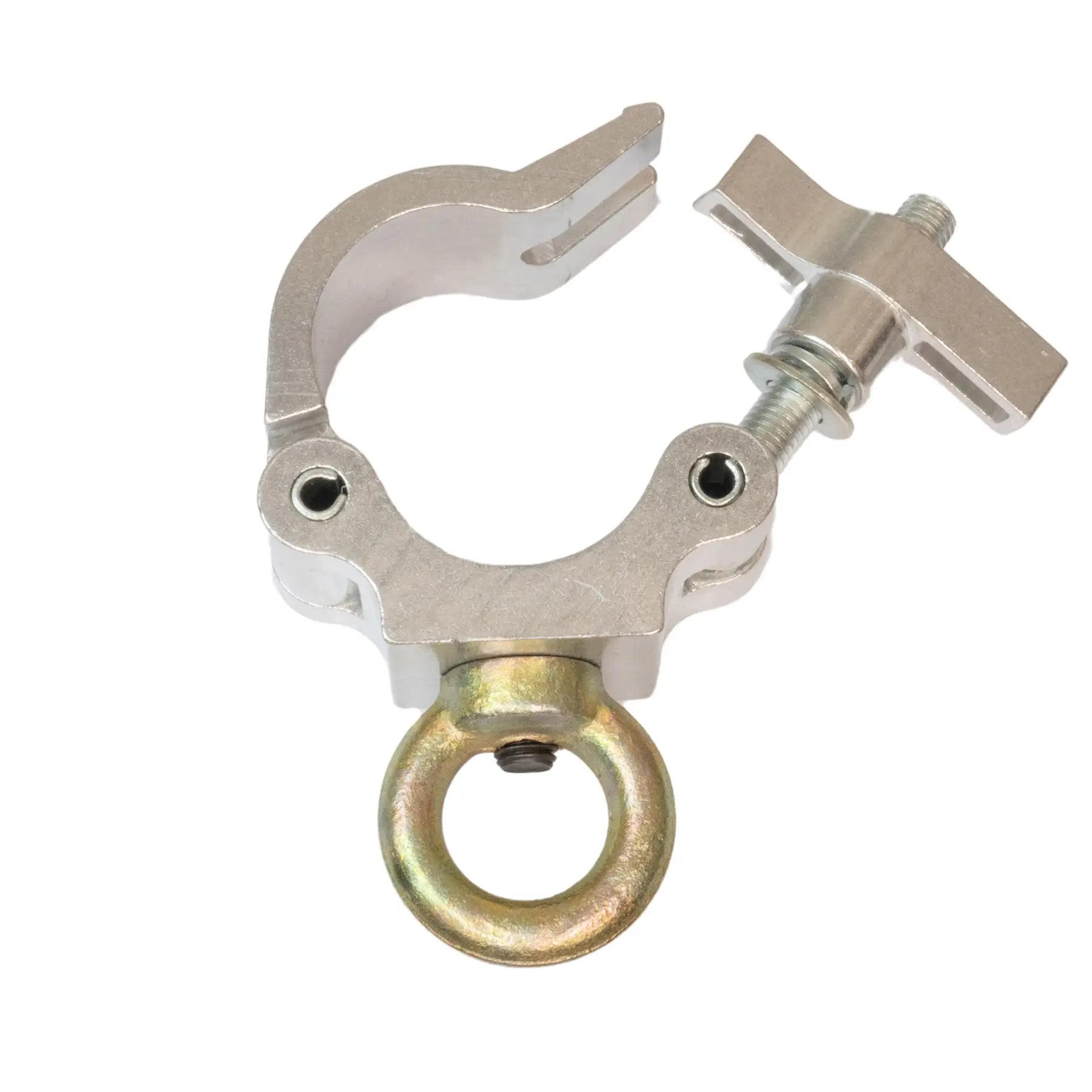

50mm Truss Clamp Eye Ring, WLL 340 Kg

This wrap around clamp with eye nut is perfect for rigging applications with 50mm tube or truss. High quality clamp, made from aluminium with a a silver mill finish and a working load limit(WLL) of 340 kg.



Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV 50mm clamps comply with Australian engineering standards. The eye nuts conforms to Australia Standard DIN582, every eye nut conforms to DIN582 marked with a working load limit, nominal size, quality grade, batch numbered and supplier identification.



• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
• Australian Standard DIN582
• Very high quality build and design
• Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
• Event application: Stage production, Venues, Exhibitions, Clubs & Churches
• Will work with 45-50mm tube & 290 Box, Tri and Flat truss
• Finish: Silver mill finish
• Warranty: 12 month

• Max load rating 340kg
• Eye Nut Dimensions: D-12mm, D1-30mm, D2-30mm, H-53mm & W-54mm
• Dimensions: 120 x 170 x 50mm (DxHxW) (Including bolts)
• Weight: 0.6 Kg
• 1 x 50mm full wrap around clamp with M12 eye nut
