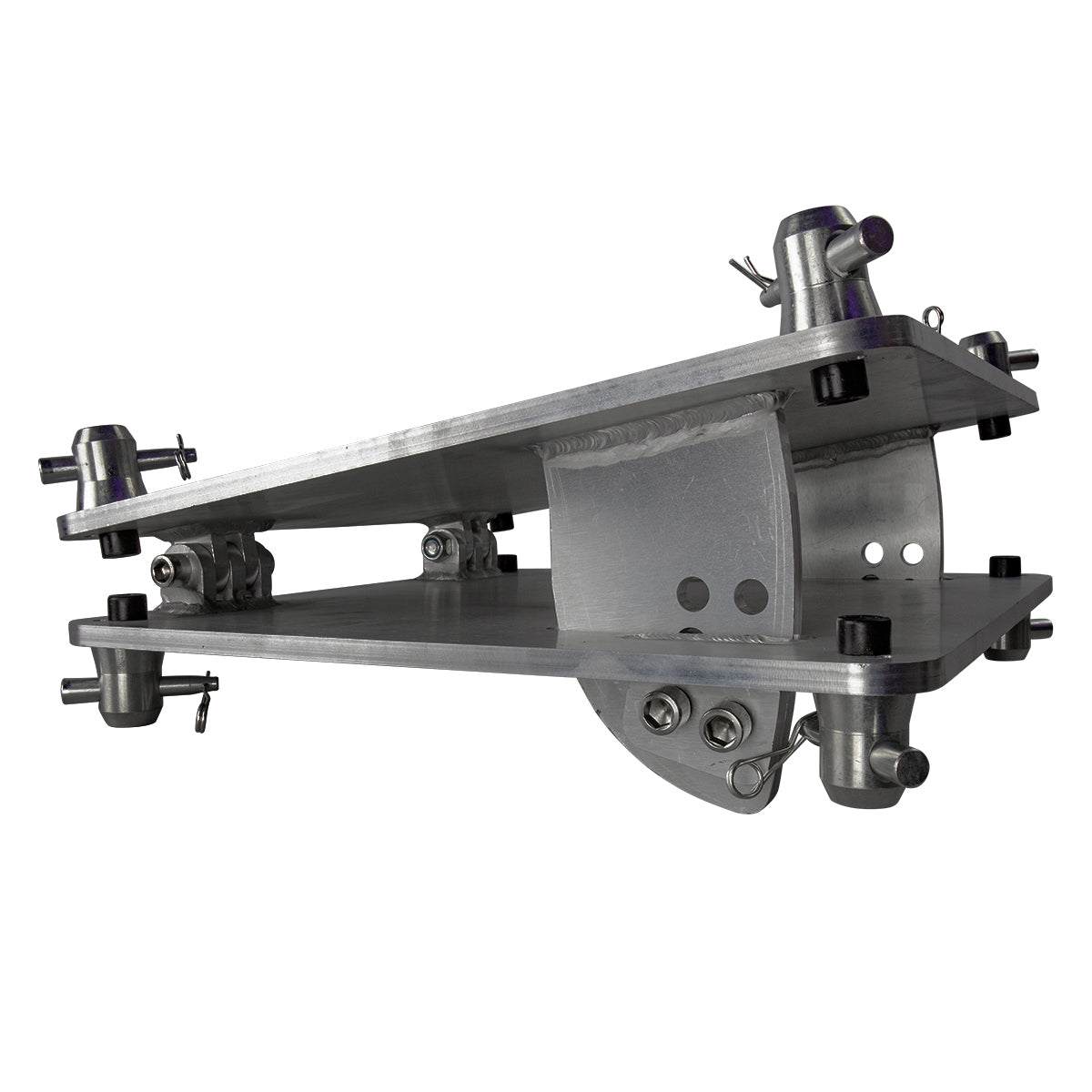

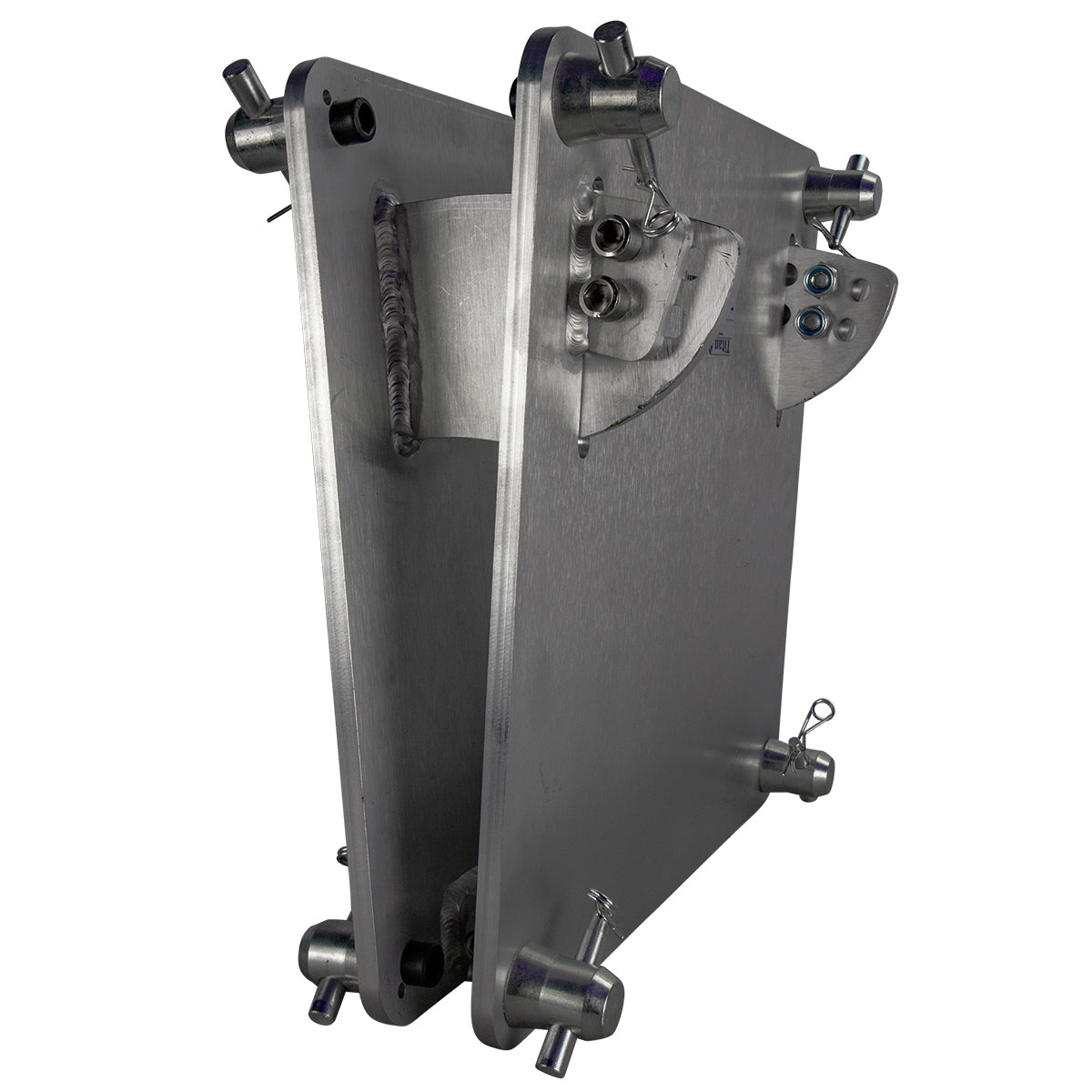

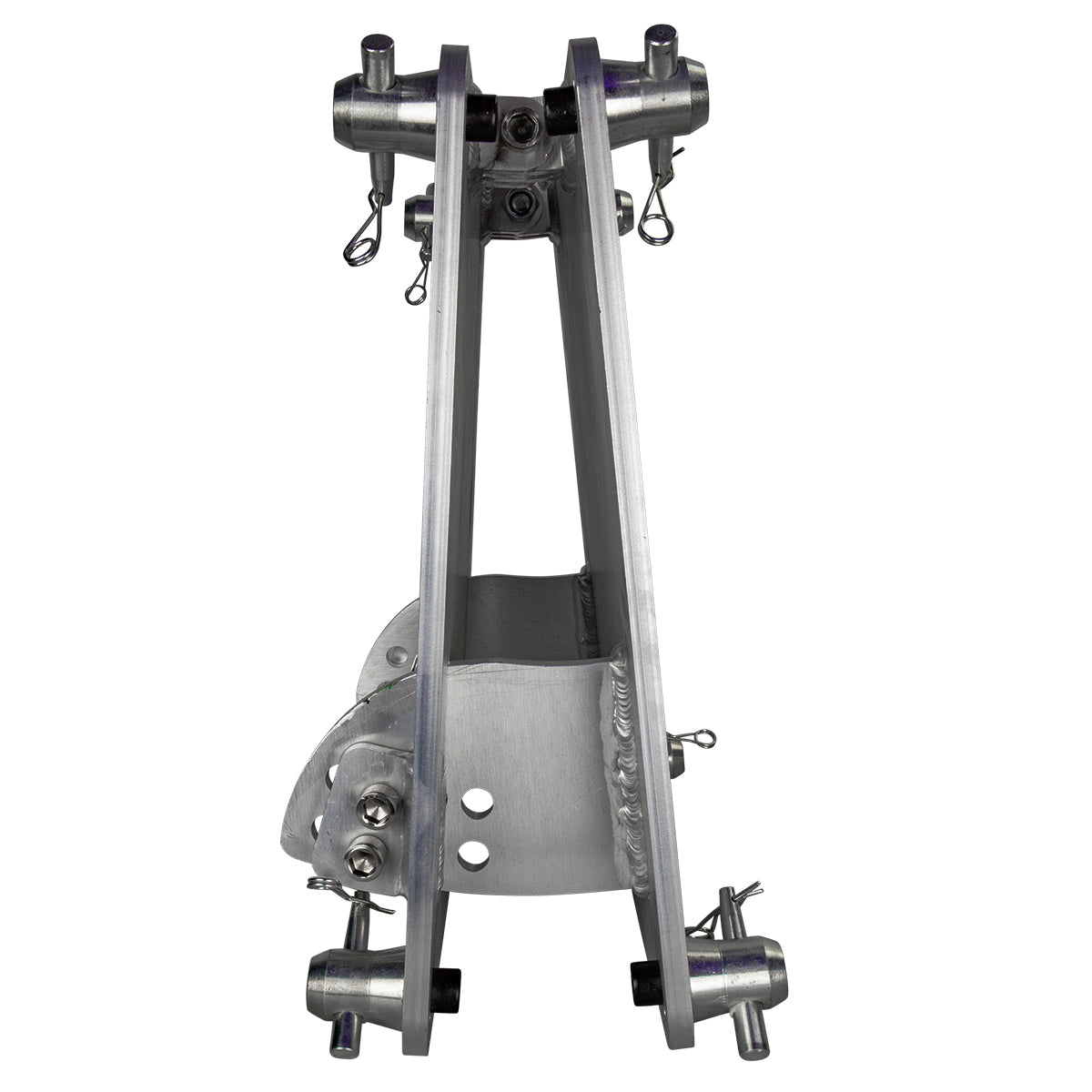

Titan AV 400 inline adjustable hinge junction has to be our most versatile truss junction yet, the Variable Hinged Junction is designed with functionality and aesthetics in mind. The minimal profile perfectly blends into any truss structure while the pre-positioned holes on adjustment blades allow for angles up to 13 degrees. Modifying the angle on your variable hinge is as easy as undoing a pair of high tensile bolts and re-positioning them toincremental angles for a new setup.
Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.
Features:
• 2-year manufacturer's warranty
• 1 x 400 Box Truss Adjustable Hinge Junction
• Set degrees: 0 - 5 - 8 - 13 degree
• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
• Will work with Titan AV 400 box truss
• Finish: Silver mill finish
• Very high quality build and design
• Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
• Event application: Stage production, Venues, Exhibitions, Clubs & Churches
• Dimensions: 400 x 400 x 145mm (WxHxD) (Including spigots)
• Dimensions: 400 x 400 x 65mm (WxHxD) (Without spigots)
• Material: 6082-T6 Aluminium plate, 10mm thick.
• Weight: 11.9 Kg
400mm Box Truss Adjustable Hinge Junction Load Table
Span |
Uniformly Distributed Load (UDL) |
Deflection |
Centre Point Load (CPL) |
Deflection |
M |
KG/M |
MM |
KG |
MM |
1 |
795 |
9.0 |
734.0 |
6.9 |
2 |
398 |
9.7 |
708.0 |
7.4 |
3 |
265 |
10.4 |
682.0 |
7.9 |
4 |
199 |
11.3 |
656.0 |
8.6 |
5 |
159 |
12.4 |
630.0 |
9.4 |
6 |
133 |
13.6 |
604.0 |
10.3 |
7 |
114 |
15.0 |
578.0 |
11.4 |
8 |
99 |
17.0 |
552.0 |
12.8 |
9 |
88 |
19.4 |
526.0 |
14.7 |
10 |
79 |
22.6 |
500.0 |
17.2 |
11 |
72 |
27.0 |
474.0 |
20.6 |
12 |
66 |
34.0 |
448.0 |
25.8 |
13 |
61 |
45.0 |
422.0 |
34.3 |
14 |
57 |
68.0 |
396.0 |
51.5 |
15 |
53 |
136 |
370.0 |
103 |
