  • SKU: KIT-0160

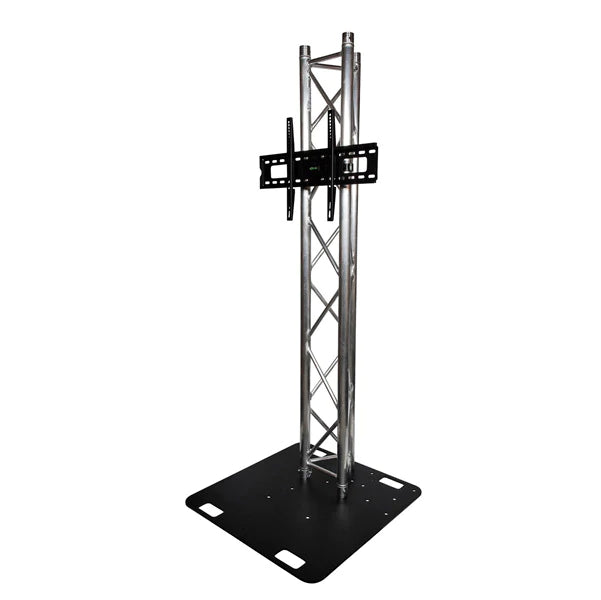

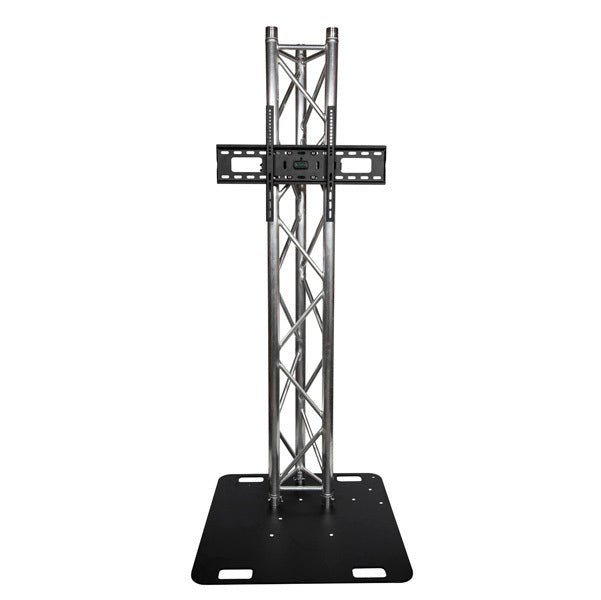

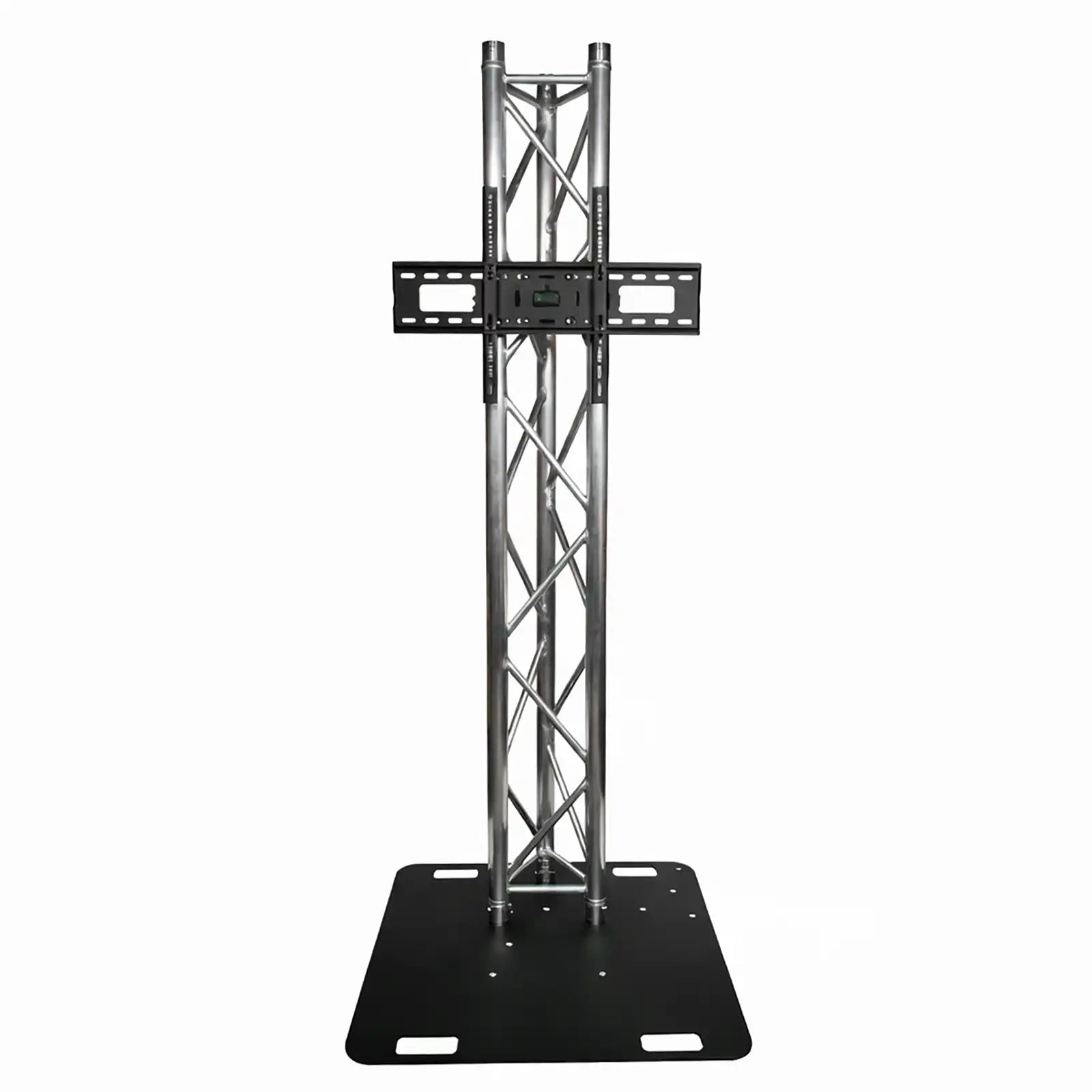

Titan AV 2m Tri Truss Flat Mount TV Stand with 800mm Steel Base


    Introducing the Titan AV Tri Truss TV Stand – a top pick for various settings including trade shows, churches, schools, theaters, nightclubs, DJs, shop displays, pubs, and even government operations such as military and police activities. Our tri truss is renowned for its versatility, making it an excellent choice for installations, low-intensity indoor rentals, and the exhibition market.

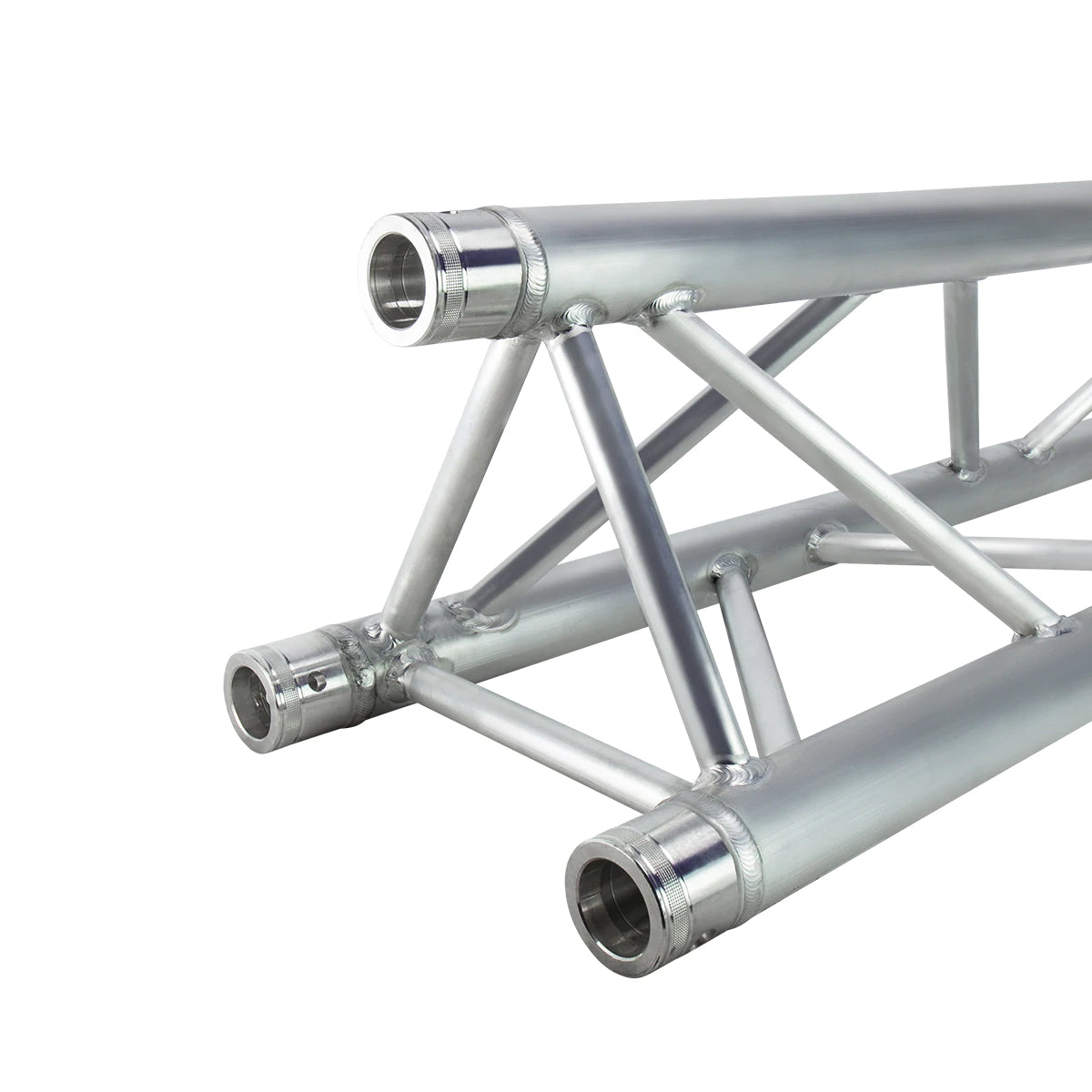

    With its innovative conical coupling system, the 290 Tri Truss can be swiftly and easily assembled, ensuring a hassle-free experience. Available in multiple lengths, various corners, and with a range of mounting and adapter accessories and base plates, the TR-ST30 truss provides a customizable solution for diverse needs. This style of 290mm trussing is also offered in box/square and flat/ladder profiles.

    Safety is our top priority, and we take it seriously in our industry. We partner with the independent inspection and testing company Alfa Test, which is ISO17025 compliant and NATA accredited. All necessary truss compliance testing is conducted to ensure that Titan AV truss systems meet Australian engineering standards. Choose the TR-ST30 truss for a robust, versatile, and safety-assured truss solution for your unique applications.

    What's in the kit:


    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Truss: Made from the highest grade 6082-T6 aluminium alloy

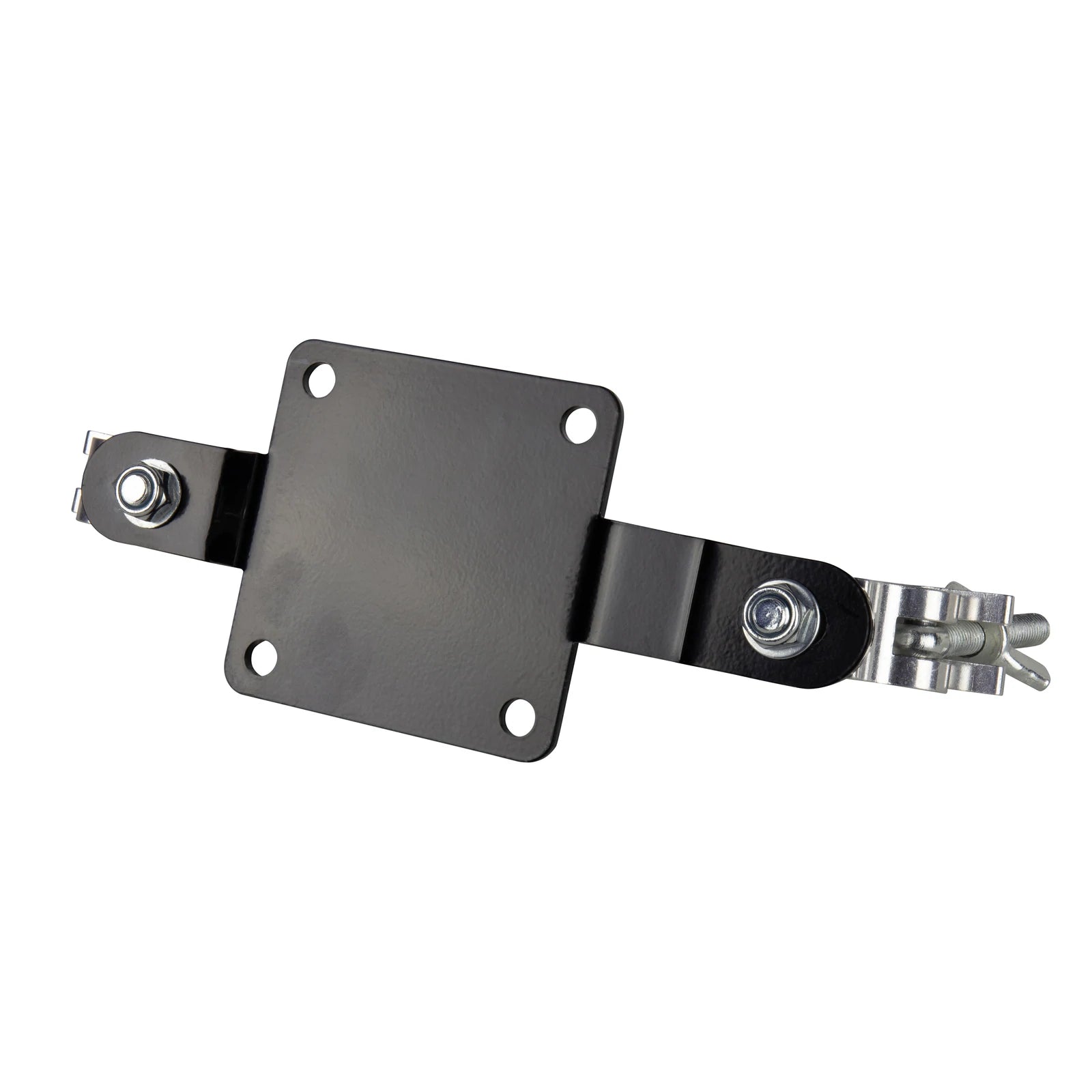

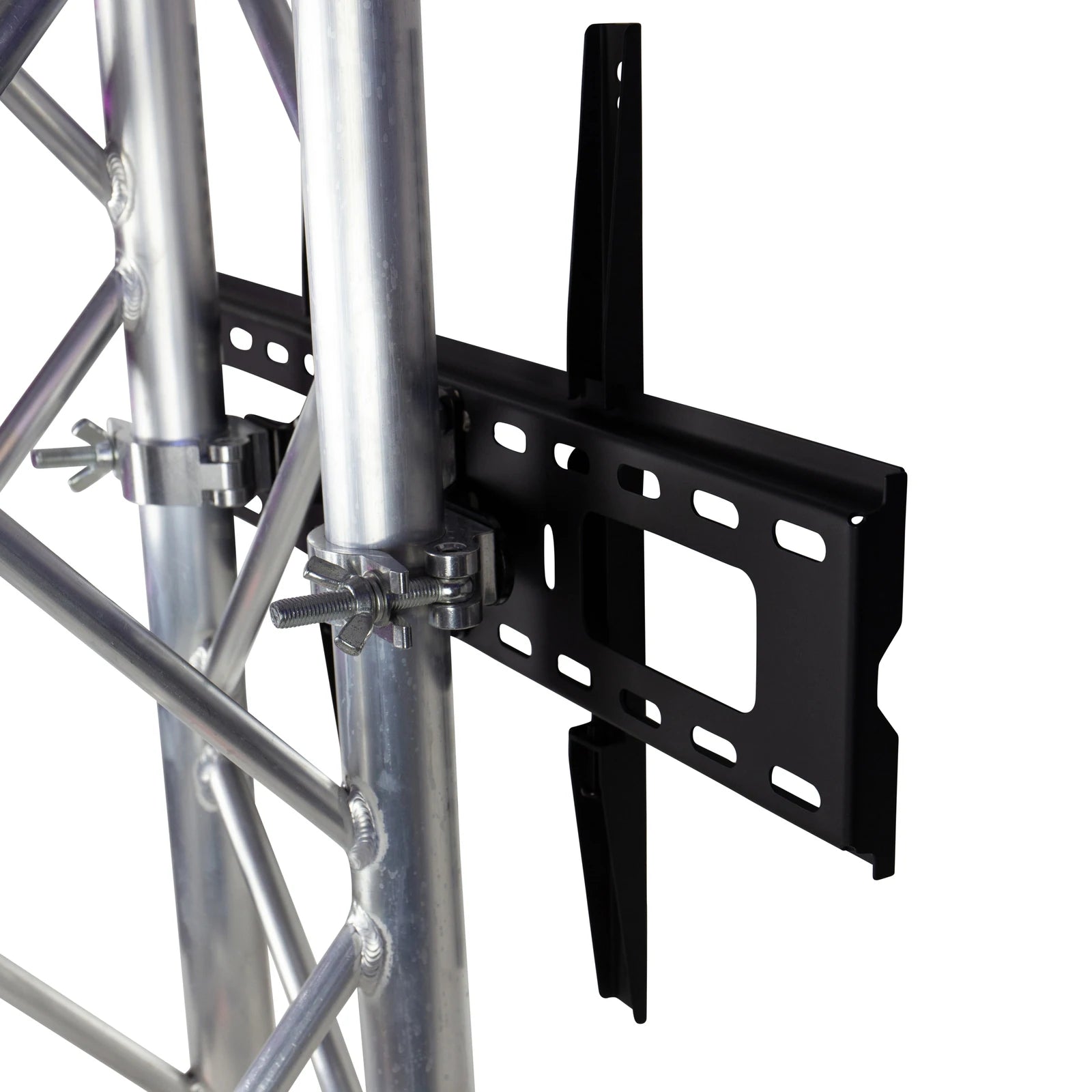

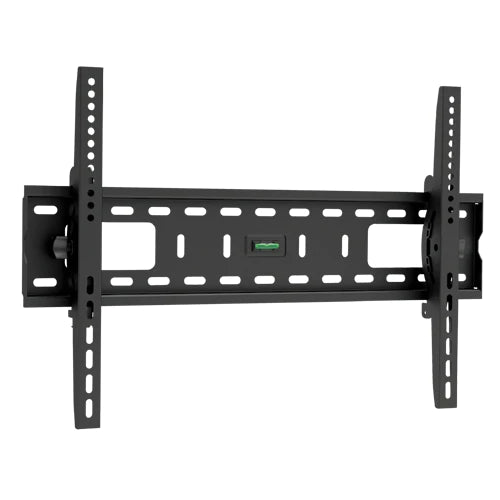

    • TV Bracket: Holds TVs 37" - 80" in size with a max loading of 75kg
    • Supplied with: Spigots, Pins & Clips
    • Warranty: 2 years


    • Material: 6082-T6 Aluminium
    • Vesa mounting holes: 100x100mm, 200x100mm, 200x200mm, 400x200mm & up to 600x400mm
    • Main tube: 50mm (Wall thickness - 2mm)
    • Braces: 20mm (Wall thickness - 2mm)

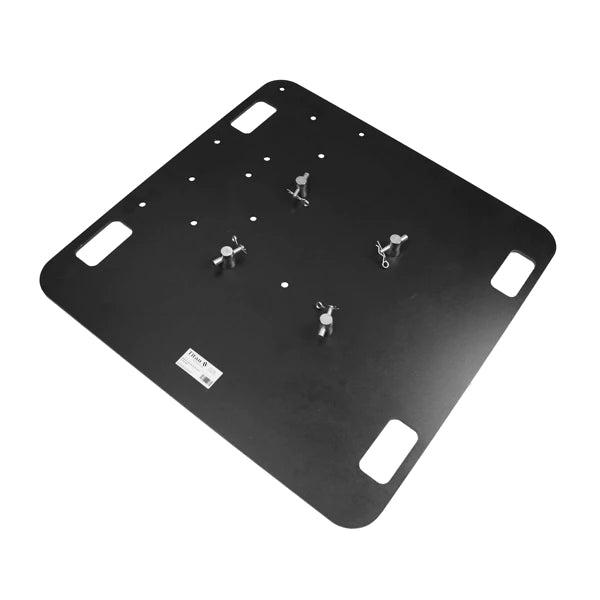

    • Base Plate: Laser cut 800 x 800 x 8mm steel plate, Black powder coat finish
    • Weight: 10kg (Truss)
    • Weight: 40kg (Base plate)


    Is this the right bracket for your TV?

    1. Make sure the weight of your TV is under the max weight of the bracket. (The max loading weight of the bracket can be found in the features list)
    2. Measure the mounting holes in the back of your TV, measure up & across. Then compare your measurements with the VESA hole patterns listed. (The VESA/mounting hole patterns for the bracket can be found in the features list).
    *This kit is suitable to hold TV's from 37" - 80" in size, max loading of 75kg.*
