290 Inline Lifting Bracket - 1000Kg SWL

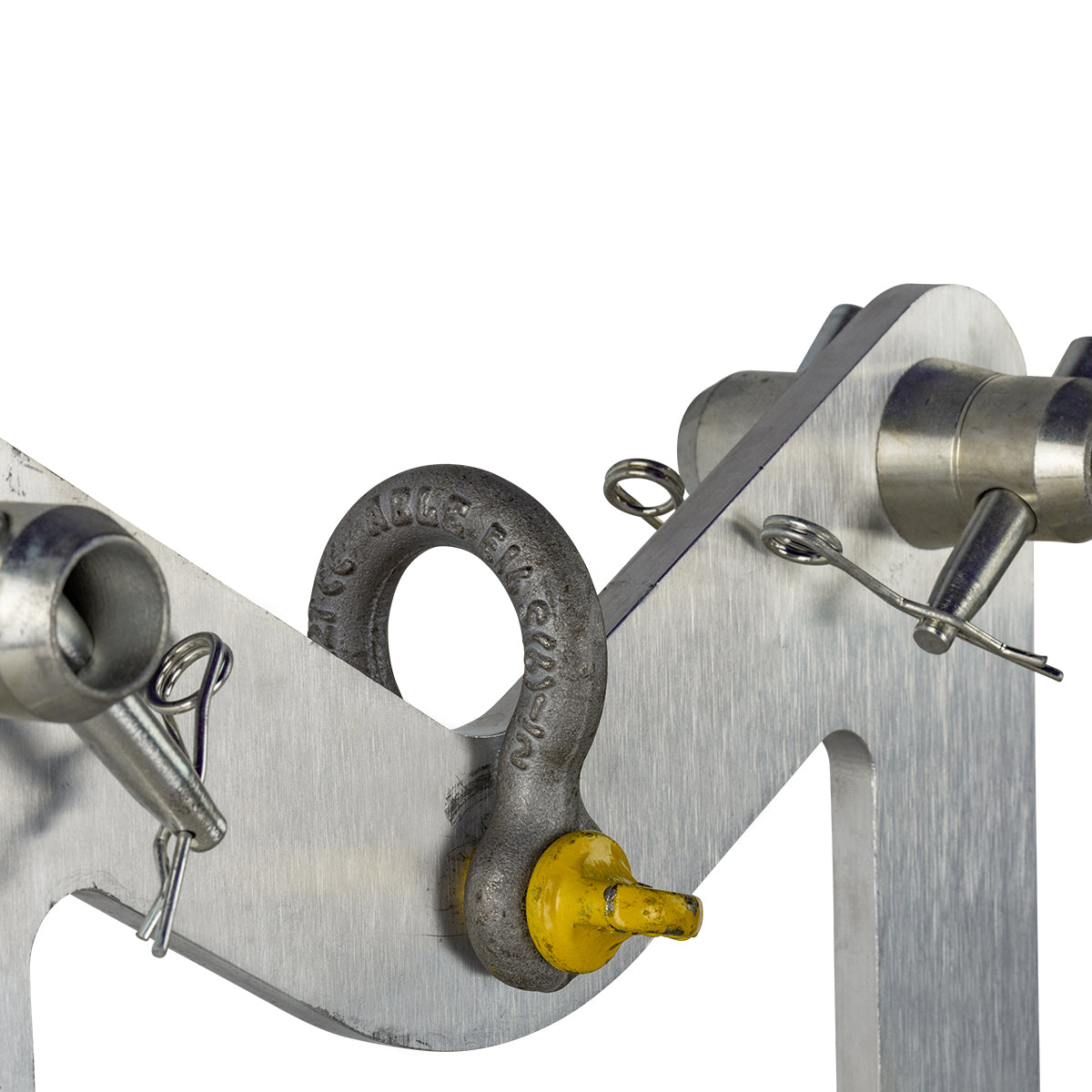

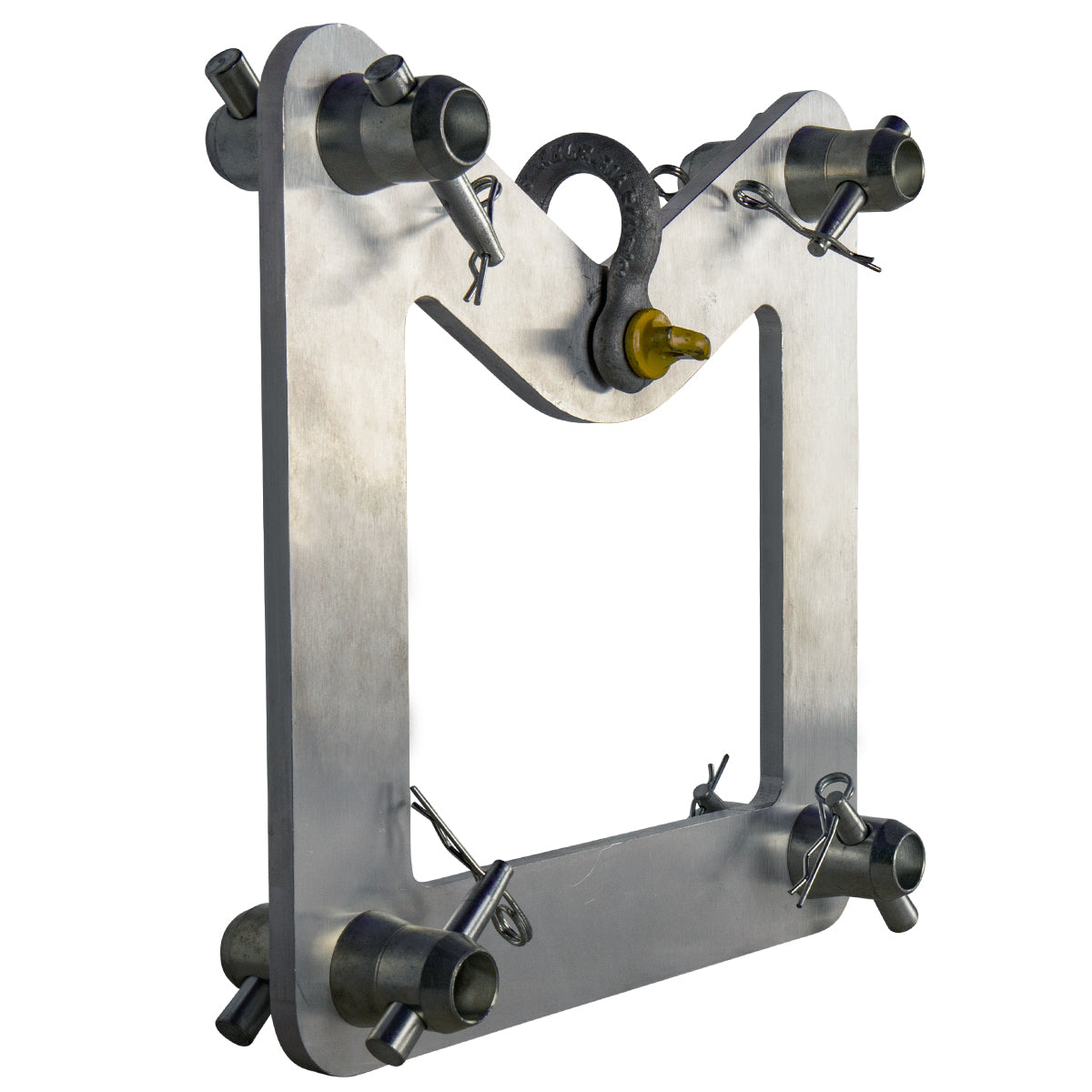

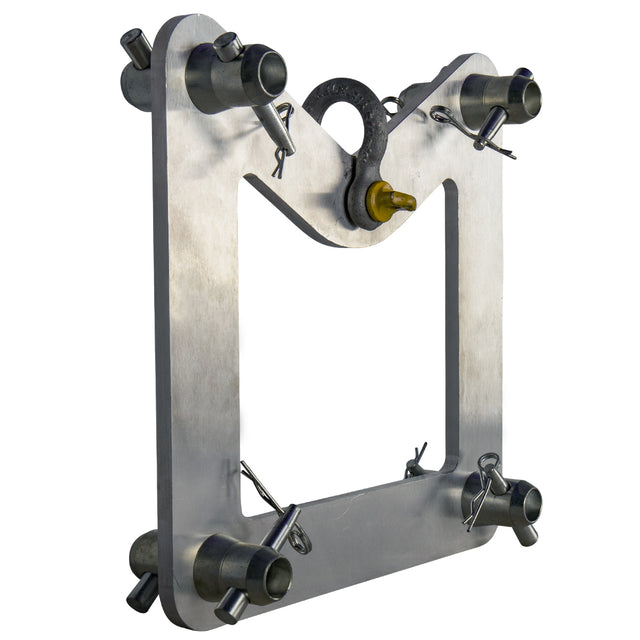

Titan AV 290 inline lifting bracket (also known as a truss end plate suspension bracket). Supplied with bow shackle, half spigots, pins and clips.

Independently tested by Alfa Test (ISO/IEC 17025, NATA accredited) to verify compliance with Australian engineering standards. The bow shackle conforms to Australian Standard AS2741 and is supplied with working load limit, nominal size, grade, batch number and supplier identification.

*Note: Safe Working Load (SWL) 1000 kg*

Key Features:

• 2-year manufacturer’s warranty
• High quality build and design
• Includes: 1 x 290 truss inline lifting bracket
• Rigging applications: video walls, moving heads, heavy lighting, display panels, signage, curtains
• Event applications: stage production, venues, exhibitions, clubs, churches
• Compatible with Titan AV 290 box truss

Product Details:

• Material: 6082-T6 aluminium plate, 10 mm thick
• Finish: Silver mill finish
• Certification: Independently tested (ISO/IEC 17025, NATA) & shackle to AS2741
• Included hardware: Bow shackle, half spigots, pins, clips
