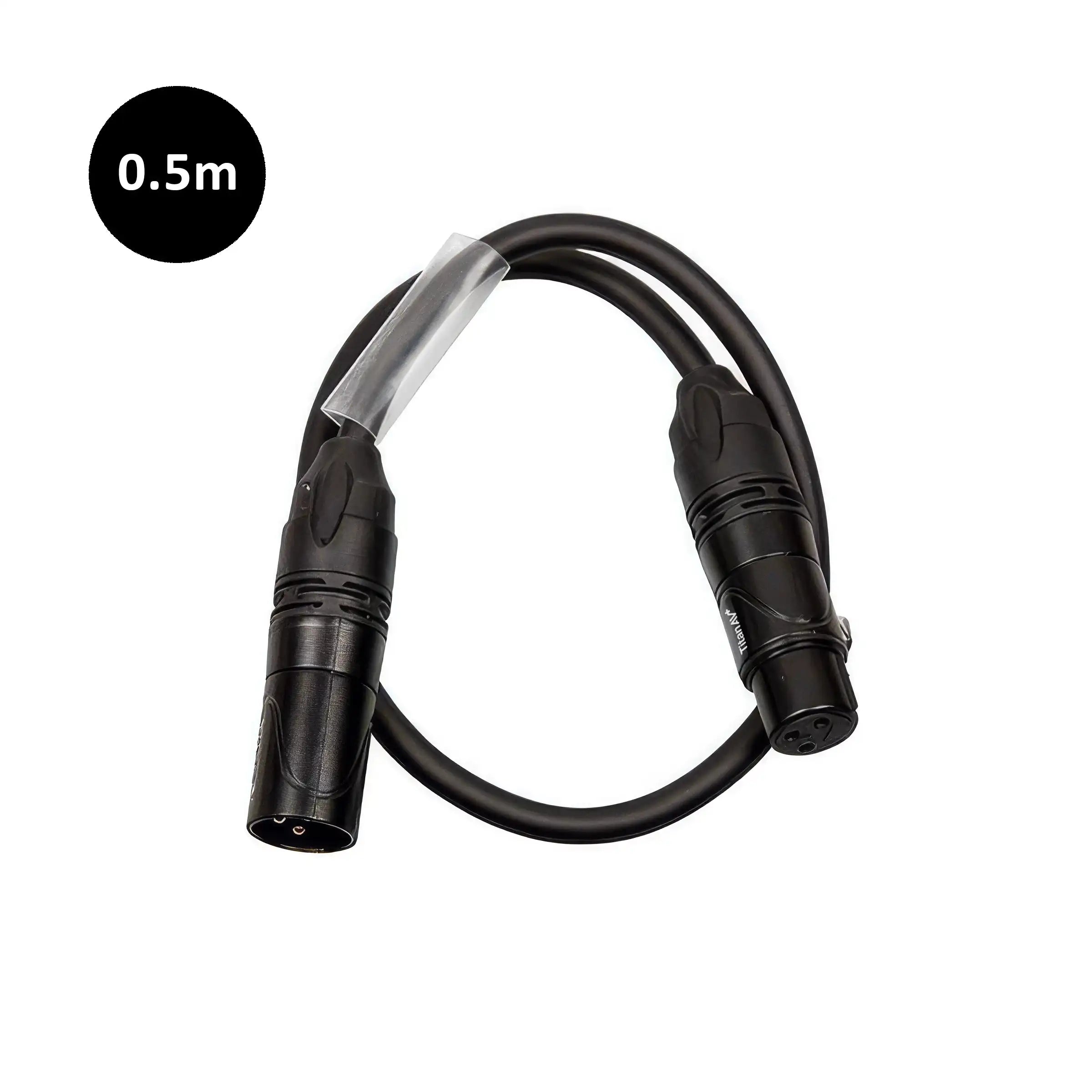

DMX Cable, 3 Pin (0.5m)

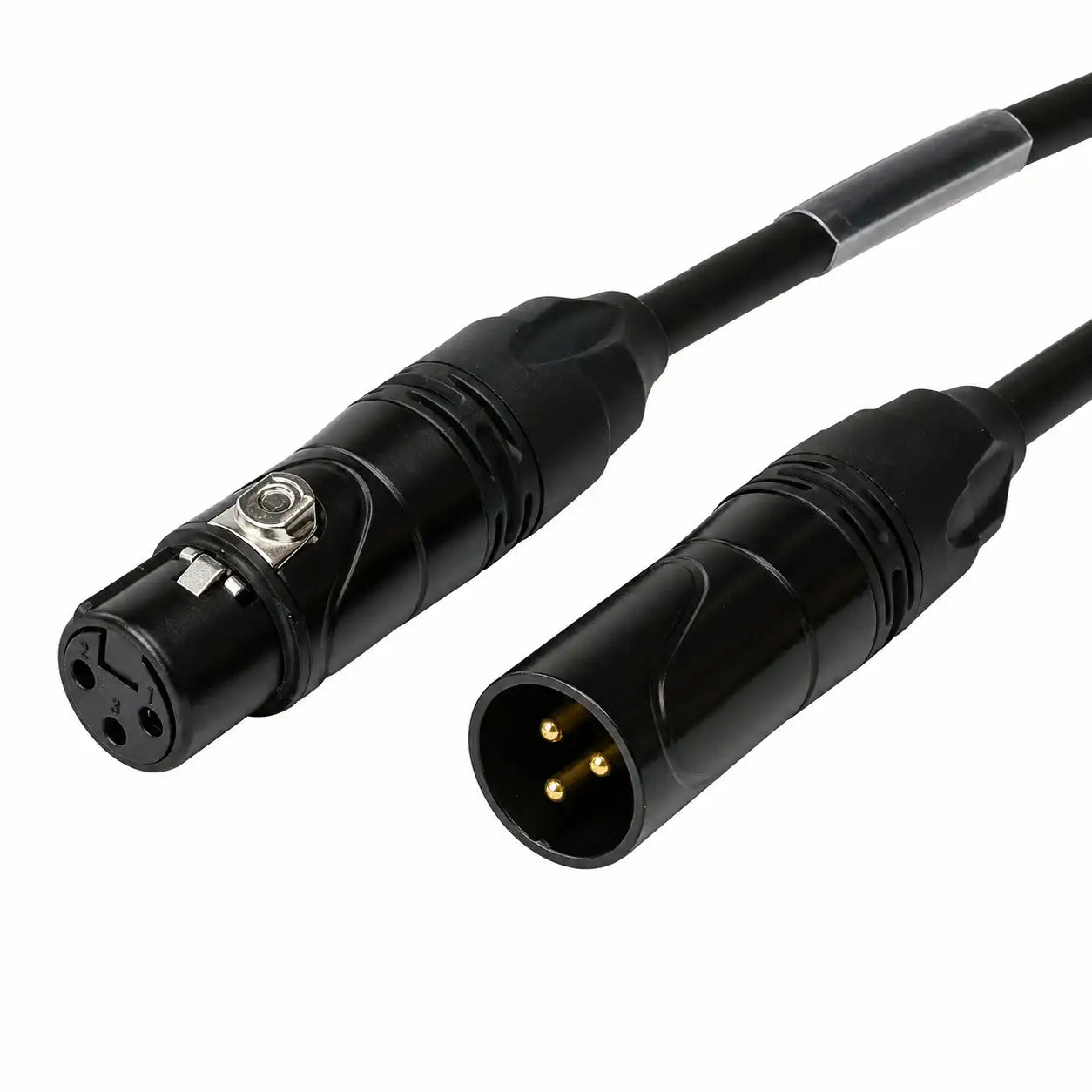

Built for lighting techs and designers who need every fixture in the chain to respond on cue, this 3-pin DMX cable is wired to the DMX512 standard with a 110Ω twisted pair, foil plus 95% braided copper shield, and gold-plated XLR connectors. Run it between your console and the rig with confidence: no flicker, no dropout, no chasing intermittent faults at 4am the night before doors.

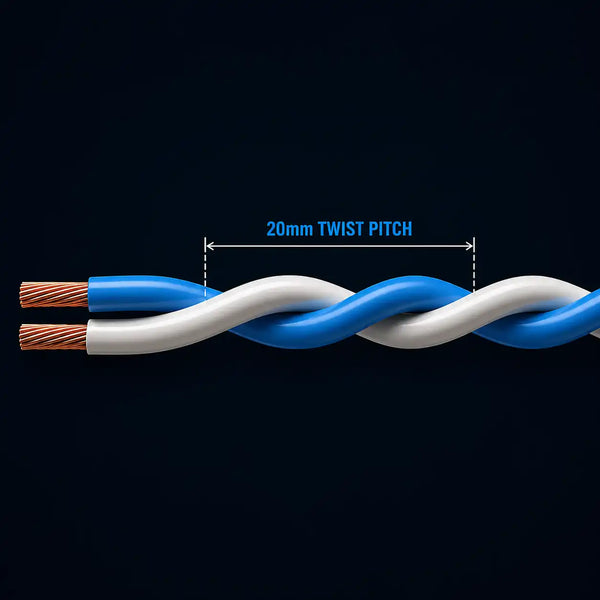

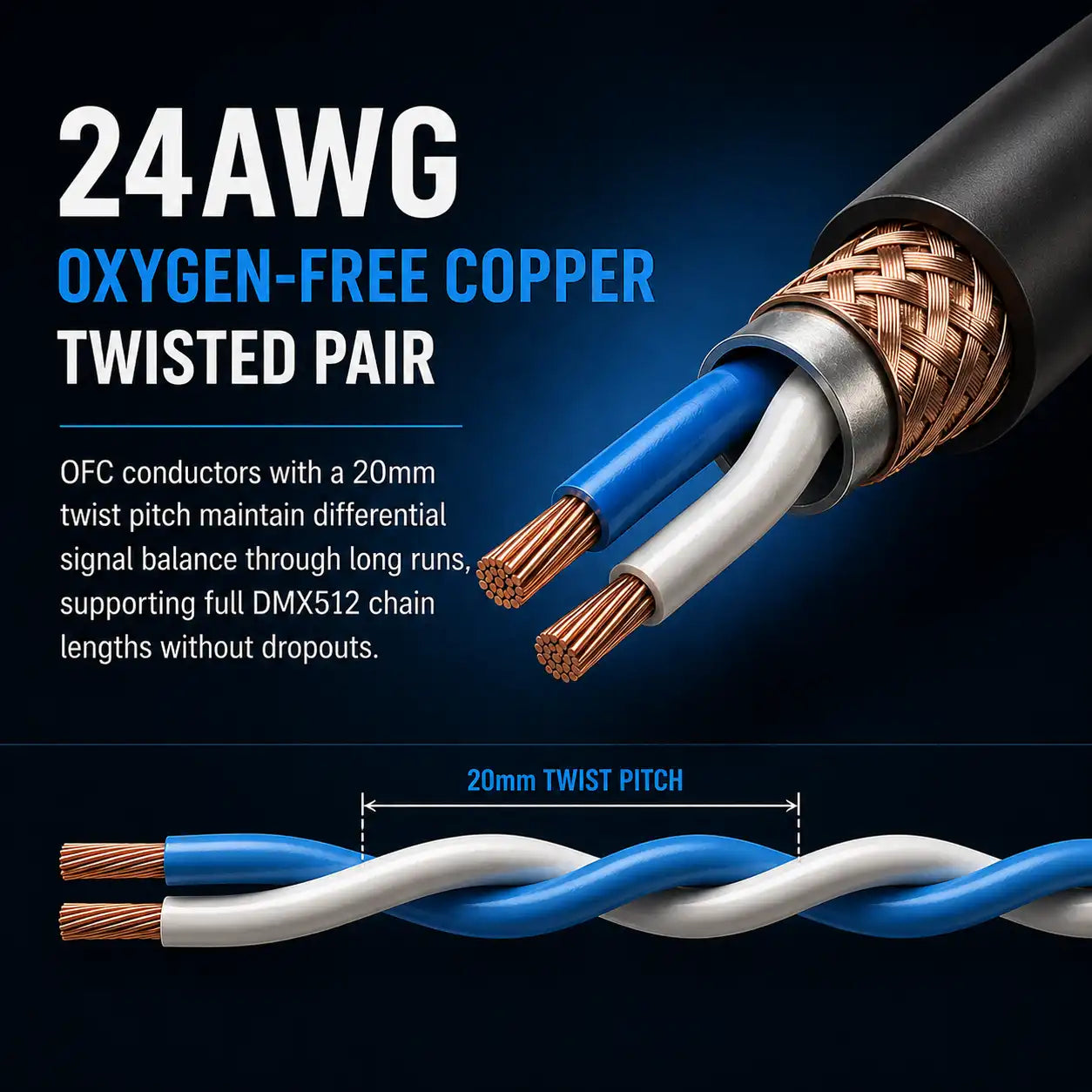

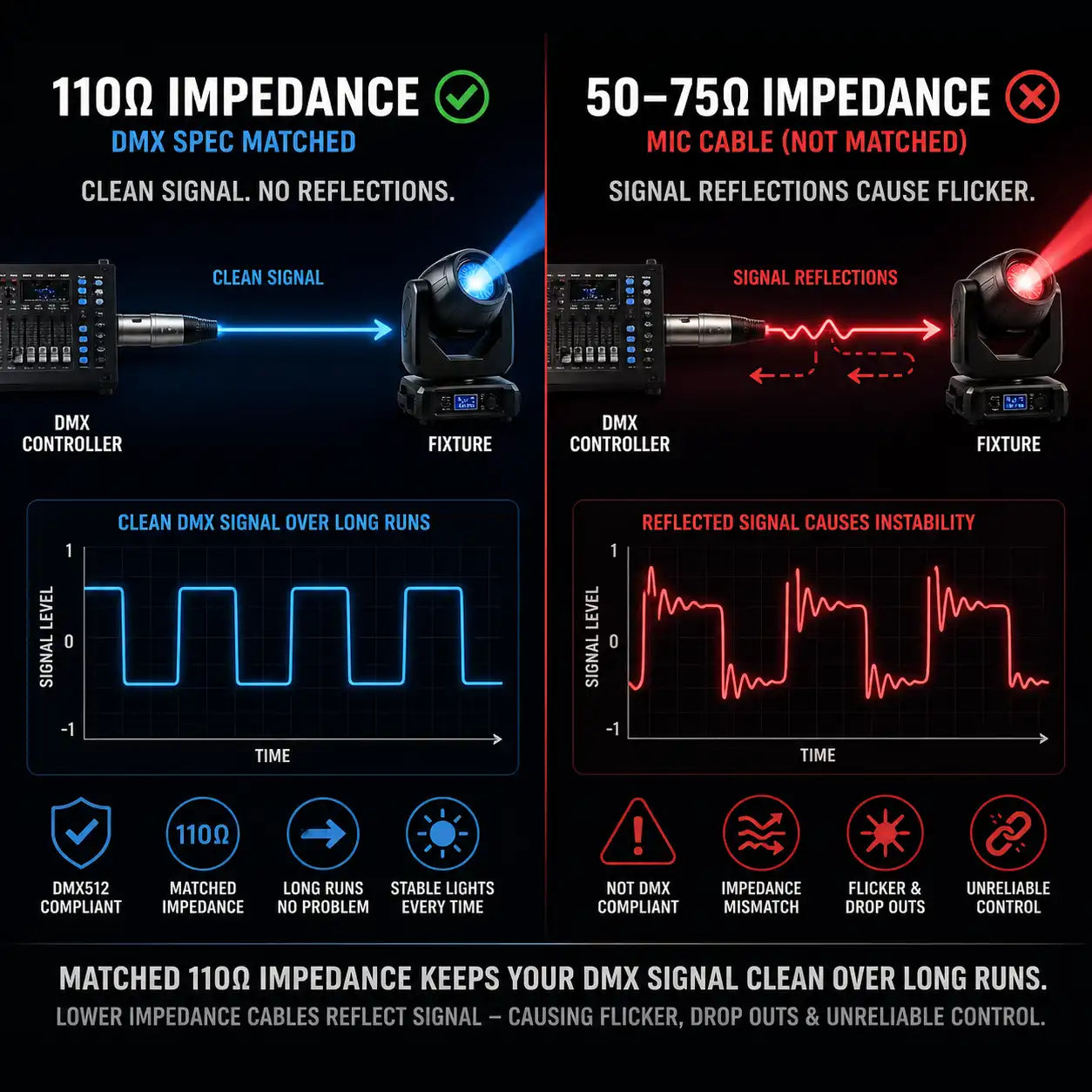

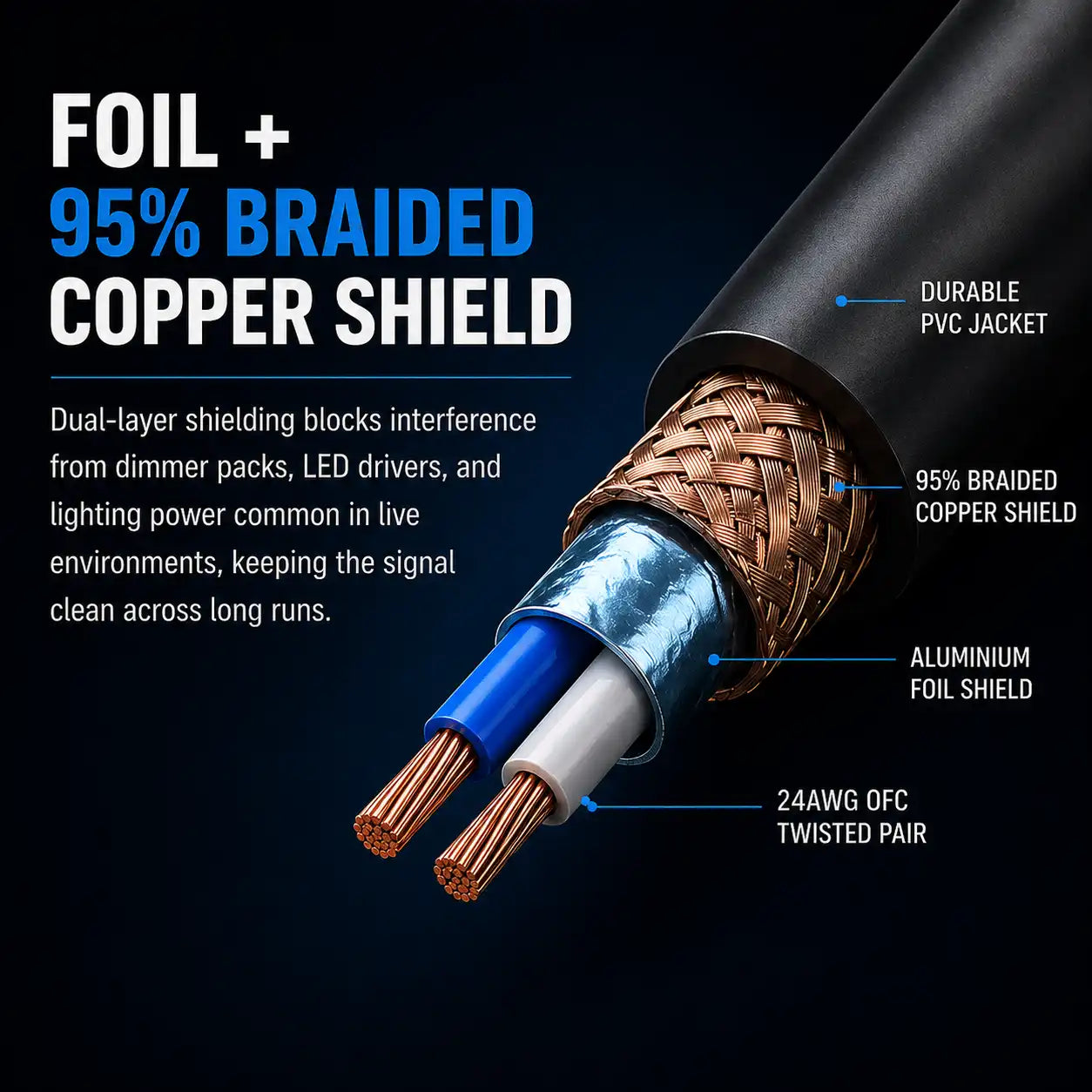

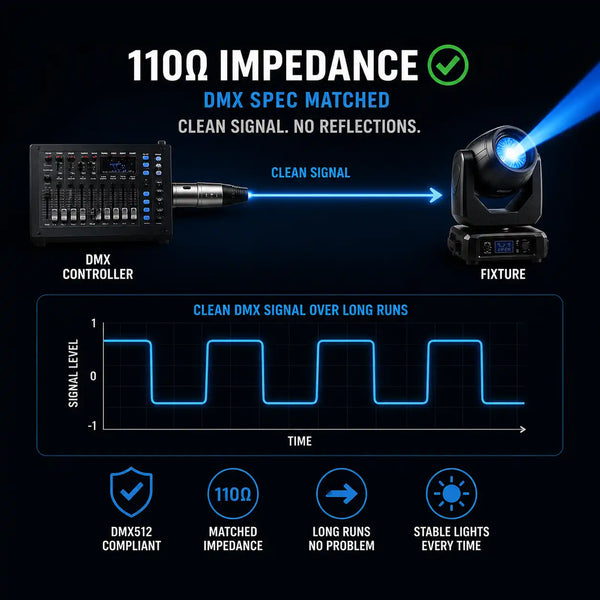

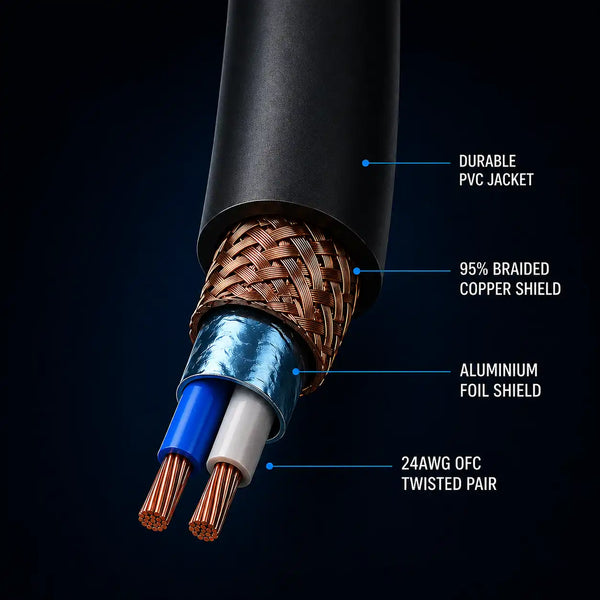

It works on every fixture and console with a 3-pin XLR DMX port, including moving heads, dimmer packs, hazers, LED bars, and controllers from any manufacturer. The 110Ω characteristic impedance matters because it matches what DMX512 receivers expect, where mic cable at 50–75Ω causes signal reflections that flicker fixtures, drop bytes, and compound across long chains. With a 24AWG oxygen-free copper twisted pair on a 20mm pitch, plus full foil and 95% braid shielding, the signal stays clean past the corners of the venue, even with lighting power running parallel.

Who This Is For

• Lighting technicians and touring crews
• DJs and event production teams
• Schools, churches, and venues
• Stage and broadcast lighting setups

Best For

• Fixture-to-fixture links, rack patching, and full DMX runs
• Console-to-rig signal distribution across short and long distances
• Clean, interference-free DMX signal chains in RF-heavy environments

Not Ideal For

• Permanent outdoor installations (not IP-rated)
• Very long single-run distances without proper termination
• Audio signal use

Compatibility

• DMX lighting controllers and consoles
• Moving heads, LED fixtures, PAR cans, and dimmer packs
• Hazers, fog machines, and DMX-controlled effects

Choose Your DMX Cable Length

Pick a length based on the distance between fixtures and your control source:

• 0.5m–1m, fixture-to-fixture jumpers and tight rack patches
• 2m–3m, console to splitter, splitter to first fixture, short bar runs
• 6m–10m, standard stage and venue runs, truss to floor positions
• 15m–20m, long throws across larger stages, FOH to rig, multi-truss spans

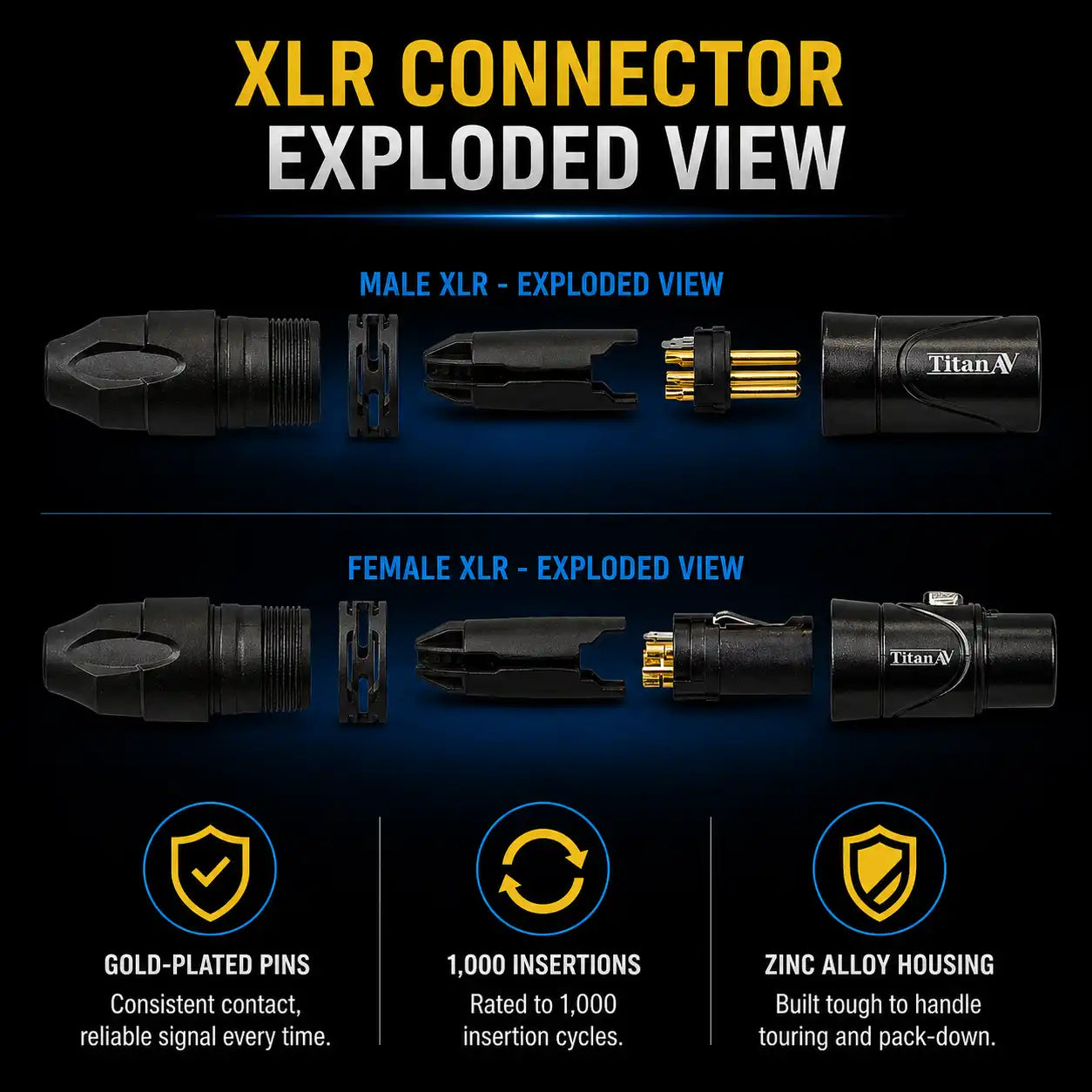

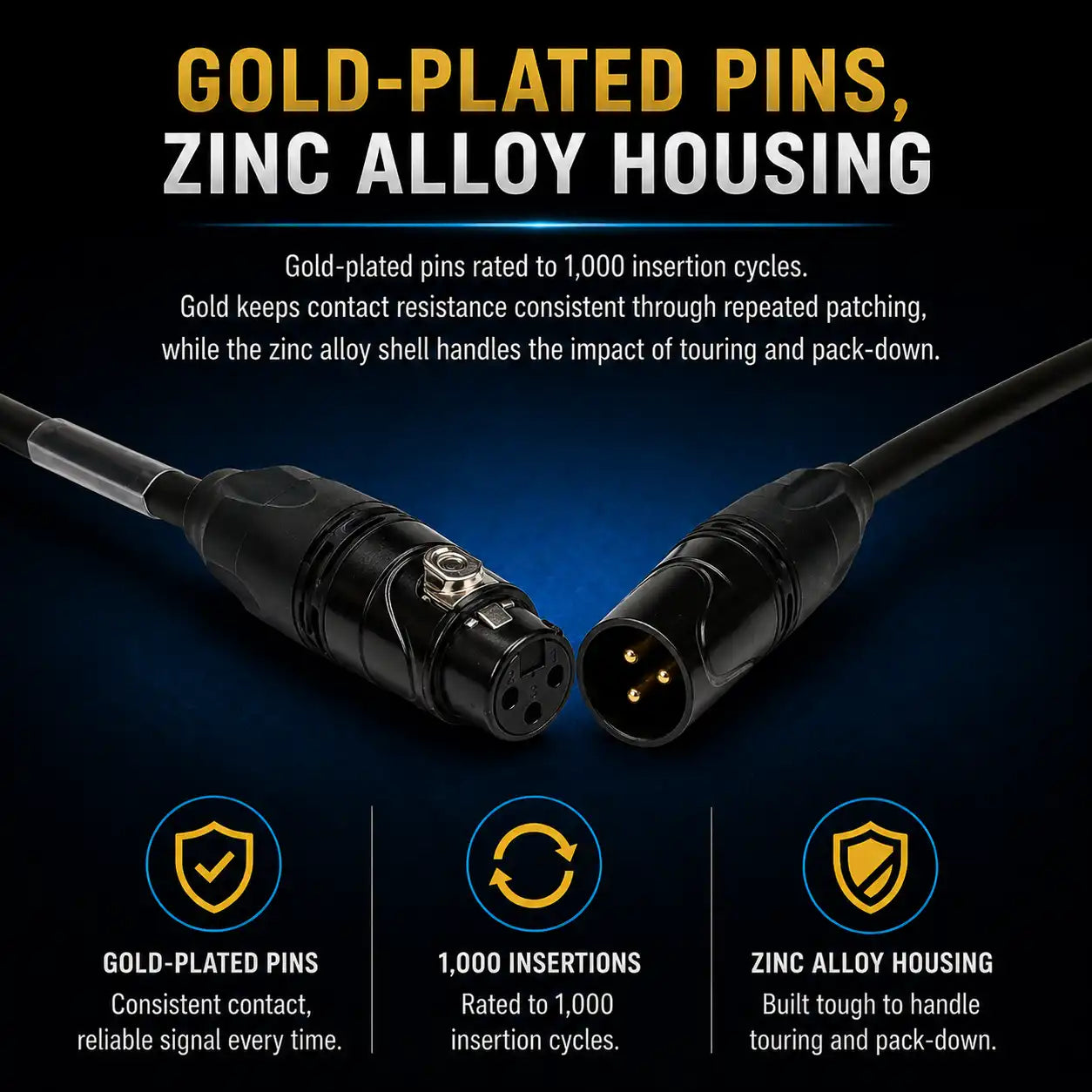

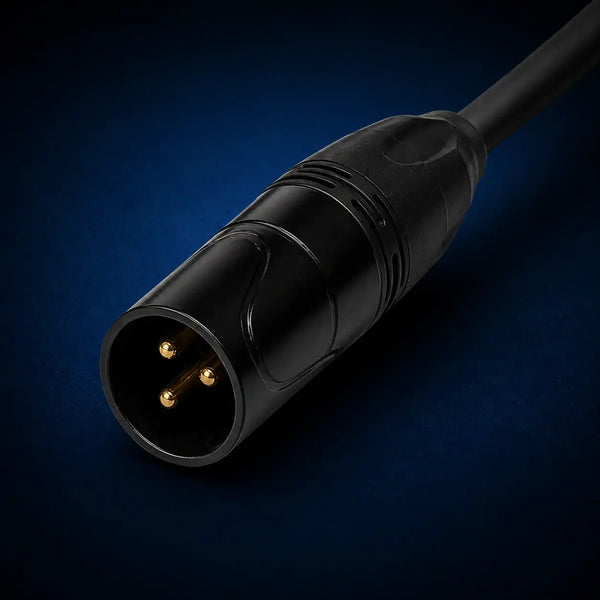

On a busy show day the DMX line is the last thing you want to troubleshoot. Foil plus 95% braid blocks RF from dimmer packs, hazers, and the lighting power running alongside. The 20mm twisted pair pitch holds differential signal balance through the full 20m run, so a 32-fixture chain stays steady without dropping bytes. Gold-plated pins keep contact resistance consistent through repeated patching at load-in and pack-down. Clear heat shrink on each cable makes it easy to label your runs, keeping larger rigs organised and faster to troubleshoot. Designed in Brisbane, built to the spec a lighting rig actually runs at.
