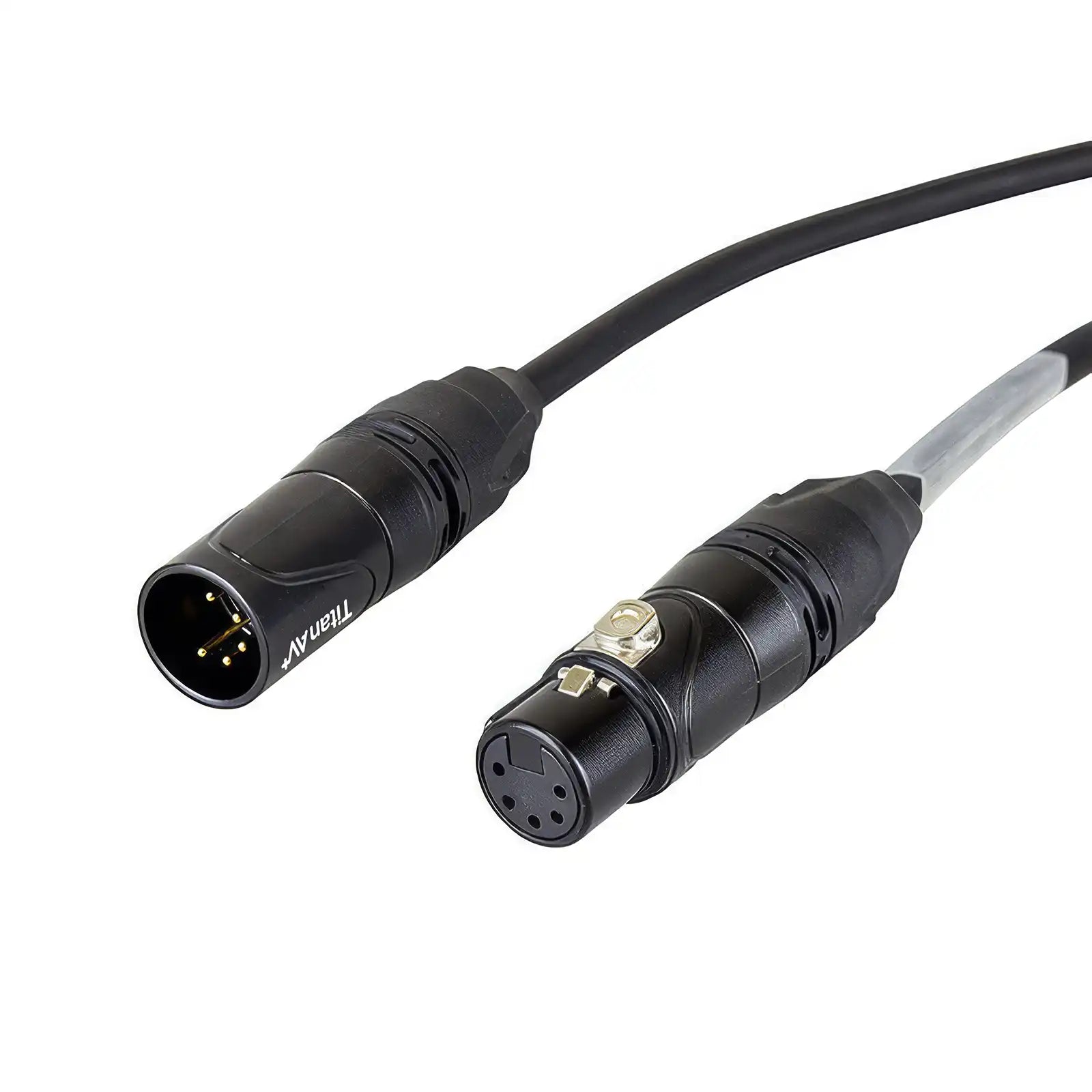

DMX Cable, 5-Pin
110Ω 5-pin DMX cable for ETC consoles, theatre, and install rigs
Description
Description
Built for lighting techs running ETC consoles, theatre rigs, and architectural installs, this 5-pin DMX cable is wired to the DMX512 standard with a 110Ω twisted pair, foil plus 95% braided copper shield, and gold-plated XLR connectors. Run it between your console and the rig with confidence: no flicker, no dropout, no chasing intermittent faults the night before opening.
The 5-pin XLR is the official DMX512-A fitment, used by ETC consoles, theatre and broadcast desks, and most architectural lighting systems. If your console or fixtures use a 5-pin port, this is the cable that plugs straight in, with no adapter and no signal loss through a converter. Mic cable at 50 to 75Ω causes signal reflections that flicker fixtures and drop bytes; the 110Ω characteristic impedance here matches what DMX512 receivers expect. Multistrand 24AWG oxygen-free copper, PE insulation, and foil plus 95% braid shielding keep the signal clean past the corners of the venue.
Choose the Right 5-Pin DMX Cable Length
Pick a length based on the distance between fixtures and your control source:

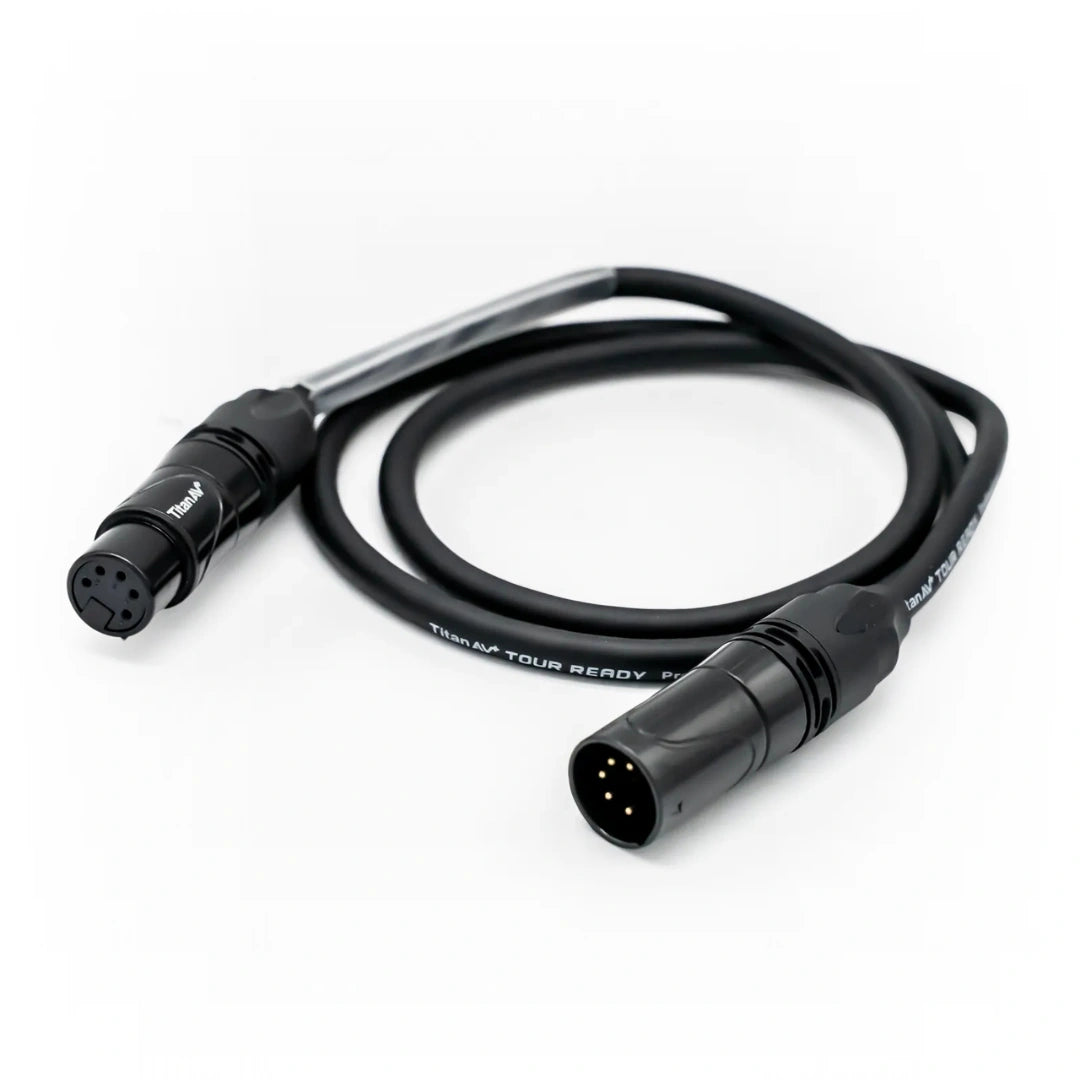

- 0.5m–1m, fixture-to-fixture jumpers and tight rack patches
- 2m–3m, console to splitter, splitter to first fixture, short bar runs

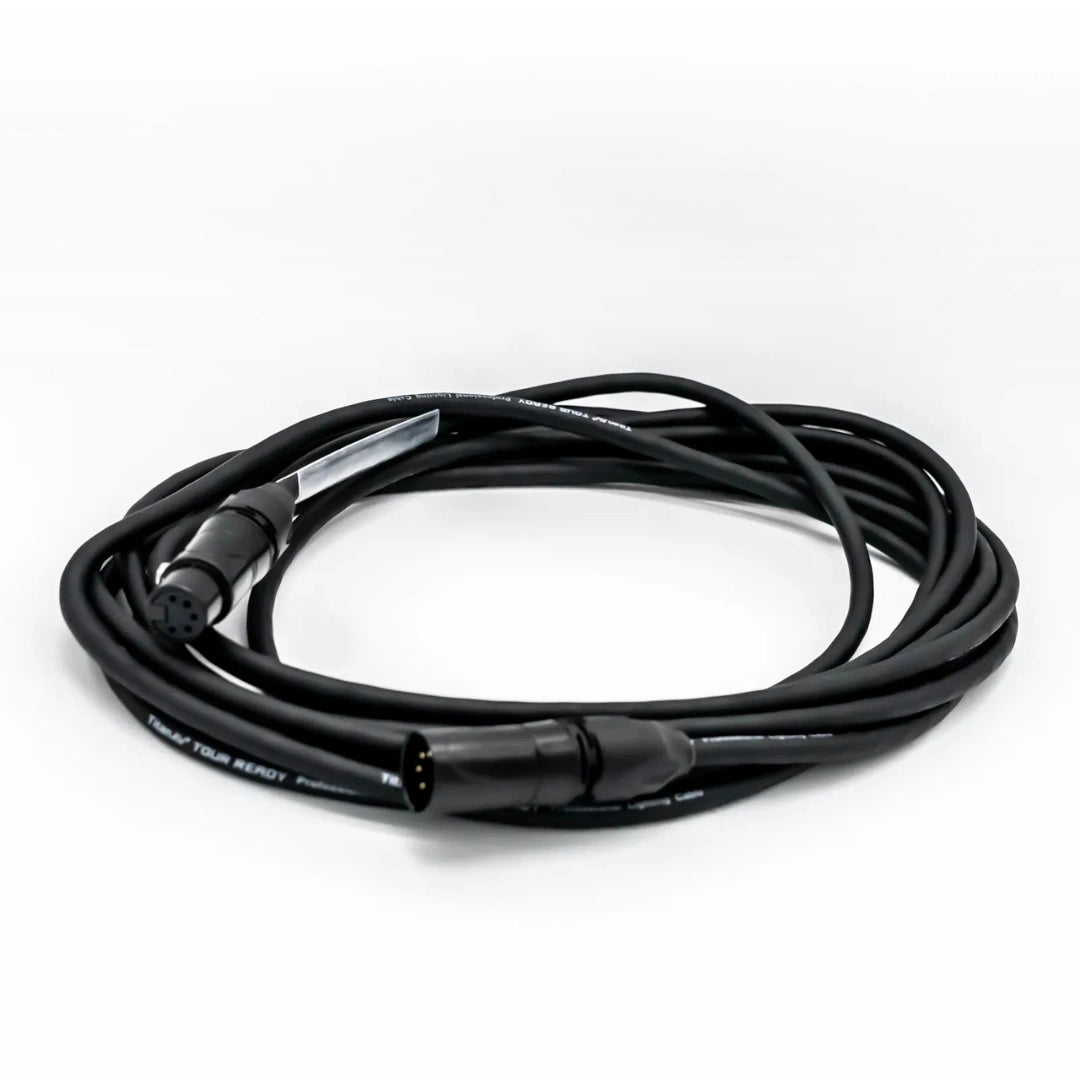

- 6m–10m, standard stage, theatre, and architectural runs

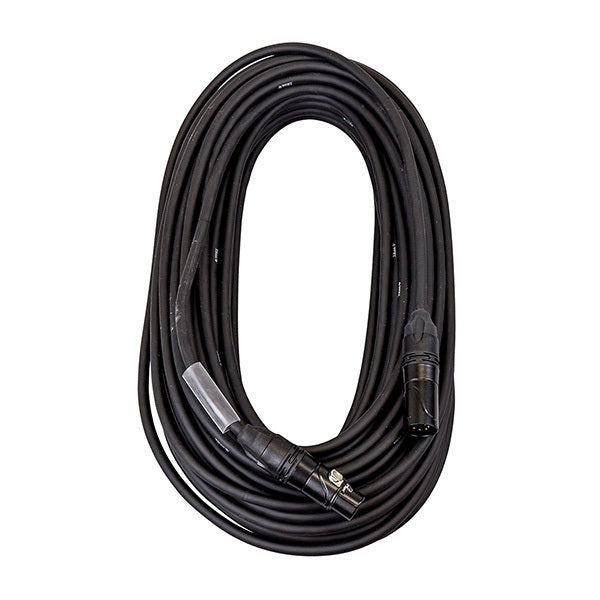

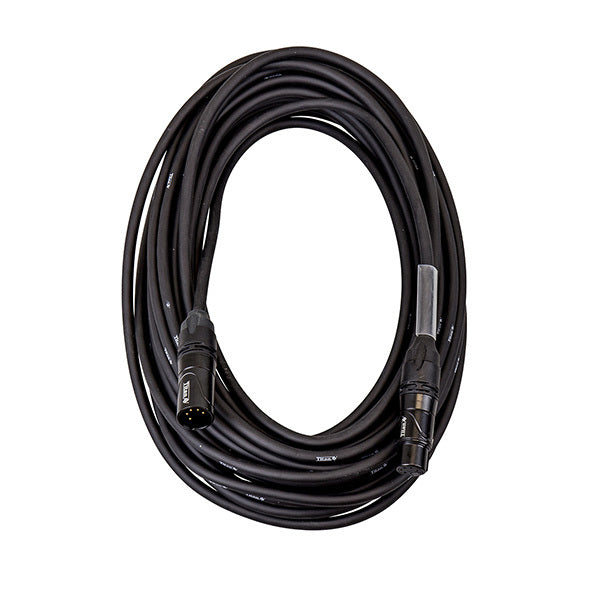

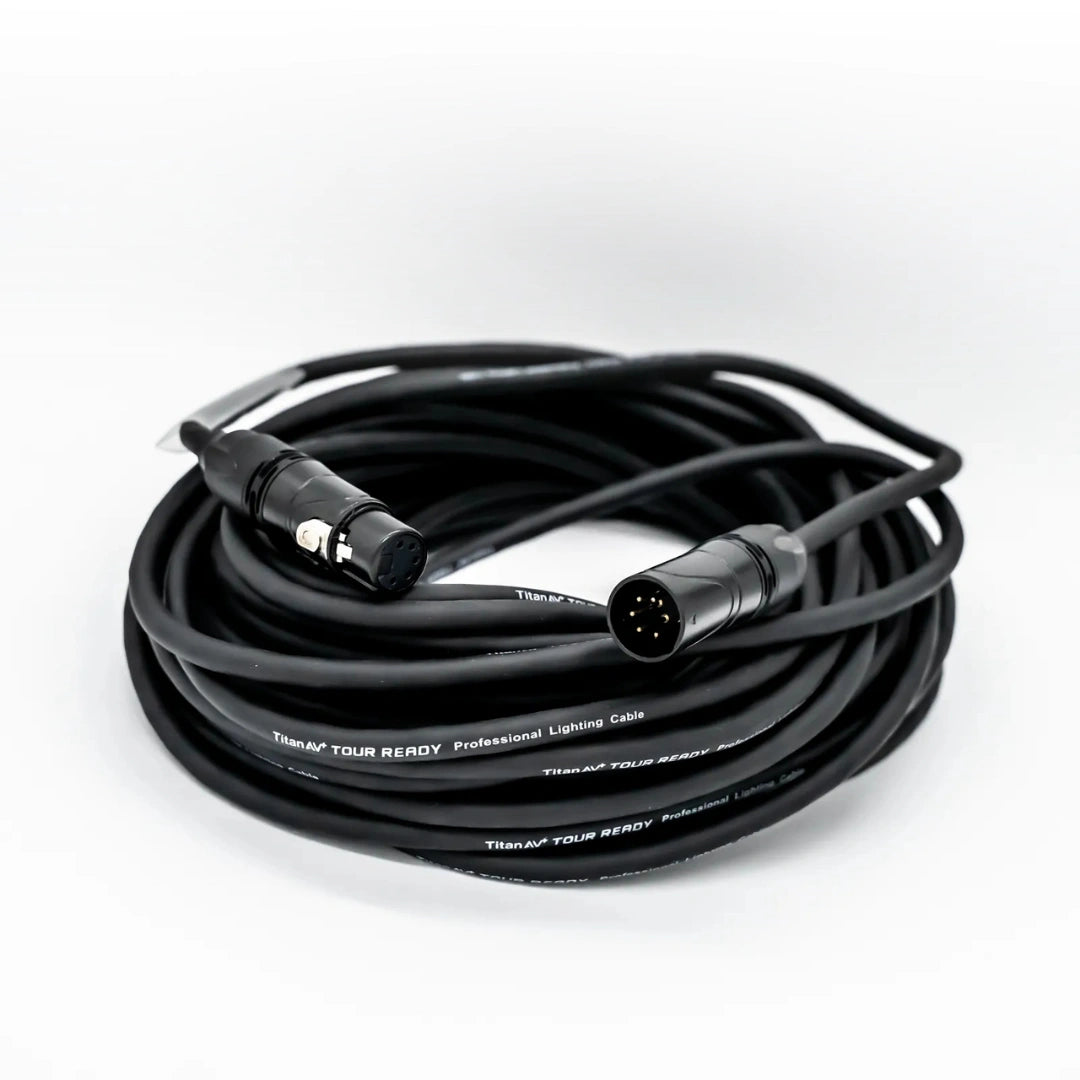

- 15m–20m, long throws across FOH to rig, multi-truss spans, large theatre or install
runs
On a busy show day the DMX line is the last thing you want to troubleshoot. Clear heat shrink at each connector takes a label so runs stay sorted across multiple universes, and the low-microphonic build keeps handling noise off the line when cables get walked on. Designed in Brisbane, built to the spec a lighting rig actually runs at.
Specifications
Specifications
Delivery & Pick-up Options
Delivery & Pick-up Options
We offer Brisbane pickup from our Northgate warehouse, or delivery Australia-wide with clear, upfront pricing for most orders.
BRISBANE PICKUP
Free pickup is available from our Brisbane warehouse.
Orders are usually ready within 1 business day.
PARCEL DELIVERY — $15.95
For small, lightweight items within standard parcel limits (each item under 22kg and 1.8m).
Tracking details are sent once your order is dispatched.
BULK DELIVERY — $129
For large or heavy items that can’t be sent as a standard parcel.
Requires a forklift or suitable unloading equipment at delivery.
BULK DELIVER + TAILGATE — $199
For large or heavy items when unloading equipment isn’t available.
The truck uses a built-in lift to safely unload your order.
Upfront Delivery Pricing
Upfront delivery pricing applies to around 97% of orders. In rare cases where delivery access, size, or location results in higher carrier costs, we’ll always contact you before dispatch. No additional charges are applied without your approval.
For full delivery details, FAQs, and terms, see our Shipping & Delivery page.

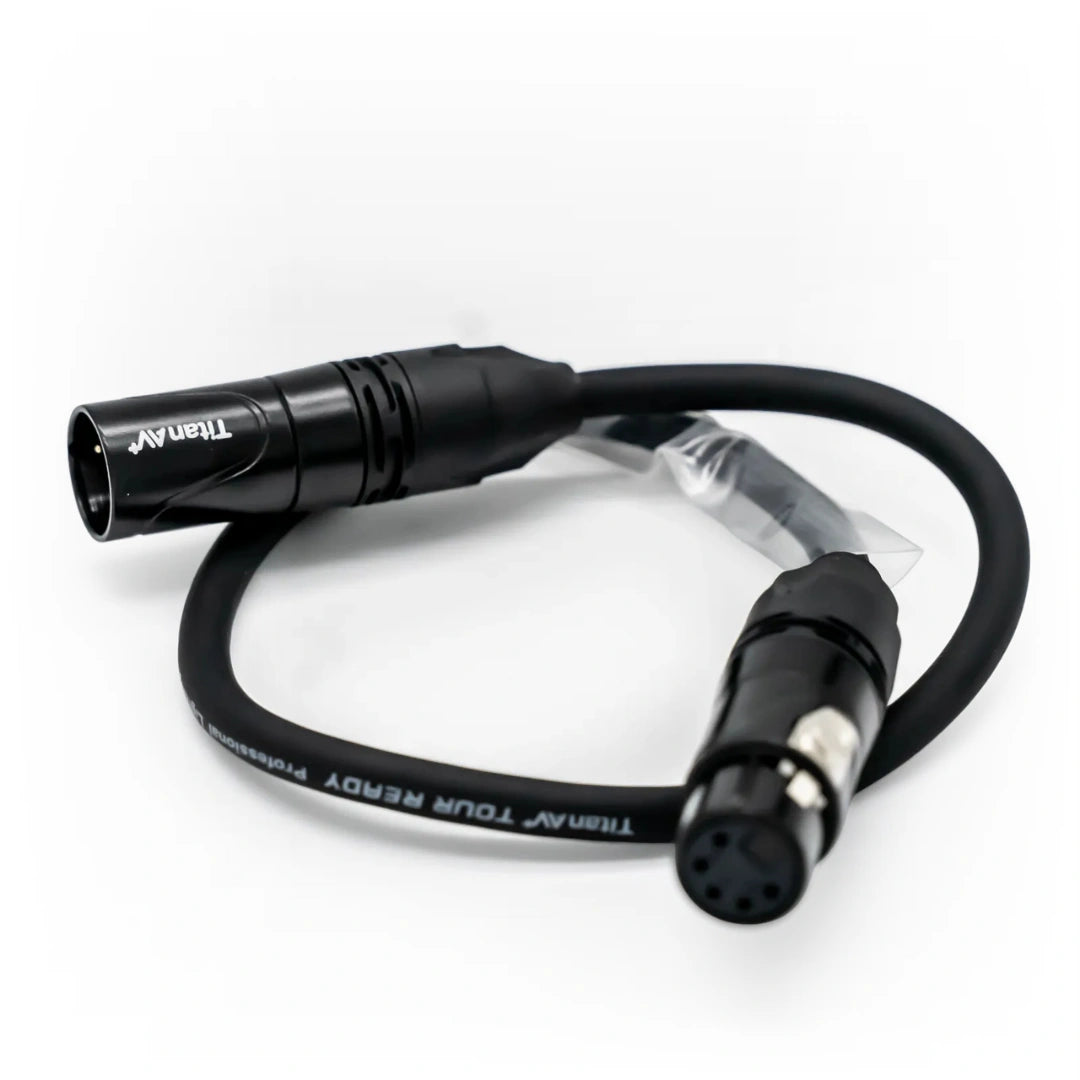

DMX Cable, 5-Pin - 0.5m
DMX 5 Pin Build, Explained
110Ω Impedance
24AWG OFC, Twisted Pair
Foil + 95% Braided Copper Shield

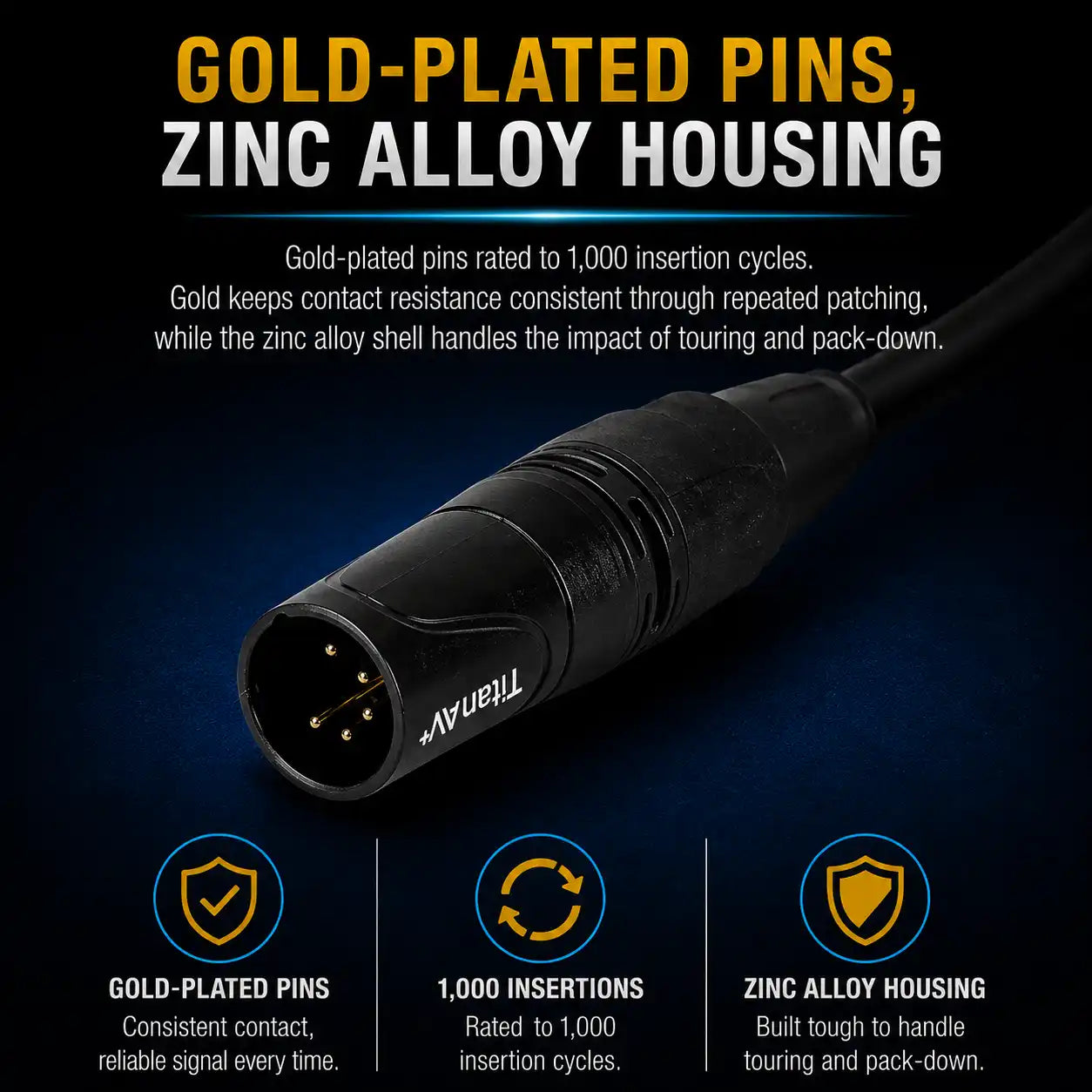

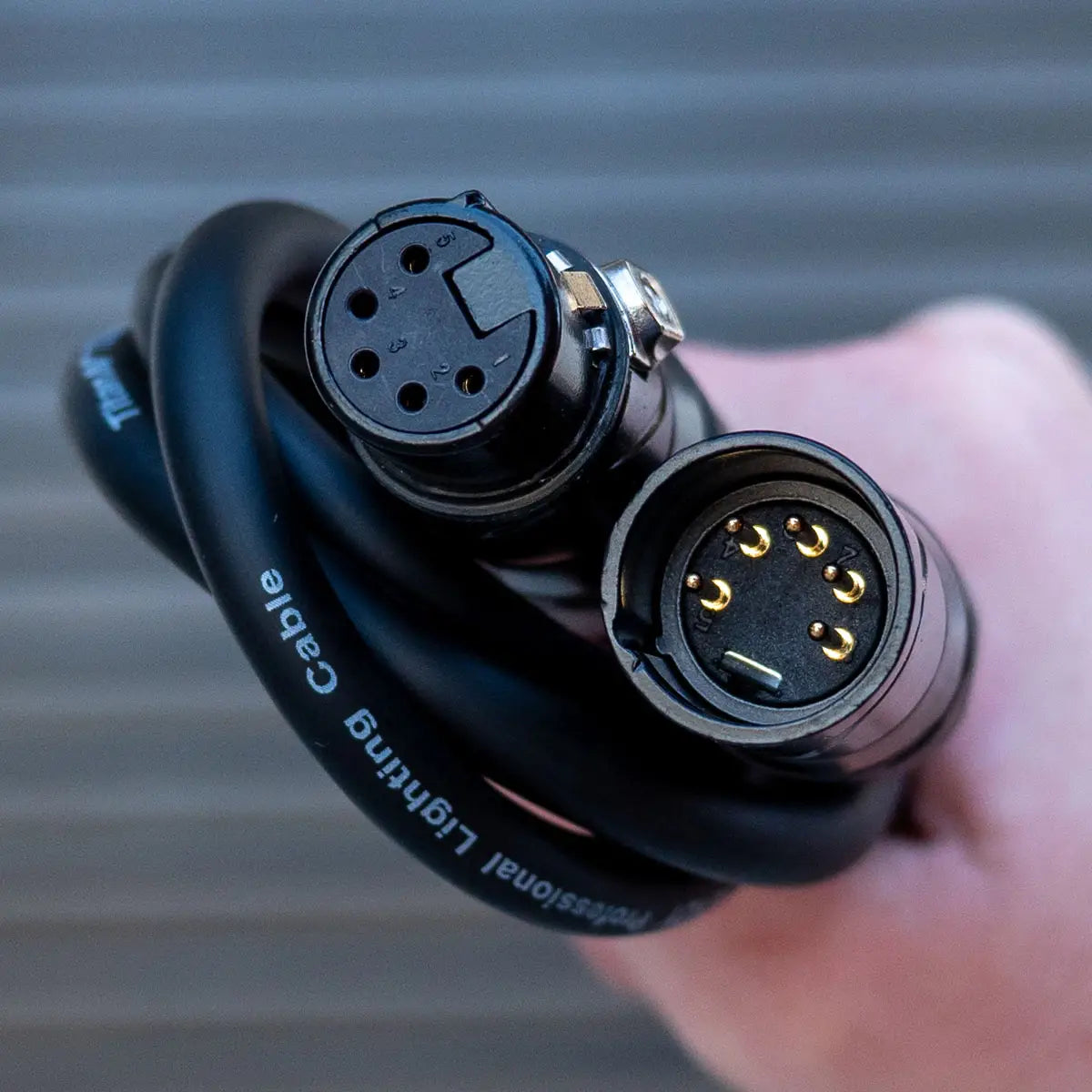

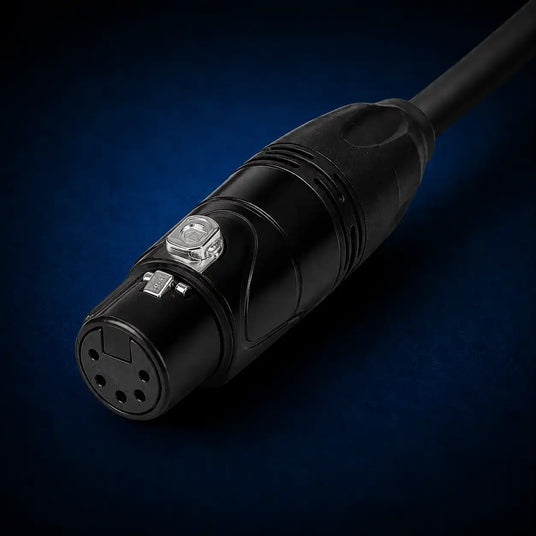

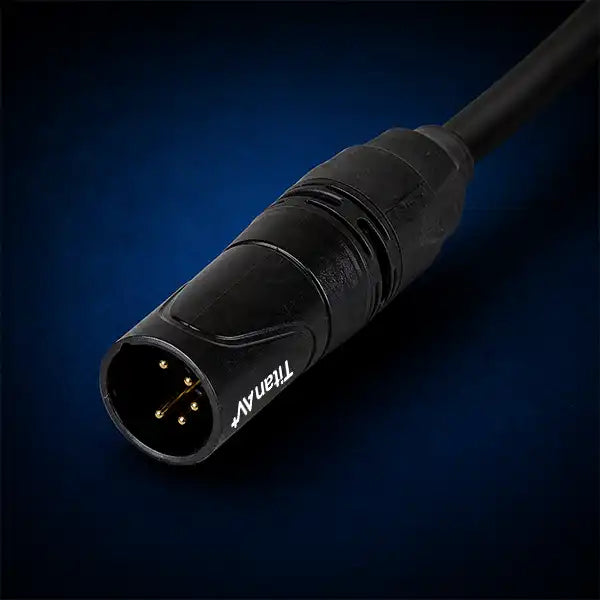

Gold-Plated 5-Pin XLR
Zinc Alloy Housing
Why Choose Titan AV 5-Pin DMX Cable
If your console is a 5-pin ETC desk, there’s no reason to pipe the signal through an adapter. Use a cable built for the protocol end to end, and get back the show-day reliability that comes with a true DMX512-spec line.
