  • SKU: TR-U-TOP600

Titan AV U-Light Frame Mount

$161.00 $189.00

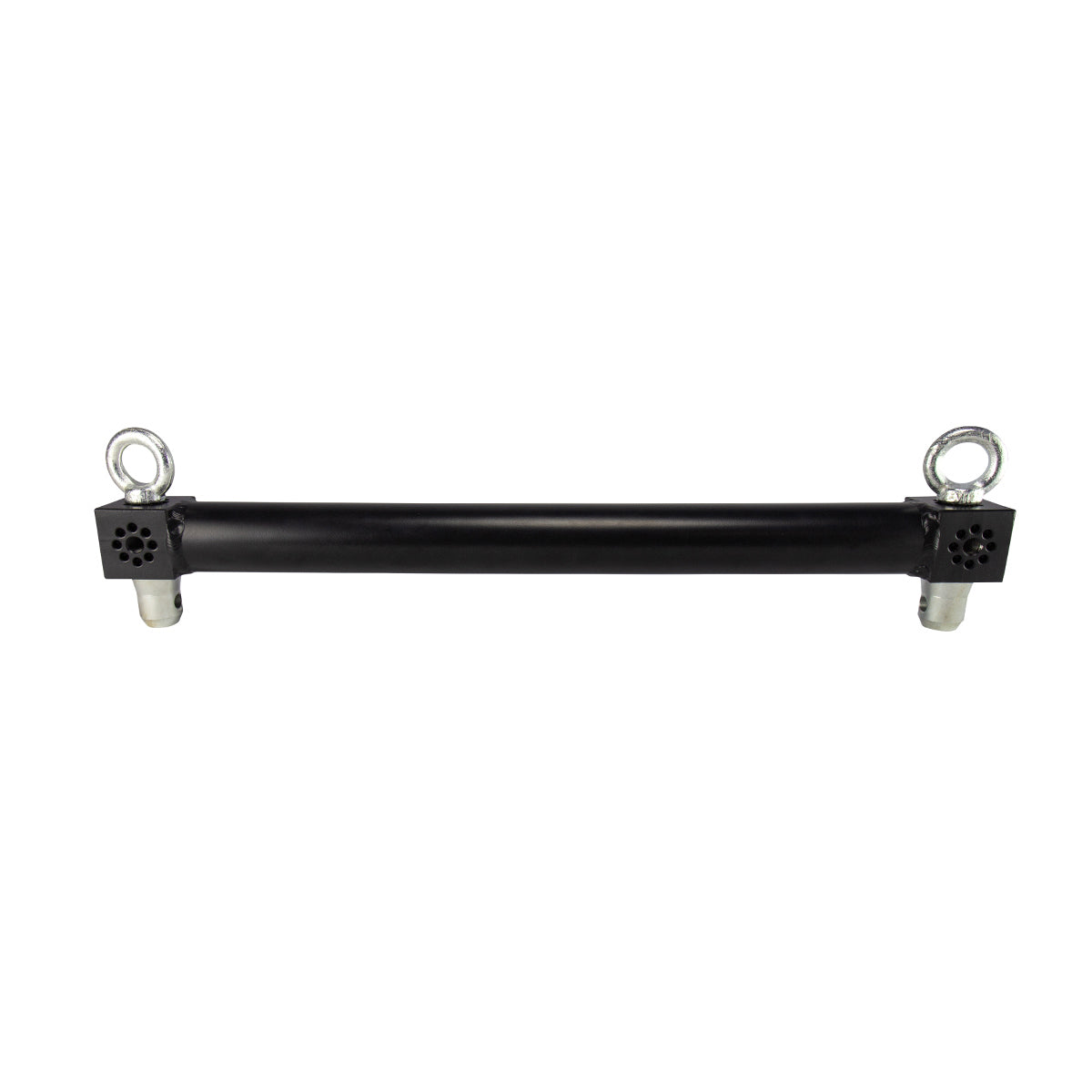

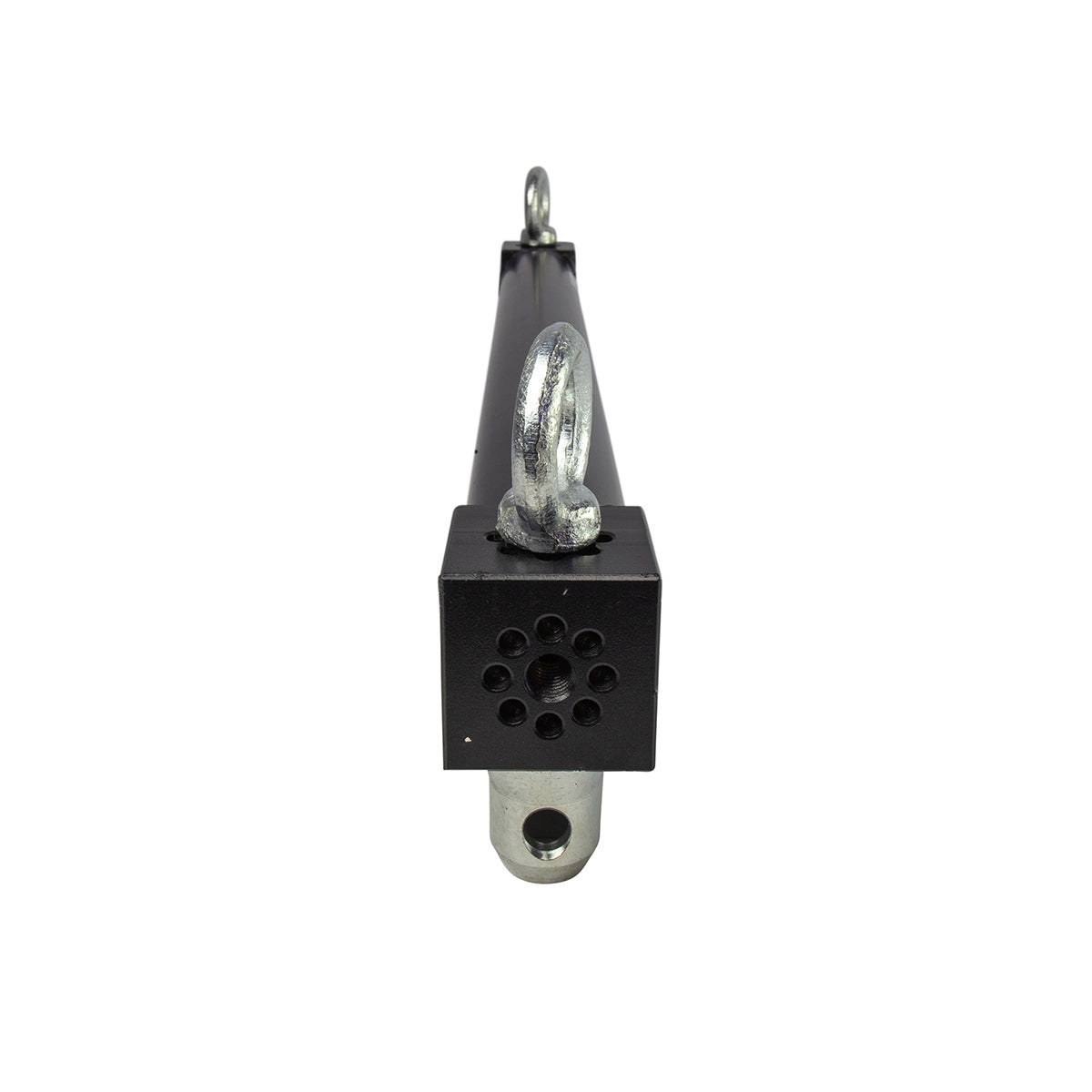

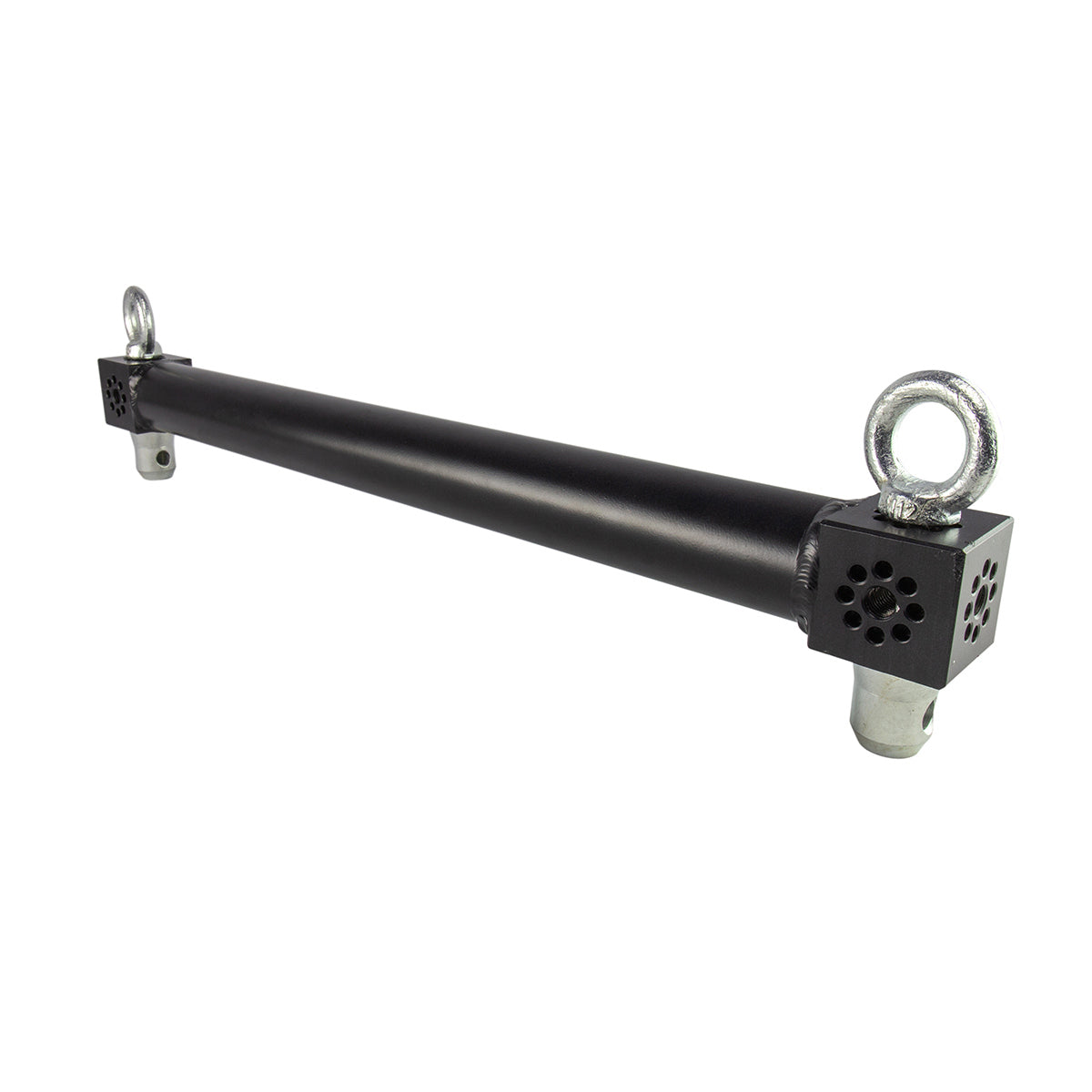

    This mount is designed to mount a U-Torm, also know as a U-frame when used in a hanging drop positions for lighting fixtures.

    The U-Torm mounting system has been designed for quick deployment and take down in any environment. The lightweight aluminium construction design is reinforced to provide added durability and stability.

    The U-Torm TOP600 is capable of taking center points load of 20 kg. Additionally if hung in a ladder configuration it is possible to mount up to five fixtures, one fixture off each module. U-Torm mounting brackets are available in a black finish as standard. As well as other colors can be provided on request.

    Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.


    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Rigging applications: moving heads, wash, blinder & parcan's
    • Event application: Stage production, Venues, Exhibitions, Clubs & Churches
    • Supplied fitted with conical couplers
    • Maximum hung U-Torm units: 5
    • Warranty: 2 year


    • Colour: Black (powder coat)
    • Outer Dimensions: 600 x 50 x 50mm (WxHxD)
    • Centre Point loading: 20 kg
    • Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm
    • Weight: 2 kg
    • 1 x U-Frame / U-Torm modular lighting frame mount
