  • SKU: TR-SQ30-60D

Titan AV Stage Lighting Truss 60 Deg Corner 290 Box Truss

$643.00
    DESCRIPTION

    This is one of the more popular trusses used in Australia, perfect for light to medium duty truss systems where general use and short lengths are needed. More common applications are DJ / band lighting, small to medium stage work, exhibitions and shop displays.

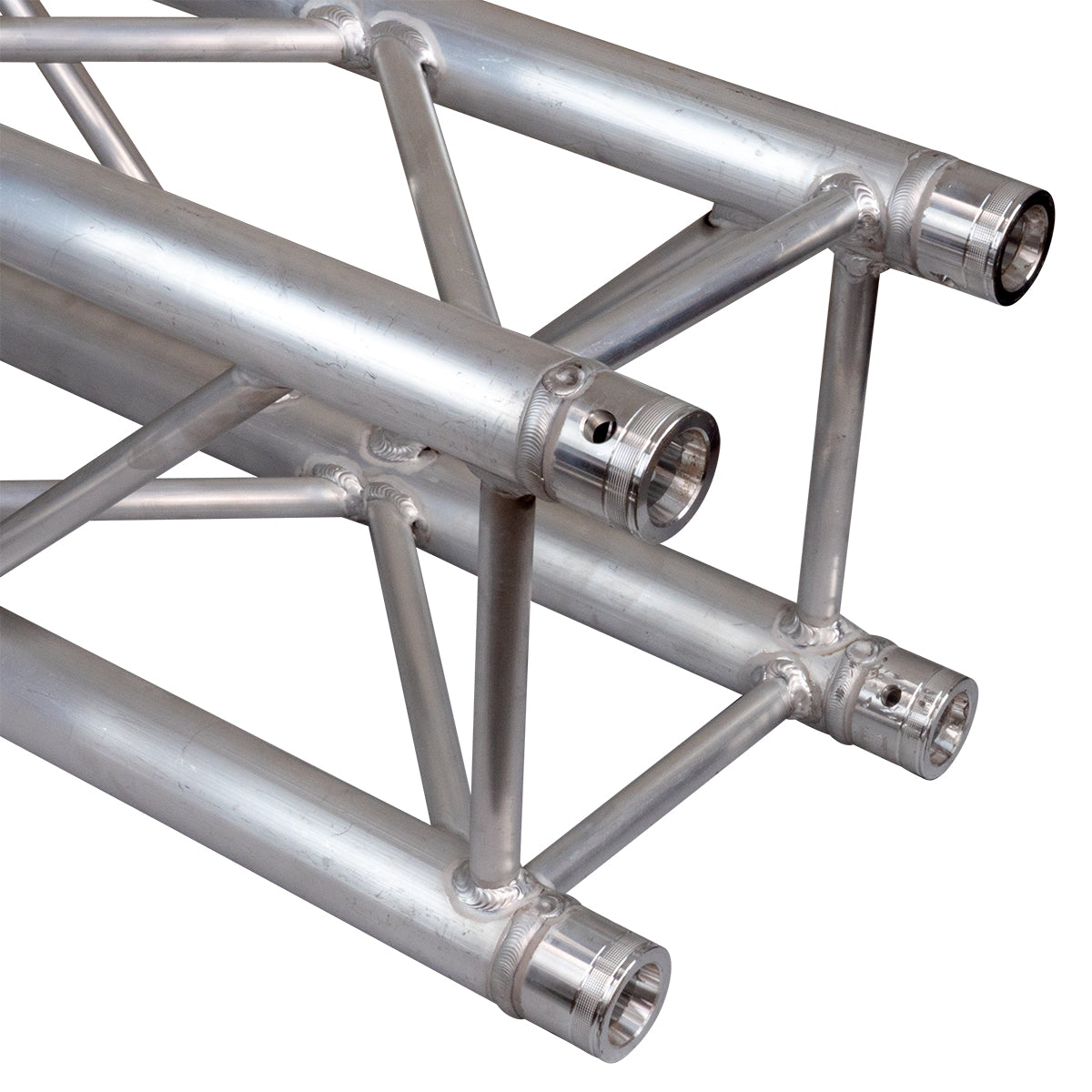

    This box trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 20x2mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the general public.

    Features:

    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)

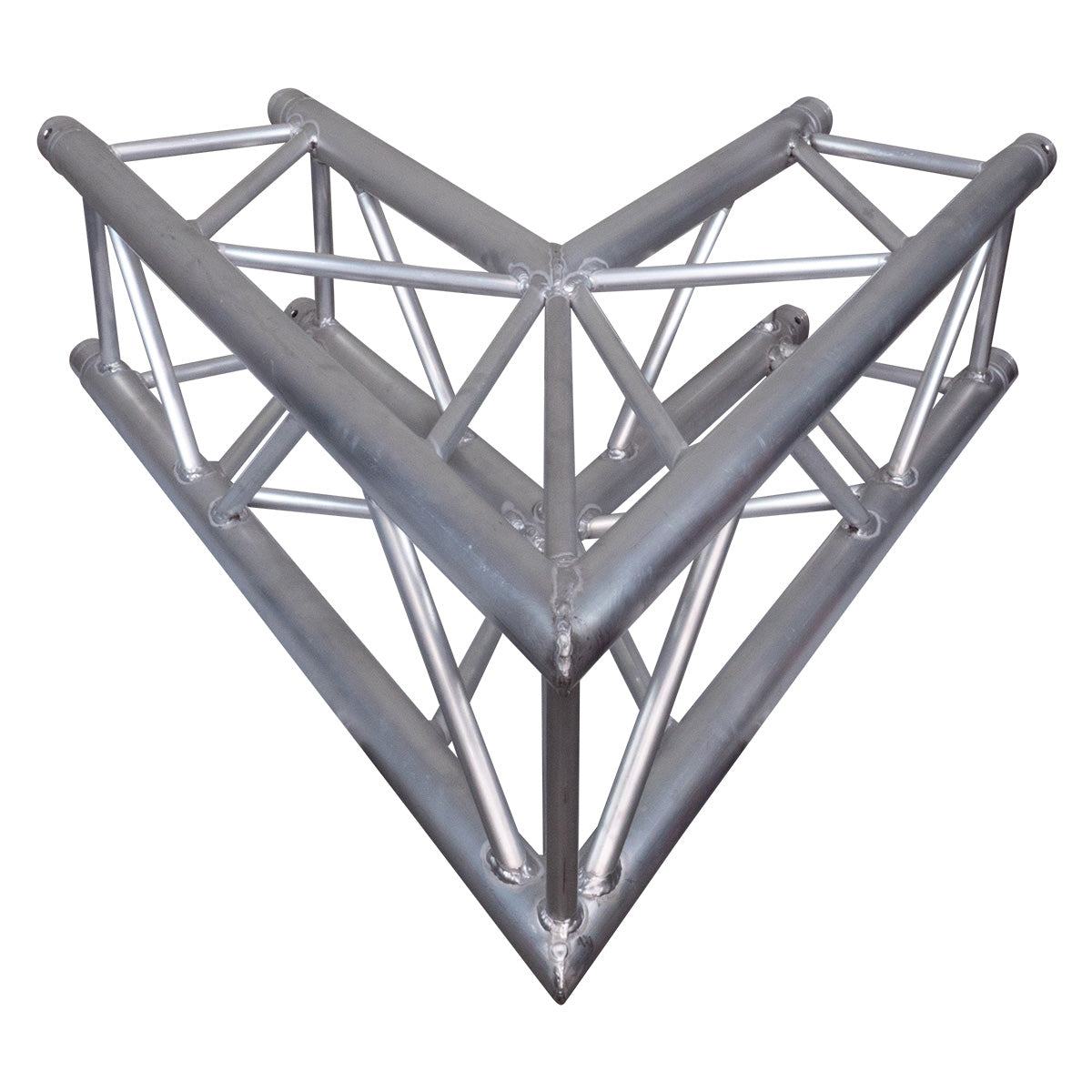

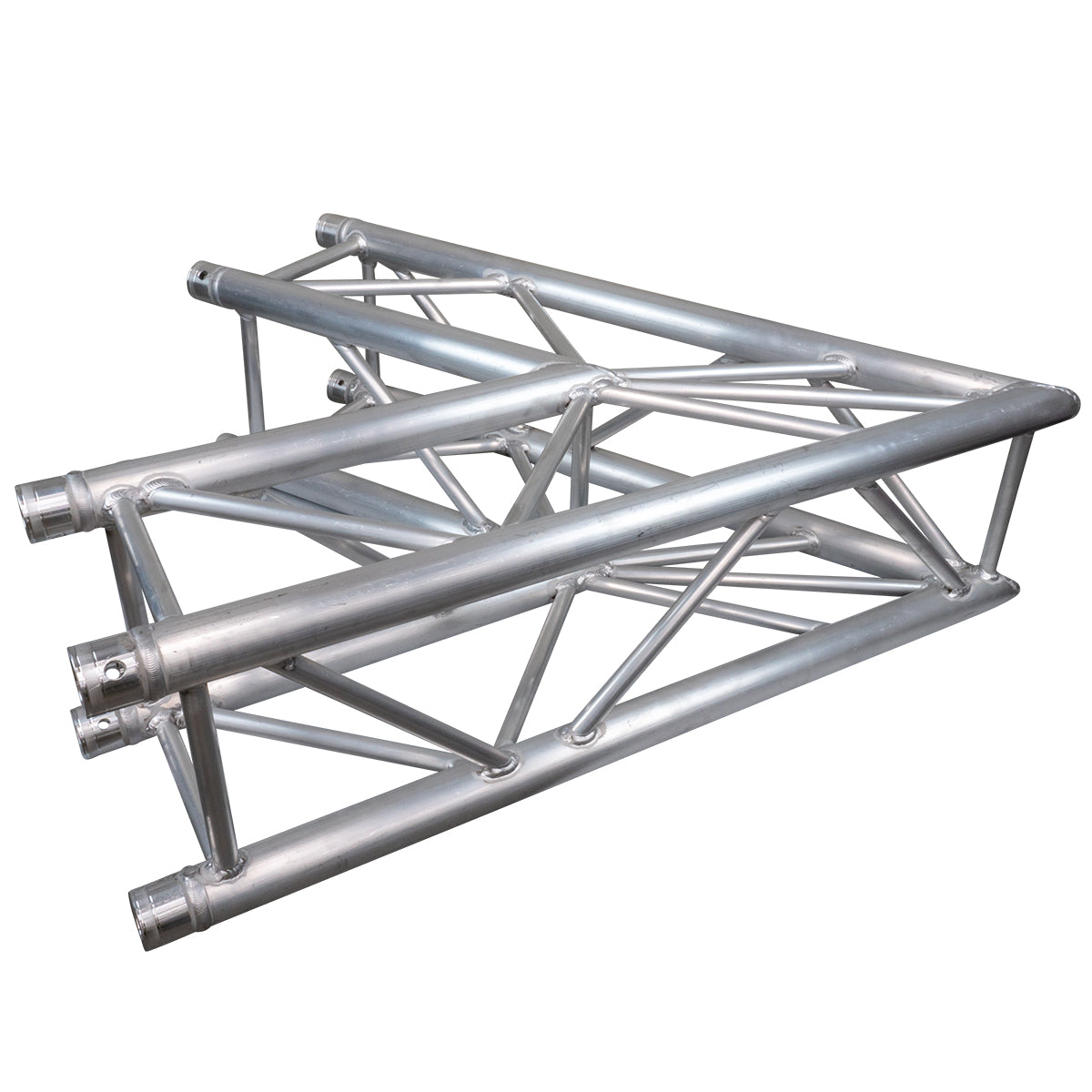

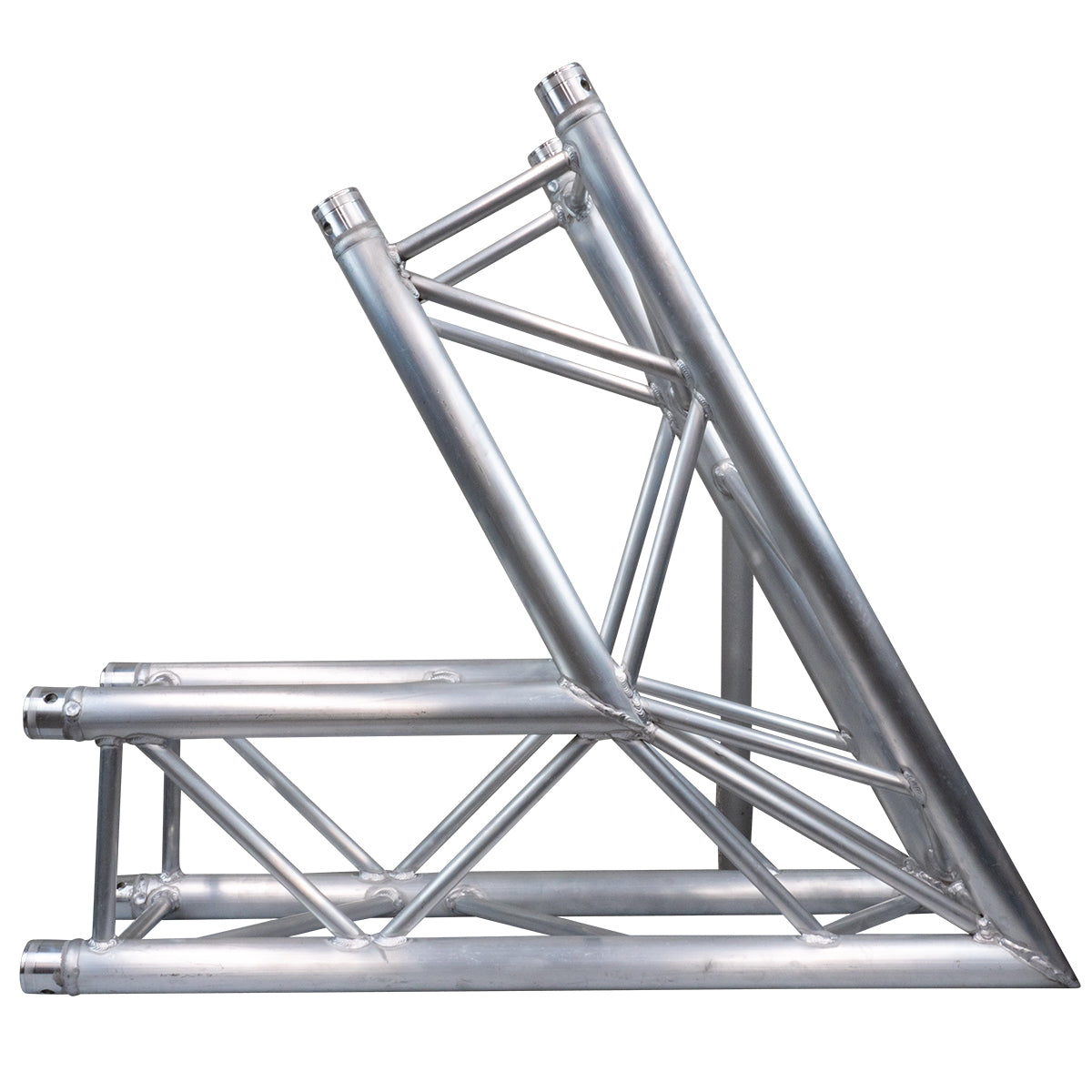

    • 2 way 60 degree corner truss
    • Set of spigots (conical couplers) and pins included in sale
    • Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
    • Warranty: 2 years

    Specs:

    • Weight: 9.5 kg
    • Material: 6082-T6 Aluminium
    • Main tube: 50mm (Wall thickness - 2mm)
    • Braces: 20mm (Wall thickness - 2mm)
    • 1 x Box Truss 2 way 60 degree corner 290mm


    290mm Box Truss Load Table

    Span Uniformly Distributed Load (UDL) Deflection Centre Point Load (CPL) Deflection
    M KG/M MM KG MM
    3 320 10 1260 12
    4 285 24 1080 19
    5 290 50 960 29
    6 175 60 870 42
    7 110 69 780 57
    8 78 80 720 720
    9 55 90 600 89
    10 40 100 600 99
    11 30 109 500 109
    12 24 124 420 118
