50mm Truss Clamp, SWL 250 Kg
50mm Truss Clamp, SWL 250 Kg
50mm Truss Clamp, SWL 250 Kg
50mm Truss Clamp, SWL 250 Kg
  • SKU: TR-CLP50-H1

50mm Truss Clamp, SWL 250 Kg

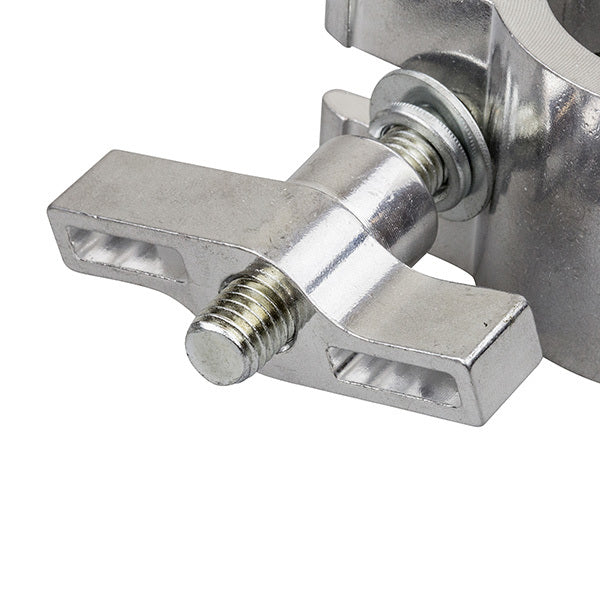

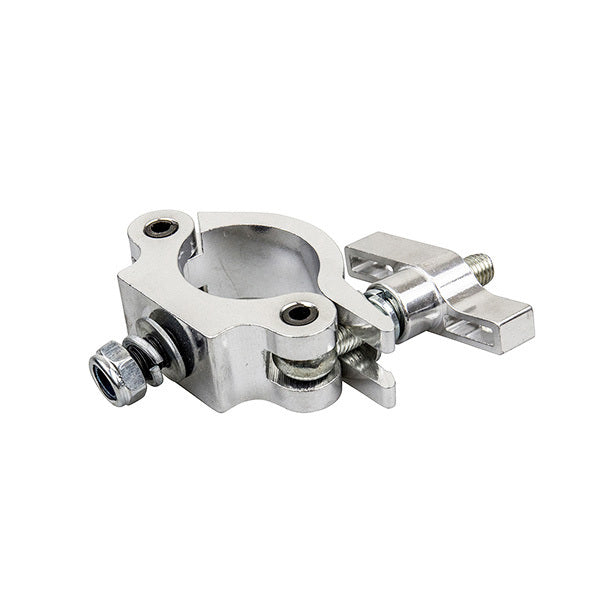

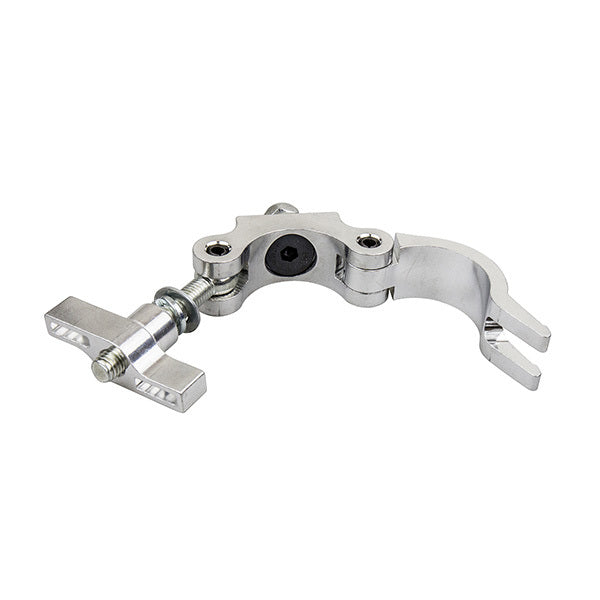

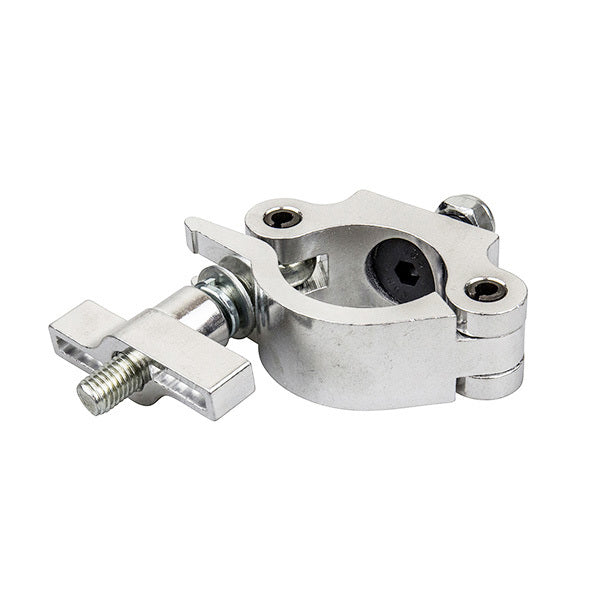

    This 50mm aluminium wrap around clamp is perfect for hanging lights, small speakers and fixtures to 50mm tube or lighting truss. High quality wrap around clamp, made from aluminium with a polished finish. This lighting clamp has a max load rating of 250kg. Perfect for use with Titan AV truss, 290mm box, tri or flat. Suitable for use with Global truss and other brands of similar design with 50mm main tube. This wrap around clamp has Australian engineering certification(Independently tested, ISO17025 Laboratory tested), insuring peace of mind when working with entertainment venues and the general public.

    *Please Note; Only the clamp is loaded rated, it is highly recommended that a loaded rated butterfly nut and bolt be used in applications that have heavy loads*

    *Please Note: Sale is for 1 x D-XL566 Tower-lift ONLY, second tower-lift and trussing is for DEMO purposes only.*


    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Slim line look
    • Polished finish
    • Very high quality build and design
    • Will work with 45-50mm tube & 290 Box, Tri and Flat truss
    • Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
    • Warranty: 12 months
    • Max load rating 250kg
    • Dimensions: 110 x 140 x 30mm (DxHxW) (Including bolts)
    • M12 bolt
    • Weight: 0.3 Kg
    • 1 x Lighting clamp 50mm Heavy duty
