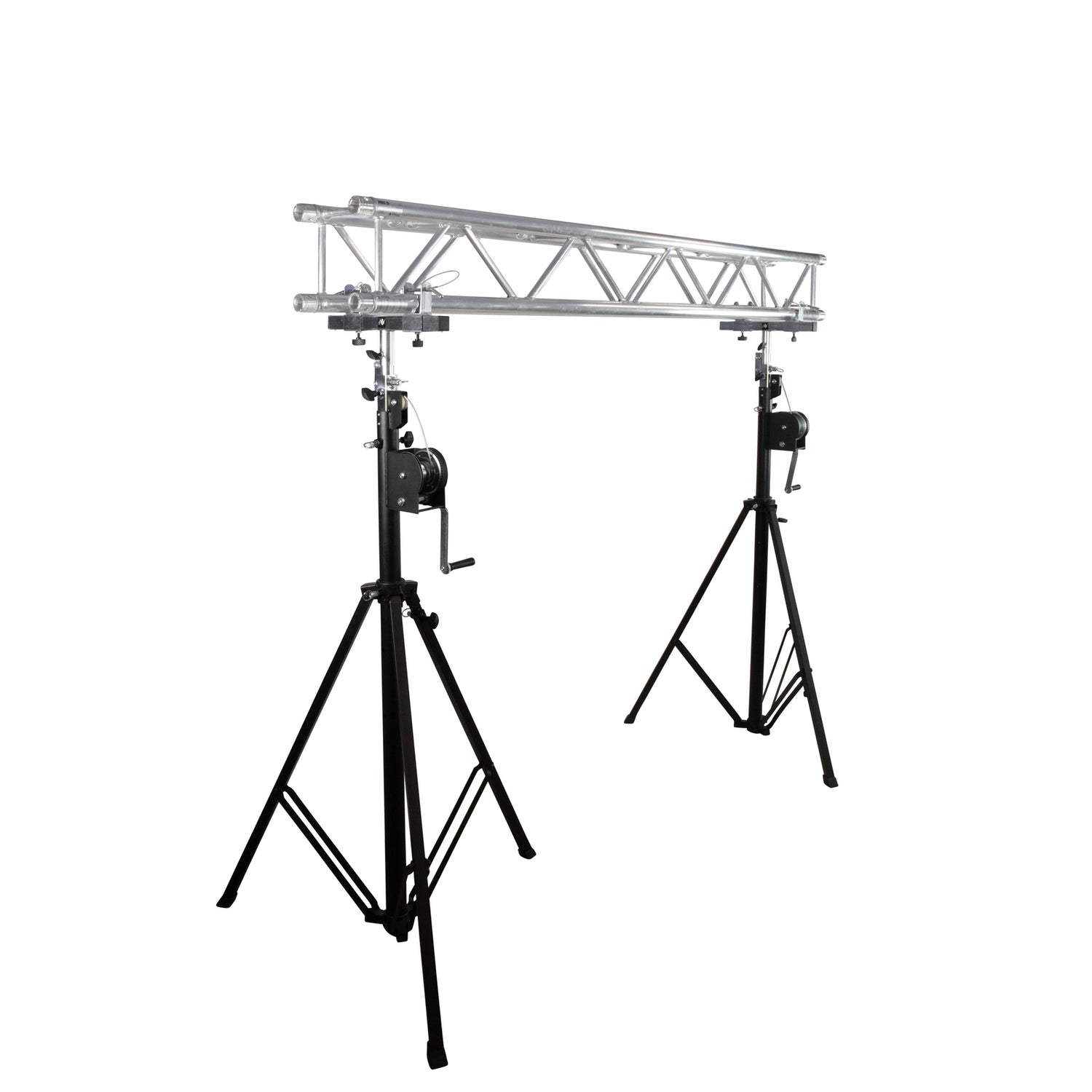

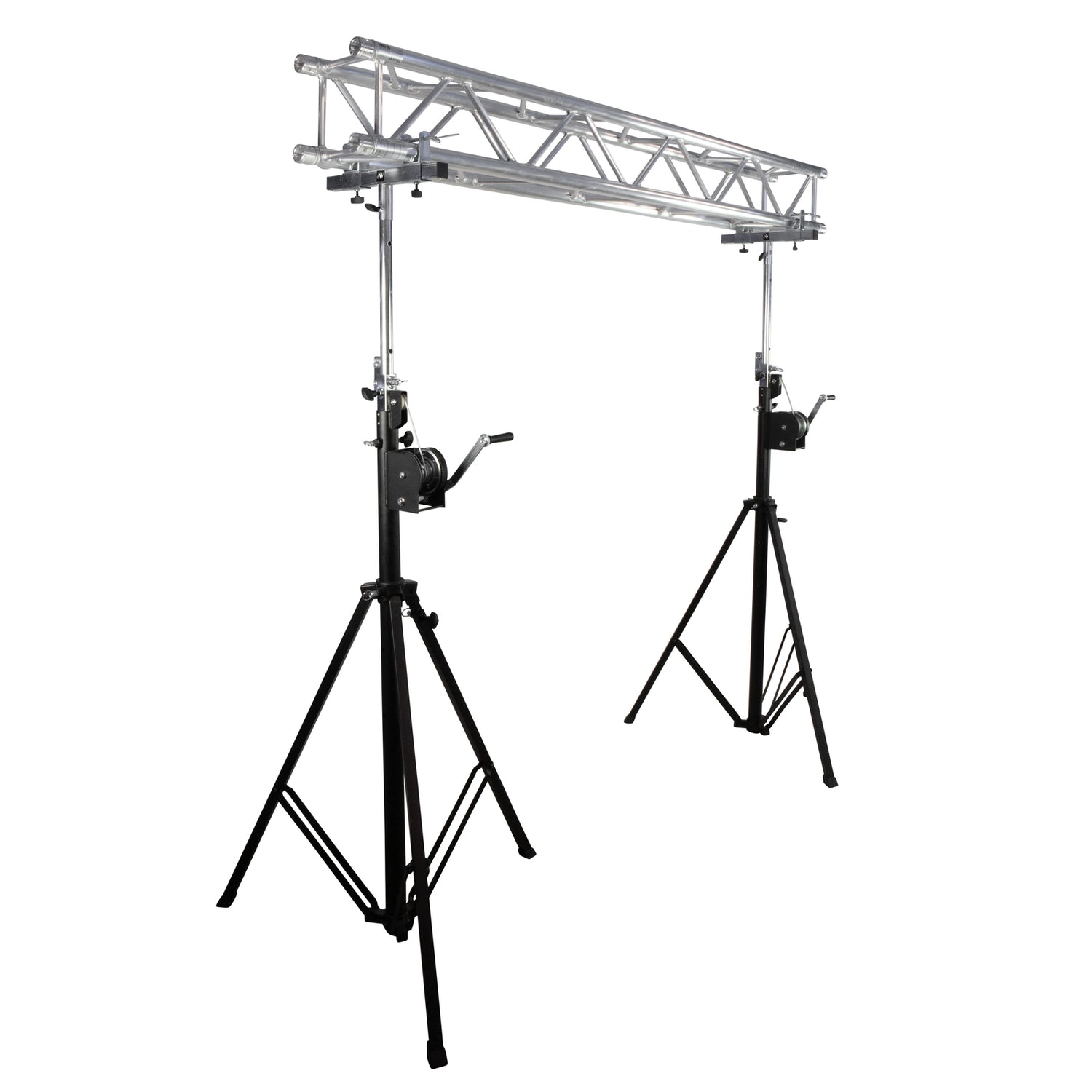

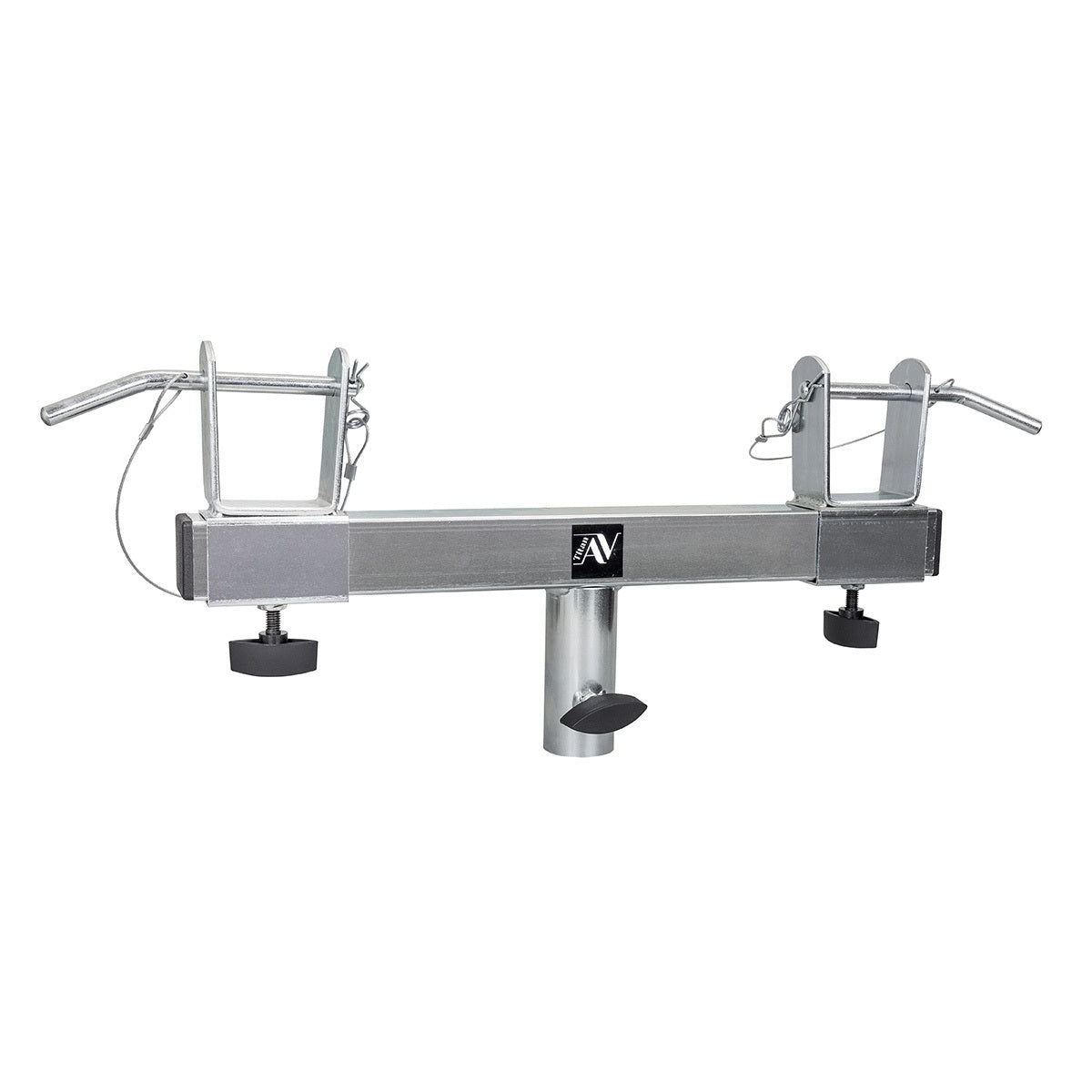

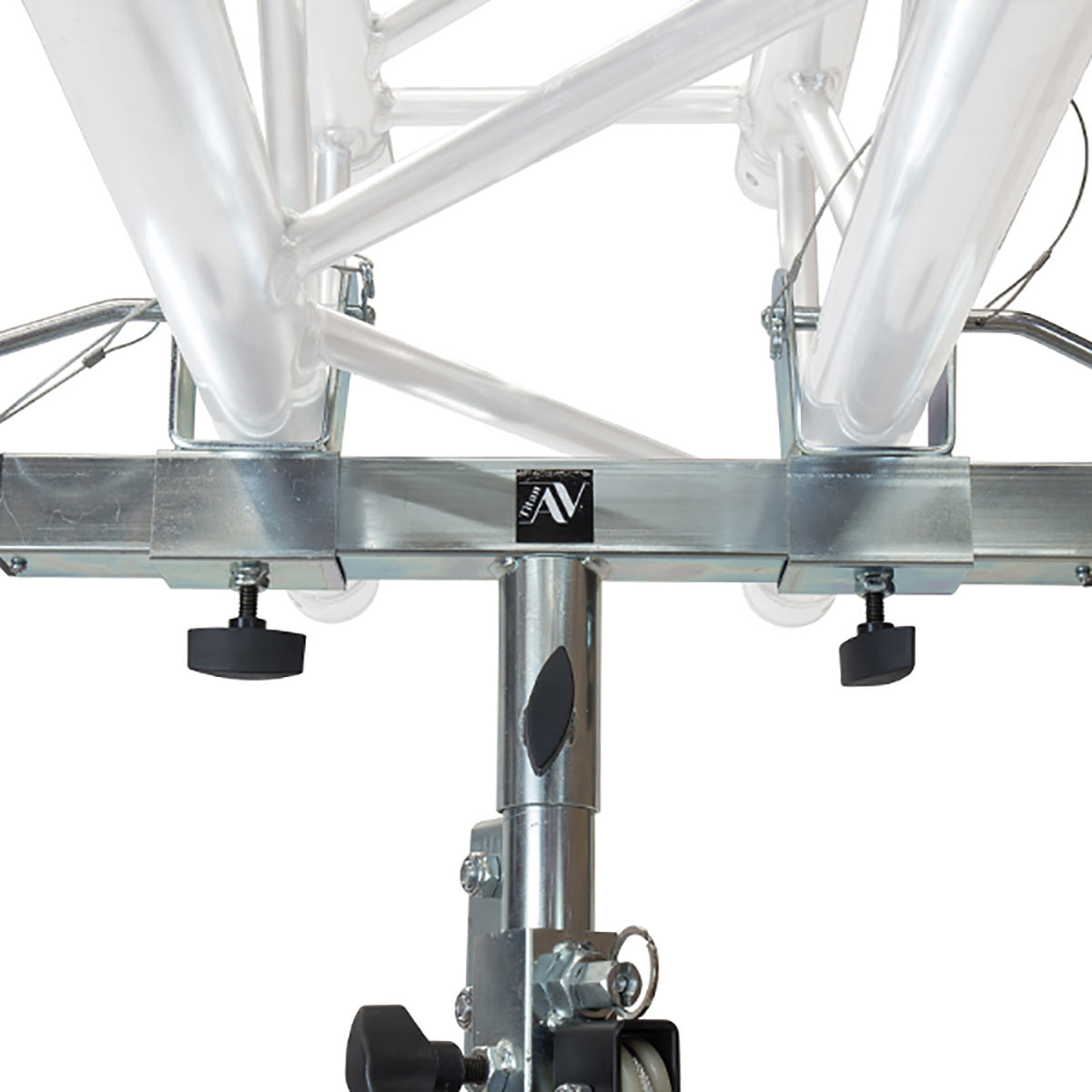

Introducing the Titan AV 290 Box Truss Lighting Stand – an ideal solution for your stage lighting needs, offering a generous 6-meter width and standing tall at 4.1 meters. This kit includes 2 Titan AV D-XL566 winch-up stands and 3 Titan AV TR-SQ30-200 290mm Box Trusses, providing a robust platform for your lighting fixtures. Additionally, 2 Titan AV D-XL290A 35mm to 290 Box Truss adaptors ensure seamless compatibility within the system.
What's in this kit?
Features:
-

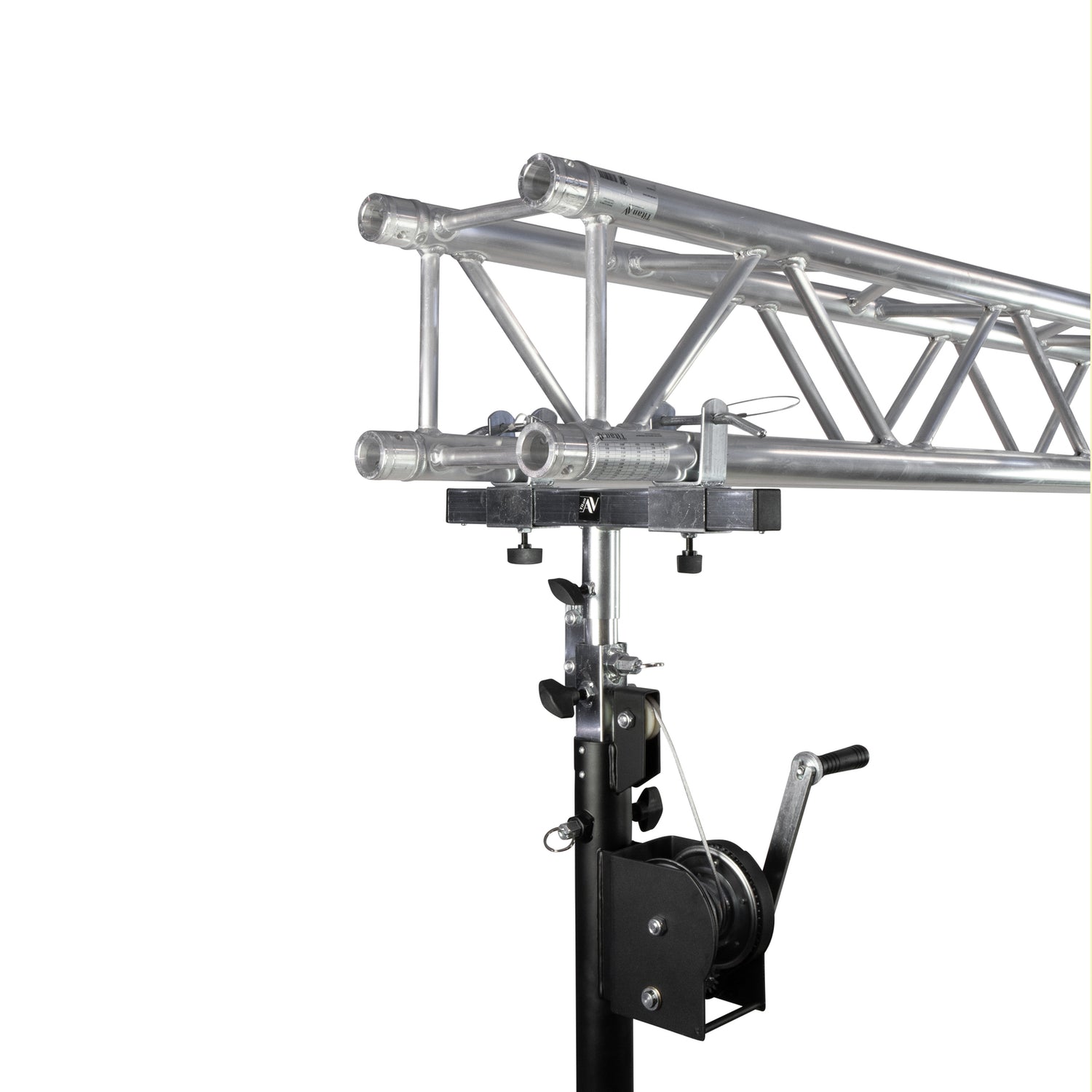

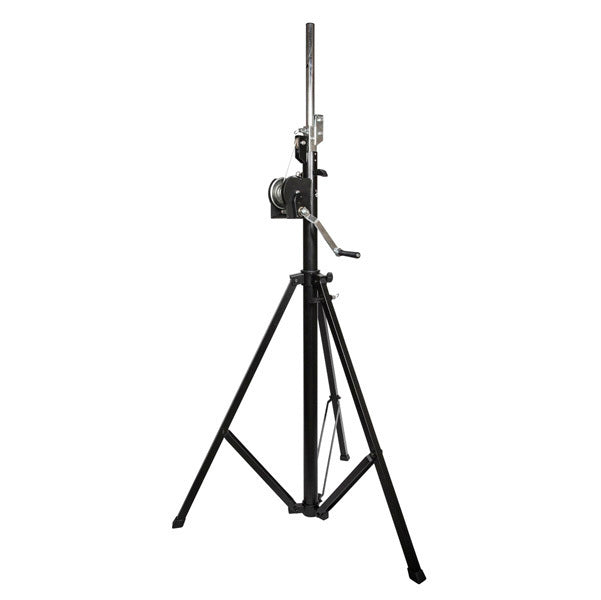

Winch up lighting stand
- High quality metal safety pins
- Winch has built in clutch & fold down handle
- Adjustable foot print (3 settings): 86-125cm
- Length adjustment on one leg for un-level ground: 10cm, 1.5cm increments by 8 points
- Height adjustment: 170-410cm
- Fold down size: 166 x 22 x 29cm (HxWxD)
- Max loading weight: 80 kg
- Non-slip rubber feet
- Easy fold up and down
- Compact for transportation
- Material: Steel
- Colour: Black
- Weight: 25 kg
-

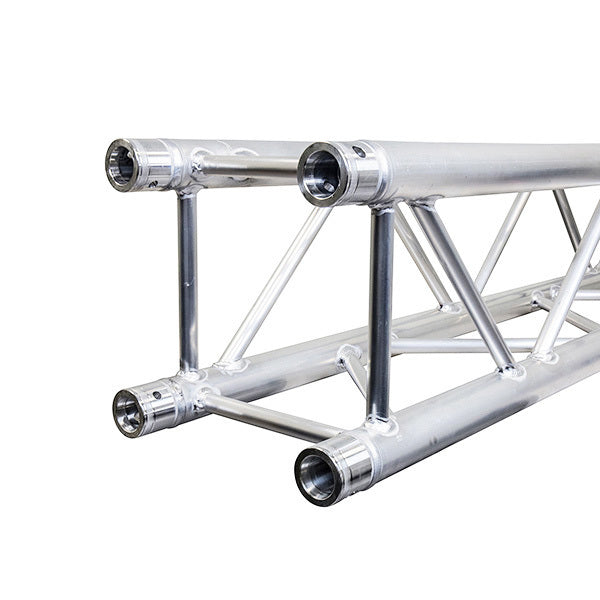

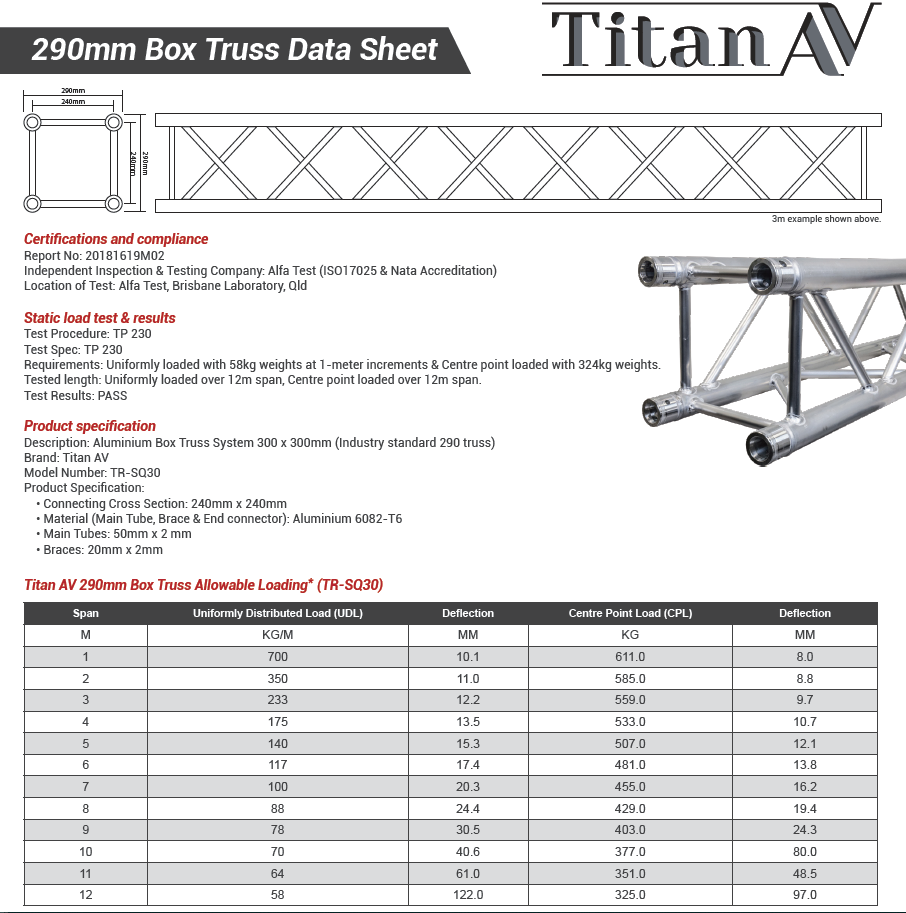

290 Box Truss
- Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
- Material: 6082-T6 Aluminium main tube: 50 x 2mm, braces: 20 x 2mm
- Length: 2m
- Supplied fitted with conical couplers
- Set of spigots and pins included in sale
- Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
- Bulk and trade prices available
- Custom paint available(Picture of painted trussing is a sample picture and is not included in the sale)
- Weight: 13kg
- Total load capacity 20kg per meter (As per truss KIT-0054)
