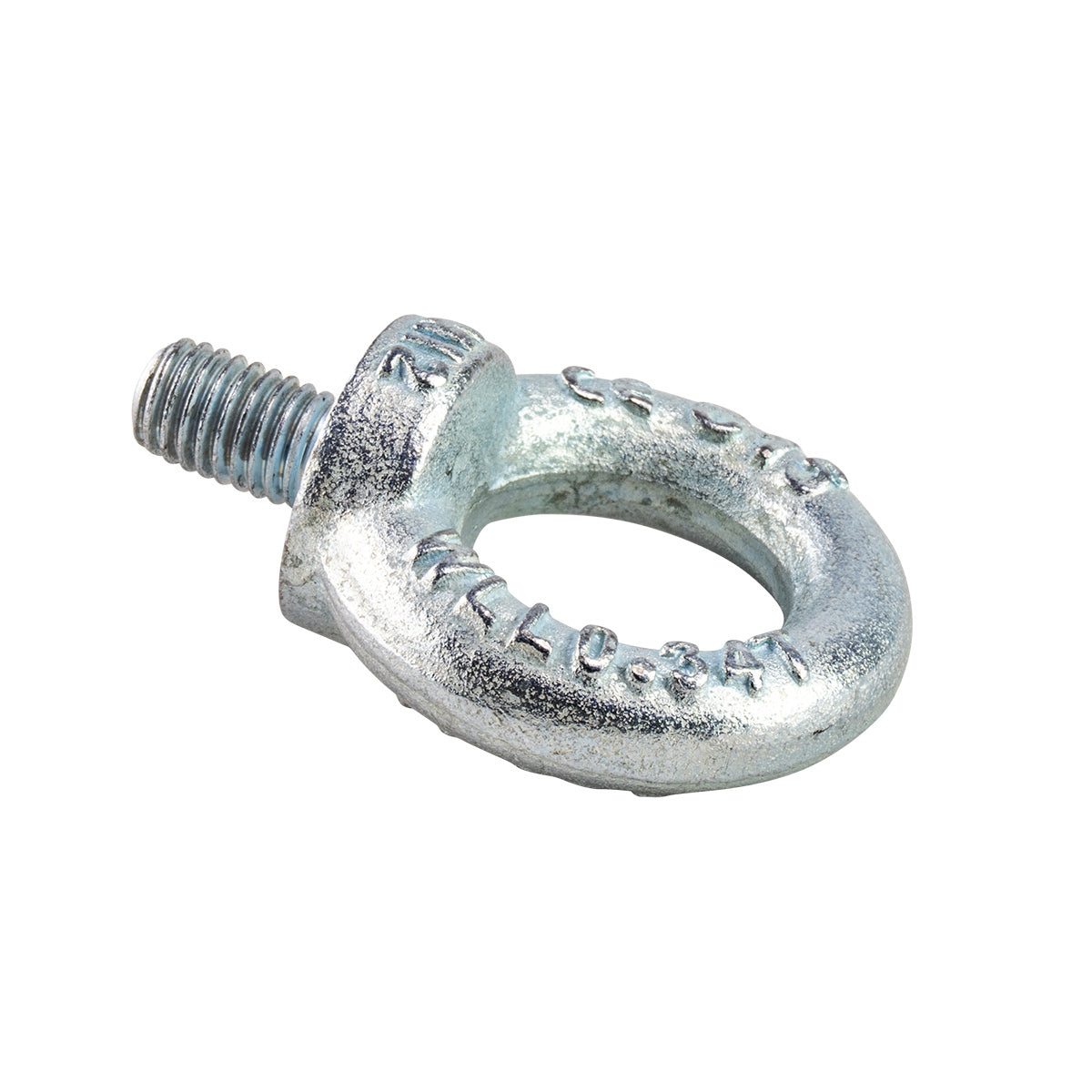

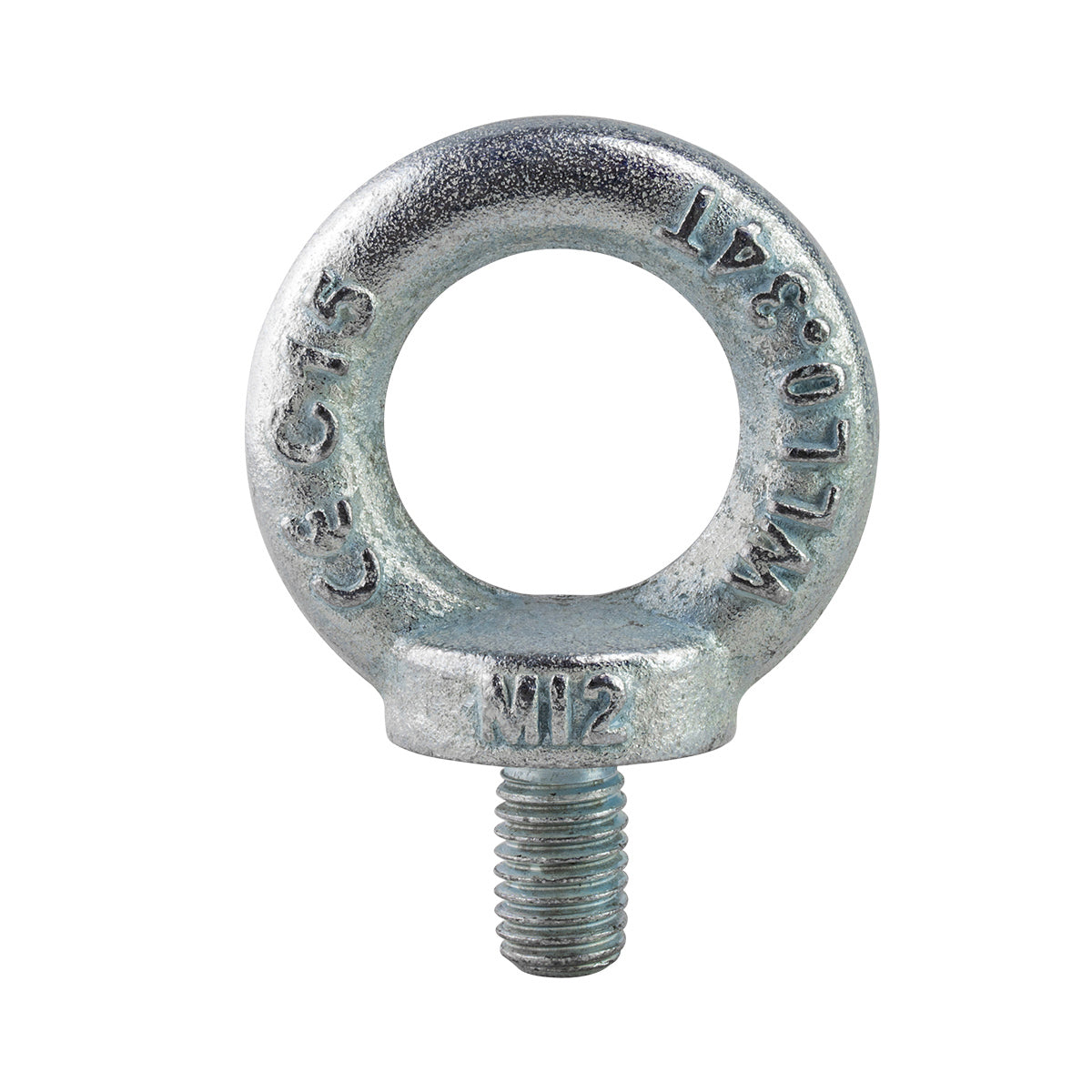

M12 Eye Bolt DIN580 WLL 340kg

This M12 Eye Bolt is perfect for linking slings, chains, wire rope and other rigging equipment. Made from c15 carbon steel with a zinc plated finish, Every M12 Eye Bolt conforms to DIN580 marked with a working load limit, nominal size, quality grade, batch numbered and supplier identification.

Certifications and compliance, safety is number 1 in our industry and with that said all shackles, eye bolts, eye nuts, slings and rigging equipment conforms to Australia Standard (AS2741, AS4497.1, AS1418.2, DIN580 & DIN582).

Features & Specifications:

• Conform to DIN580
• Material: C15 Carbon Steel
• Dimensions: D-12mm, D1-30mm, D2-30mm, D3-12mm, H-53mm, H1-20mm & W-54mm
• WLL(tonnes): 0.34 T (Working Load Limit)
• Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
• Event application: Stage production, Venues, Exhibitions, Clubs & Churches
• Colour: Zinc
• Weight: 0.2 kg
• Warranty: 2-Year
• 1 x M12 Eye Bolt Grade WLL 340 kg
