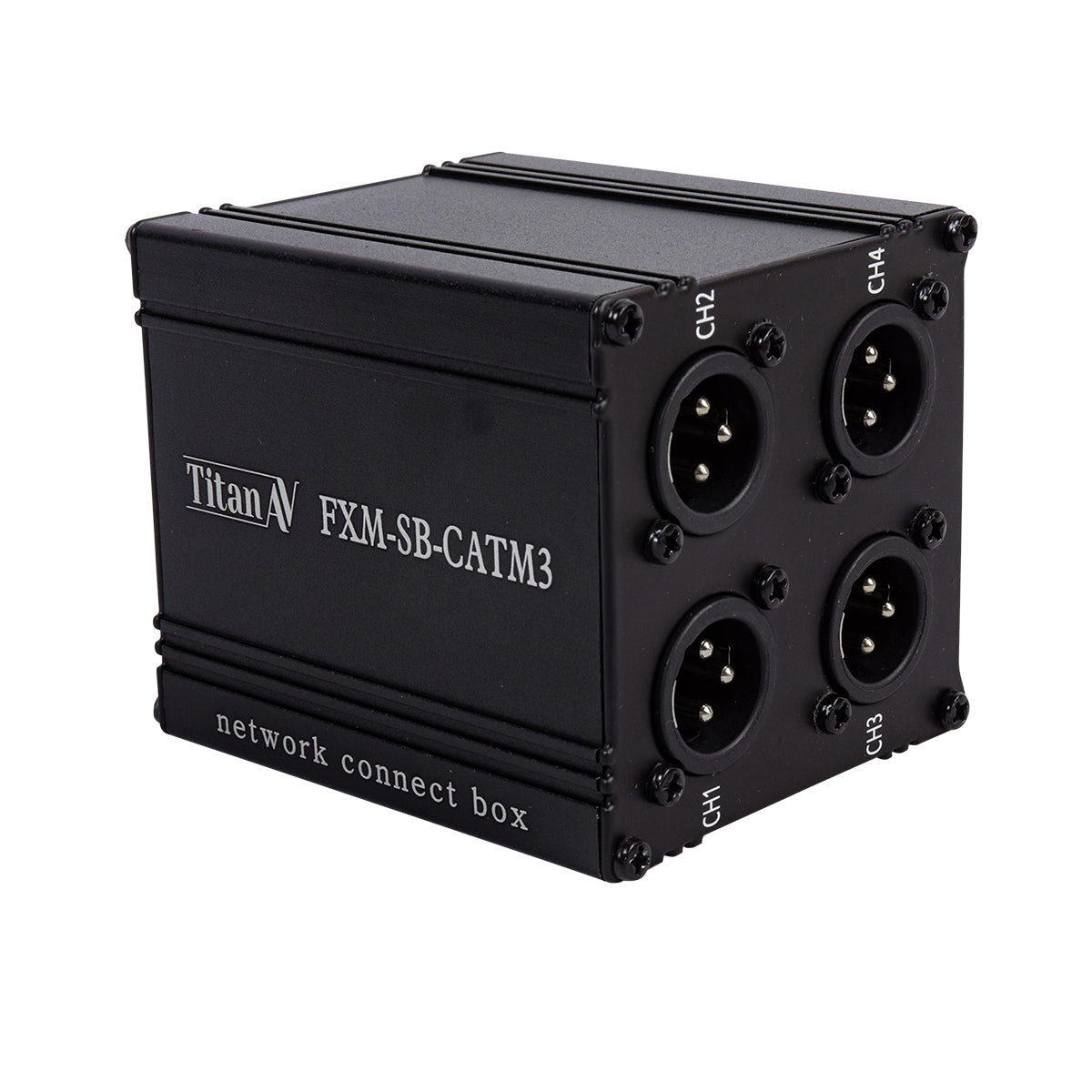

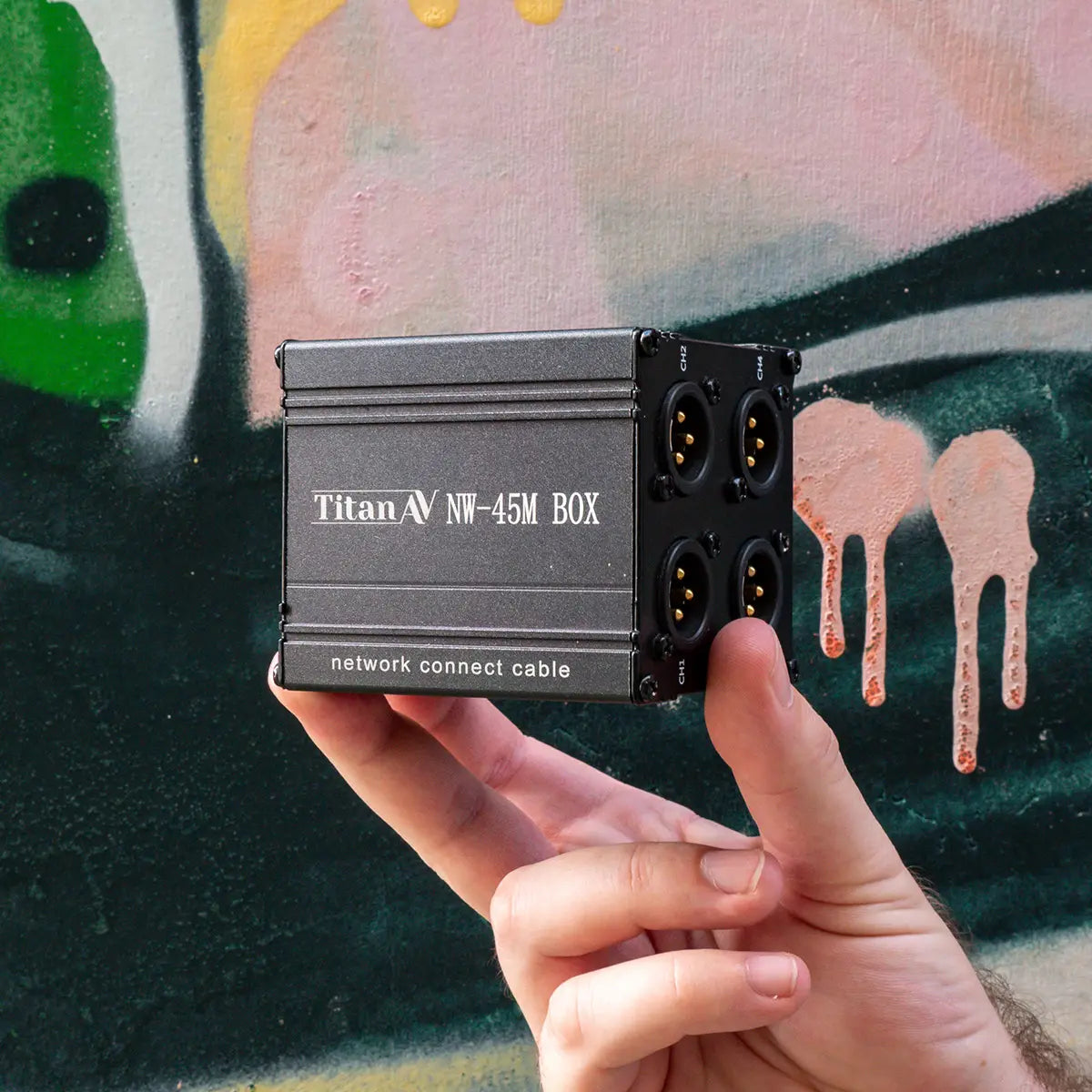

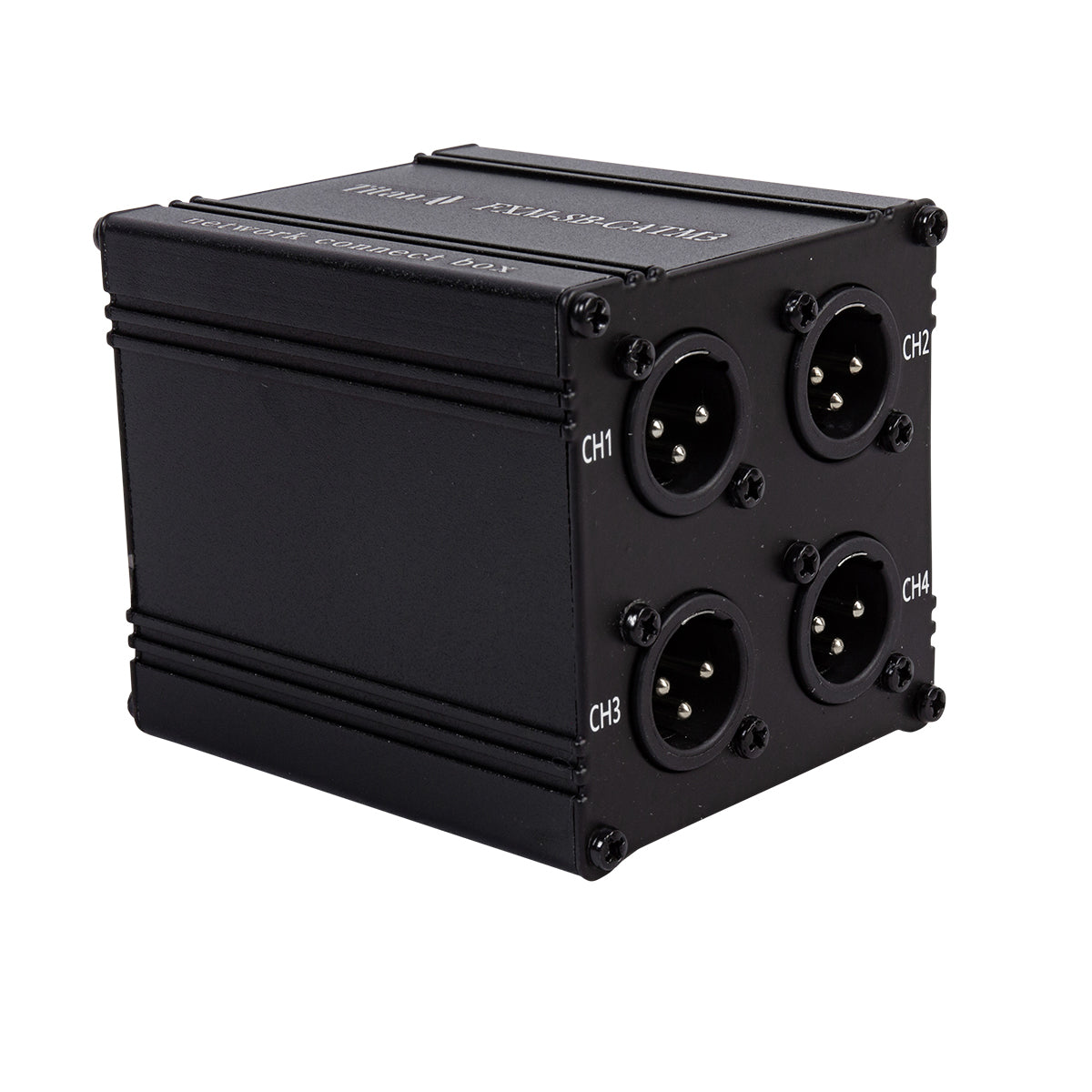

Titan AV RJ45 EtherCON to Quad 3-Pin XLR-M Stage Box
Titan AV RJ45 EtherCON to Quad 3-Pin XLR-M Stage Box
Titan AV RJ45 EtherCON to Quad 3-Pin XLR-M Stage Box
Titan AV RJ45 EtherCON to Quad 3-Pin XLR-M Stage Box
  • SKU: FXM-SB-CATM3

Titan AV RJ45 EtherCON to Quad 3-Pin XLR-M Stage Box

$95.00
    DESCRIPTION
    Titan AV RJ45 Cat5e/Cat6/etherCON to 4 x XLR male stage box is designed to link 4 channels of 3 pin XLR Audio, AES & DMX via Ethernet Cat5e or Cat6 cable. Common applications are for use in stage production, studio and live band, this stage box will shorten setup and pull down times as well eliminate cable mess. With high quality shielded cat cable and connectors you can rest assured this multi-network etherCON CAT stage box will eliminate any interference whilst transferring high quality analogue or digital signals.

    Perfect for use with breakout tails:

    Titan AV audio connectors and adapters are ergonomic, high quality, reliable and backed up with a limited lifetime warranty.

    *Please note this product does not work with 48v phantom power unless using true shielded cat cable

    Features:
    • Four XLR analogue/digital signals down a single shielded CAT cable
    • Transmits four channels of balanced analogue signal
    • Transmits four channels of AES signal (eight audio channels)
    • Transmits four channels of DMX signal

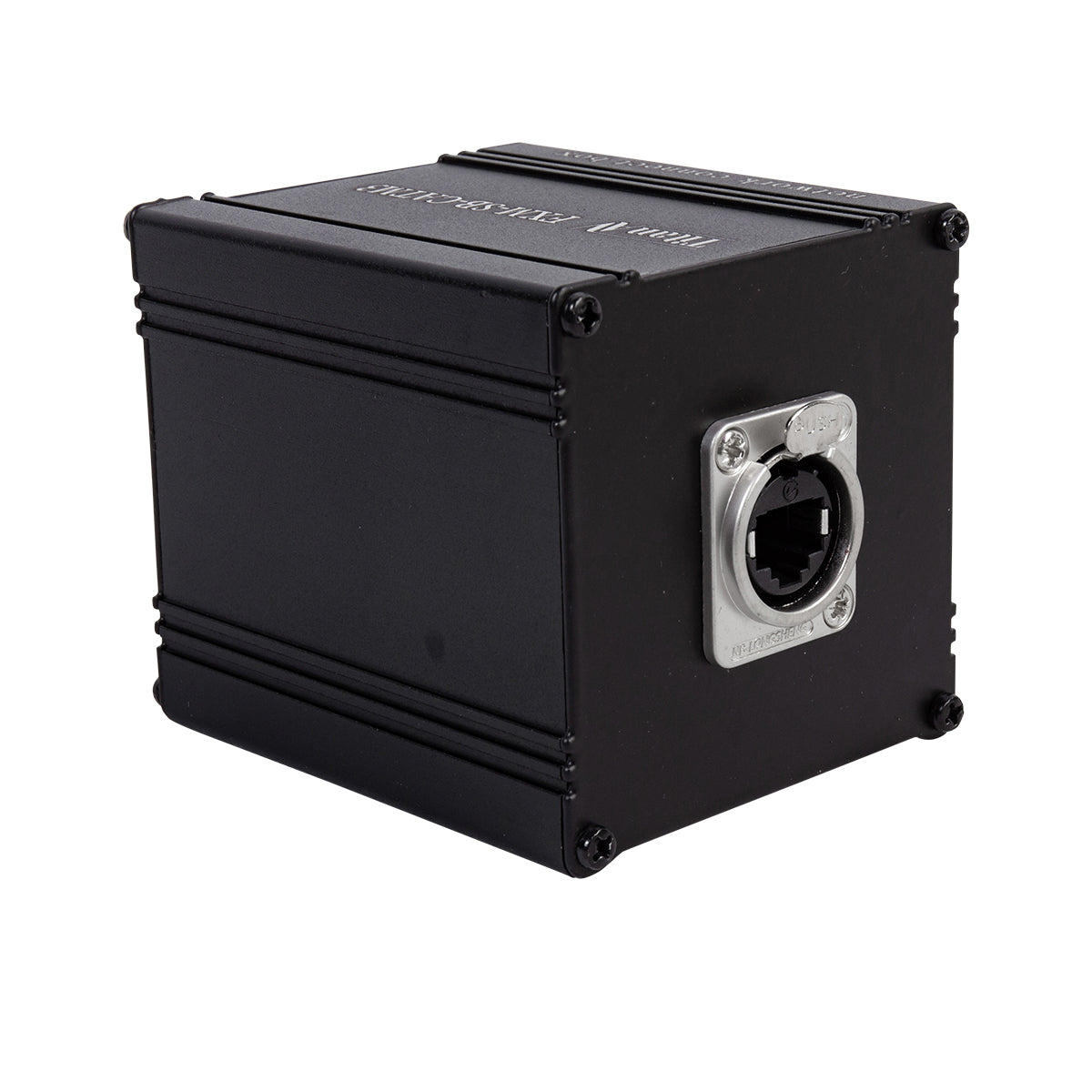

    • EtherCON connection RJ45
    • RJ45 jack CAT6 or CAT5e shielded cable
    • High quality custom connectors and extruded aluminium case
    • Gold plated connectors
    • Perfect for use with balanced Audio, DMX & AES/EBU signals
    • 100% Screening
    • Limited life time warranty
    Specs:
    • Balanced analogue audio up to 50m
    • AES/EBU/DMX signal up to 100m
    • DMX matching impedance: 110 Ohm
    • Dimensions: 95 x 70 x 70mm
    • Colour: Black
    • 1 x Multi Network etherCON to Quad XLRM breakout box
