Titan AV RJ45 EtherCON Quad XLR-F Stage Box to Quad XLR-M Tails
Titan AV RJ45 EtherCON Quad XLR-F Stage Box to Quad XLR-M Tails
Titan AV RJ45 EtherCON Quad XLR-F Stage Box to Quad XLR-M Tails
  • SKU: KIT-0138

Titan AV RJ45 EtherCON Quad XLR-F Stage Box to Quad XLR-M Tails

$187.00
    DESCRIPTION

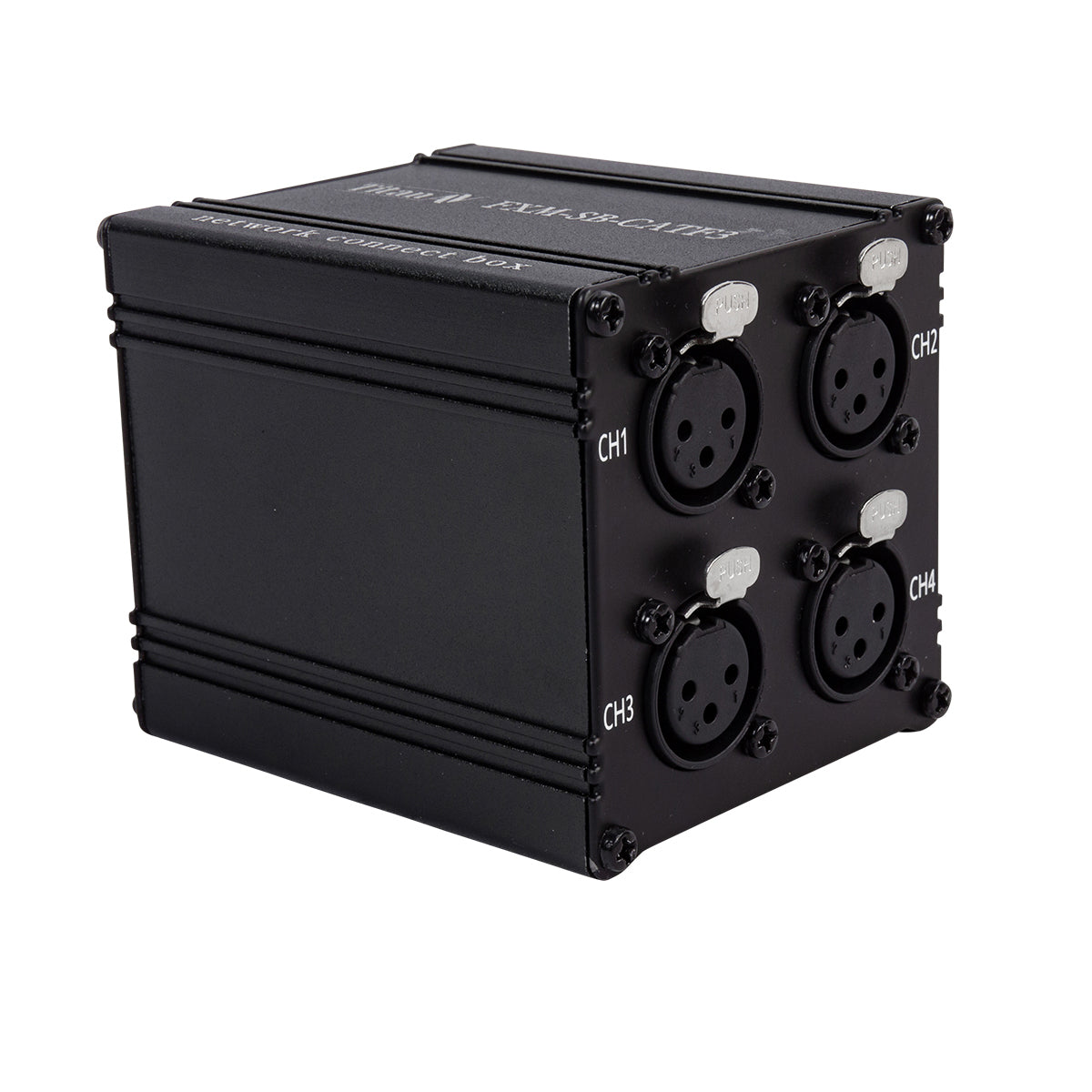

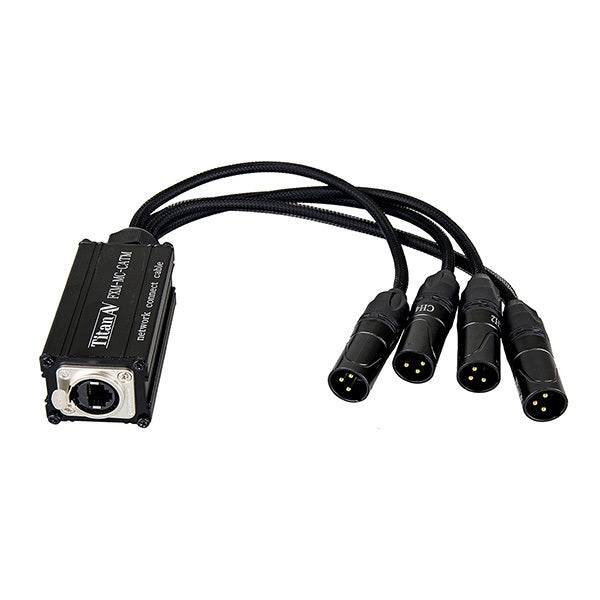

    Titan AV 4 x XLR female stage box to 4 x XLR male tails kit is designed to link 4 channels of 3 pin XLR Audio, AES & DMX via Ethernet Cat5e or Cat6 cable. Common applications are for use in stage production, studio and live band, this kit will shorten setup and pull down times as well eliminate cable mess. With high quality shielded cat cable and connectors you can rest assured this multi-network stage box and tails kit will eliminate any interference whilst transferring high quality analogue or digital signals.

    Titan AV Audio connectors and adapters are ergonomic, high quality, reliable and backed up with a limited lifetime warranty.

    *Please note this product does not work with 48v phantom power unless using true sheilded cat cable, cat cable not included in the sale*

    Features:

    • Limited life time warranty

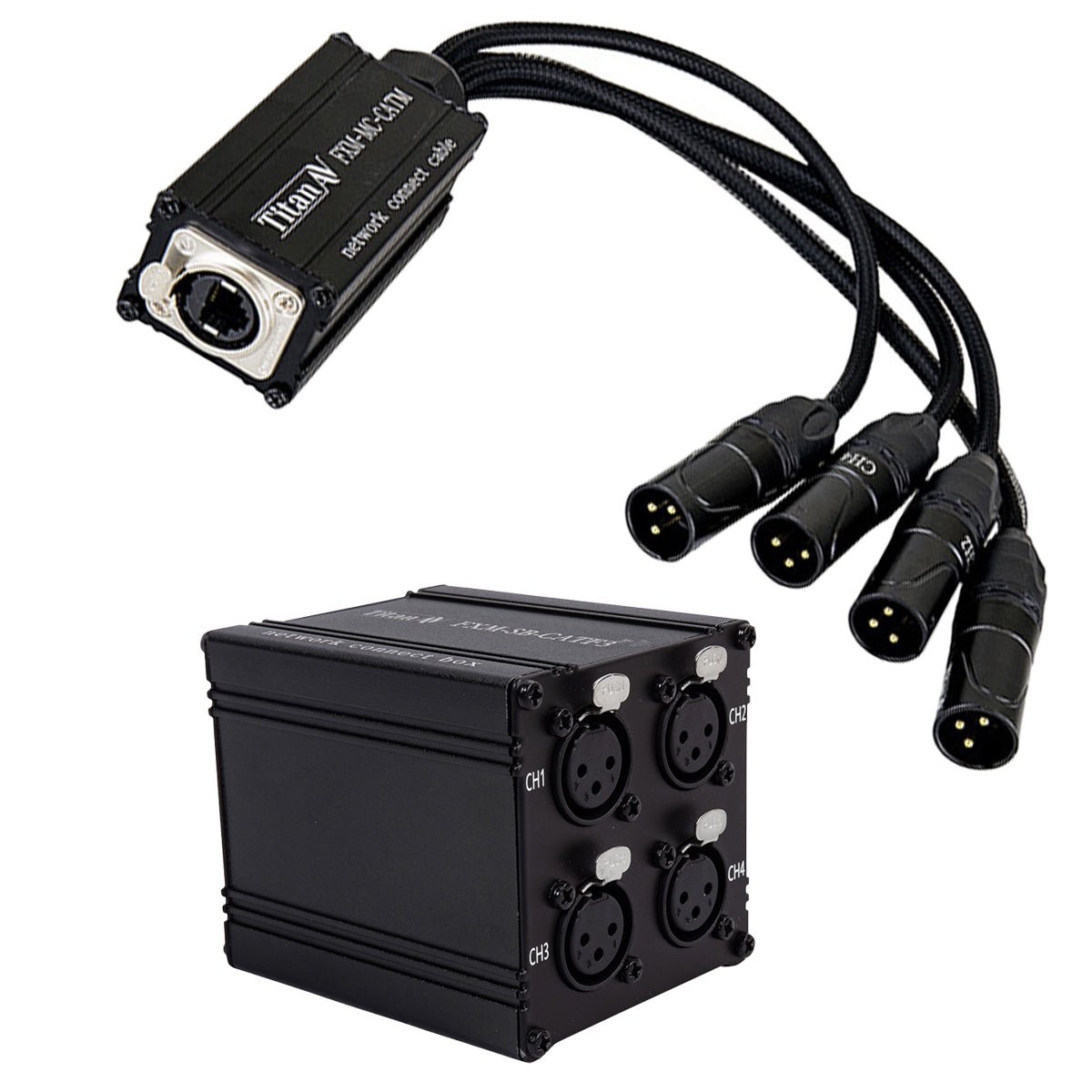

    • 1 x KIT-0138 Quad XLR-F stage box and Quad XLR-M tails (FXM-SB-CATF3 + FXM-MC-CATM)
    • Four XLR analogue/digital signals down a single shielded CAT cable
    • Transmits four channels of balanced analogue signal
    • Transmits four channels of AES signal (eight audio channels)
    • Transmits four channels of DMX signal
    • Balanced analogue audio up to 50m
    • AES/EBU/DMX signal up to 100m
    • EtherCON connection RJ45
    • RJ45 jack CAT6 or CAT5e shielded cable
    • DMX matching impedance: 110 Ohm
    • High quality custom connectors and extruded aluminium case
    • Gold plated connectors
    • Perfect for use with balanced Audio, DMX & AES/EBU signals
    • 100% Screening
    • Colour: Black
