Titan AV Modular U-Light 3 Way Frame Hanging Kit


    This 3 hang U-Torm kit, also known as a U-frame kit is a flexible lighting solution. The kit comprised of 3 x lightweight modules and 1 x top bar, the U-Torm kit allows endless lighting configurations when hanging off trussing.

    This 3 hang U-Torm kit has been designed for quick deployment and take down in any environment. The lightweight aluminium construction design is reinforced to provide added durability and stability. Handy safety point attachments are fitted on each side of the U-Torm to cater for multiple fixture types.

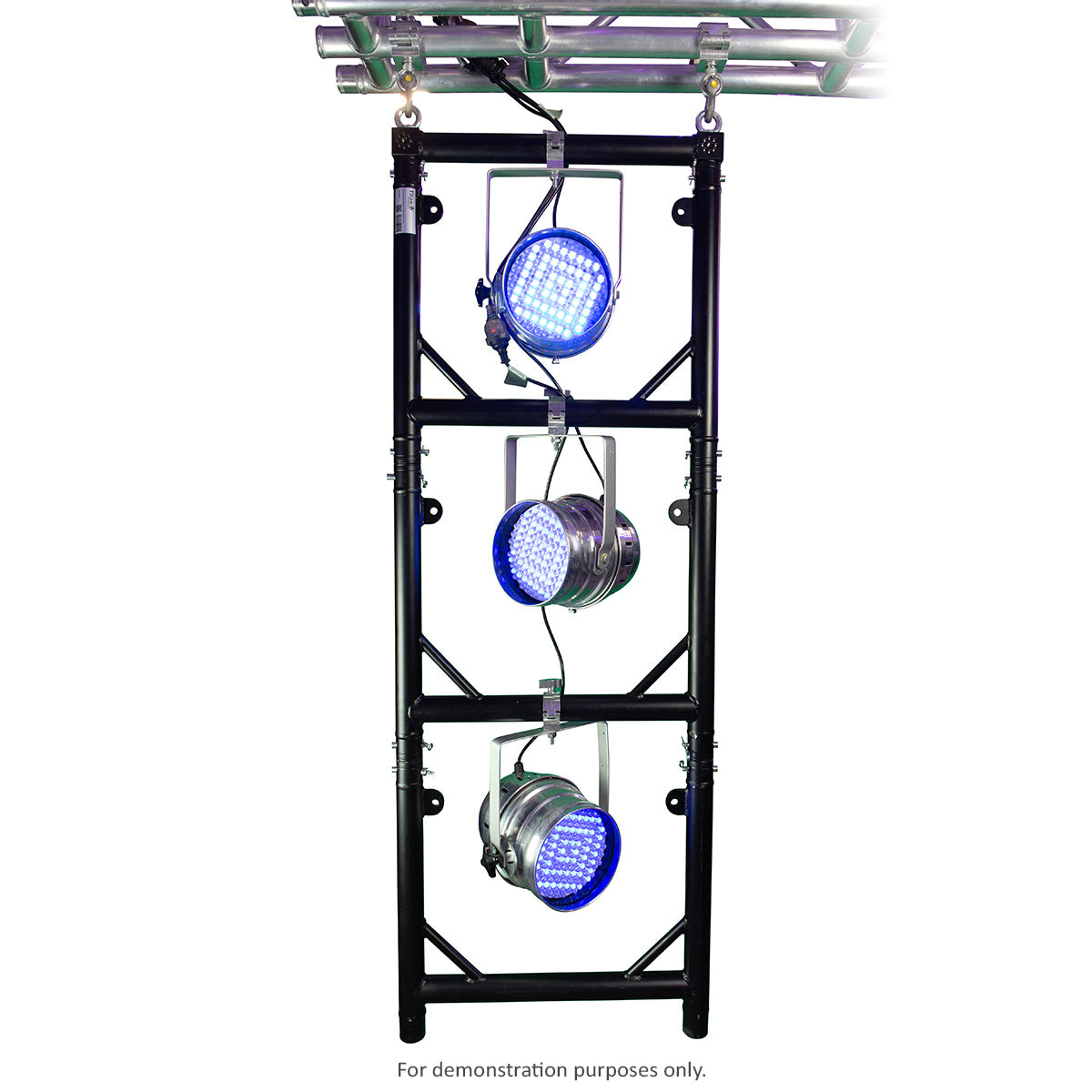

    Each U-Torm DROP600 is capable of taking centre points load of 20 kg. Additionally, if stacked in a ladder configuration with the Titan AV base plate (TR-BP-UDROP600) it is possible to mount up to 5 fixtures, one fixture off each module. U-Torm brackets are available in a black finish as standard. As well as other colours can be provided on request.

    Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.


    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Event application: Stage production, Venues, Exhibitions, Clubs & Churches
    • Rigging applications: moving heads, wash, blinder & parcan's
    • Supplied fitted with conical couplers
    • Maximum hung/stacked U-Torm units: 5
    • Warranty: 2 year



    • Colour: Black (powder coat)

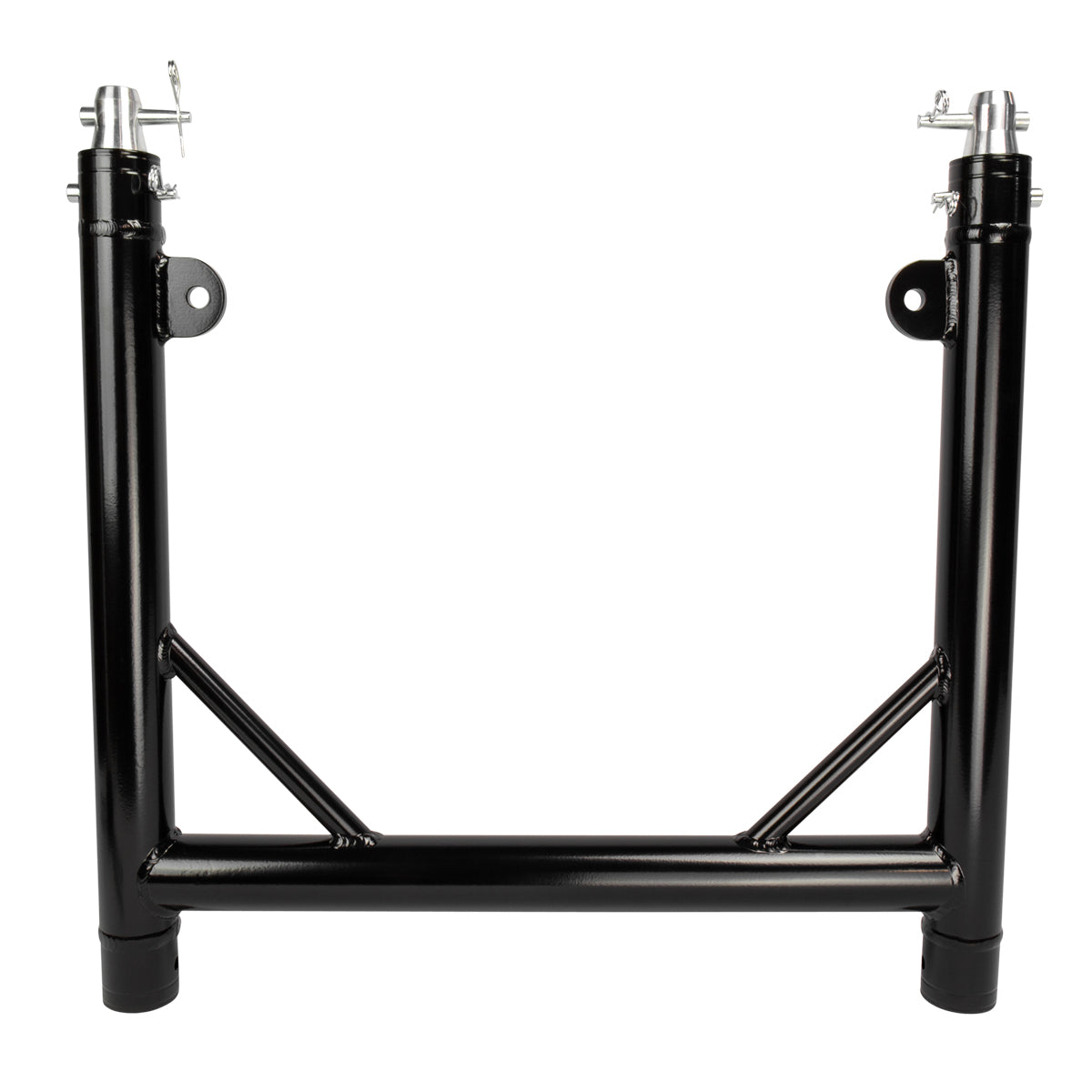

    • U-Frame Outer Dimensions: 600 x 50 x 550mm (WxDxH)
    • U-Frame Inner Dimensions: 500 x 50 x 430-490mm (WxDxH) (Height is dictated by setup)
    • Centre Point loading (per U-frame): 20 kg
    • Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm
    • Weight: 12 kg

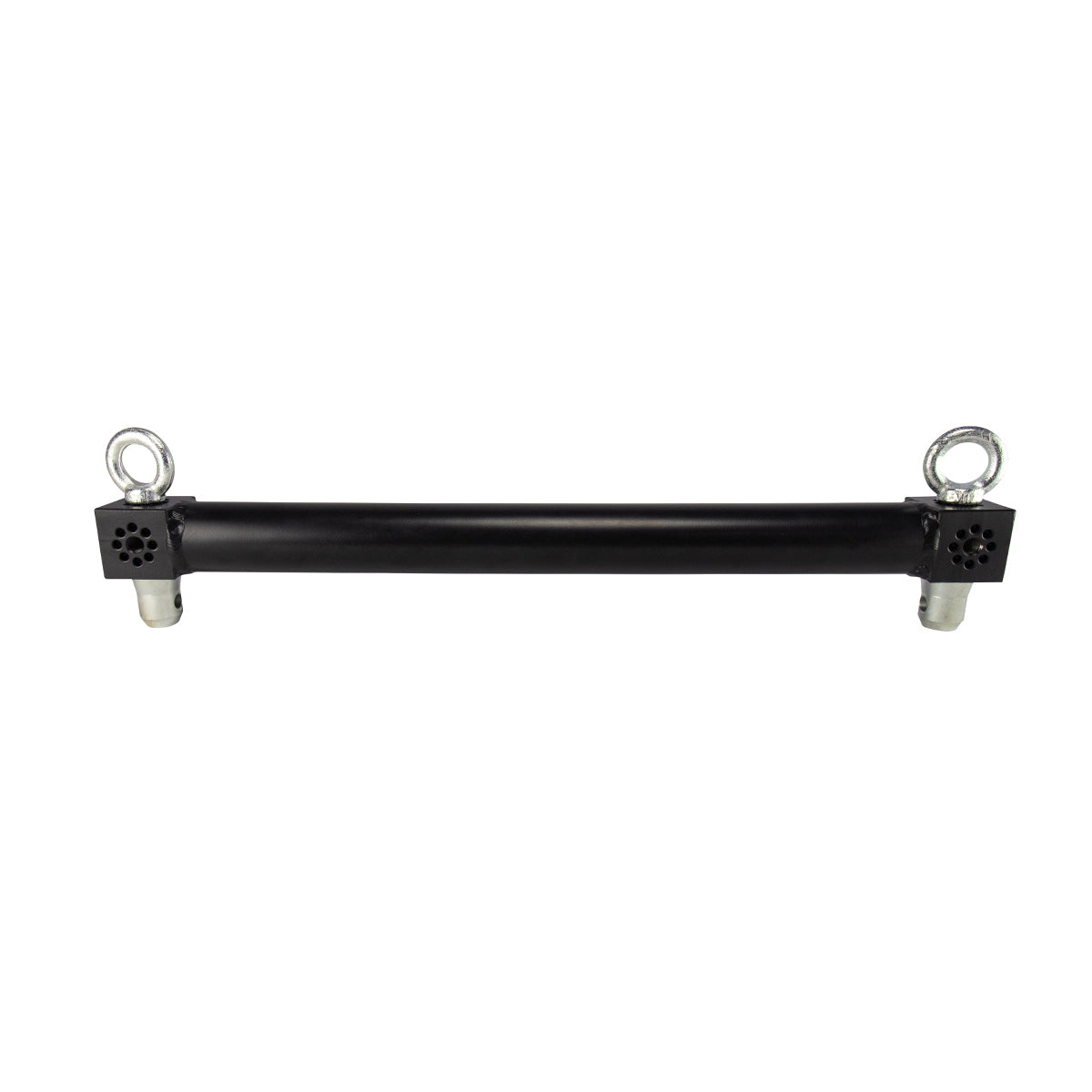

    • Kit Includes: 3 x U-frame (TR-U-DROP600) & 1 x Top bar (TR-U-TOP600)
    • 1 x 3 U-Frame / U-Torm hanging
