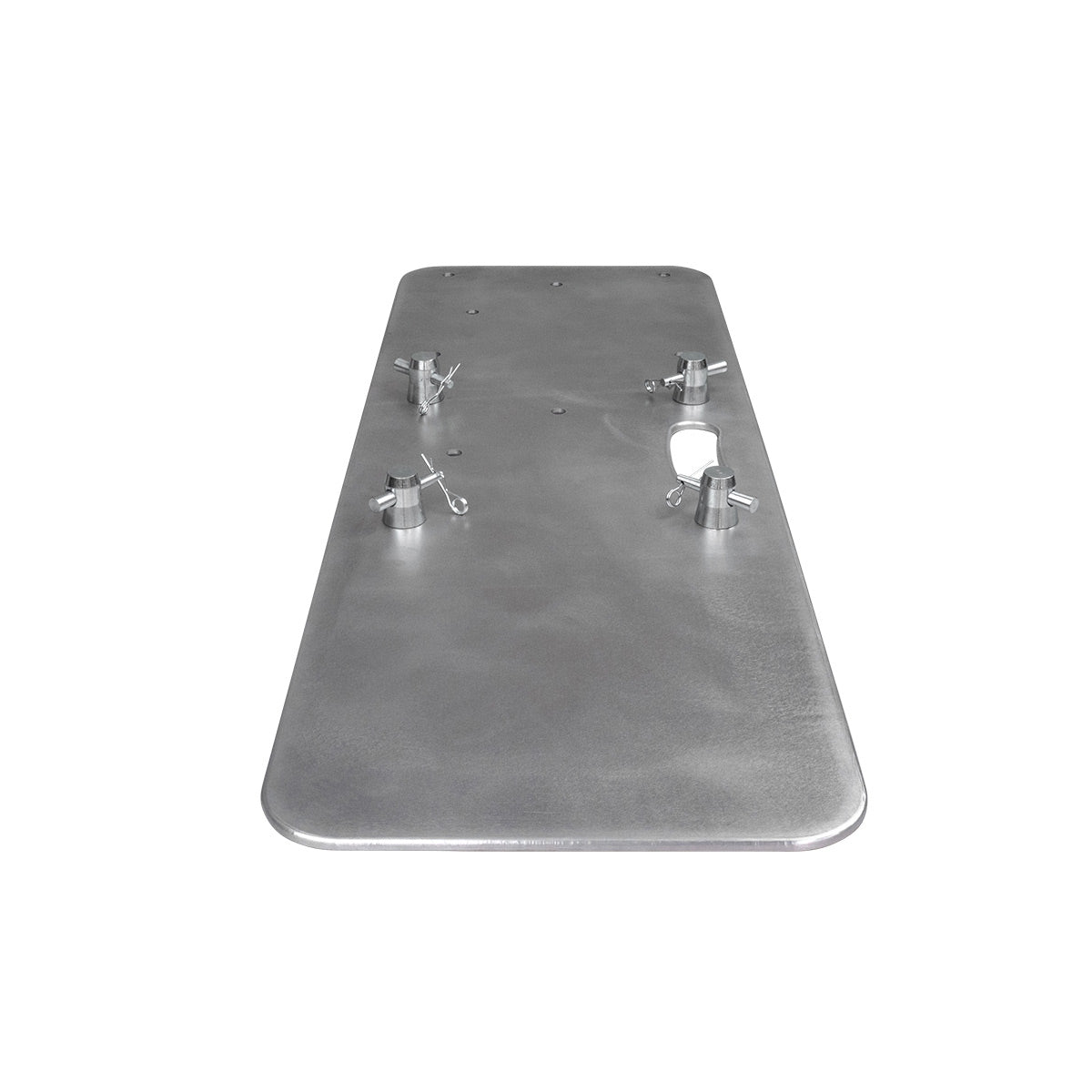

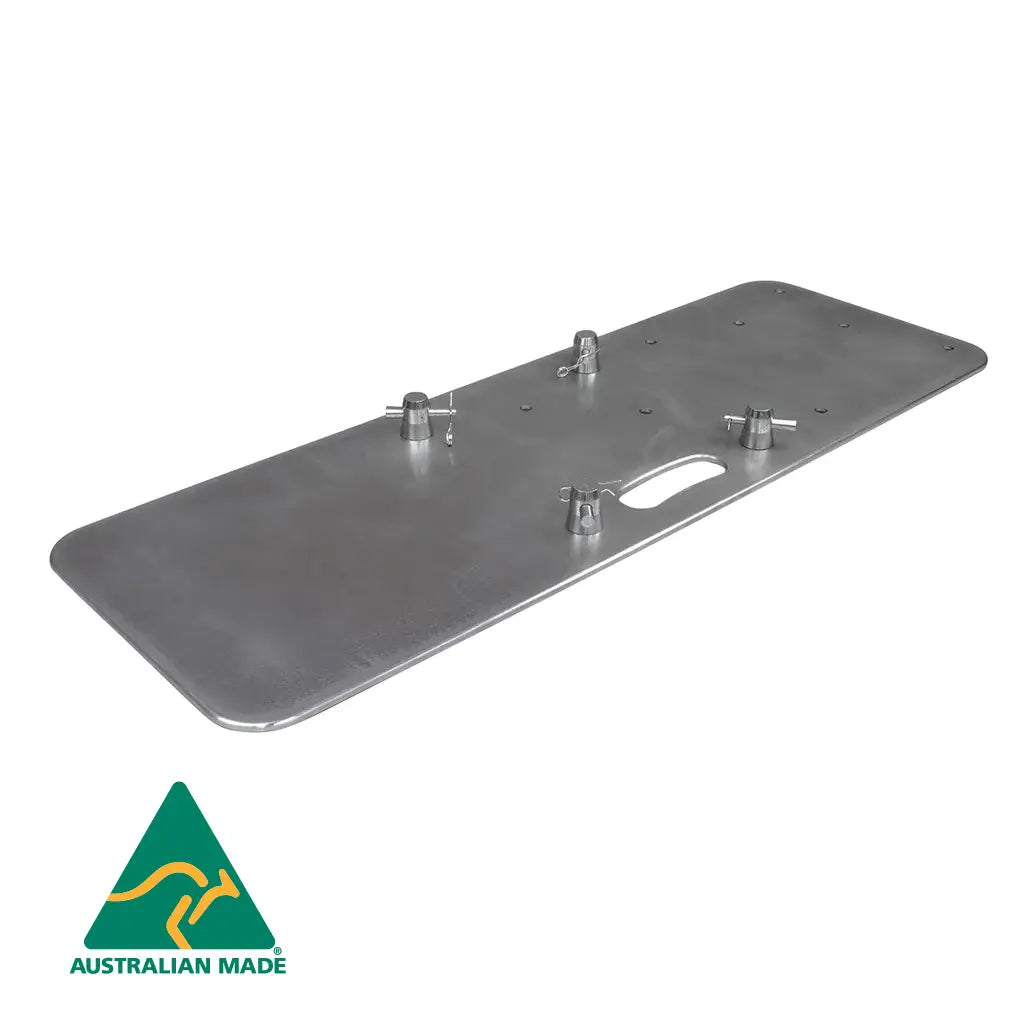

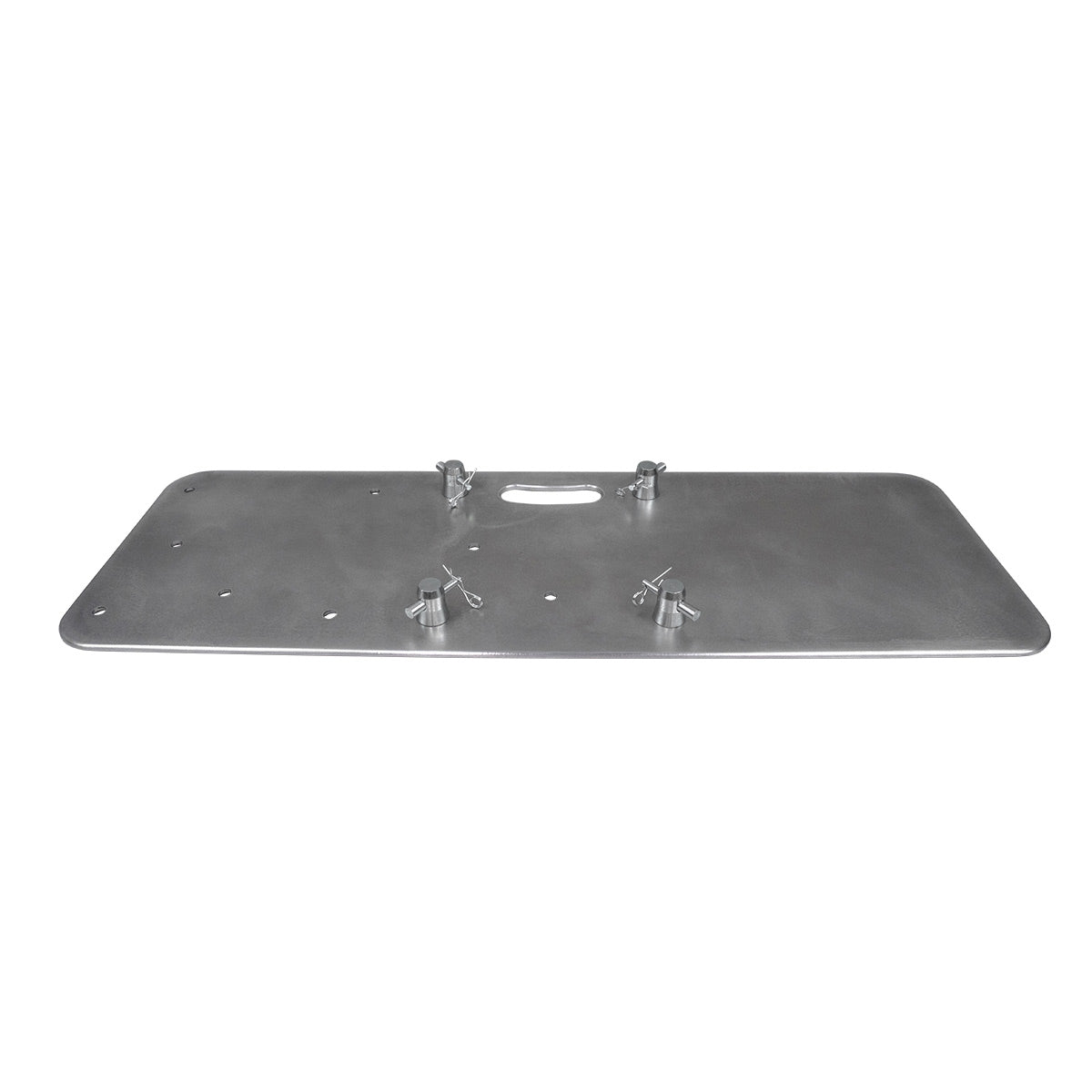

1000x350 Aluminium Base Plate - 290 Truss

$668.00
✓ 12-Month Warranty
Pre-order now!
Some components are on backorder. Estimated dispatch: TBD .
Pay your way with Visa, Mastercard, AMEX, PayPal, Zip & Afterpay.

Parcel Post Delivery: $25.95

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Oversized Freight:

Please contact sales@titanav.co for a custom quote.

Note: See T&C's for further information.

Description

Titan AV Truss Frame bases plates are hands down the best base plates available for lighting truss in the Australian Stage Production Industry!

BTW These are True Blue bases plates, that's right....Australia Designed and Manufactured. All this cool stuff is done right here at Titan AV HQ in Brisbane.

These ally plates are back savers, only weighing in at 8.1 kg making setup and pack up a breeze. CNC cut from 8mm 5005-H34 aluminium plate with multiple positioning points located in the centre and rear of the plate. The over sized ergonomic handles are large enough to accommodate protective gloves and sit comfortably in your grip, also perfect for securing the plate with over sized pegs. This style of truss base plate has been designed for use with indoor truss arches, having centre mounts allows for the end user to free stand their truss arch or when using the rear mounts the truss frame can be pushed onto a wall for extra safety and space saving.

The latest range of TAV bases plates will work with both 290mm Tri truss and Box truss, the plates will also suit most other brands of 290mm truss systems. Supplied with 4 x Spigots, Pins and Clips, perfectly suited for use with truss systems, arch ways, stage production, TV stands, lighting towers, LED screen frames and custom shop fit outs.

PLEASE NOTE; it is not recommended to use this base plate for single truss uprights or totem poles, this is specifically for use in truss frames with plates being purchased in pairs.

Features:
  • Suits 290mm Box & Tri Truss
  • Will work with: Titan AV Truss, other 290 Truss brands
  • Multiple mounting points: Centre and back
  • Over sized ergonomic handles, they are actually easy on the hands!
  • Auto Cad design, CNC cut and TLC
  • Supplied fitted with half spigots, pins and clips
  • Perfect for: stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
  • Black powder coating available. Please contact our friendly sales team for a quote.
  • Warranty: 12 months
Specs:
  • Dimensions: 1000 x 350 x 8mm
  • Colour: Aluminium Mill Finish
  • Weight: 8.1 kg
  • Material: Aluminium plate 5005-H34 Grade: 8mm thick
  • 1 x TAV 1000 x 350 x 8mm Aluminium Base Plate

Specifications
  • Dimensions: 1000 x 350 x 8mm
  • Colour: Aluminium Mill Finish
  • Weight: 8.1 kg
  • Material: Aluminium plate 5005-H34 Grade: 8mm thick
  • 1 x TAV 1000 x 350 x 8mm Aluminium Base Plate

Delivery & Pick-up Options

We offer Brisbane pickup from our Northgate warehouse, or delivery Australia-wide with clear, upfront pricing for most orders.

BRISBANE PICKUP

Free pickup is available from our Brisbane warehouse.
Orders are usually ready within 1 business day.

PARCEL DELIVERY — $15.95

For small, lightweight items within standard parcel limits (each item under 22kg and 1.8m).
Tracking details are sent once your order is dispatched.

BULK DELIVERY — $129

For large or heavy items that can’t be sent as a standard parcel.
Requires a forklift or suitable unloading equipment at delivery.

BULK DELIVER + TAILGATE — $199

For large or heavy items when unloading equipment isn’t available.
The truck uses a built-in lift to safely unload your order.

Upfront Delivery Pricing

Upfront delivery pricing applies to around 97% of orders. In rare cases where delivery access, size, or location results in higher carrier costs, we’ll always contact you before dispatch. No additional charges are applied without your approval.

For full delivery details, FAQs, and terms, see our Shipping & Delivery page.

Reviews

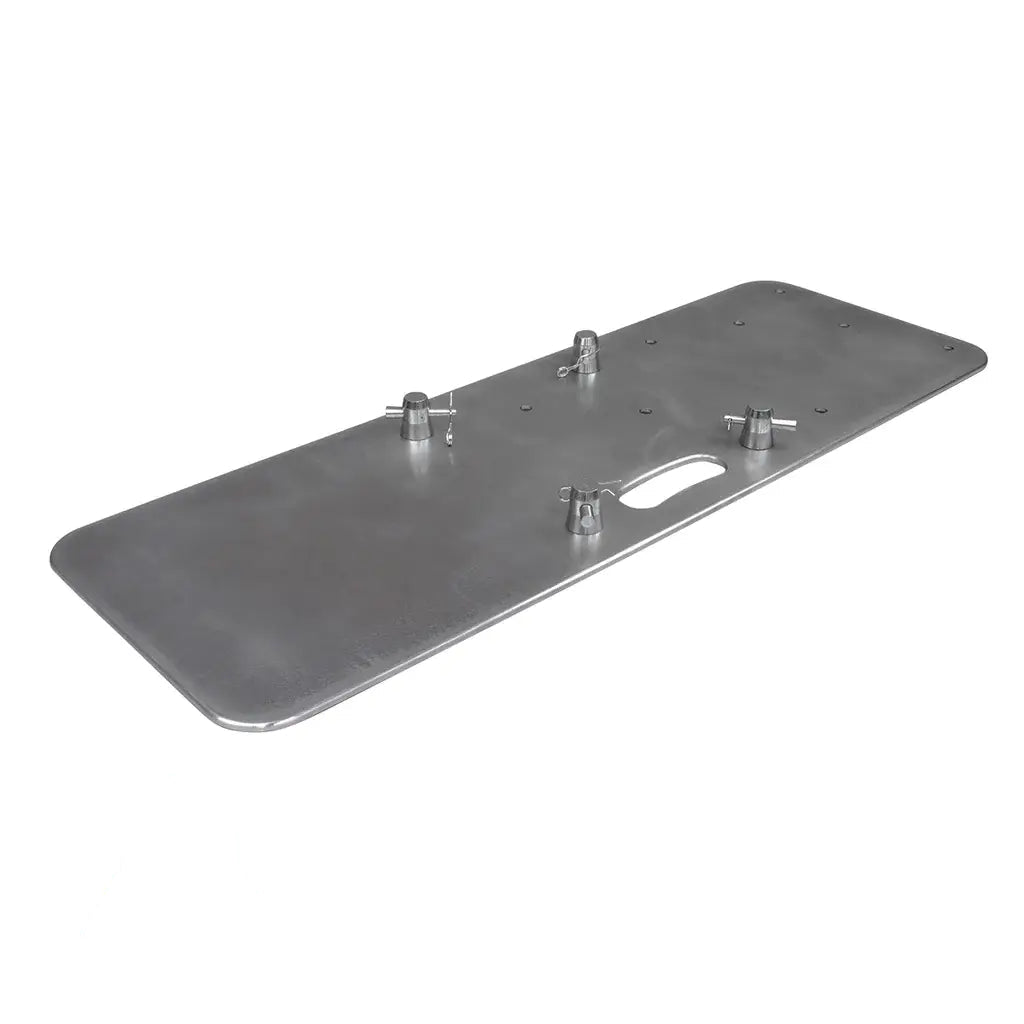

Titan AV 1000x350 Aluminium Base Plate - 290 Truss
