  • SKU: TR-SQ30-90DC

Titan AV 90 Deg Curved Corner 290mm Box Truss

$480.00 $565.00
    DESCRIPTION

    290 Lighting or stage truss allows lighting designers the freedom to hang LED or Automated fixtures, often called “movers” wherever they choose. Lighting Truss can be found in Theatre, concert, performance arts, or tradeshows, arenas and stadiums.  Anywhere staging equipment is deployed you are likely to find aluminium lighting truss.

    “Sticks” or sections of the truss can be connected together to create a structure allowing lighting fixtures, video, audio or other staging equipment to be hung with ease. Lighting Truss comes in several different lengths and when connected together, create longer spans or different shapes.

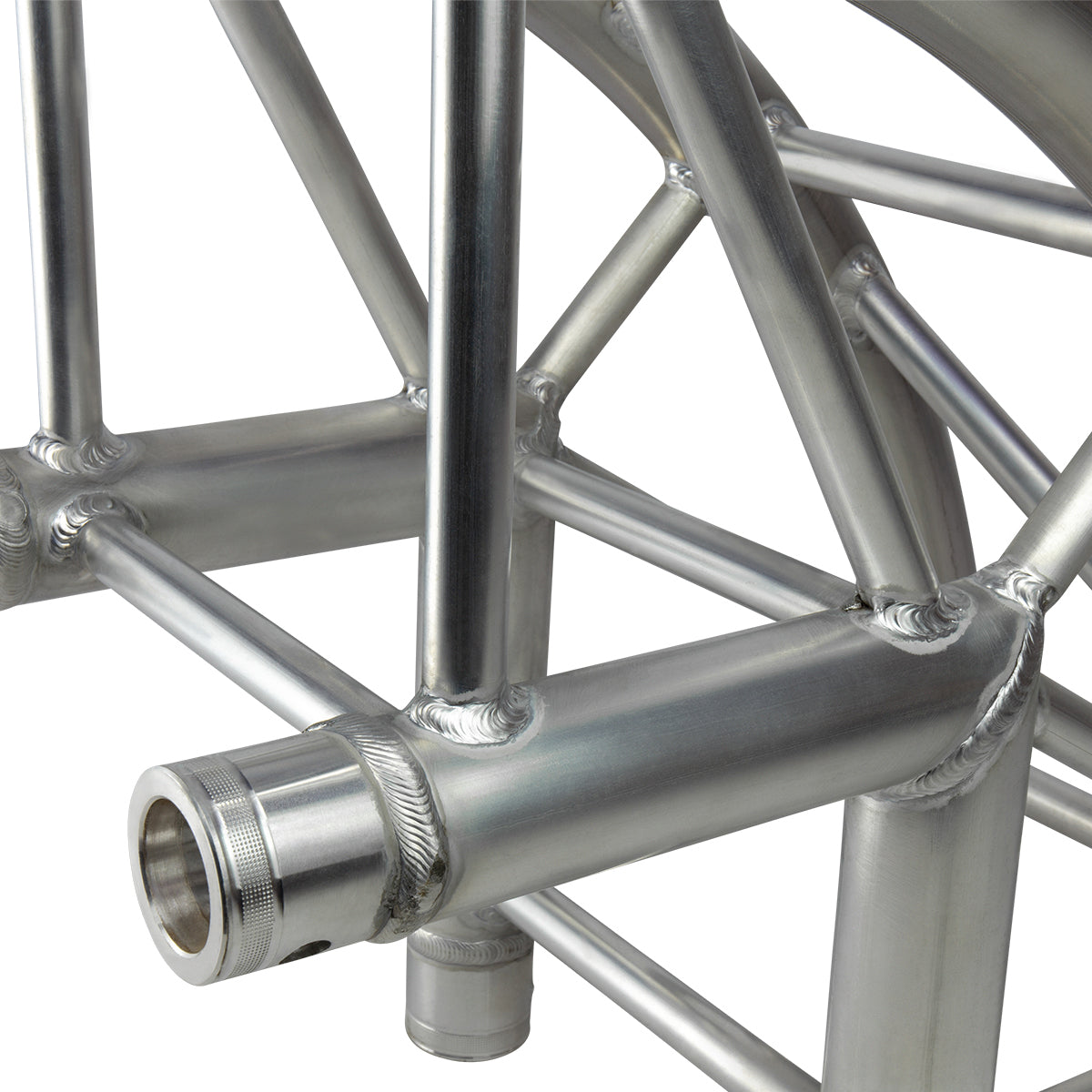

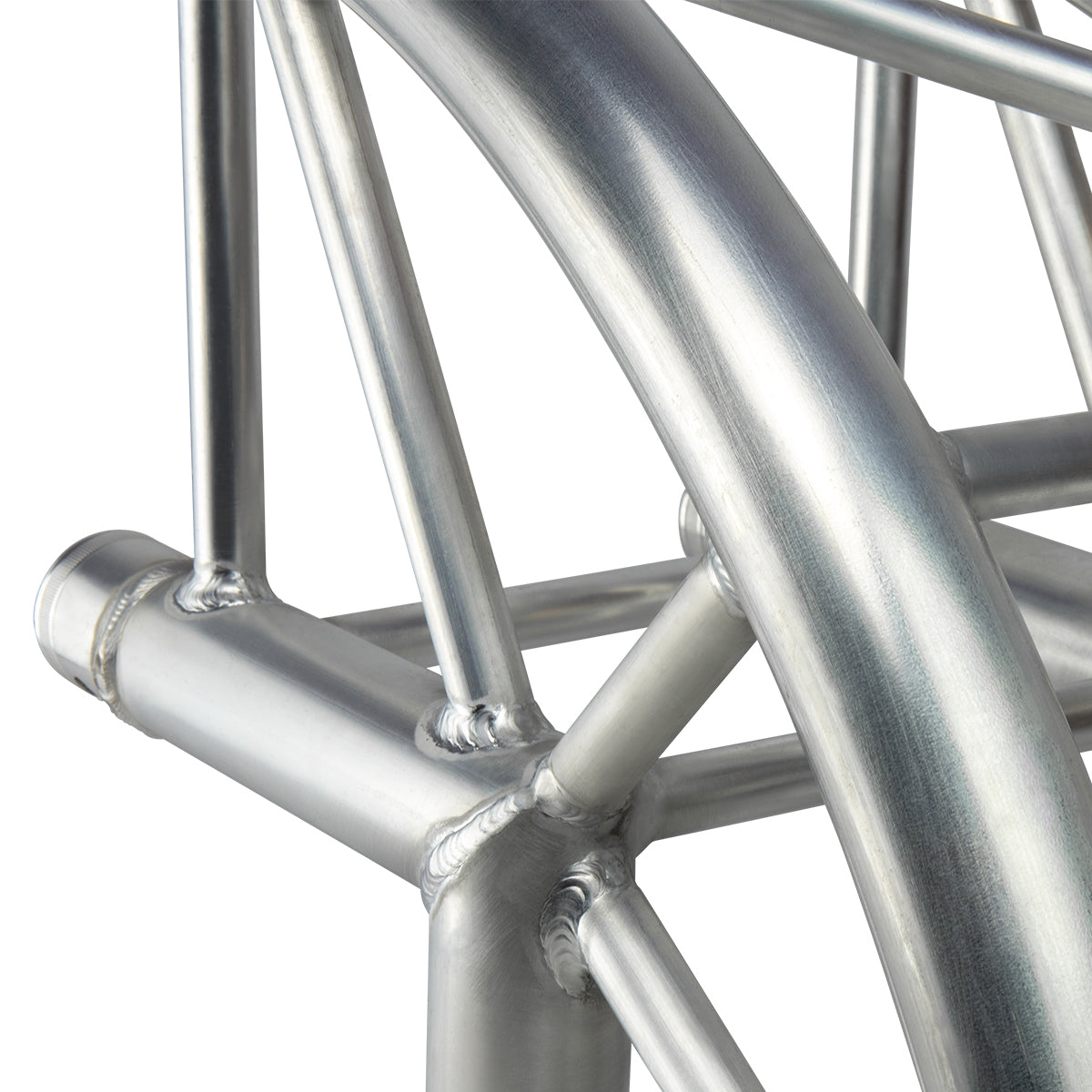

    This 290mm box trussing is constructed from 6082-T6 aluminium with 50x2mm main tube and 20x2mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips.

    Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.

    Features:

    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Set of spigots (conical couplers) and pins included in sale (4 x Spigots, 8 x Pins & 8 x Clips)
    • Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
    • Event application: Stage production, Venues, Exhibitions, Clubs & Churches
    • Warranty: 2 years

    Specs:

    • Length: 0.5m
    • Height: 0.5m
    • Weight: 6 kg
    • Material: 6082-T6 Aluminium
    • Main tube: 50mm (Wall thickness - 2mm)
    • Braces: 20mm (Wall thickness - 2mm)

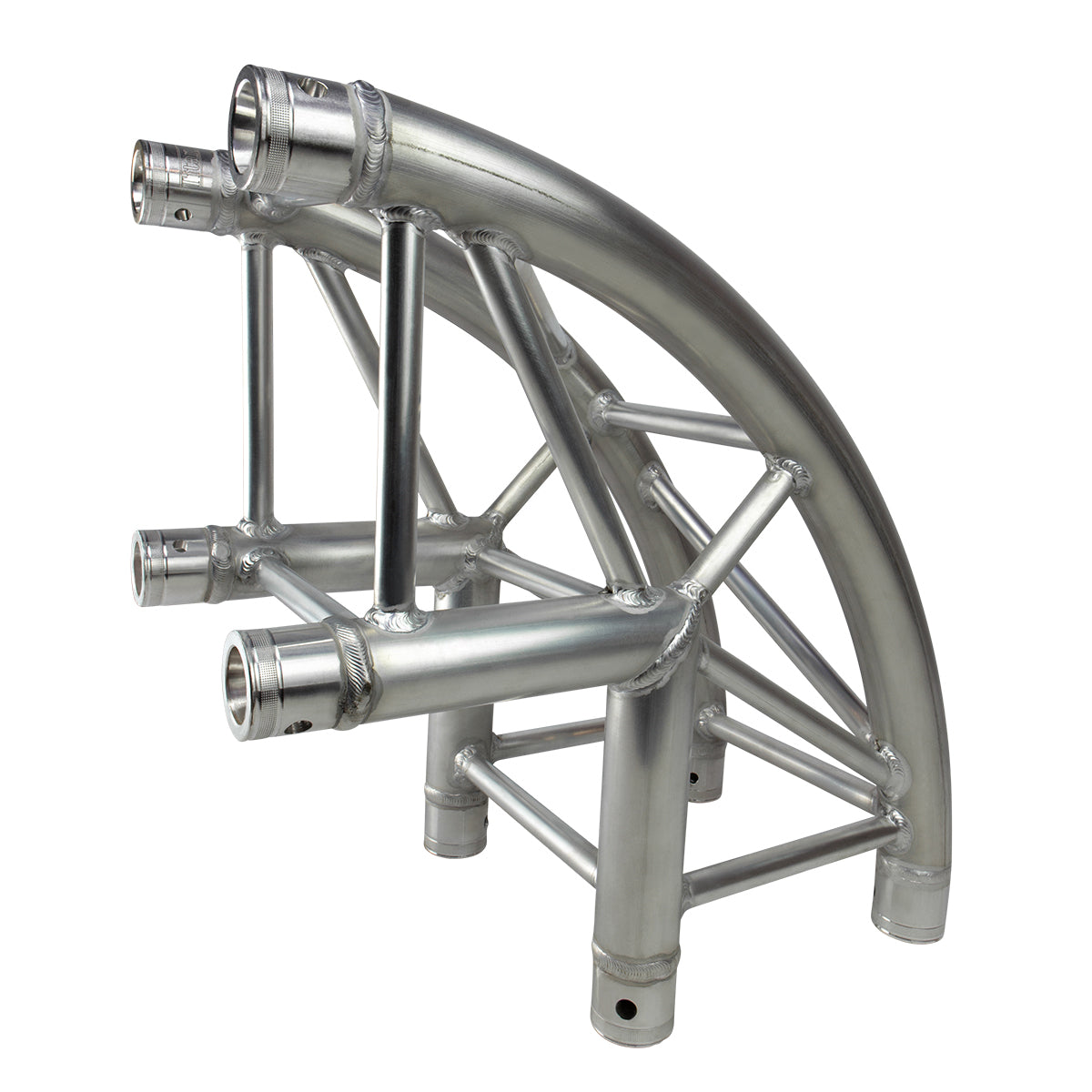

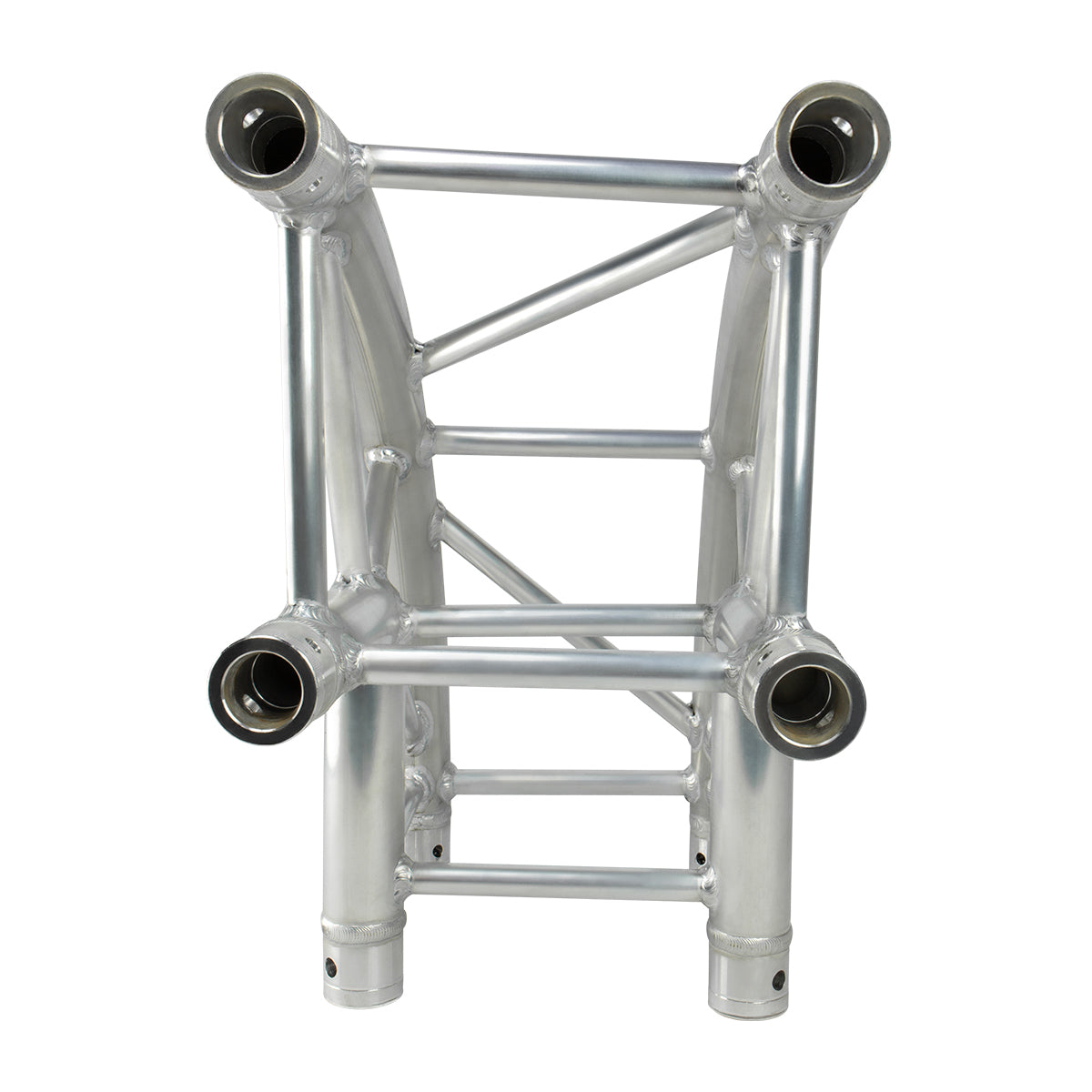

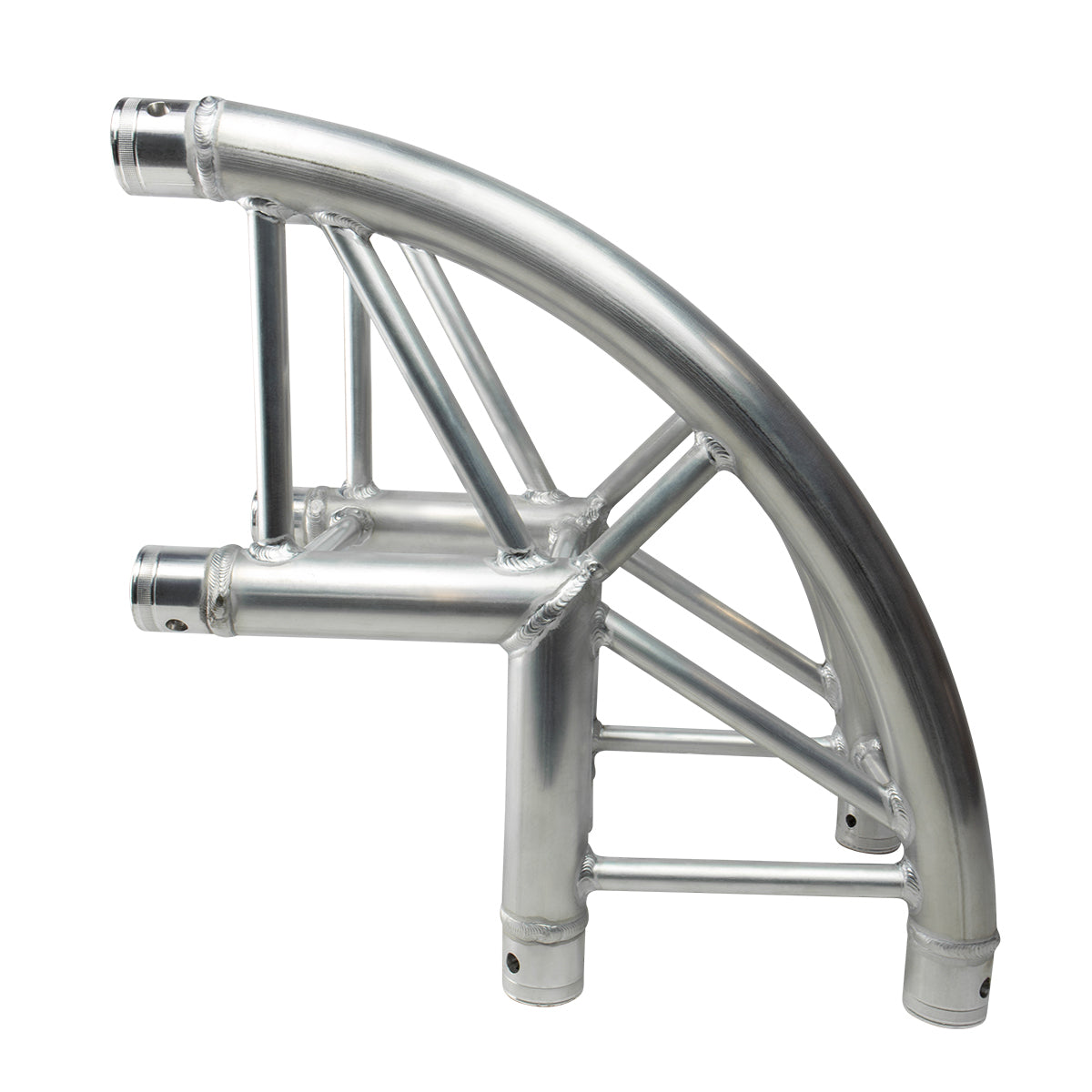

    • 1 x Curved 90 Deg Box 290 x 290mm Truss



    290mm Box Truss Load Table

    Span Uniformly Distributed Load (UDL) Deflection Centre Point Load (CPL) Deflection
    M KG/M MM KG MM
    3 320 10 1260 12
    4 285 24 1080 19
    5 290 50 960 29
    6 175 60 870 42
    7 110 69 780 57
    8 78 80 720 720
    9 55 90 600 89
    10 40 100 600 99
    11 30 109 500 109
    12 24 124 420 118
