Titan AV 50mm Truss Clamp Easy Trigger SWL 250 kg - Black
Titan AV 50mm Truss Clamp Easy Trigger SWL 250 kg - Black
  • SKU: TR-CLP50-D5

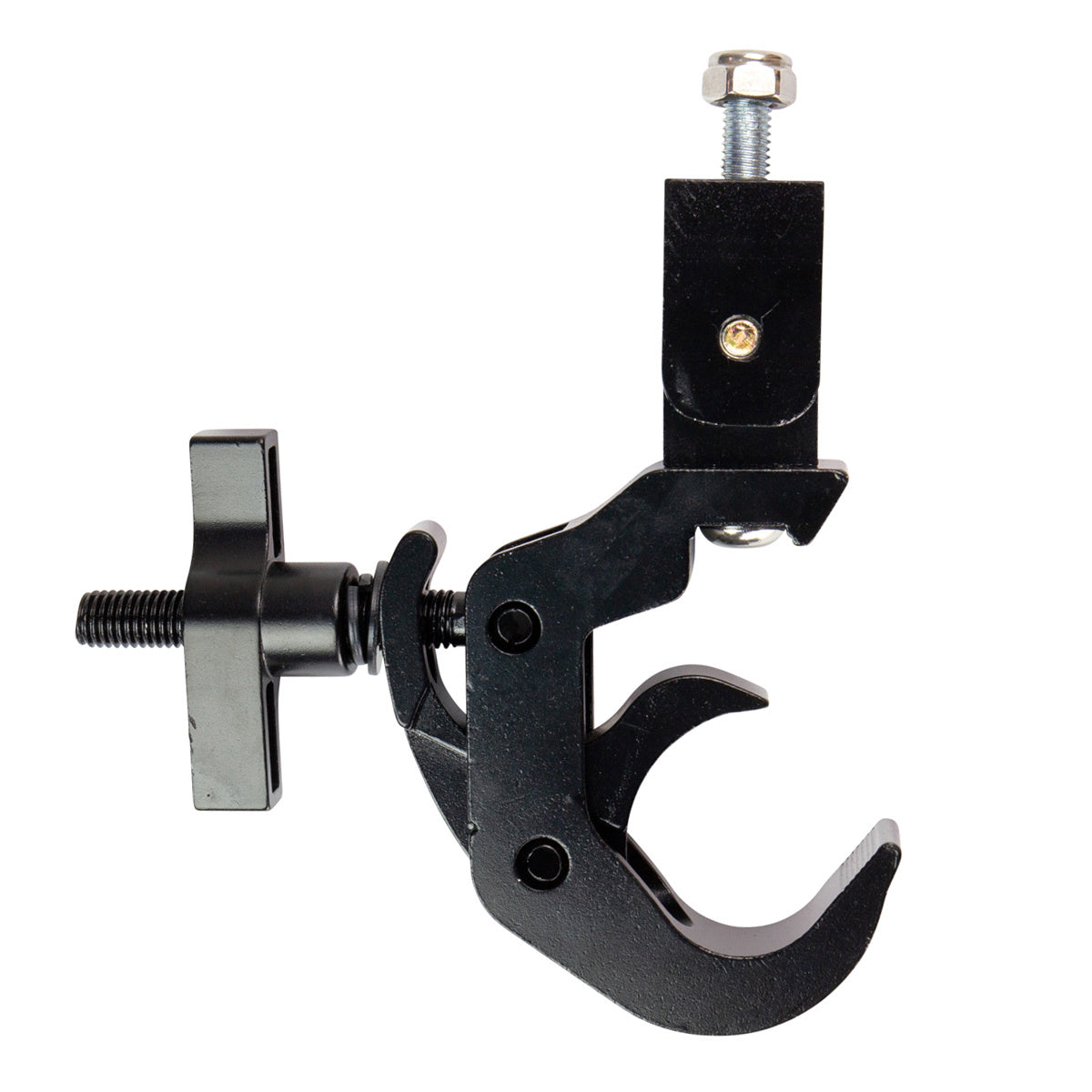

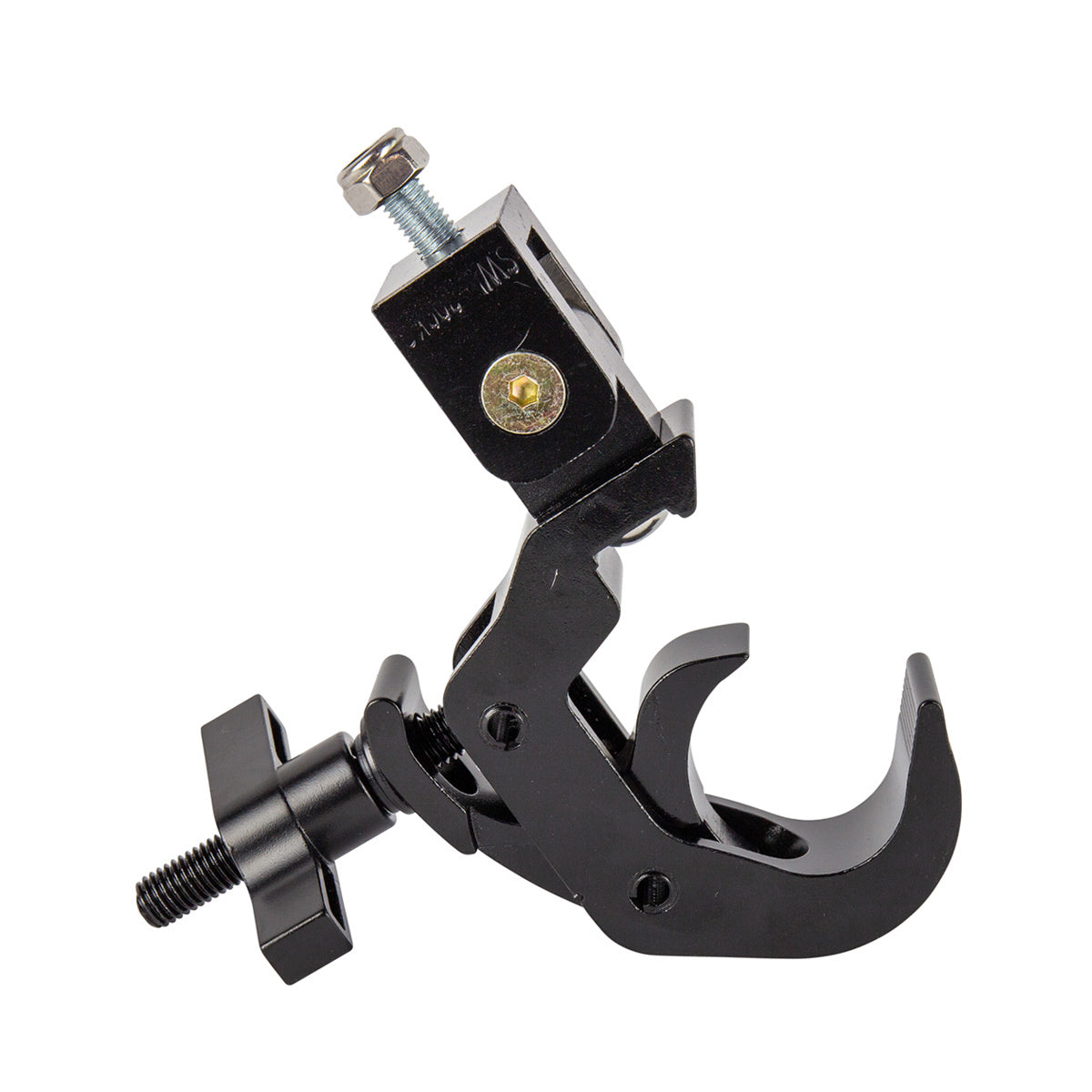

Titan AV 50mm Truss Lighting Clamp Easy Trigger SWL 250 kg - Black

    This easy trigger clamp or easy self lock hook is perfect for hanging lighting fixtures to 50mm tube or truss. High quality trigger clamp, made from aluminium with a black powder coat finish and a safe working load (SWL) of 250 kg. The easy trigger or self lock hook is a fast and simple way to attach devices to truss thanks to the location of the lateral screw which prevents hooking itself to the devices or cross beams on the truss. The oversized wing nut makes it easy to lock the coupler in place and perfect for one person rigging.
    All Titan AV Trigger clamps are supplied fitted with a folding mount, also know as folding clamps. Folding clamps enable a clamp to be permanently fitted to a lighting fixture or a projector and fold into a storage position to save space when inside a case. Folding mounts are spring loaded for easy fold up or down, folding mounts can be removed if not required.
    Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV 50mm clamps comply with Australian engineering standards.

    *Please Note; Only the clamp is loaded rated, it is highly recommended that a loaded rated butterfly nut and bolt be used in applications that have heavy loads*


    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Slim line look
    • Black powder coat finish
    • Folding mount included
    • Very high quality build and design
    • Will work with 45-50mm tube & 290 Box, Tri and Flat truss
    • Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
    • Warranty: 12 months
    • Dimensions: 160 x 170 x 30mm (DxHxW) (Including bolts)
    • Weight: 0.6 Kg
    • Max load rating 250kg
    • 1 x 50mm easy trigger / self lock hook with folding option, medium duty
