3 Metre 290mm Tri Truss is backordered and will ship as soon as it is back in stock.
Description
Description

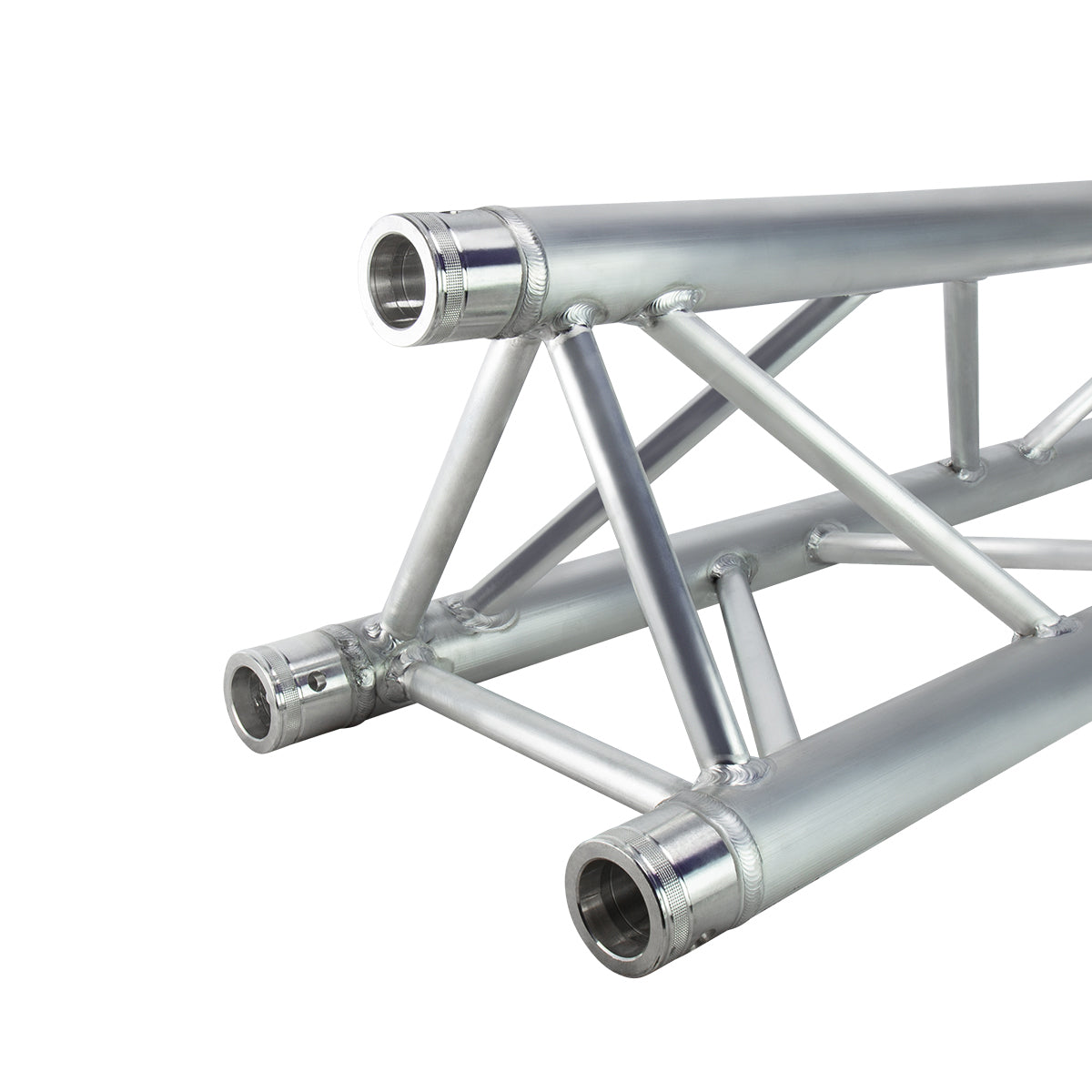

The TR-ST30 series truss is a 290 Tri truss, which has a triangular profile, is a popular choice for lighting and decorative applications. Tri Truss is often referred to as a multipurpose truss because of its low volume and versatile design making it suitable for installation, low intensity rental (Indoor) and exhibition markets.

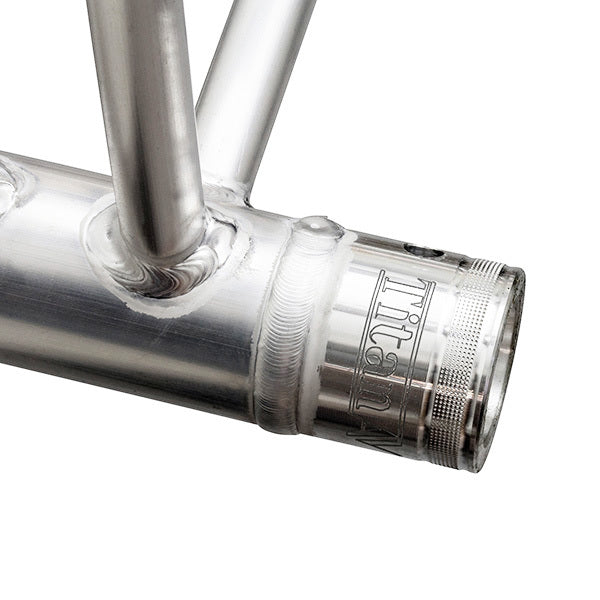

Thanks to the innovative conical coupling system the 290 Tri truss is fast and easy to assemble. Tri truss is available in multiple lengths, a range of corners, a range of mounting and adapter accessories and base plates. This style of 290mm trussing is also available in Box/square and flat/ladder profiles.
Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.
Tri Truss Features:
- Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)

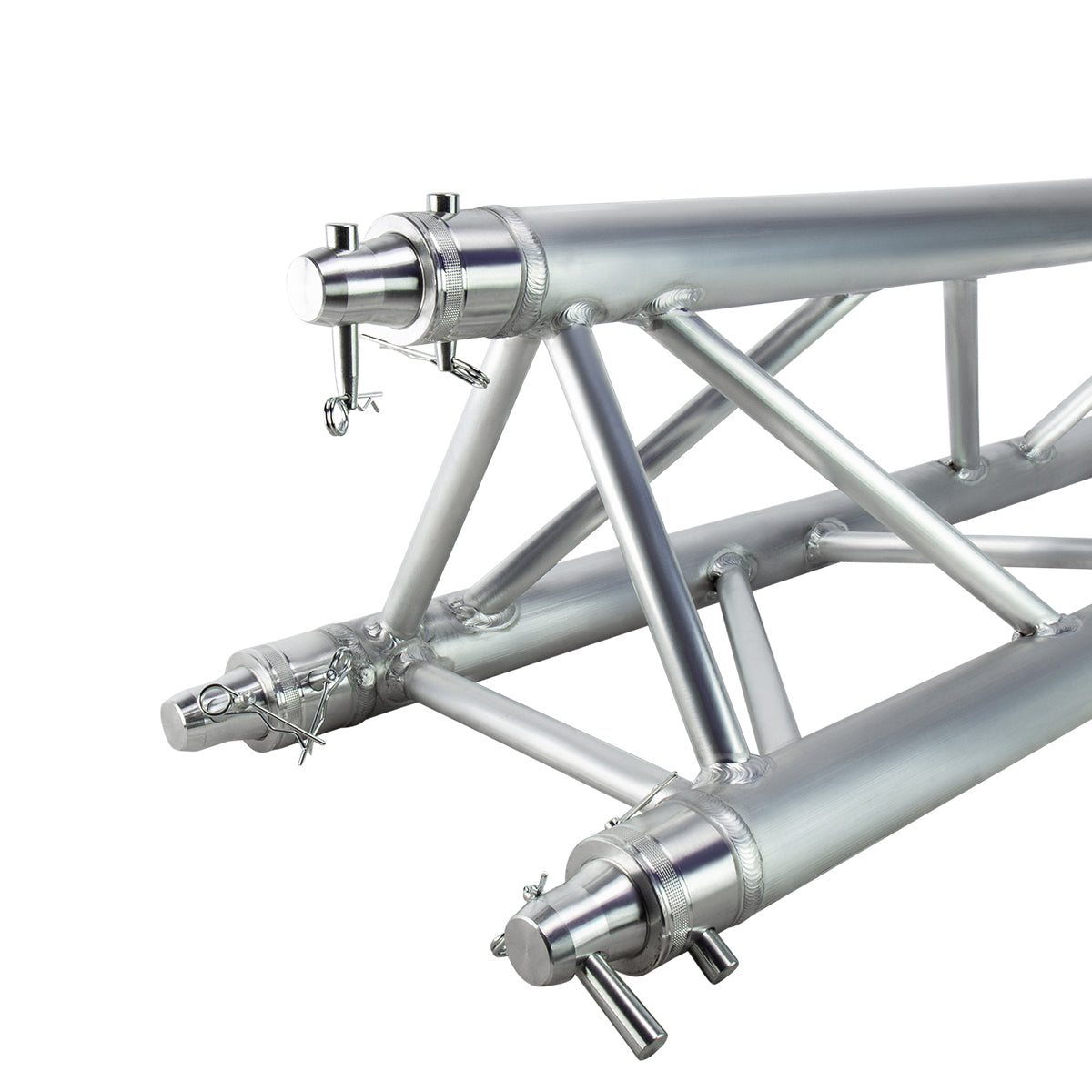

- Set of spigots (conical couplers) and pins included in sale (3 x Spigots, 6 x Pins & 6 x Clips)
- Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
- Event application: Stage production, Venues, Exhibitions, Clubs & Churches
- Custom colours available (Powder coating), contact Titan AV team for a quote
- Warranty: 2 years
Tri Truss Specifications:
- Length: 3m
- Weight: 15 kg
- Material: 6082-T6 Aluminium
- Main tube: 50 x 2mm
- Braces: 20 x 2mm
- 1 x 3m 290 Tri Truss
Tri Truss Load Table
| Span | Uniformly Distributed Load (UDL) | Deflection | Centre Point Load (CPL) | Deflection |
|---|---|---|---|---|
| M | KG/M | MM | KG | MM |
| 1 | 243.6 | 9.4 | 233.0 | 6.3 |
| 2 | 121.8 | 18.8 | 222.9 | 12.7 |
| 3 | 81.2 | 28.2 | 212.8 | 19.0 |
| 4 | 60.9 | 37.6 | 202.6 | 25.3 |
| 5 | 48.7 | 47.1 | 192.5 | 31.7 |
| 6 | 40.6 | 56.5 | 182.4 | 38.0 |
| 7 | 34.8 | 65.9 | 172.3 | 44.3 |
| 8 | 30.5 | 75.3 | 162.1 | 50.6 |
| 9 | 27.1 | 84.7 | 152.0 | 57.0 |
| 10 | 24.4 | 94.1 | 141.9 | 63.3 |
| 11 | 22.1 | 103.5 | 131.7 | 69.6 |
| 12 | 20.3 | 113.0 | 121.6 | 76.0 |
