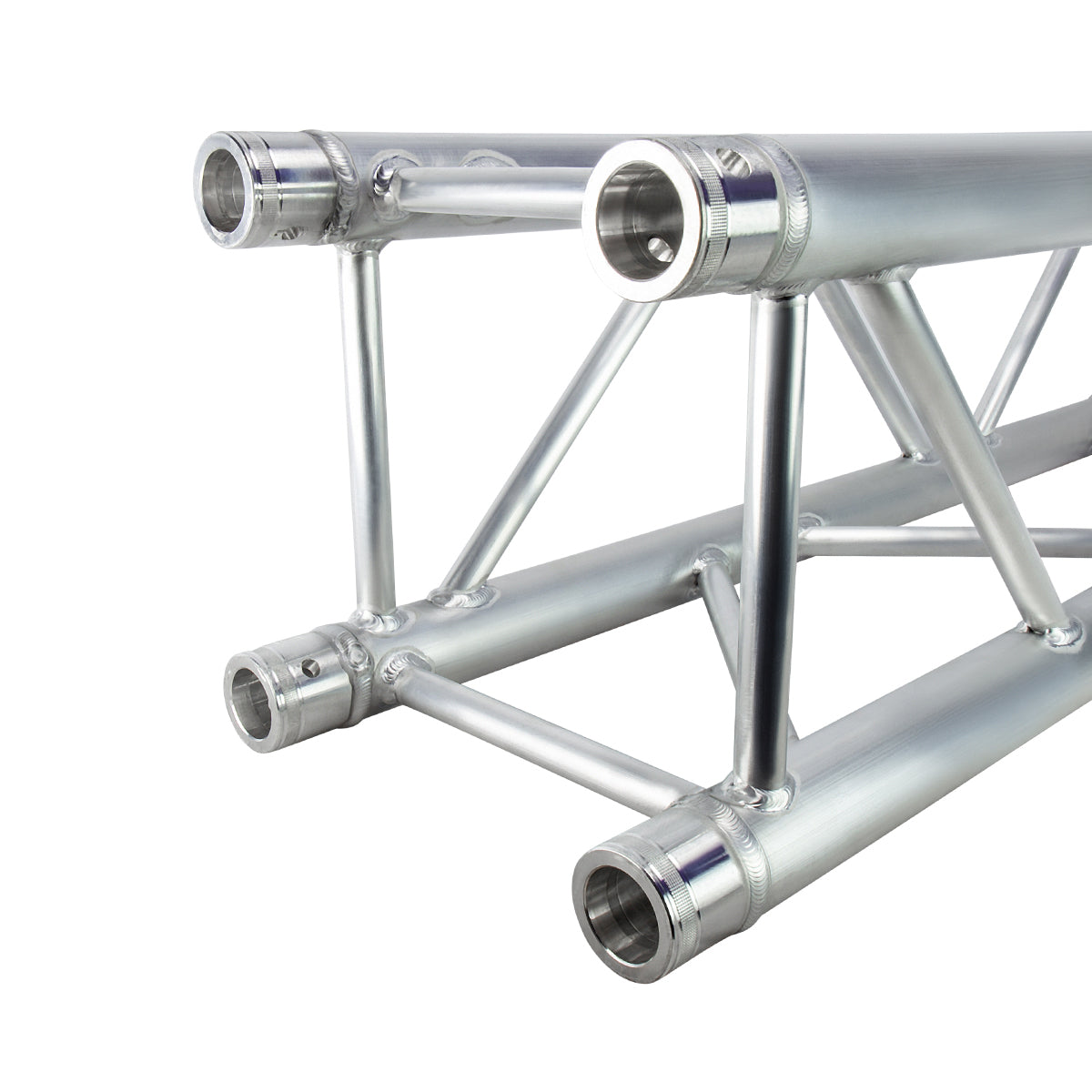

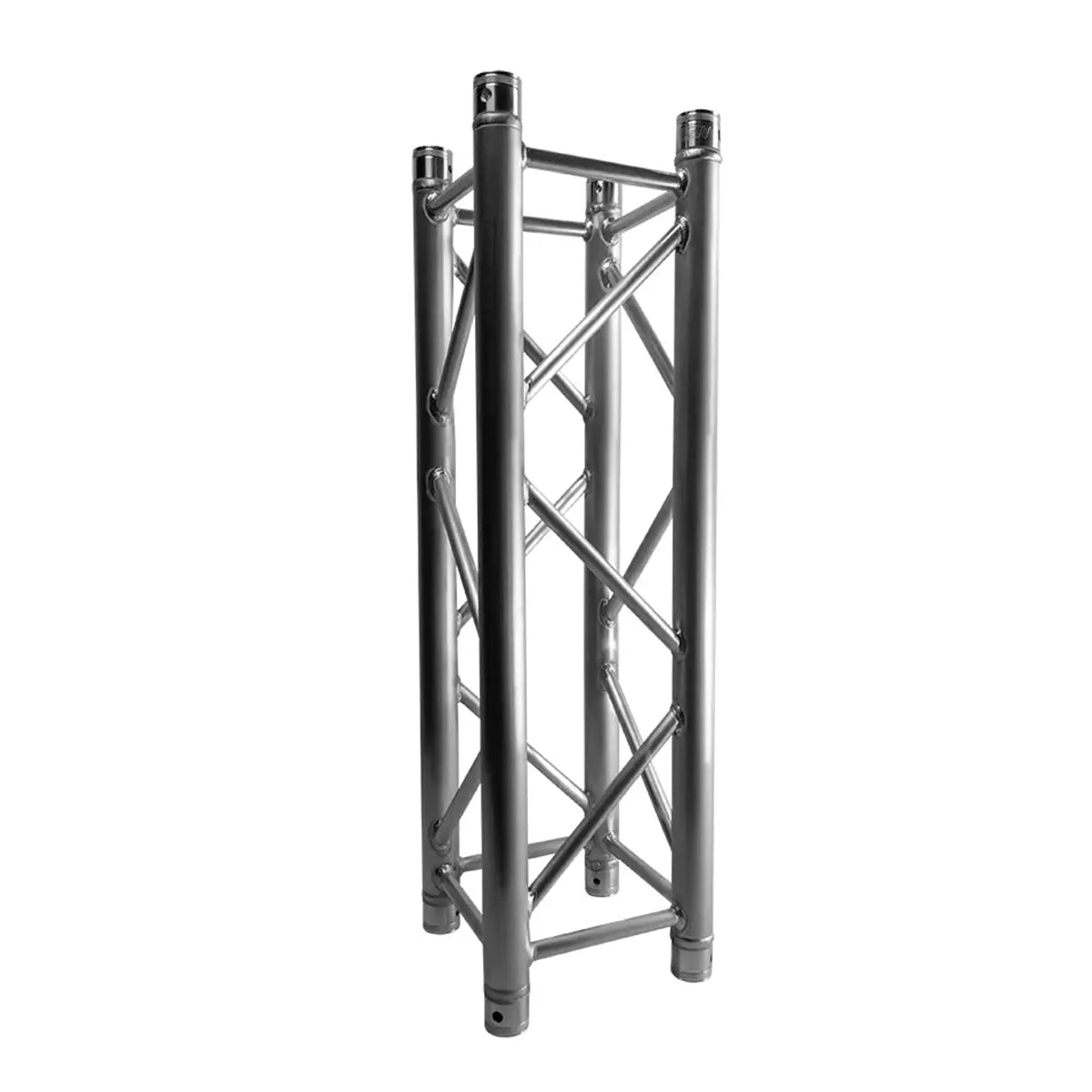

1m 290mm Box Truss

Versatile, Strong, and Easy-to-Assemble Stage Lighting Truss

    Discover the ultimate in truss engineering with the Titan AV 1m 290mm Box Truss. Designed for small to medium-sized productions, this truss offers unmatched strength, versatility, and ease of assembly.

    Why Titan AV 1m 290mm Box Truss?

    Built to Last: Crafted from high-quality 6082-T6 aluminium and assembled by master welders, our box truss ensures durability and strength. It's not just about holding equipment overhead; it's about trusting that your truss will perform flawlessly every time.

    Safety First: Your safety is paramount. That’s why Titan AV truss undergoes rigorous testing by independent engineers at the University of Southern Queensland. With a 1.5 factor rating built into our load tables, you can rig with confidence knowing your truss won’t let you down.

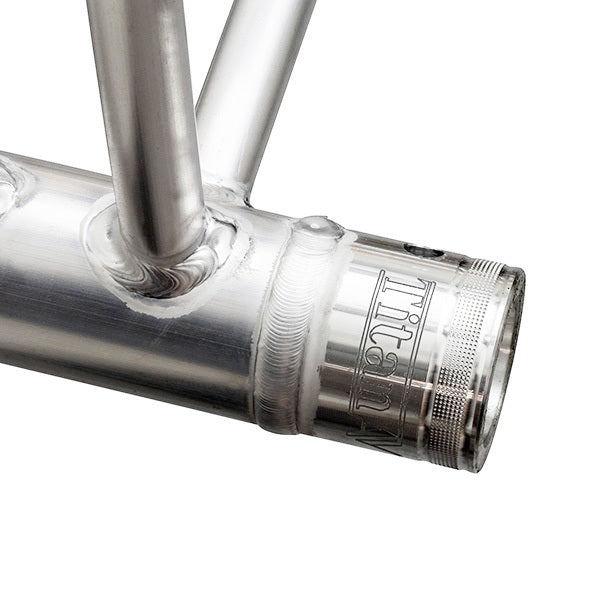

    Versatile Design: The innovative conical coupling system makes assembly quick and easy, saving you valuable setup time. The 290mm Box Truss is multipurpose, ideal for video walls, moving heads, heavy lighting, display panels, and more.

    Customisation Options: Stand out from the crowd with our custom colour powder coating service. Choose from a variety of colours to match your brand or event theme. This optional extra allows you to personalise your truss and make a lasting impression.

    Trusted Nationwide: From schools and universities to large-scale festivals and multinational events, Titan AV truss is trusted by professionals across Australia. Join a community of AV enthusiasts who rely on Titan AV for their most important events.

    Key Features:

    • Australian Engineering Certification: Independently tested for maximum safety.

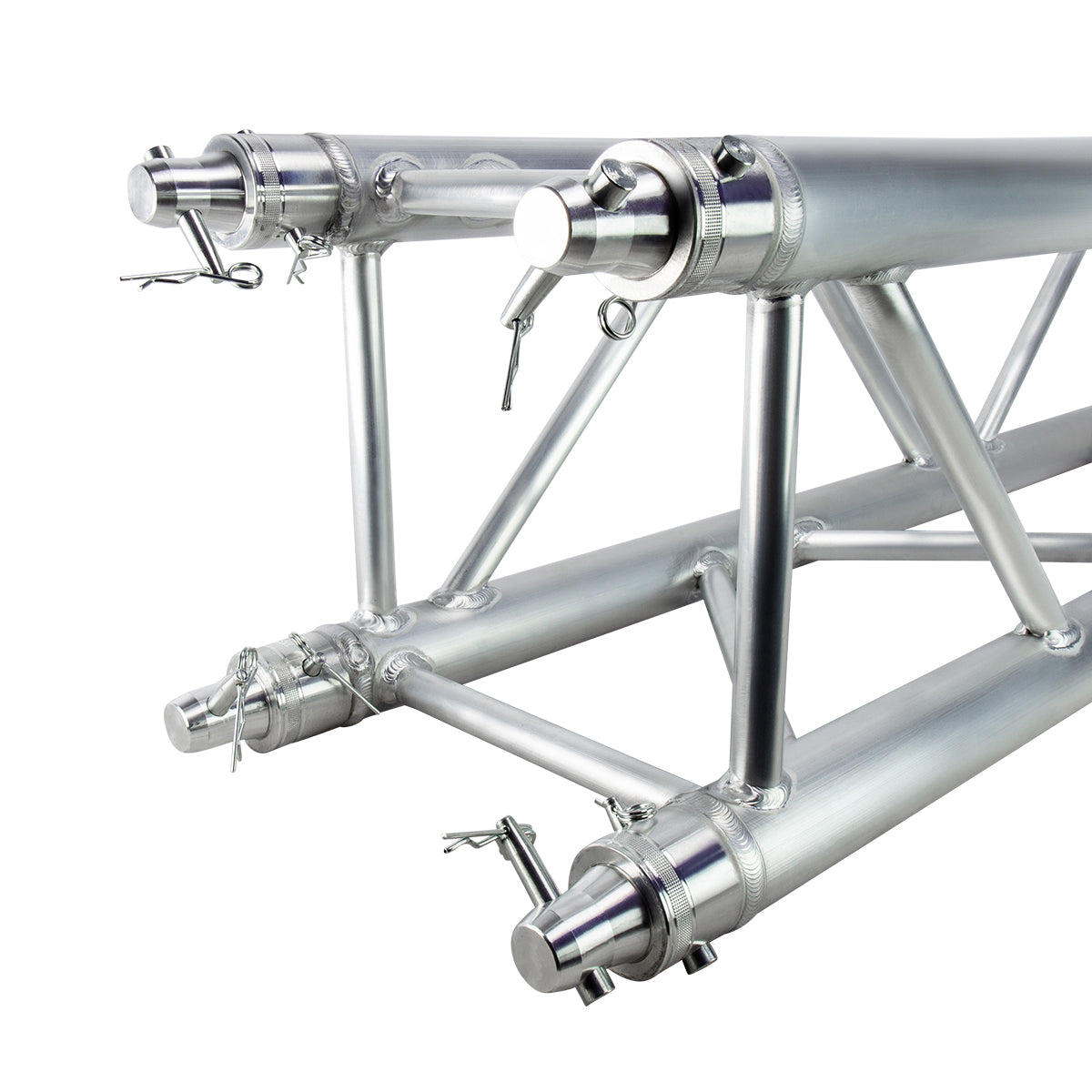

    • Complete Rigging Set: Includes 4 spigots, 8 pins, and 8 clips for secure assembly.
    • Wide Range of Applications: Perfect for stage productions, venues, exhibitions, clubs, and churches.
    • Custom Colours Available: Contact us for a quote on powder coating options.
    • Warranty: Enjoy peace of mind with our 2-year warranty.


    • Length: 1m
    • Weight: 7 kg
    • Material: 6082-T6 Aluminium
    • Finish: Milled
    • Main Tube: 50mm (2mm wall thickness)
    • Braces: 20mm (2mm wall thickness)

    290mm Box Truss: Safety Load Table

    Span Uniformly Distributed Load (UDL) Deflection Centre Point Load (CPL) Deflection
    3 320 10 1260 12
    4 285 24 1080 19
    5 290 50 960 29
    6 175 60 870 42
    7 110 69 780 57
    8 78 80 720 720
    9 55 90 600 89
    10 40 100 600 99
    11 30 109 500 109
    12 24 124 420 118

    Embrace the Titan AV difference and elevate your AV setups with our 1m 290mm Box Truss. Join our community of passionate AV enthusiasts and experience the quality and reliability that Titan AV brings to every event. Get in touch with us today to learn more!
